Ok so got it ruining again and once it got a little warm she shut off again.

Tried to start it again straight away

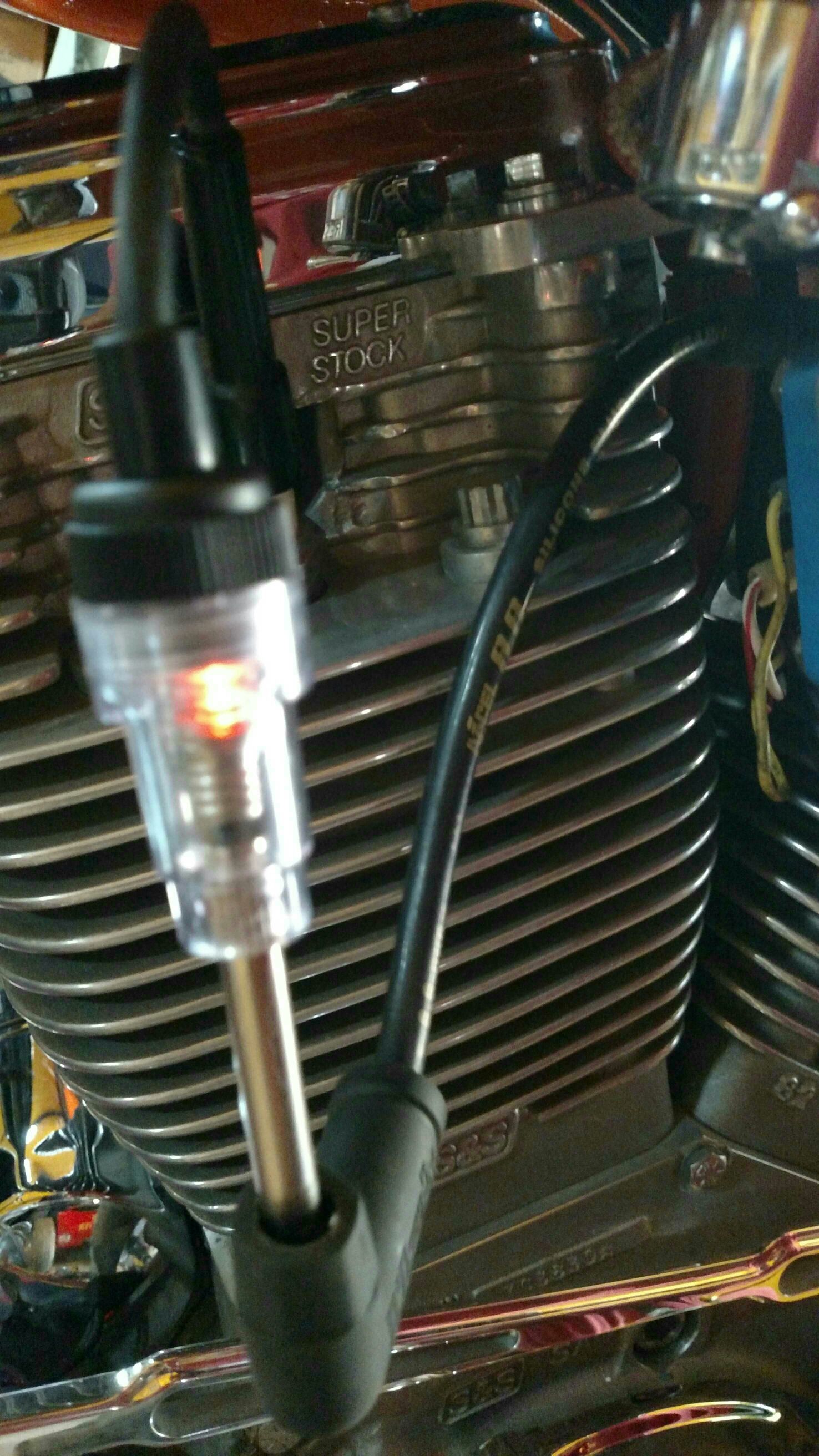

No Spark

So what makes it shut off once it get warm???

I've rechecked all plugs into the module
Am uneducated guess says the plugs into the module is not the issue.



Live Free and Ride Hard

BadDawg Bill

BadDawg Bill

Well-Known Member
I had that happen on my custom build one time and it was the coil. They have a liquid inside that if they are cracked inside the liquid expands and shorts out the coil. Could be that... Good luck.

Ribs

Ribs

Live Free & Ride Hard
BadDawg Bill said:
I had that happen on my custom build one time and it was the coil. They have a liquid inside that if they are cracked inside the liquid expands and shorts out the coil. Could be that... Good luck.
Click to expand...
I have two coils the original and the new one . And symptoms are the same with both once the bike is cool or has sat for long periods it will start and run like it wants to go for a ride. After a few short minutes it dies. Then does not want to start again.
I pulled that micro relay and shook it there was doing broken inside.
I went and got a new one and put it in the bike hoping for a break. Nope same thing no spark no ignition LED.
No start

I've messaged emailed thunder heart I hope they get back to me.

Live Free and Ride Hard

Ribs

Ribs

Live Free & Ride Hard
FrankBDPS said:
What is a micro relay?
Click to expand...

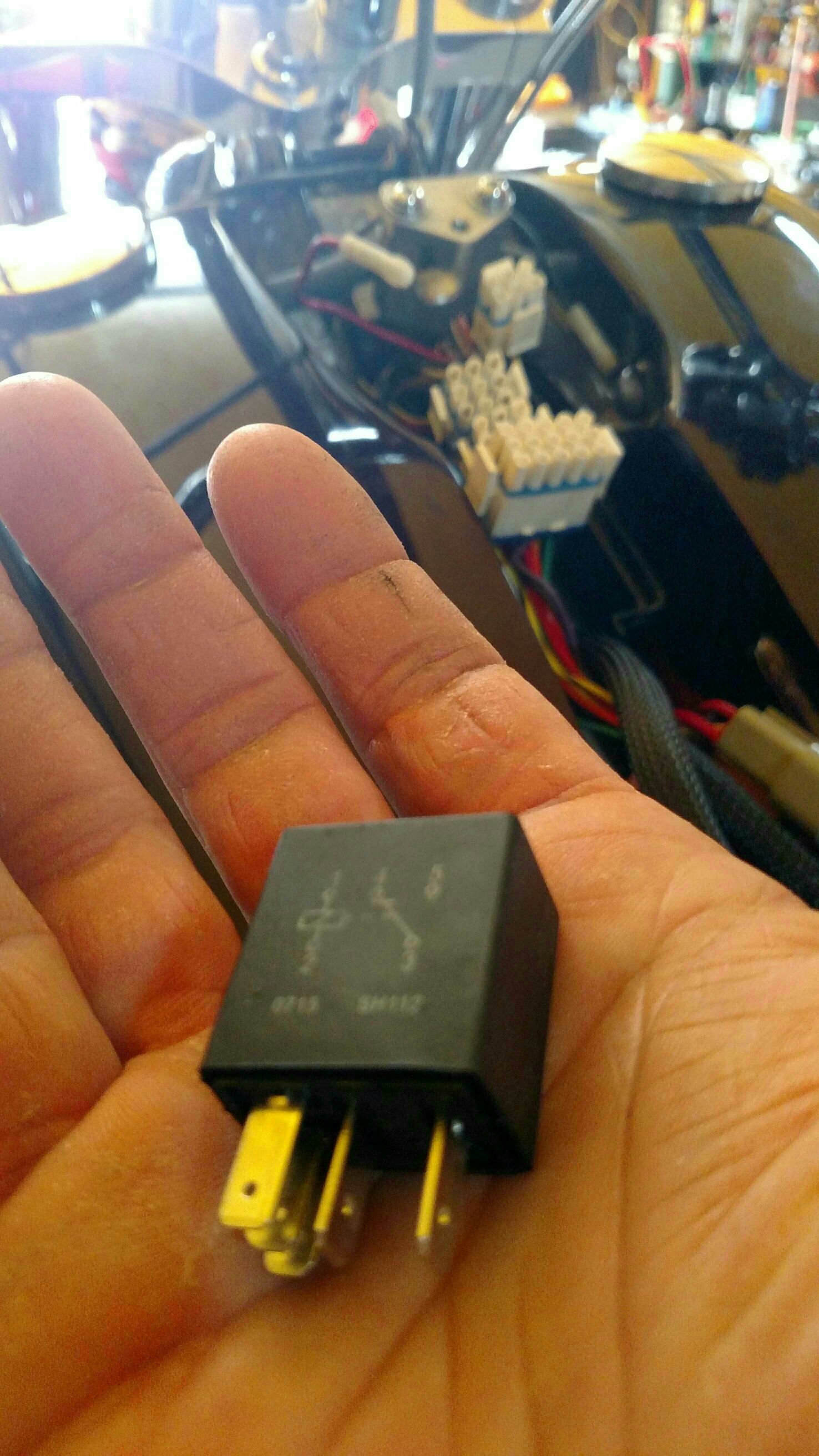

This one is the new one the old one I took out of the ignition module had bits loose inside. I opened it up and it was a diode that exploded.
This one I got at Orieleys auto parts they cross reference it from the original part number. After plugging it in the chopper and kicking it in the guts,
It did not help still no ignition.

I have ordered a new thunder heart module and it looks like it comes with all the wires as well.
Should I attempt to plug and play?
or change out all the old wiring?

I know what I'd prefer lol


Live Free and Ride Hard

Th3InfamousI

Th3InfamousI

Administrator
Staff member
Ribs said:

This one is the new one the old one I took out of the ignition module had bits loose inside. I opened it up and it was a diode that exploded.
This one I got at Orieleys auto parts they cross reference it from the original part number. After plugging it in the chopper and kicking it in the guts,
It did not help still no ignition.

I have ordered a new thunder heart module and it looks like it comes with all the wires as well.
Should I attempt to plug and play?
or change out all the old wiring?

I know what I'd prefer lol


Live Free and Ride Hard
Click to expand...
That relay shouldn't have anything to do with the ignition. I'm not sure what that is for? If your bike had the stock EHC from 03 I do not believe you would have any of those relays unless someone has done some Micky Mousing.

I think we are all getting a little mixed up here.

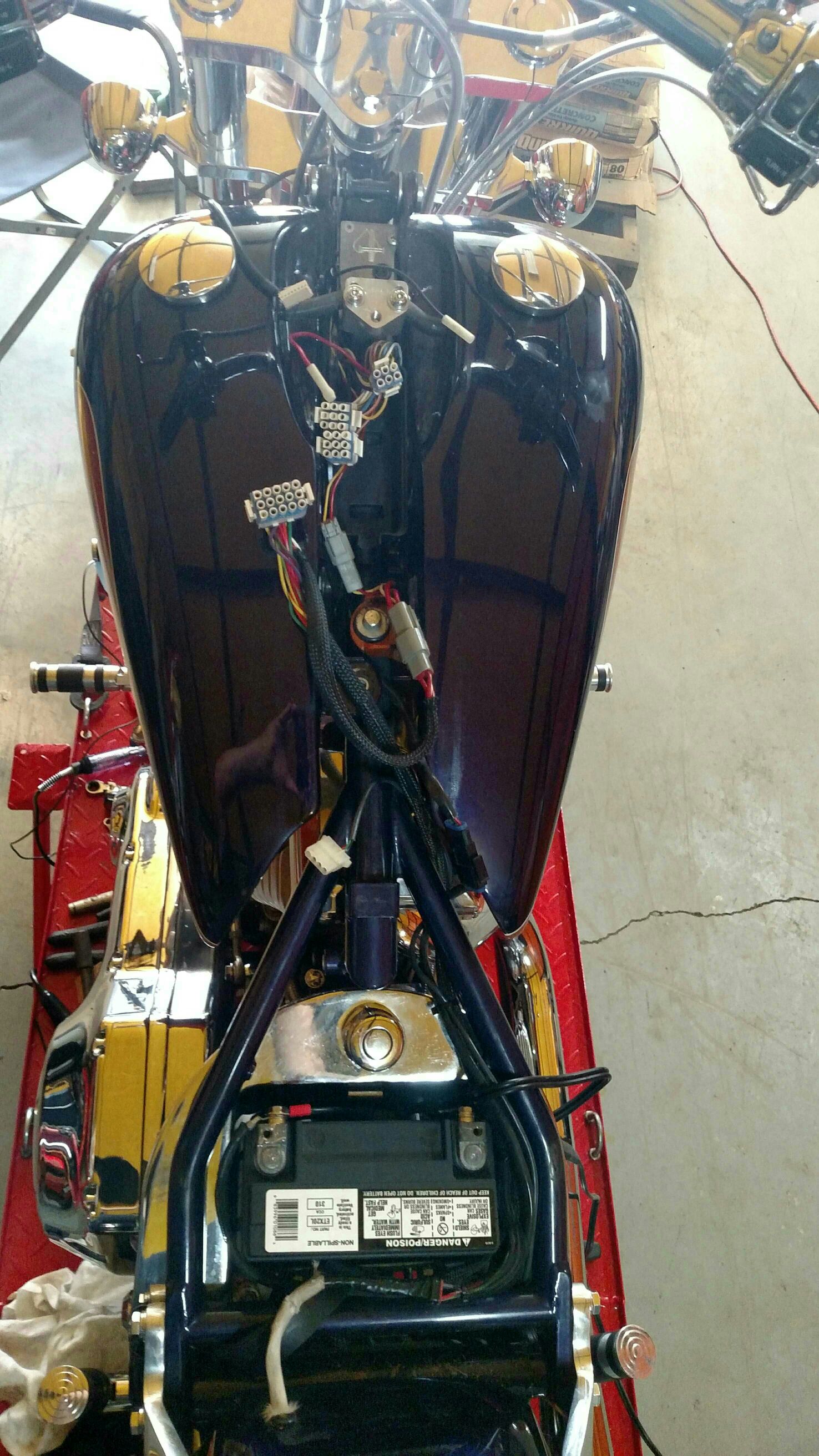

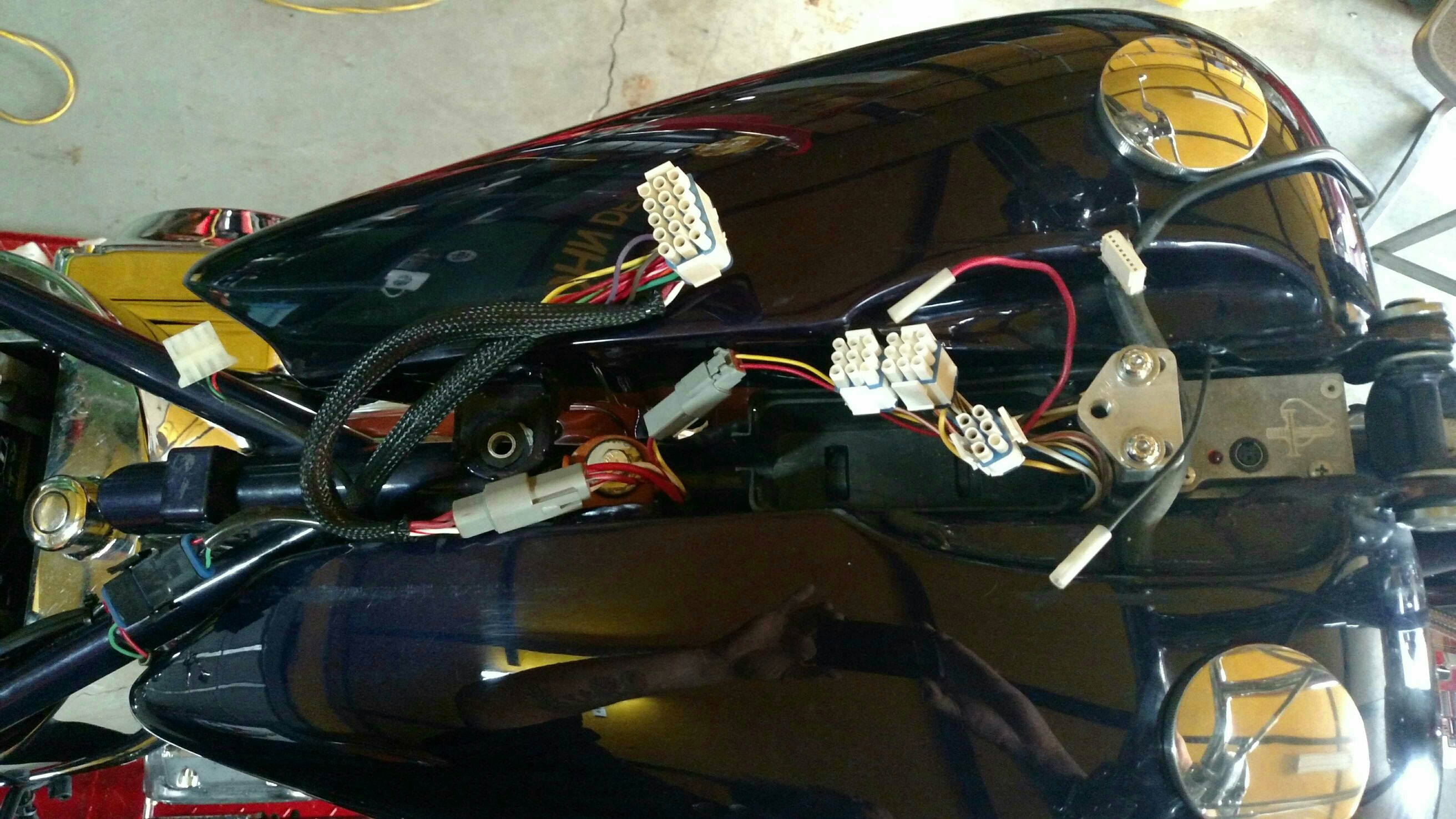

Can you take a few pictures of this whole wiring thing we got going on here under the seat? And tanks

Sent from my 2PS64 using Tapatalk
