Baker transmission fail

[Jwooky]

Sounds like what I'm going to have to do. Did you take your transmission off or take it some where?

I took it out myself and drove it to baker. They are only about an hour from me.



[Eric creed]

Good information. And re

If the back tire is in the air your good, you do know that the whole primary drive has to be removed also, to be able to get to the bolts holding the tranny and primary back plate together,

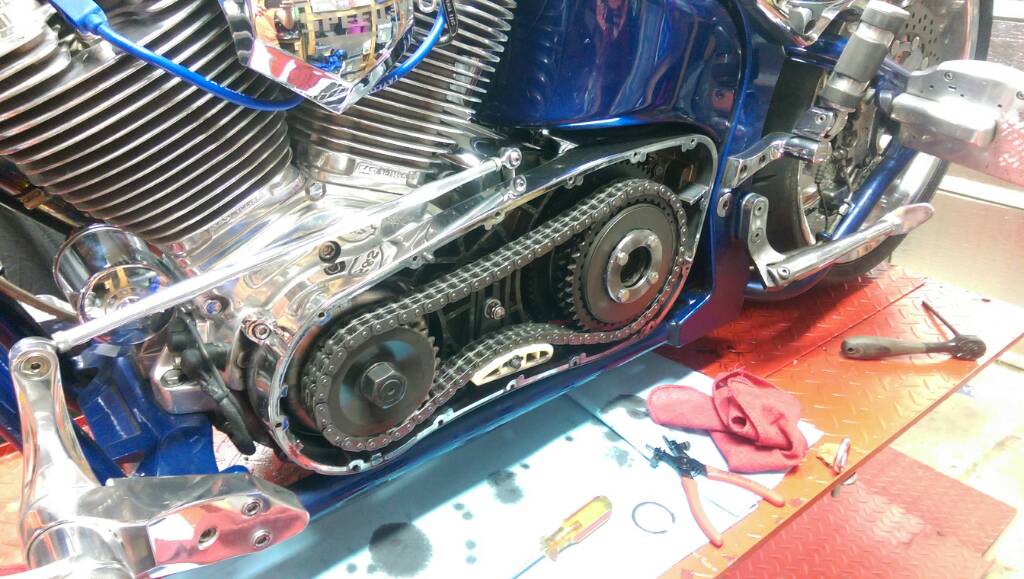

View attachment 31473

Good information. And those bolts to the shocks was so tight It took everything I had to turn them why I thought it still had pressure. I'll give it another shot.



[Eric creed]

That looks familiar! Was just staring at that same bike in the same state in my garage haha

Sent from my 831C using Tapatalk

You having any trouble getting to the bottom bolts of the transmission?



[Eric creed]

I took it out myself and drove it to baker. They are only about an hour from me.

Did you have trouble getting anything off that I should know about.



[Th3InfamousI]

You having any trouble getting to the bottom bolts of the transmission?

Haven't tried. My transmission isn't coming out...hopefully for a long time!

Sent from my 831C using Tapatalk



[BWG56]

Good information. And re

Good information. And those bolts to the shocks was so tight It took everything I had to turn them why I thought it still had pressure. I'll give it another shot.

Put blocks of wood under your rear tire so the swing arm won't move when you take the shock bolts out.



[Eric creed]

Put blocks of wood under your rear tire so the swing arm won't move when you take the shock bolts out.

That's exactly how it is now. About to try now. Those bolts are just almost impossible to turn.



[BWG56]

The red loctite will ease up if you heat the bolts



[Eric creed]

Got it yesssss. I had to hammer them off but I got them.



[Jwooky]

Did you have trouble getting anything off that I should know about.

No not really. I did drop one of the shock bolts to access the trans bolts. Have to use a combination wrench on most of them.

Clutch hub nut (Right hand thread btw) was pretty tight so trying to loosen that and keep everything from turning was a pain. Ended up stuffing a rag in the primary. Other than that pretty straight forward.

Then putting it back together I forgot to attach the shift lever, so had to take the inner primary/starter all back off again, so don't do that.



[Eric creed]

No not really. I did drop one of the shock bolts to access the trans bolts. Have to use a combination wrench on most of them.

Clutch hub nut (Right hand thread btw) was pretty tight so trying to loosen that and keep everything from turning was a pain. Ended up stuffing a rag in the primary. Other than that pretty straight forward.

Then putting it back together I forgot to attach the shift lever, so had to take the inner primary/starter all back off again, so don't do that.

Haha thanks brother. Yeah got all the transmission bolts off now, next is getting to the bolts behind the primary. Good tips I'll use them well.



[BWG56]

N
Clutch hub nut (Right hand thread btw) was pretty tight so trying to loosen that and keep everything from turning was a pain. Ended up stuffing a rag in the primary. Other than that pretty straight forward.

t.

NO NO NO
The clutch hub nut is left hand threads NOT right hand



[LUPHOLE]

NO NO NO
The clutch hub nut is left hand threads NOT right hand

I think he means, "wrong way" threads----



[Eric creed]

NO NO NO
The clutch hub nut is left hand threads NOT right hand

Ok doing that tomorrow.



[Jwooky]

Yes... left hand (reversed) sorry.
I have to deal with Left and right hand drive at work, right being reversed, and that was on my mind.

Don't know why we don't call it what it really is...cw and ccw, its rotation not a direction.



[BWG56]

Yes... left hand (reversed) sorry.
I have to deal with Left and right hand drive at work, right being reversed, and that was on my mind.

Don't know why we don't call it what it really is...cw and ccw, its rotation not a direction.

Nobody would know what your talking about anyway, everything is digital



[Jwooky]

lol....good point!

which was does my cell phone clock turn......



[Eric creed]

I got it. Thanks everyone with their feedback



[Eric creed]

I got it



[BWG56]

good job, you are aware that there are o-rings on the back side of the primary plate at the tranny screws, right?
