Picture Test

[Slick-Dog]

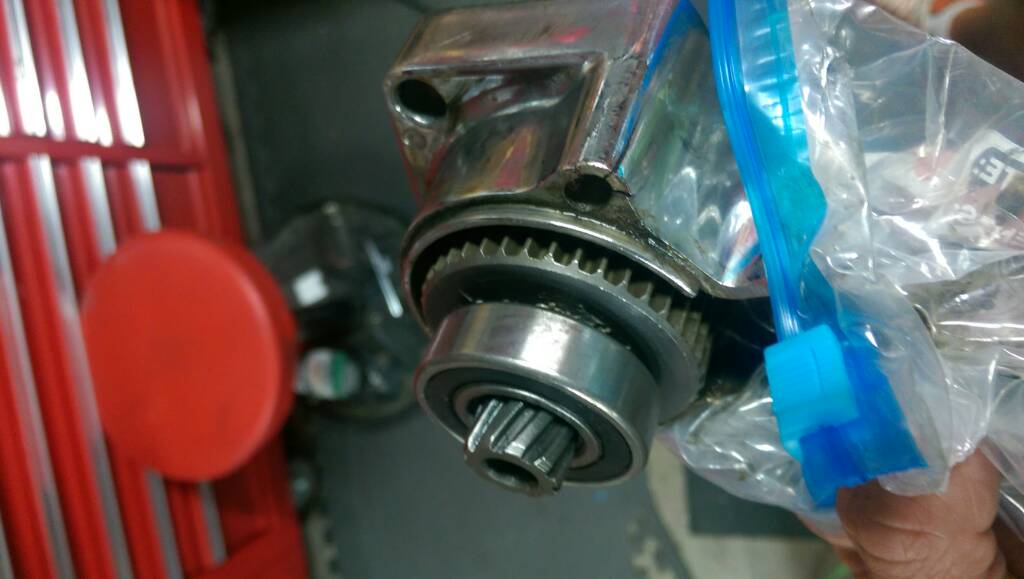

Can anyone guess what this is? Hint1:It happen on some K9s.........Hint2: Iam looking in at the bottom(frame) from right to left...



[pknowles]

A blurry picture



[Th3InfamousI]

Starter leaking down the primary?

Sent from my 831C using Tapatalk



[Hirter6Pack]

A Converse tennis shoe.



[Slick-Dog]

Answer is Starter...the 2nd time... 1-New seal and bearing 2nd-New starter...



[Nཛ͢ཀཇཧ༏ཧי]

Answer is Starter...the 2nd time... 1-New seal and bearing 2nd-New starter...

You didnt by chance buy one of those eBay starters that were cut wrong, did you?



[Slick-Dog]

Might of been...I bought parts and anew starter from a dude in Joplin MO selling them BUT i never heard anything bad about him...but both parts and starter have failed..



[bdm7250]

Answer is Starter...the 2nd time... 1-New seal and bearing 2nd-New starter...

Oh,fantastic...now gotta hear Eric gloat..



[Th3InfamousI]

Oh,fantastic...now gotta hear Eric gloat..

Na ..I don't gloat. Ain't got time for that

Sent from my 831C using Tapatalk



[bdm7250]

Na ..I don't gloat. Ain't got time for that

Sent from my 831C using Tapatalk

Just buggin buddy..



[Slick-Dog]

Allrightythen anyway heres the first starter with the cut in it...



[Th3InfamousI]

In my humble opinion if you use silicon on the splash ring that will keep the oil out of the starter in the first place. No need for a relief.

Sent from my 831C using Tapatalk



[Slick-Dog]

Spray silicon? or caulking?



[Th3InfamousI]

Spray silicon? or caulking?

A high quality RTV Silicon


I'm talking about adding silicone to the splash ring behind the drive gear. Put a light bead where the washer contacts the inside of the nose. You need to make sure it's centered right as the shaft will be moving.

Sent from my 831C using Tapatalk



[Slick-Dog]

Ok..I might try it..this old starter is cleaned up inside...so its ready..



[Coolbreezin]

You didnt by chance buy one of those eBay starters that were cut wrong, did you?

Interesting you mention ebay. Ebay does get a bad rap. I bought a BD starter from a well respected seller/BDB participant. The unit was well wrapped and clean. Great price too. I installed it and when the jackshaft snapped and I had it replaced, I found out why the price was great. The seller welded and cleaned up a broken jackshaft. I wasnt happy, but it was a great price. Now I have two starters that I can swap whenever one craps out. I keep one clean and ready to go. No downtime!



[BWG56]

A high quality RTV Silicon


I'm talking about adding silicone to the splash ring behind the drive gear. Put a light bead where the washer contacts the inside of the nose. You need to make sure it's centered right as the shaft will be moving.

Sent from my 831C using Tapatalk

The oil will get behind the splash washer thru the ID of the plash washer where the shaft goes thru, correct?



[Th3InfamousI]

The oil will get behind the splash washer thru the ID of the plash washer where the shaft goes thru, correct?

A very little I guess? I thought about that too. It's not full proof but if you don't use silicone the whole starter would have to fill before it makes it back up to the splash washer anyways to push it self back out. That's the highest point of the starter.

Silicone keeps most out and with no relief it will force it back the same way it came in and less likely to leak around the gasket.

We shall see...my starter in my bike now has just silicone no relief hopefully I don't have to take it off again for a couple years but I'll document the inside.

Sent from my 831C using Tapatalk



[Slick-Dog]

All I know is that there a SOB to take off and on! And the starters have always had issues(at least mine has) I just want to fix it and ride..its goten so bad its slinging oil on my rim...Is Wild Steel Works still rebuilding starters?
