Tear down

bigkelk9

Well-Known Member
Looks like major surgery there Kel. Hope this helps with the kinks you’ve had to deal with lately.
Ticking!!!! Damn ticking broham!! Lol.. this will find it for sure.. lol.. Eric n I rode all the way to Kansas with my bike ticking and he didn't beleive me on how bad it was until he heard it at a few lights.. lol.. it a been like that for like 5 months or so now.. I have faith in Marc's guy that he will get it right and figures out! Thank you my good man!


cdogg556

Guru
So it's that time.. sending the heads off with the jugs and pistons and rocker boxes and all that.. just threw new push rods and lifters in it.. so by the time ahe is all done, it'll be as good as new. After speaking with @cdogg556 and @Th3InfamousI and @Marky-Marc , I've also decided to go with the 585 or 600 cam.. Excited!!
View attachment 49556 View attachment 49557 View attachment 49558 View attachment 49559
Keep us posted on the progress Kel, curious to see how it all turns out for ya! All I know is the 585 cam changed my bike completely! Best bang for my buck yet!


TapioK

Well-Known Member
Andy happend to visit Naples while I had strange noise on my engine. He shipped my cylinders, heards, pistons.... to his shop in NY. Did the same magic to them as to his own engine a while ago ... Does not sound like potato potato!
I have mild 585 cam.
And for some reason I got rid of the backfire too! I kind of miss that though


PROFLYER

SWOLE
585 is the cam to get. I had the 600 for a bit a long time ago and the 585 actually ran better (dyno proven). Plus the 600 requires 600 springs which adds to cost and netted me nothing.


Th3InfamousI

Administrator
Staff member
I would get myself 4 pieces of 3/8 rubber hose and stick on the top or the studs just to keep from buggering up the threads and scratching up the other parts. and stick some rags in the rest of the openings. Last thing you want is a dirt dobber build a mud hut in there. Just suggestions from watching other mechanics work on my stuff:oldthumbsup:
Yep needs to cover those tappet holes...

Don't go with a 600 cam unless you shave the cylinders and your already past that point as you need to measure deck height.

Constructive criticism below:

And you should clean up that damn wiring mess under the tank surprised you haven't had issues there..haha


Clean and tidy is key! That tank will rub wires bare in no time.



Sent from my 2PS64 using Tapatalk

Last edited:

TapioK

Well-Known Member
Yep needs to cover those tappet holes...

Don't go with a 600 cam unless you shave the cylinders and your already past that point as you need to measure deck height.

Constructive criticism below:

And you should clean up that damn wiring mess under the tank surprised you haven't had issues there..haha


Clean and tidy is key! That tank will rub wires bare in no time.



Sent from my 2PS64 using Tapatalk

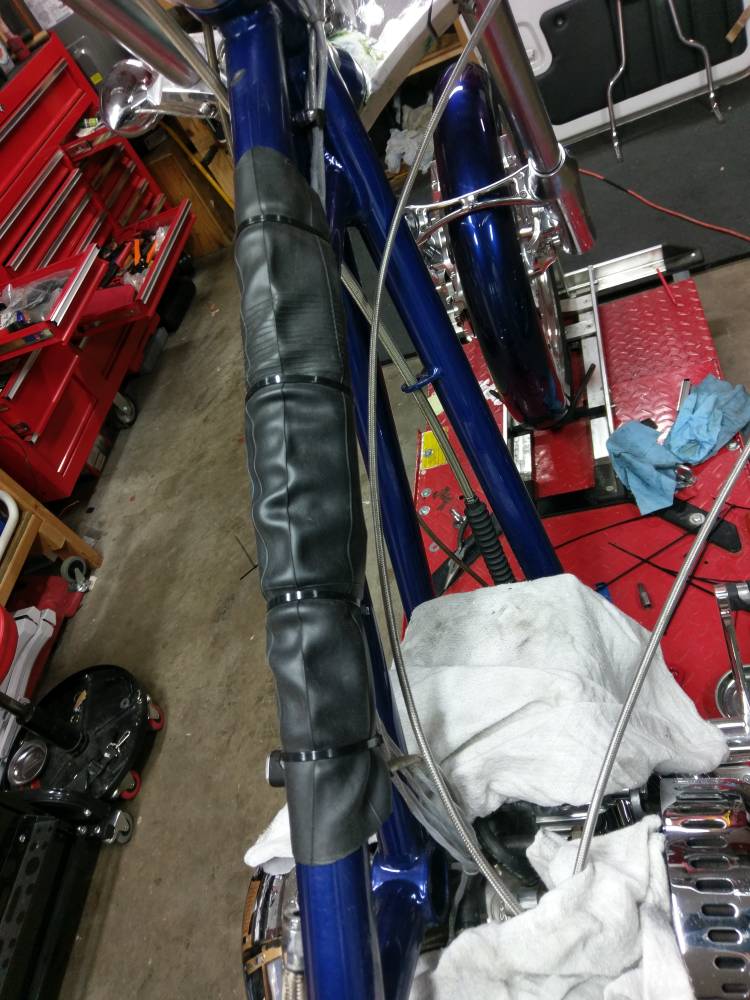

I do like the inner tube, at the same time it makes me think how the moisture that eventually seeps there dries out and not just stay there and corrode the pins...

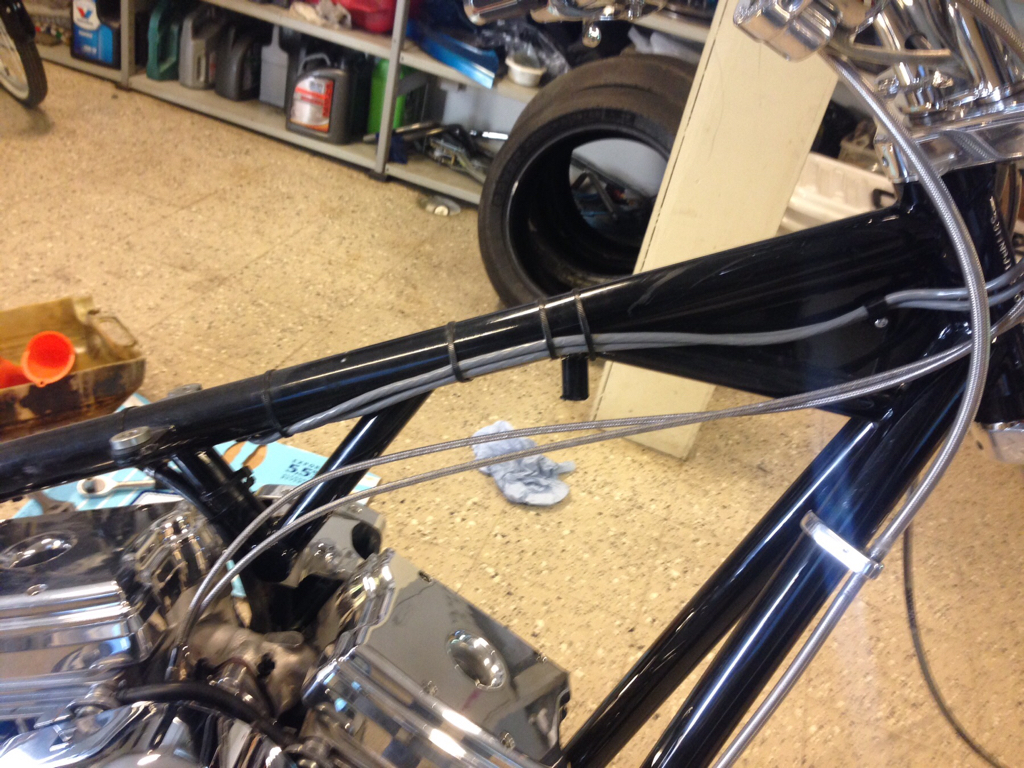

I kind of like my -03 setup...


Th3InfamousI

Administrator
Staff member
I do like the inner tube, at the same time it makes me think how the moisture that eventually seeps there dries out and not just stay there and corrode the pins...
I kind of like my -03 setup...
Yep that 03 setup is sweet!!!

The bottom of the tube is open so it should still be able to dry out.

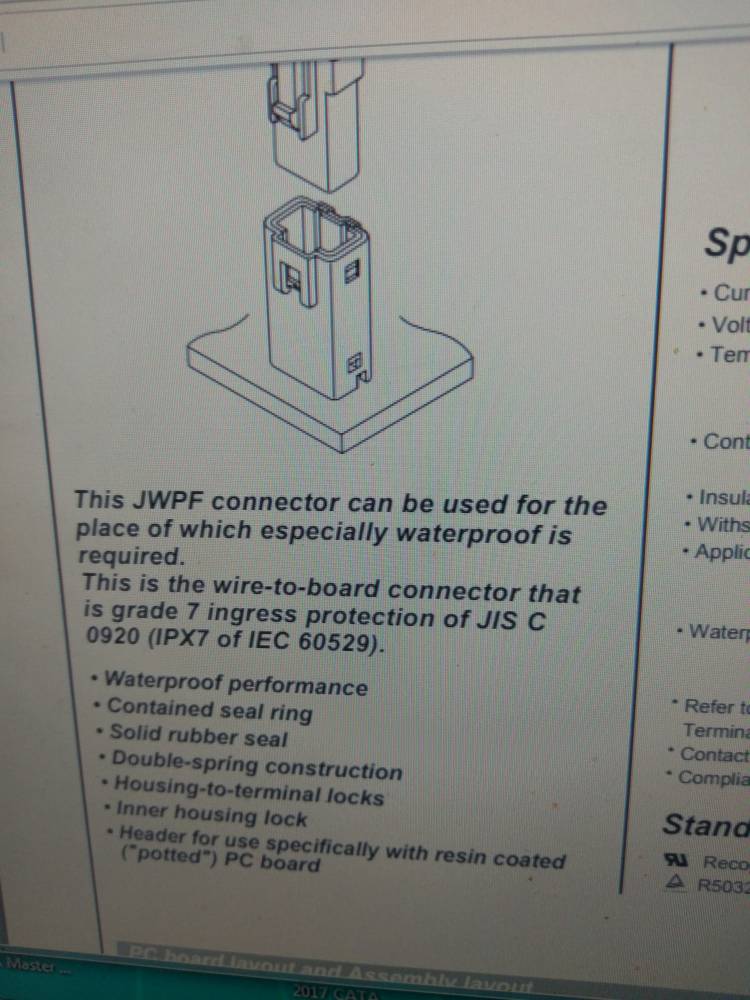

The JST connectors are supposedly waterproof according to the manufacturer so pin corrosion shouldn't be an issue. Grade 7 should be able to be submerged up to 1m of water



Sent from my 2PS64 using Tapatalk

Last edited:

Th3InfamousI

Administrator
Staff member
Did you measure the side to side play in the rocker arms?

Rocker Arm Endplay spec is 0.001"-0.012" per SS manual.

Sent from my 2PS64 using Tapatalk


bigkelk9

Well-Known Member
It's all nice and clean when I'm not rewiring some issues.. I knew I should have taken pics of that Velcro sock that u said u knew nothing about.. lol


PROFLYER

SWOLE
So I'm getting more likes on the 585.. I think I'll take everyone's word for it. :old2:
Yeah if I remember right it's better across the power band. The 600 is better at higher RPMs but I ride my bike between 2500-3500 or maybe 4000 most of the time. Winding it out doesn't do much more for you. Imagine a bell curve set on the RPM range from 1000-5000, a 585 has the meat of the curve between 2000 and 4500 or so where a 600 cam would have the curve from like 3200-redline. Not sure if that's exact at all, but hopefully you get the point.


bigkelk9

Well-Known Member
Back heads, jugs, and pistons off.. time to box em up and ship em out along with the starter that's going to Eric cuz he's just a bitchin guy! Lol20171004_192349.jpg 20171004_192317.jpg 20171004_192237.jpg
