K9 efi engine oil

Jwooky

Well-Known Member
There is not a engine oil level sensor. There is an oil pressure light. It will not set a MIL light


phatchopper300

I just wanta ride
yes I'm getting the red engine light coming on after about 15 seconds after the bike running just came on after riding for about 45 minutes can't get the light to come off. I did check all fluids I did download the S & S pro tune 2 software to see if there's any codes I can clear


pknowles

semi-retired...---... GURU C7Z06...---...
Lifetime Supporting Member
Check your idle, it's probably low. Or your 02 sensors could be dirty. It doesn't take much to get the light on.


heybaylor

Active Member
unplug the wire on the sensor, light should go out .
if not , look for the sensor wire bare somewhere (touching ground).

If it goes out , then check actual oil pressure while running.
Its either the oil pressure sensor , or actually low, low oil pressure


phatchopper300

I just wanta ride
Thanks heybaylor will check this evening and report back. Will be getting a serial plug for protune2 program to read DTC's


Jwooky

Well-Known Member
unplug the wire on the sensor, light should go out .
if not , look for the sensor wire bare somewhere (touching ground).

If it goes out , then check actual oil pressure while running.
Its either the oil pressure sensor , or actually low, low oil pressure
He is asking about the Check engine light, not oil light.

As you stated get protune setup and read the faults, no reason to keep speculating.


phatchopper300

I just wanta ride
Thanks bigdogbro1 will check.......very frustrated now couldn't get program to read my cable and was very difficult for the serial port to be inserted into the ECU frame was in the way Had to move a lot around to insert serial port. I will check tapped screen tomorrow. The red engine light comes on about 15 sec after turning key with out turning over engine. Same when turn engine over..... Just got bike about month ago no issues had many long rides and then Sunday 15 min into ride engine light came on?........????.?.?.

Thanks bigdogbro1 will check.......very frustrated now couldn't get program to read my cable and was very difficult for the serial port to be inserted into the ECU frame was in the way Had to move a lot around to insert serial port. I will check tapped screen tomorrow. The red engine light comes on about 15 sec after turning key with out turning over engine. Same when turn engine over..... Just got bike about month ago no issues had many long rides and then Sunday 15 min into ride engine light came on?........????.?.?.
Can you show a picture of where the tappet screen is located

Sent from my Pixel 3 XL using Tapatalk

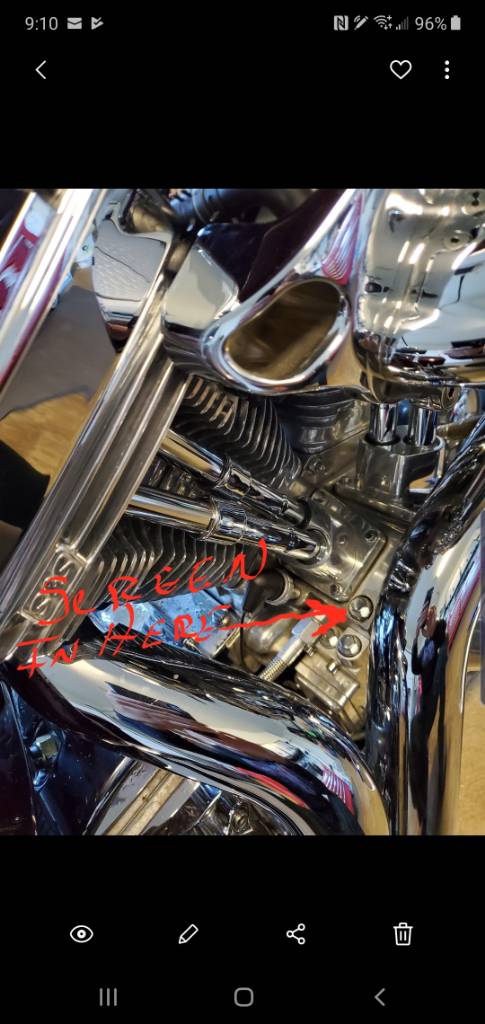

This is where the screen is located. Just unscrew the cap and pull out the spring and screen.


Sent from my SM-N975U using Tapatalk
Great picture thank you very much, when I take it out is there a special way to clean it never did this before just don't want to make something worse

Sent from my Pixel 3 XL using Tapatalk


41bigdawg

Let the Big Dawg eat !
Supporting Member
I spray mine from inside out with wd40 and then give it a shot inside out with the air compressor. I'm sure a clean rag would do the trick too.

Sent from my SM-N975U using Tapatalk
