Has anyone had a problem with a "squeaking" noise from the drive belt/pulley? I have lined the rear wheel up three times just to make sure that wasnt the deal and I still have the sound when I hit the gas?? I have used the copper and o ring and a tape and the belt tighting tool...I have just about decided my dog has a permenant limp. Been doing it since I got the thing a year ago.
Any other thoughts?
Any other thoughts?
Could be the rear pulley... not sure which type you would have on your 2004.
Moespeeds
Well-Known Member
No teflon on your '04. I had this for almost 2 yrs. I changed out my drive belt 2 months ago and it's been quiet for awile, but I think it's coming back. I tried aligning it 10 times. Got all kinds of opinions about what to do, at one point Big Dog told me to get a chrome pulley, then another tech told me that would make it worse. When I ask mechanics at various dealerships or shows about the problem, they usually just look at me like I'm nuts or just tell me the belt is too loose/too tight/out of alignment. I've tried belt dressing, and finally resorted to putting the bike up on a jack and greasing the edges of the belt every few hundred miles.
awags
Member
I just ordered a teflon pulley from big dog through Nelson. (WICKEDBASTARDCYCLES.COM) Mine has been sqeaking on and off for about 3000 mi. Like moe i've cleaned and adjusted over a dozen times,goes away for about 200 mi, then back again. Hopefully teflon is the answer-pretty embarassing!
mcgroom
Well-Known Member
I was wondering if this fixed the squeal?
Mine started about 2000 miles ago. It started as a minor squeak and got to the point yesterday where I could hear it over my pipes on the highway. :angry:
Logic tells me that the belt had stretched and more tension would be need. I checked the tension before doing anything and it was only at 1/4 inch. Service manual says 5/8 - 3/4.
Again, logic forced me to tighten the belt. :loony:
It made it worse!
I am going to set it to the proper tension tonight but if this does not fix it I am going to have to do something.
I know we have threads on this but I have not seen where someone has had this problem resolved and what exactly the did to fix it.
awags
Member
:flag: mc- Yup it sure did!:2thumbs: :2thumbs:
It always was worse if I got caught in the rain, or had two riders, or luggage. And yes it would get loud, Very embarrassing and very pissed off.
I put the new one on two days before S&S 50th.
Well on my way to S&S 50th got caught in a rain storm, had my girl with, and all the luggage I could fit. NOT A SINGLE TINY SQUEAK
I am so happy about it- finally.
sounds like all the bdm pulleys are coming teflon coated. The bdm rep at the show said they had a problem with 04's being cast wrong, something with the pitch or something.
I've got over 500 miles on and still quiet so hopefully alls well now. Haven't heard of anyone complaining about teflon ones yet.Just make sure alignment and tension are correct (got tensioner from Nelson) and torque pulley to 60 ft lb with RED loctite.:flag:
I got the pulley from Nelson also.
It always was worse if I got caught in the rain, or had two riders, or luggage. And yes it would get loud, Very embarrassing and very pissed off.
I put the new one on two days before S&S 50th.
Well on my way to S&S 50th got caught in a rain storm, had my girl with, and all the luggage I could fit. NOT A SINGLE TINY SQUEAK
I am so happy about it- finally.sounds like all the bdm pulleys are coming teflon coated. The bdm rep at the show said they had a problem with 04's being cast wrong, something with the pitch or something.
I've got over 500 miles on and still quiet so hopefully alls well now. Haven't heard of anyone complaining about teflon ones yet.Just make sure alignment and tension are correct (got tensioner from Nelson) and torque pulley to 60 ft lb with RED loctite.:flag:
I got the pulley from Nelson also.
wuudogg
Member
Anybody ever use or consider SuperMax Belt Drive Pulleys?
Came across this the other day. Interesting:
SuperMax Belt Drives For Harley-Davidson Motorcycles

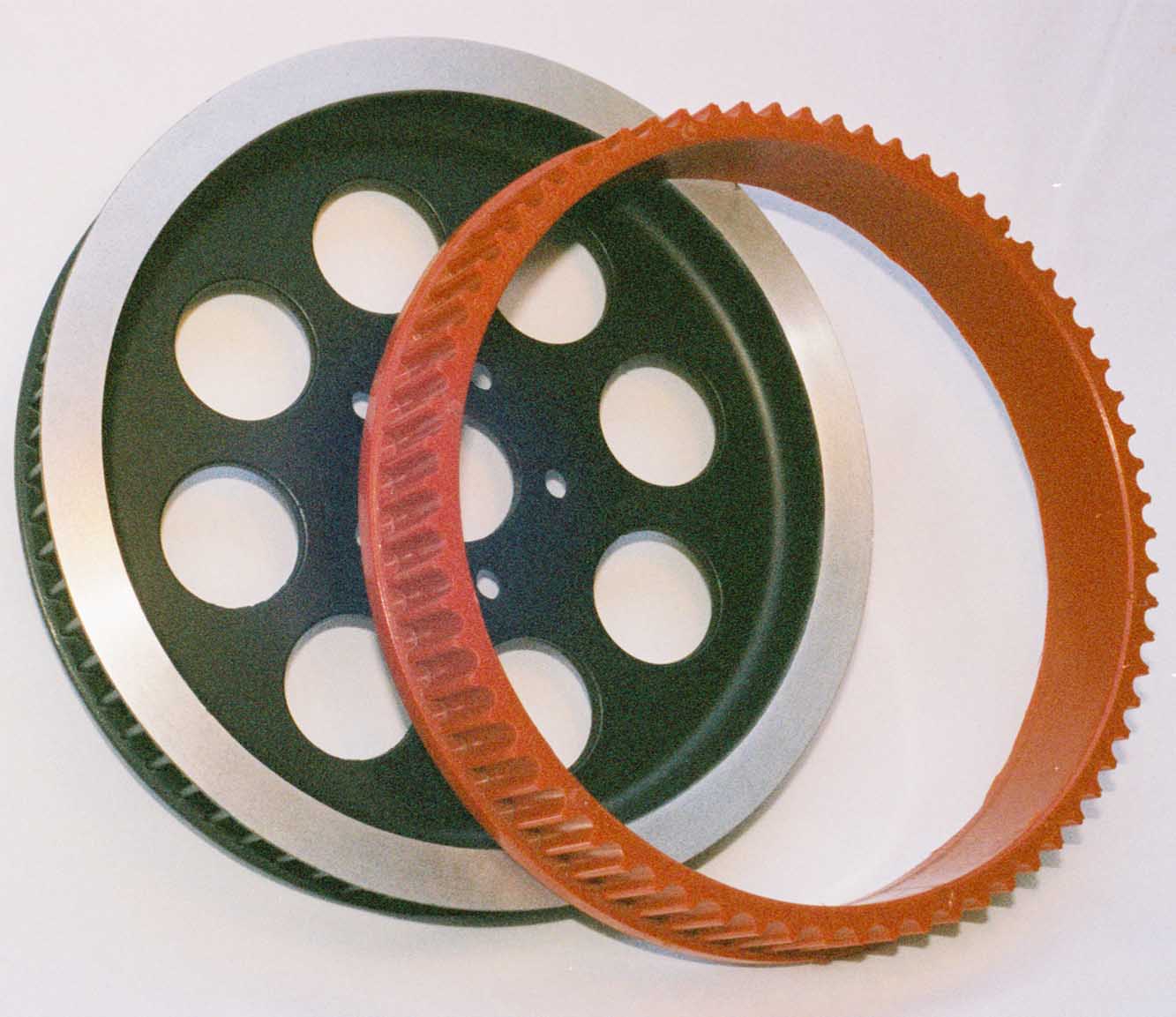

Send them your pulley. They machine down the teet and put a Polymer insert in.
They run very quiet, so the "Squeal" associated with metal pulleys is gone. These poly pulleys are not affected by sand or small debris. These pulleys should outlast the motorcycle, as long as the recommended tension and alignment are maintained.
Came across this the other day. Interesting:
SuperMax Belt Drives For Harley-Davidson Motorcycles
Send them your pulley. They machine down the teet and put a Polymer insert in.
They run very quiet, so the "Squeal" associated with metal pulleys is gone. These poly pulleys are not affected by sand or small debris. These pulleys should outlast the motorcycle, as long as the recommended tension and alignment are maintained.
A very good tool to help make sure your belt is at the correct tension. I love this thing. Use it ALL THE TIME when working on bikes. There are alot of times you have to move or drop the rear wheel and I use it each and every time.
Drag Specialties :: Hardware, Chemicals & Tools > Tool Sets & Shock Tools > BELT TENSION GAUGE
Drag Specialties :: Hardware, Chemicals & Tools > Tool Sets & Shock Tools > BELT TENSION GAUGE
awags
Member
Yes I called Super max before ordering A bdm pulley. It was $460.00 plus all the shipping for them to machine it down and put their insert on the pulley. My new one was $466.00 plus shipping. Would take atleast 2 weeks by the time I would have it back. I couldn't wait that long. Now I have my old one and would probly use Supermax next time( hopefully there isn't a next time) seems like a very good product!
mcgroom
Well-Known Member
Ok, spent some time last night and set the belt deflection on the loose side, (manual says 5/8 - 3/4" @ 10lbs).
Checked alignment from center of each axle, had to adjust 1/8".
Cleaned every tooth of belt with toothbrush and warm soapy water that I promptly rinsed off before moving to a new section of belt.
Does anyone know what the proper torque spec is for the REAR AXLE?
Looked through my service manual and all threads and I can't find anything.
Went with 105 foot pounds. Felt right but do not want to over tighten.
Most belt noise is gone.
Now I only notice it during decelaration.
Any thoughts?
Checked alignment from center of each axle, had to adjust 1/8".
Cleaned every tooth of belt with toothbrush and warm soapy water that I promptly rinsed off before moving to a new section of belt.
Does anyone know what the proper torque spec is for the REAR AXLE?
Looked through my service manual and all threads and I can't find anything.
Went with 105 foot pounds. Felt right but do not want to over tighten.
Most belt noise is gone.
Now I only notice it during decelaration.
Any thoughts?
WB Cycles
Well-Known Member
That's what BDM uses as well. Shipped from factory with the HD packaging. :roll: :roll: :roll: :roll:
05 manual states 55-65 ft lbs. They are usually posted on the back of the first page in each section. Axles in the "Chassis" section.
mcgroom
Well-Known Member
I will double check my manual when I get home.05 manual states 55-65 ft lbs. They are usually posted on the back of the first page in each section. Axles in the "Chassis" section.
With that said, by over torquing the axle, it may cause the belt to be pulled in to much causing it to rub.
Lets hope this is the case.
Thanks
