Wire Plus Install, glue in your key switch!

Discussion in 'How-To' started by Moespeeds, Nov 5, 2010.

  1. Moespeeds

    Moespeeds Well-Known Member

    Joined:
    Mar 16, 2008
    Messages:
    2,739
    Likes Received:
    112
    Trophy Points:
    48
    Location:
    Cherry Hill, NJ
    My Bike(s):
    2004 Big Dog Chopper, 2011? Redneck Monoshock, 2003 Roadstar Midnight, 2000 Roadstar Custom

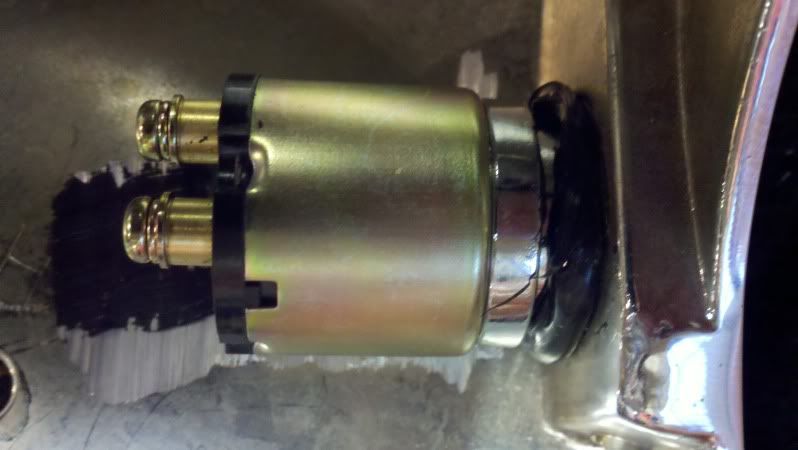

    Rather then spend the time trying to tap those tiny little holes in the thin metal around the key switch, just glue it in with black RTV. Holds great, rock solid once it's dry and no broken taps or tricky drilling! Just put a bead around the neck where it goes through the side cover and a thick bead underneath to hold it in place. You will still have to grind the cover for clearance and flatten out the threaded portion on the switch.

    [​IMG]

    chubs and Tim like this.
  2. MisterMister

    MisterMister Active Member

    Joined:
    Oct 31, 2009
    Messages:
    393
    Likes Received:
    5
    Trophy Points:
    0
    Location:
    Little Rock, Arkansas
    My Bike(s):
    2008 BigDog K9
    First Name:
    Larry
    Good to know.....thanx

    chubs likes this.
  3. Five Five

    Five Five Well-Known Member

    Joined:
    Jun 14, 2009
    Messages:
    4,015
    Likes Received:
    221
    Trophy Points:
    63
    Location:
    Southern California, The 714,
    My Bike(s):
    2003 pit bull (sold) & 2006 K-9 (bought)
    First Name:
    Bill
    Yup that works.....:2thumbs:

    chubs likes this.
  4. Ray

    Ray Well-Known Member

    Joined:
    Jul 27, 2009
    Messages:
    2,047
    Likes Received:
    427
    Trophy Points:
    83
    My Bike(s):
    2004 Ridgeback
    First Name:
    Ray
    That probably holds better than the drill and tap, and looks good too. I took a dremel and cleared the back of the cover out where the switch sit in the hole deep enough to use the outside nut that came with it. Looks like it was made for it, drilled and taped it too just because I had already bought the tap and set screws. I burnt the dremel up, an old one anyway but it took a little time and patience , humm like polishing billett wheels.

    RaY


    Attached Files:

    chubs likes this.
  5. RuDawg

    RuDawg Red Cloud

    Joined:
    Mar 28, 2009
    Messages:
    714
    Likes Received:
    8
    Trophy Points:
    0
    Location:
    Navarre FL
    My Bike(s):
    02 Boxer and 07 K9
    First Name:
    Paul
    Also put some loctite on the nut on the outside of the switch housing. Mine loosened up and fell off.

    chubs likes this.
  6. Slider

    Slider Active Member

    Joined:
    Mar 17, 2008
    Messages:
    635
    Likes Received:
    12
    Trophy Points:
    18
    Location:
    Draper, Utah
    My Bike(s):
    "EHC"less 04 107 chopper; 07 RG; 06 Deluxe
    First Name:
    Gary
    I tapped mine and put in two stainless set screws when I converted over a year ago. Good thing...I had to replace my sportster switch already.... one of the screw housing broke off - don't know how that happened though.

    Hope it works out well for ya. :up:

    chubs likes this.
  7. bdmridgeback

    bdmridgeback Low Down Chop Shop

    Joined:
    Jul 15, 2007
    Messages:
    4,510
    Likes Received:
    74
    Trophy Points:
    48
    Location:
    SW FL
    My Bike(s):
    '05 Ridgeback
    First Name:
    Jake
    If you use the Wire-Plus switch, the housing doesn't need ground out anymore. The switch is small enough diameter that it slides right in.

    chubs likes this.
