Trans rebuild & Baker Belt Drive

Discussion in 'Transmission / Drive' started by Bowhunter, Jan 26, 2013.

  1. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve

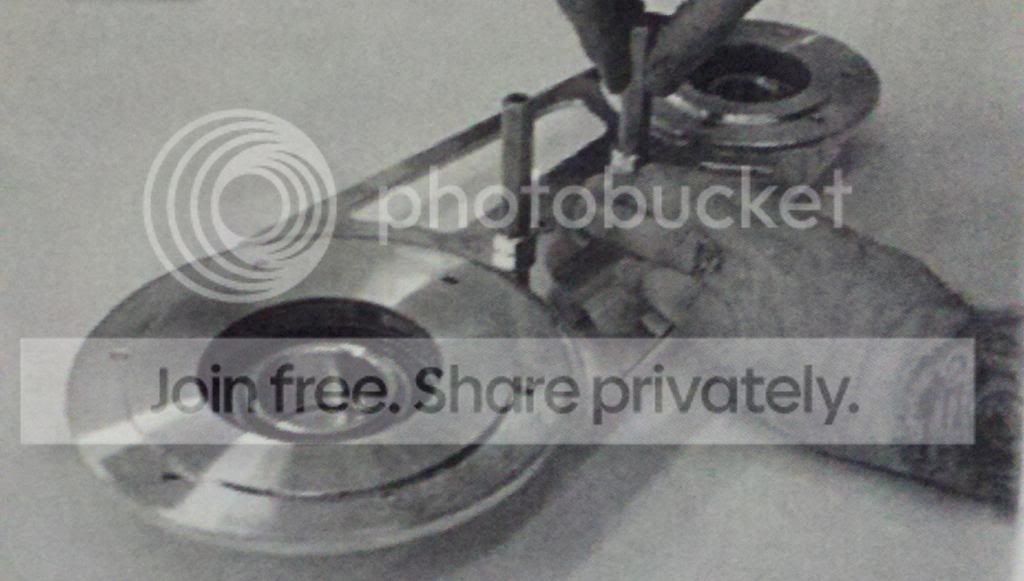

    Sorry that I didn't take a photo of the interior of the outer support, but I copied the photo supplied by Baker.
    [​IMG]

    Enclosed in the outer support are sealed bearings which truly support the spools. They are attached to the spools with 6 screws to each spool and it is a very rigid design. In this photo I am puttting screws through the outer support into the spools for a "trial fit"
    of the dogbone and to set the standoffs length.
    [​IMG]

    For my '09, the kit from baker included everthing, basically speaking you will reuse NOTHING from the stock primary drive. Apparently my bike had a different nut for the engine compensator than Baker thought it had. The kit did not include that nut and I called Mark Baker and told him that fact. I ordered the nut from FASTENAL which is next door to my office and had it in 3 days.
    As far as difficulty putting on the belt, it was a fairly easy process with a rubber mallet and light taps going from top to bottom-front to back.
    I have the entire stock system sitting on the shelf which encludes the compensator, chain, clutch basket, and inner & outer primary.
    If I had not sent the transmission to Andrew(Bigdogtech1) to have the bearings replaced for peace of mind while I was going this far, I could easily knock this kit out in a day.
    Being a visual learner, I though some of you guys that are considering a belt drive might like to see the process visually. I will finish the process with pics as soon as Curtis at WILD STEED gets me a final drive belt.
    And as soon as the snow stops falling and the temps get above freezing, I will give you feedback on the changes to the bike.

  2. bigdogtech01

    bigdogtech01 Well-Known Member

    Joined:
    Sep 12, 2008
    Messages:
    1,566
    Likes Received:
    97
    Trophy Points:
    0
    Location:
    Endwell, NY
    My Bike(s):
    '06 Roadstar Warrior, '04 KTM 450 Super Moto
    First Name:
    Andrew
    Looking good Steve :2thumbs:
    You didn't put Loctite on the splines did you? Just on the threads of the shafts?

  3. francoblay1

    francoblay1 The Spaniard

    Joined:
    Aug 14, 2011
    Messages:
    15,228
    Likes Received:
    12,495
    Trophy Points:
    113
    Location:
    LĀ“Escala, 17130 Spain
    My Bike(s):
    K9 (2006)
    First Name:
    Franco
    NICE!!!! :2thumbs:

  4. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve
    No Andrew, I did not put Loctite on the splines. The video by BDL shows him soaking the splines with Red Loctite as well as the threads. Maybe a "permanent" joint from that point on in my experience with cars, usually takes a torch and a lot of heat to break a Red Loctite bolt that has been soaked with it.

    Mickeetwo likes this.
  5. Mickeetwo

    Mickeetwo Guru
    Supporting Member

    Joined:
    Nov 28, 2007
    Messages:
    9,773
    Likes Received:
    1,154
    Trophy Points:
    113
    Location:
    Texarkana, AR
    My Bike(s):
    2006 Big Dog K9 & 2014 Ultra Limited
    First Name:
    Alan
    Great How-To Steve......the open primary looks great :2thumbs:

    Thanks for taking the time to take pics and post the How-To

  6. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve
    If it helps or encourages one guy to do it himself, it is worth the time to take the pics and do a little write up. Curtis @ Wild Steed has a final drive belt on the way and I should be able if the weather gets right to ride by next weekend.
    More pics and final impression to follow.

  7. bigdogtech01

    bigdogtech01 Well-Known Member

    Joined:
    Sep 12, 2008
    Messages:
    1,566
    Likes Received:
    97
    Trophy Points:
    0
    Location:
    Endwell, NY
    My Bike(s):
    '06 Roadstar Warrior, '04 KTM 450 Super Moto
    First Name:
    Andrew
    That's good Steve, you did the right thing. Putting Loctite on the splines is a NO NO!! For some reason, someone on here decided to start telling people to put it on the splines. That person is sadly mistaken. If you put it on the splines, it takes a high output heat gun or torch to heat the loctite up enough to flow out of the splines in order to remove the primary assembly.
    On a side note, what's the weather like down your way at the end of March?

  8. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve
    Maybe they watched the video on BDL belt drive installation on Youtube, that guy sure soaked it down good with red locktite.
    By the end of March it can be very nice from lunch time till almost dark. The mornings are still very cool, but with good clothes you can handle it.
    As a side note Andrew, the transmission feels like you took a lot of the play out of it as I spin the output spool back and forth. I don't know where the play was coming from but you seem to have eliminated it. I can't wait to get back on the road, Curtis(Wild Steed) has a new final drive belt on it's way to me and I should have the bike back together next weekend for sure.

  9. 05 old dog

    05 old dog Well-Known Member

    Joined:
    Nov 19, 2010
    Messages:
    1,159
    Likes Received:
    180
    Trophy Points:
    63
    Location:
    liberal kansas
    My Bike(s):
    05 bulldog
    First Name:
    billy
    steve...what shims did you wind up using under the tranny were you very far off? andrew mailed my tranny back to me friday so i will be tackling this shortly. glad i sent it to him mine needed work!

  10. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve
    Billy,
    When I originally removed the factory primary and then the bolts holding the transmission, I was surprised to find that the transmission was not properly shimmed.
    The transmission acted as if it was "high-centered" and would rock from left to right. When Andrew returned the transmission, I sat it in the frame with no shims and it sat perfectly flat. The bonus was that it mated perfectly with no shims to the new Baker Belt Drive. So the answer is that I used NO SHIMS at all and it is perfect. Andrew did a great job from what I can tell, I had play in my transmission when I would turn the output pulley clockwise then reverse to counter-clockwise. That play is now gone completely. The advantage of the Baker Belt Drive is that it has a little vertical play to allow it to match up to the vertical height of the transmission. I am not sure that you will have that play available with the factory primary. Good luck!

  11. Letbigdogintocanada

    Letbigdogintocanada Active Member

    Joined:
    Oct 30, 2012
    Messages:
    719
    Likes Received:
    168
    Trophy Points:
    43
    Location:
    32118/P1H0A7
    My Bike(s):
    04 bulldog 09 streetglide cvo
    First Name:
    JR
    Great How-To ,thanx for posting it Steve ,looks great ,how much do these baker kits selling for??

  12. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,620
    Likes Received:
    6,621
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    It's already been said a few times but worth repeating. Thanks for taking the time to put togeather this how to.:2thumbs:

  13. mastiffdave

    mastiffdave Well-Known Member

    Joined:
    Jun 5, 2009
    Messages:
    1,196
    Likes Received:
    669
    Trophy Points:
    113
    Location:
    lowell Arkansas
    My Bike(s):
    06 mastiff , 2012 road king ,xr 650L
    First Name:
    David
    Nice set up for the bike and great post with great pictures. I have a serious case of envy going on here for one of those belt drives. Gonna have to figure this one out some how.

  14. 05 old dog

    05 old dog Well-Known Member

    Joined:
    Nov 19, 2010
    Messages:
    1,159
    Likes Received:
    180
    Trophy Points:
    63
    Location:
    liberal kansas
    My Bike(s):
    05 bulldog
    First Name:
    billy
    thanks steve...i have a 4 inch belt drive been running for 2 years now...winter project was having the 05 tranny gone through...when i pulled my tranny there was not 1 shim...and when i installed my belt drive for the first time the motor plate slid on and everything lined up perfect...hoping it does the same...thanks

  15. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve

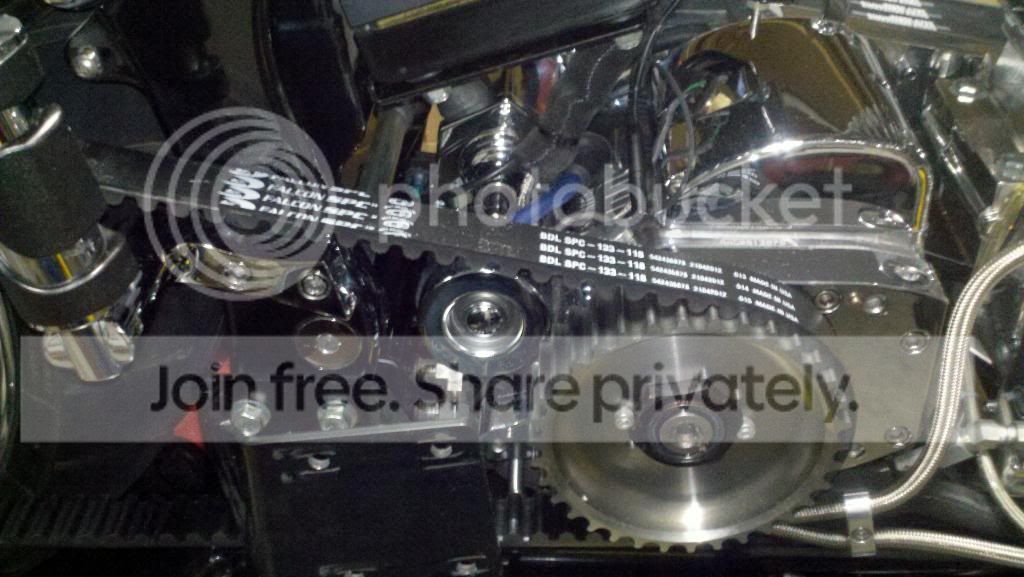

    Ok, yesterday I finished the Baker Open Drive/transmission rebuild/starter upgrade project. While I had the starter on the bench, I had Curtis(Wild Steed) send me a slam button and new boots for the starter. Here is the new boots and the slam button installed(easy upgrade of rotton rubber).
    [​IMG]

    With a chunk missing on my drive belt, I had Curtis(Wild Steed) send me a Falcon drive belt. It has a shiny smooth texture on the top surface as compared to the Gates.
    [​IMG]

    Here is the belt installed as well as the started put back in its place.
    [​IMG]

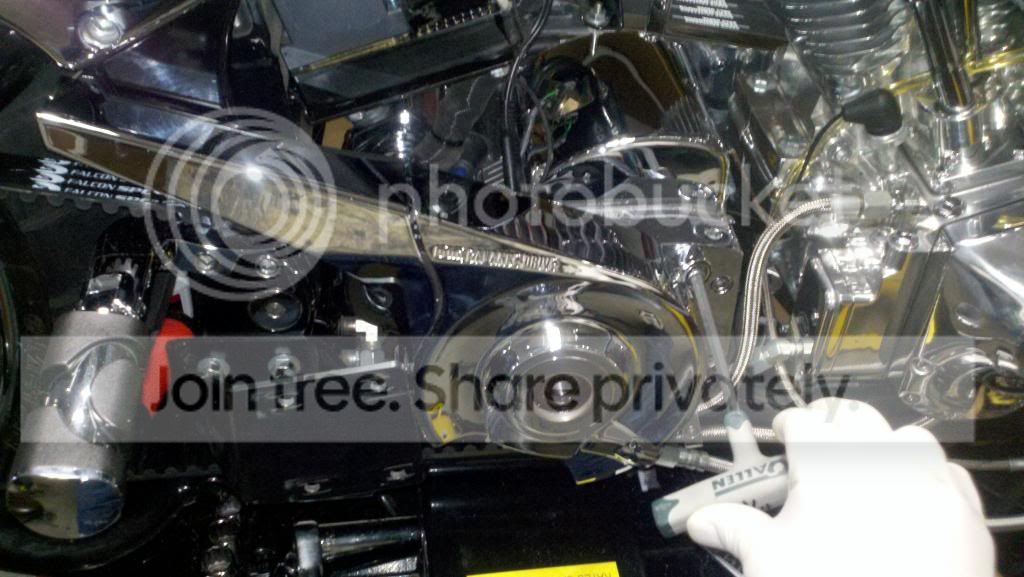

    Replace the belt cover.
    [​IMG]

    Now the clutch rod which I have well lubricated is slid back into the transmission.
    [​IMG]

    Turn the rod into contact with the throw-out bearing and back off 1/3 turn and lock down with the lock nut.
    [​IMG]

    Replace the cover with a light coat of lube on the O-ring.
    [​IMG]

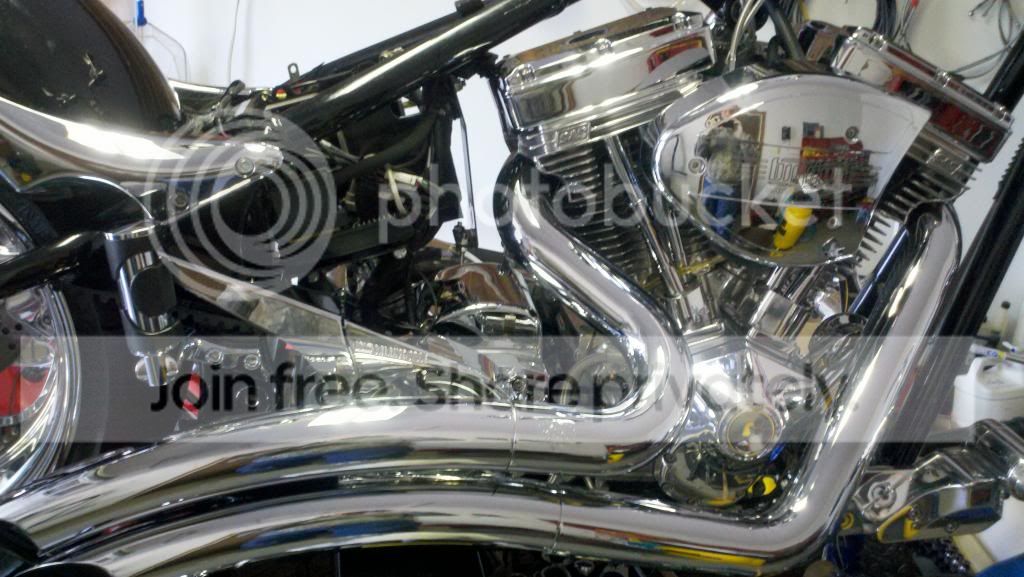

    Reinstall the exhaust with new gaskets.
    [​IMG]

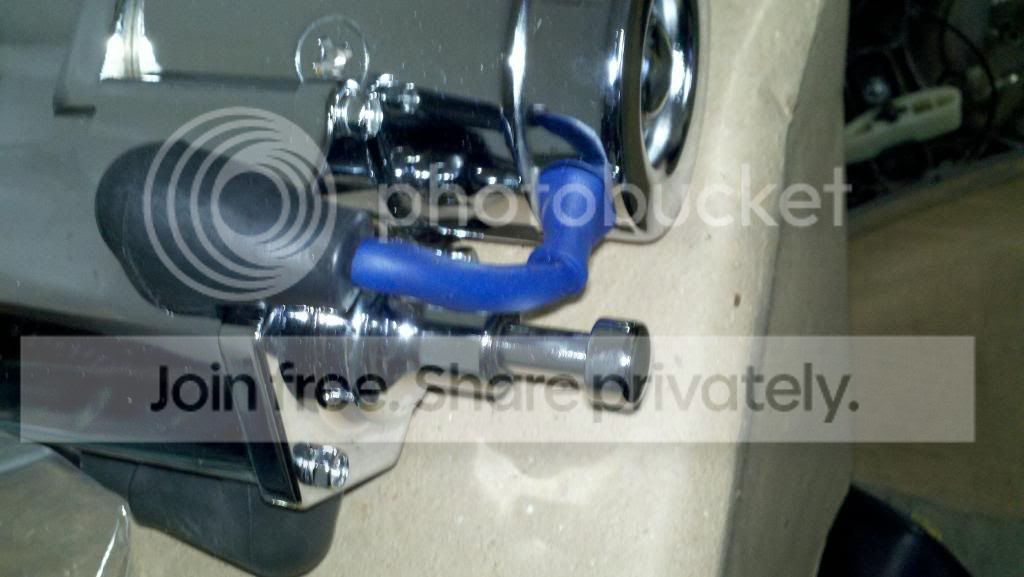

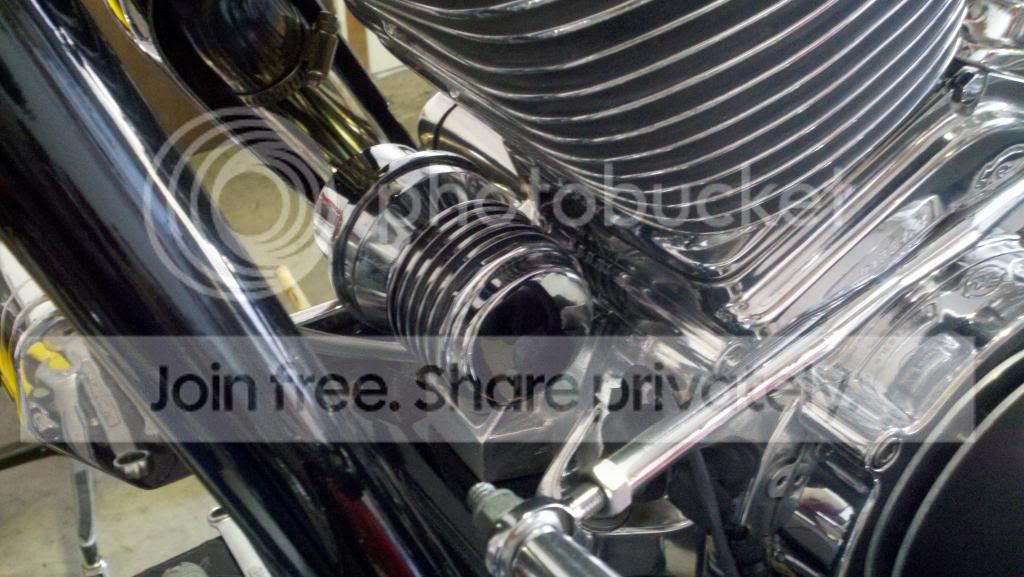

    Fill the oil tank and install the Scavenger system I got from Don(Value Tech) and run the motor until clean oil shows.
    [​IMG]

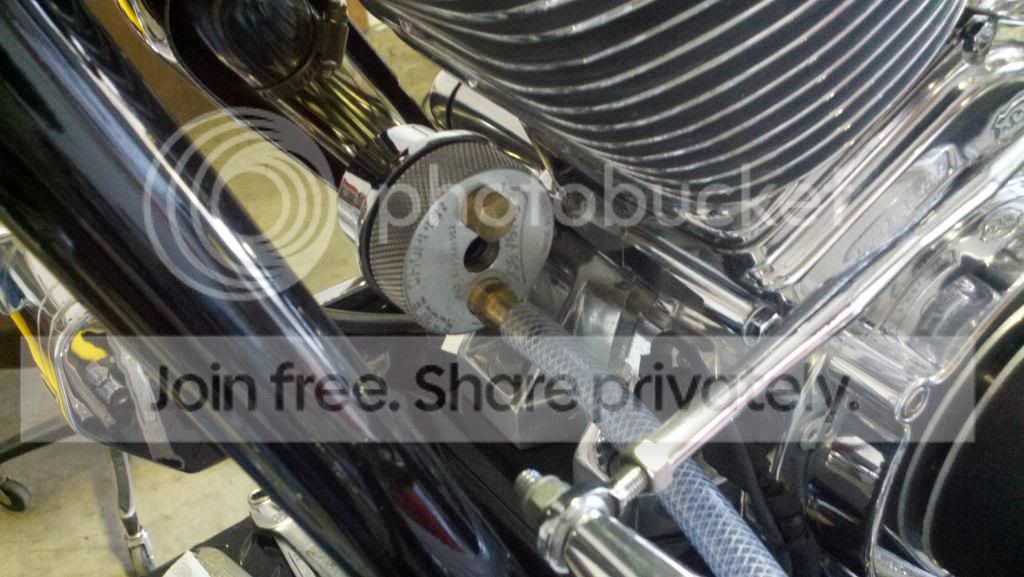

    Reinstall the K&P oil filter, once again from Don(Value Tech), and top of the oil tank.
    [​IMG]

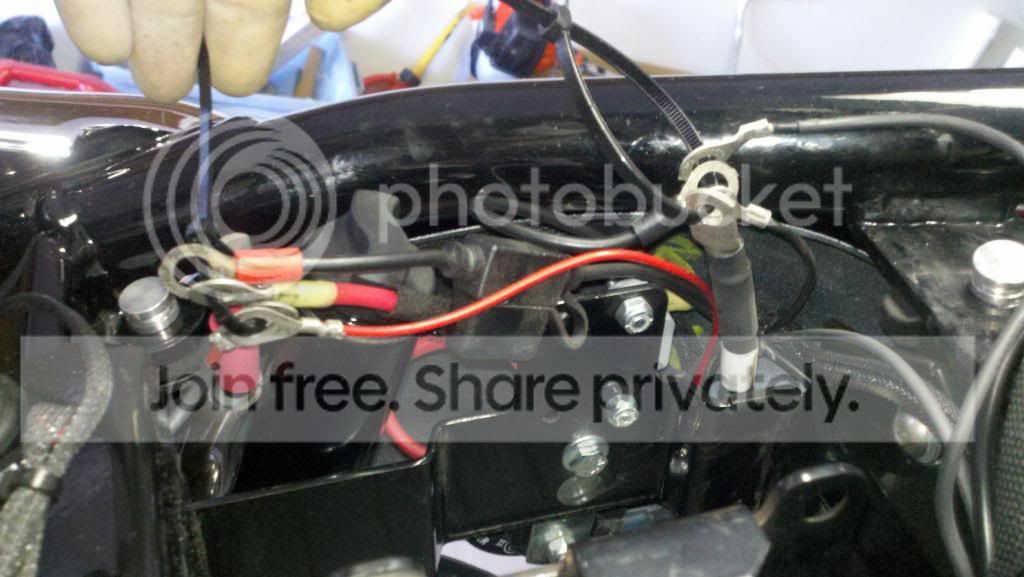

    Reinstall the batter which has been sitting on the tender for the last several weeks. Notice how I zip tied the terminals as I removed them to avoid any confusion later on. This is a easy way to prevent a bad day! Coat battery terminals with dielectric grease!
