Tear down

Discussion in 'General' started by bigkelk9, Oct 4, 2017.

  1. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    Thank you! I did a ton of research and spoke with a ton of sales people for specs and technical people to understand why before I did all this work. Unfortunately the machine work was great, but his diagnostics and measurements weren't on my rockers or I wouldn't still have this clock ticking on crack sitting on top of my engine. The only thing I did different from factory specs of a 117 crate engine was bored it over by .05 and install Carillo Pistons due to the jugs being egg shaped. Aside from That, the exact specs that S&S gave me were used and I'm sure as soon as I figure out this rocker issue, I'll be more then happy with her.

  2. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel

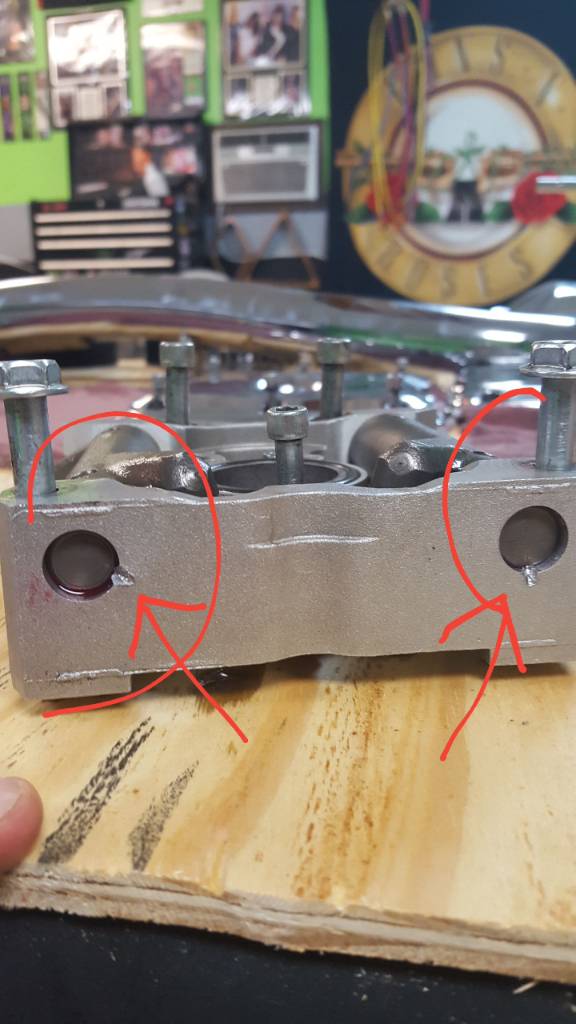

    Finally got the tapatalk app to work.. So this is what s&s suggested, never thought about doing a set screw, thanks for that advice John, I'm sure that will do the trick and I'll be good to go. I'll do it this weekend and let you all know [​IMG]

    Sent from my SAMSUNG-SM-G920A using Tapatalk

  3. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,441
    Likes Received:
    6,305
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    Dam Kel, that looks like a primitive fix but if it works it works.

    john sachs and bigkelk9 like this.
  4. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    That's what S&S suggested.... So we shall see what happens after o give this a shot

  5. Steve2134

    Steve2134 Member
    Supporting Member

    Joined:
    May 23, 2016
    Messages:
    28
    Likes Received:
    36
    Trophy Points:
    13
    Location:
    Madison, Ohio
    My Bike(s):
    07 Mastiff
    First Name:
    Steveo
    I’ve got mine apart right now to replace a leaking rear rocker box gasket, tranny leak, clutch slip/drag, and install a .585 cam :D Great timing on this thread as the constant ticking was driving me nuts too. I thought it was coming from the connecting rods/lifters. Going to take the rockers into work and thread in a set screw to lock the rocker shafts as suggested. Spring is coming and this riding season is going to be even better!

    john sachs and Jwooky like this.
  6. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    I'm going to do what John suggested and put a set screw in there.. haven't done it yet cuz I've been working 140 hours every 2 weeks.. so family and wife time has been priority on my time off.. lol.. but I'll be getting it done sooner then later and will update with results.. bike runs amazing.. just ticks like crazy!

    john sachs and Jwooky like this.
  7. Steve2134

    Steve2134 Member
    Supporting Member

    Joined:
    May 23, 2016
    Messages:
    28
    Likes Received:
    36
    Trophy Points:
    13
    Location:
    Madison, Ohio
    My Bike(s):
    07 Mastiff
    First Name:
    Steveo
    Operation Tic-Free complete.:old2:


    Attached Files:

    francoblay1, john sachs and bigkelk9 like this.
  8. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,595
    Likes Received:
    15,572
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    That looks good....will he interesting to hear how that works and holds up!



    Sent from my 2PS64 using Tapatalk

    john sachs and Jwooky like this.
  9. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,028
    Likes Received:
    37,051
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Did you also grind a flat on the hardened rocker shaft where the set screw contacts the shaft?

    john sachs and pknowles like this.
  10. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    Very clean! Did it work?

    john sachs likes this.
  11. Steve2134

    Steve2134 Member
    Supporting Member

    Joined:
    May 23, 2016
    Messages:
    28
    Likes Received:
    36
    Trophy Points:
    13
    Location:
    Madison, Ohio
    My Bike(s):
    07 Mastiff
    First Name:
    Steveo
    Yes. Locked the shaft position by installing the 5/16” bolt back in its hole. Used 13/64” end mill to drill the hole for the set screw and milled slightly into the shaft to ensure solid engagement.

    bdm7250, pknowles, john sachs and 2 others like this.
  12. Steve2134

    Steve2134 Member
    Supporting Member

    Joined:
    May 23, 2016
    Messages:
    28
    Likes Received:
    36
    Trophy Points:
    13
    Location:
    Madison, Ohio
    My Bike(s):
    07 Mastiff
    First Name:
    Steveo
    Still waiting for a few other parts to get my engine completely back together. Will follow up though

    pknowles, bigkelk9 and Unsprung like this.
  13. Unsprung

    Unsprung In the Potters hand...
    Supporting Member

    Joined:
    May 18, 2015
    Messages:
    1,311
    Likes Received:
    2,618
    Trophy Points:
    113
    Location:
    Ruskin, FL
    My Bike(s):
    08 K9, 06 Hayabusa, (wife's ride)
    First Name:
    Gerald
    That's a solid looking repair, and worth trying. Like Eric said, would be interesting to see how it holds up over time. Nice work Steveo.

    Steve2134 and bigkelk9 like this.
  14. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    I agree.. I did what s&s suggested and it just quieted it down.. but didn' take it away

    Unsprung likes this.
  15. john sachs

    john sachs Active Member

    Joined:
    Nov 6, 2008
    Messages:
    838
    Likes Received:
    872
    Trophy Points:
    93
    Location:
    Deltona, Fl
    My Bike(s):
    harleys
    Looks good. Very nice install.
    John

  16. Unsprung

    Unsprung In the Potters hand...
    Supporting Member

    Joined:
    May 18, 2015
    Messages:
    1,311
    Likes Received:
    2,618
    Trophy Points:
    113
    Location:
    Ruskin, FL
    My Bike(s):
    08 K9, 06 Hayabusa, (wife's ride)
    First Name:
    Gerald
    Kel, are you going to do it or ride for now and get to it later? I’ve got a slight tic but not enough to pull it apart just for that. Will be a must do if I have to take it apart for another gasket set though.

    bigkelk9 likes this.
  17. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    I'e been riding it for a while like so.. I mean the bike screams and all is well.. but I'm hoping to do it this weekend.. if not maybe next or so. I just need to make sure I do it before June for unleashed

    Unsprung likes this.
  18. Unsprung

    Unsprung In the Potters hand...
    Supporting Member

    Joined:
    May 18, 2015
    Messages:
    1,311
    Likes Received:
    2,618
    Trophy Points:
    113
    Location:
    Ruskin, FL
    My Bike(s):
    08 K9, 06 Hayabusa, (wife's ride)
    First Name:
    Gerald
    Definitely have it good to go for unleashed. Keep us posted on how it goes. I’m chasing a carb issue now getting ready for bike-week. Talked to Ker and a local tech so few things to look at tomorrow.

    bigkelk9 likes this.
  19. Steve2134

    Steve2134 Member
    Supporting Member

    Joined:
    May 23, 2016
    Messages:
    28
    Likes Received:
    36
    Trophy Points:
    13
    Location:
    Madison, Ohio
    My Bike(s):
    07 Mastiff
    First Name:
    Steveo
    Thanks guys. Suggestion came from this forum so glad to share how it works out for me. Would have never imagined this could be the source of that tic. One thing I noticed though was out of four rocker shafts, only one was snug where the bolt should lock the shaft in place. The other three holes were pretty sloppy. Shafts are definitely locked now. Im looking forward to seeing if this issue is resolved myself.

    pauly, john sachs and Unsprung like this.
  20. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,022
    Likes Received:
    5,361
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    Ker may be a douche..:oldhardlaugh: but he is good help.. sorry Ker.. ya know I'll cut it straight with ya.. lol;)

    Unsprung likes this.
