Side Cover Removal

Discussion in 'General' started by MisterMister, Apr 17, 2010.

  1. MisterMister

    MisterMister Active Member

    Joined:
    Oct 31, 2009
    Messages:
    393
    Likes Received:
    5
    Trophy Points:
    0
    Location:
    Little Rock, Arkansas
    My Bike(s):
    2008 BigDog K9
    First Name:
    Larry
    Ok, I'm sure this easy....but ol' man me hasn't figured it out yet. How do you take off the horse shoe shaped plastic cover the covers the electrical stuff on an 08 k9? Does it just snap off?
    Thanx in advance.

  2. chaingunner

    chaingunner Guest

    Two bolts per side under the seat, remove them (1/2 inch I think) and then slide them down and out. The bottom are on a slide on pin. I'd tape them up with some painters tape so you don't scratch them on the front by the head and exhaust side.

  3. jaggerz

    jaggerz Active Member

    Joined:
    Jul 3, 2009
    Messages:
    266
    Likes Received:
    18
    Trophy Points:
    18
    Location:
    Western Pa.
    My Bike(s):
    2006 K-9 1977 Sportster- Original owner
    First Name:
    Tim
    You need to remove the seat and pull out the 2 pins ( thats the way it is on my 2006 K-9 with the updated side covers) in the rubber bushings, lube first with some WD-40 to get the pins out, then slide down over the pin at the bottom front of the cover. For the right side you may have to remove the exhaust pipes, if you have big radius pipes.

  4. Trainguy

    Trainguy Chromeoholic
    Supporting Member

    Joined:
    May 16, 2009
    Messages:
    4,954
    Likes Received:
    1,385
    Trophy Points:
    113
    Location:
    Area 51
    My Bike(s):
    K9 Karata 4" OP, V&H 2-1 S&S air+585, xo grips&pegs K&P oil & duel coolers, Ness, all chrome w/blk
    First Name:
    DJ
    Got an 08 K-9. Take the seat off, there are two push pins on each panel that fit in rubber gromets on the panel from the top pull the pin up. Were to two halfs come together in the front on the bottom there are two pins (not push just centering) one on each half. The panel has the rubber gromet on it to center it self.

    The brake side panel comes off first and the shift side second CAREFULLY:2thumbs:

  5. airbrush-ed

    airbrush-ed kustompaintbyed.com

    Joined:
    Feb 24, 2009
    Messages:
    856
    Likes Received:
    245
    Trophy Points:
    43
    Location:
    Wichita Ks
    My Bike(s):
    Can't afford the hobbies I DO have
    First Name:
    Ed
    The mounting tabs can be broken easily, so be careful!

    #5 airbrush-ed, Apr 17, 2010
    Last edited: Apr 17, 2010
  6. chaingunner

    chaingunner Guest

    Hmmm, its obvious mine are outdated.... further research shows mine need updated... :)

  7. BorgerBigDog

    BorgerBigDog BORN TEXAN

    Joined:
    Feb 8, 2009
    Messages:
    2,762
    Likes Received:
    15
    Trophy Points:
    38
    Location:
    Borger Texas
    My Bike(s):
    06 Ridgeback,06 Proper Chopper,85 Yamaha Maxim chopped
    First Name:
    Rob
    I have had mine off twice,both times i thought i was going to break them.Makes me nervous to think about it

  8. RiderTom

    RiderTom Member
    Supporting Member

    Joined:
    Oct 21, 2009
    Messages:
    96
    Likes Received:
    9
    Trophy Points:
    8
    Location:
    Cincinnati, Ohio 45245
    My Bike(s):
    08 Mastiff
    First Name:
    Tom
    I put a bit of lube on the pins before reinsertion :)

  9. BorgerBigDog

    BorgerBigDog BORN TEXAN

    Joined:
    Feb 8, 2009
    Messages:
    2,762
    Likes Received:
    15
    Trophy Points:
    38
    Location:
    Borger Texas
    My Bike(s):
    06 Ridgeback,06 Proper Chopper,85 Yamaha Maxim chopped
    First Name:
    Rob
    HEHE REINSERTION !!! :eek::eek::eek:

  10. mark whitrock

    mark whitrock Active Member

    Joined:
    Sep 28, 2008
    Messages:
    414
    Likes Received:
    14
    Trophy Points:
    18
    My Bike(s):
    2007 K-9
    looks like the belt guard needs to be removed before the cover can be removed????

  11. Thumper

    Thumper Well-Known Member
    Calendar Participant

    Joined:
    Apr 10, 2007
    Messages:
    1,161
    Likes Received:
    24
    Trophy Points:
    38
    Location:
    USA
    My Bike(s):
    10 Glide, Custom bobber
    Nope

  12. Trainguy

    Trainguy Chromeoholic
    Supporting Member

    Joined:
    May 16, 2009
    Messages:
    4,954
    Likes Received:
    1,385
    Trophy Points:
    113
    Location:
    Area 51
    My Bike(s):
    K9 Karata 4" OP, V&H 2-1 S&S air+585, xo grips&pegs K&P oil & duel coolers, Ness, all chrome w/blk
    First Name:
    DJ
    That's a no on the belt guard. Follow the above. There are Two push pins per side plus the centering pin in front on the bottom.

  13. Doug760

    Doug760 Member

    Joined:
    Sep 17, 2009
    Messages:
    190
    Likes Received:
    14
    Trophy Points:
    18
    Location:
    Millstadt, IL
    My Bike(s):
    Ridgeback
    Is the procedure the same for an '09 Ridgeback? I do not see anything obvious and the bolts I do see look like they are for the battery pan...

    Thanks,
    Doug

  14. Brew

    Brew Troop Supporter

    Joined:
    Jan 26, 2010
    Messages:
    12,801
    Likes Received:
    2,482
    Trophy Points:
    113
    Location:
    Washington State
    My Bike(s):
    08 Mastiff / 09 Softail Deluxe
    First Name:
    Rob
    The pins should look like this. Just give it a twist and pull up at the same time...

    [​IMG]

    SKOGDOG and ScribBolz like this.
  15. MadMarx

    MadMarx Active Member

    Joined:
    Mar 8, 2010
    Messages:
    240
    Likes Received:
    4
    Trophy Points:
    18
    Location:
    NH
    My Bike(s):
    2006 Big Dog Mastiff, 2010 Buell XB12Ss
    First Name:
    Mark
    If it's the same as an '06...
    #15 are aluminum push pins and if they haven't been removed before they will cover out hard.
    I used WD40 with the red spray tube to lube them up first and make removal easier.
    Clean up the parts after removal.
    Hope that helps.

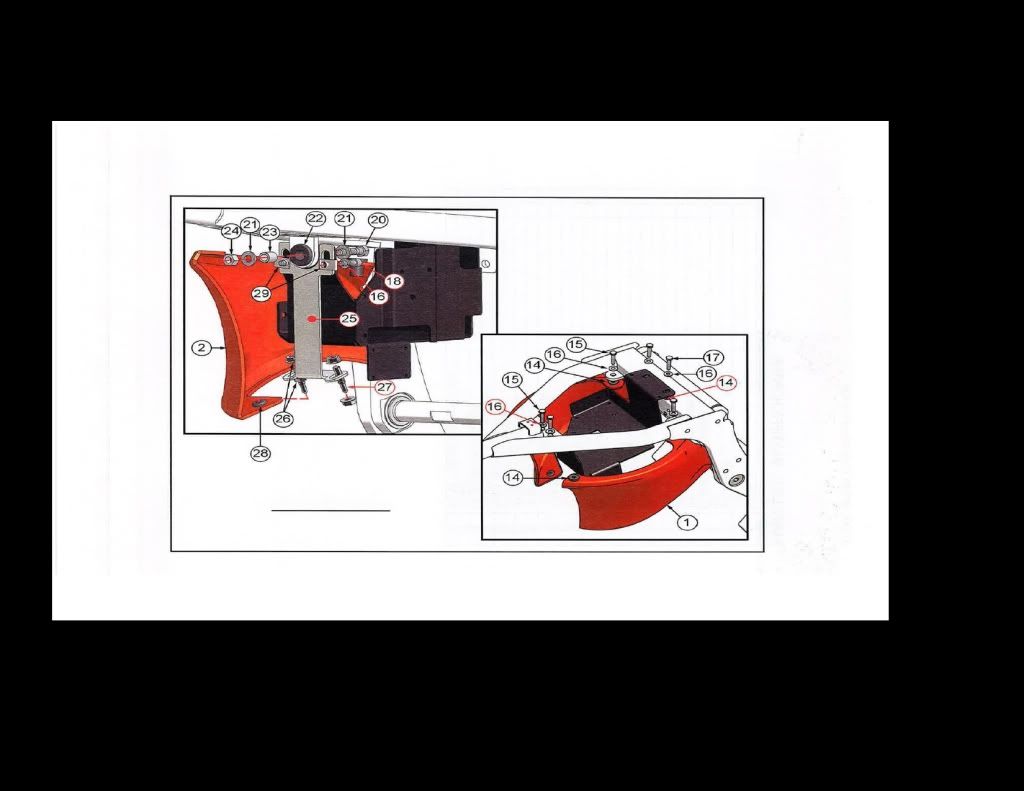

    [​IMG]

    Srodden likes this.
  16. Doug760

    Doug760 Member

    Joined:
    Sep 17, 2009
    Messages:
    190
    Likes Received:
    14
    Trophy Points:
    18
    Location:
    Millstadt, IL
    My Bike(s):
    Ridgeback
    The pic MadMarx has looks to be how it is on mine as there are just bolts for the battery tray. Is it possible to get to the battery strap bolt without removing the side panels...

    Thanks for the help,
    Doug

  17. Tom Chop

    Tom Chop Active Member

    Joined:
    Aug 11, 2010
    Messages:
    448
    Likes Received:
    20
    Trophy Points:
    18
    Location:
    Cottondale, Alabama
    My Bike(s):
    `06 K-9
    First Name:
    Tom aka Tom Chop
    Re: Borger Big Dog

    I Like Re Insertion - - very, very much!



    Tom Chop :choppersmiley:

  18. ScribBolz

    ScribBolz New Member

    Joined:
    Mar 7, 2017
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    North Carolina
    Thank you! It's been a while since I had to remove these pins. This post was helpful!

  19. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,028
    Likes Received:
    37,051
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Here's what they look like


    Srodden and bdm7250 like this.
  20. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,614
    Likes Received:
    16,614
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    Yup..of course you've got a spare set of four in the inventory...hoarder..:D

    Srodden, TapioK and BWG56 like this.
