Rubber in the rim

Discussion in 'Technical' started by Kiwirider, Aug 12, 2018.

  1. Kiwirider

    Kiwirider Active Member

    Joined:
    Sep 1, 2011
    Messages:
    266
    Likes Received:
    34
    Trophy Points:
    28
    Location:
    Van Buren, MO
    My Bike(s):
    08 Mastiff
    First Name:
    Dean

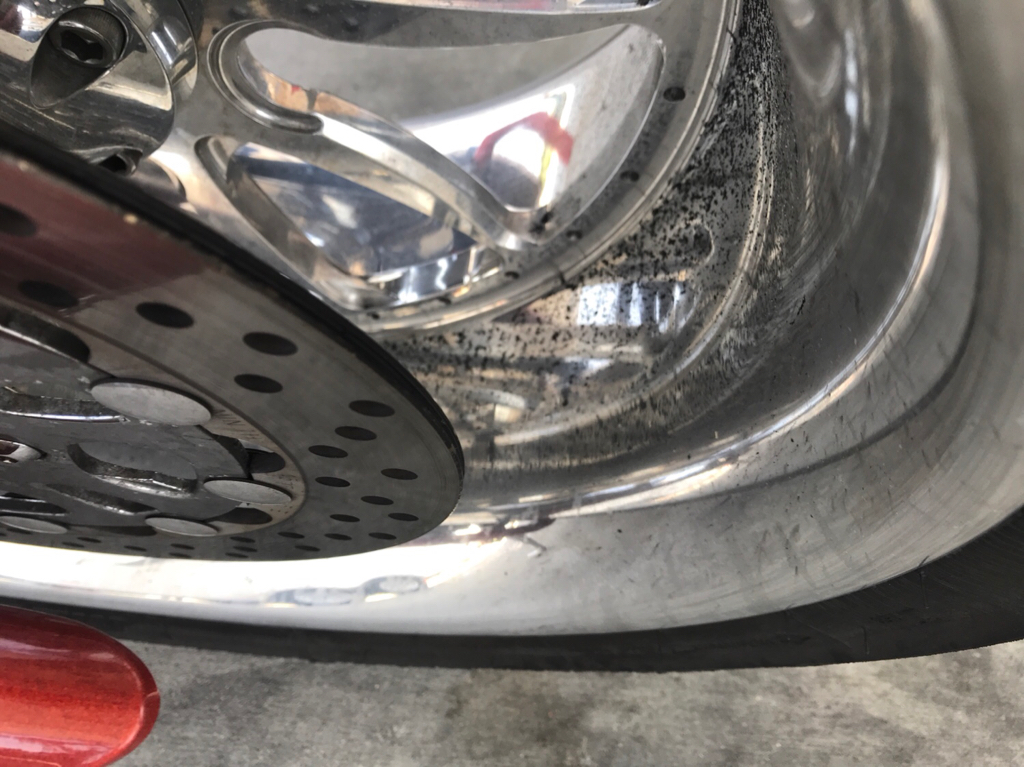

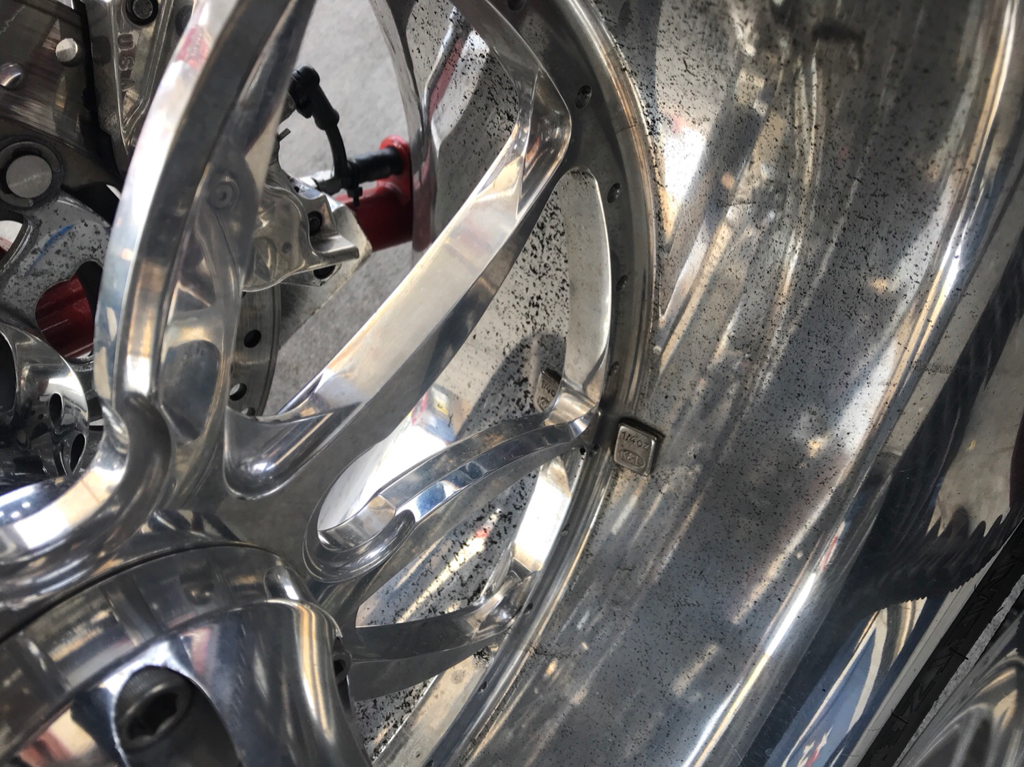

    Have been noticing over the past few rides that I’ve been getting rubber build up around the inside rim of the rear tire. It happened while it was just me on it, but more so with the gf on the back. Never had that problem before. I can’t see and didn’t feel and rubbing on the tire/fender while we were on it. Could it be just adjusting the shocks? Any other spots the rubber could be coming from?
    [​IMG][​IMG]


    Sent from my iPhone using Tapatalk

  2. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,349
    Likes Received:
    5,080
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Mainly on the brake side.
    Could it be brake dust?

    #2 Hirter6Pack, Aug 12, 2018
    Last edited: Aug 12, 2018
  3. Kiwirider

    Kiwirider Active Member

    Joined:
    Sep 1, 2011
    Messages:
    266
    Likes Received:
    34
    Trophy Points:
    28
    Location:
    Van Buren, MO
    My Bike(s):
    08 Mastiff
    First Name:
    Dean
    That’s what I first thought. But it’s definitely rubber. I brushed the rim clean twice yesterday while riding (250 miles).


    Sent from my iPhone using Tapatalk

  4. HMAN

    HMAN Just like to ride
    Supporting Member

    Joined:
    Mar 21, 2011
    Messages:
    3,932
    Likes Received:
    3,287
    Trophy Points:
    113
    Location:
    Ks
    First Name:
    Harry
    Tail light rubbing.....ck ur tire for a pattern.

    bdm7250 and Hirter6Pack like this.
  5. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,349
    Likes Received:
    5,080
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Any unusual tire wear?
    Can you see anything rubbing up under the fender?

  6. Low rider

    Low rider Member

    Joined:
    Jun 13, 2017
    Messages:
    92
    Likes Received:
    167
    Trophy Points:
    33
    Location:
    Leesburg , In.
    My Bike(s):
    2005 mastiff
    First Name:
    Montrose
    Possibly fender/ strut bolts loose ?

    Sent from my Z812 using Tapatalk

    HMAN, Reddickracing and Hirter6Pack like this.
  7. TapioK

    TapioK Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    2,966
    Likes Received:
    4,633
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    How is the belt?


    Sent from my iPhone using Tapatalk Pro

    heybaylor and CHOPTOP45 like this.
  8. Fat_Bastard

    Fat_Bastard Active Member

    Joined:
    May 3, 2010
    Messages:
    420
    Likes Received:
    378
    Trophy Points:
    63
    Location:
    Route 66
    My Bike(s):
    2004 Big Dog Chopper, HD Fat Boy
    First Name:
    Title: "CRO" , Chief Riding Officer, SoCal riders group
    … like others said check belt alignment and tension;
    also do you ever roll the bike backwards? and with 2 up backwards, even 3 feet? this can cause the belt to rub against the side of the tire. (and belt could be going bad?)

    bdm7250 likes this.
  9. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,799
    Likes Received:
    16,907
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    :agree:X2

    PacoPetty likes this.
  10. Coolbreezin

    Coolbreezin Active Member

    Joined:
    Feb 23, 2009
    Messages:
    632
    Likes Received:
    448
    Trophy Points:
    63
    Location:
    Northeast FL
    My Bike(s):
    05 Ridgeback
    First Name:
    Pete
    Tires are actually not the width that the manufacturer says it is (ex 300 is actually 310mm). Ck the very edges of yr rear tire. I have 70,500 miles on my bike and I get dust particles and I believe its from the brakes.

  11. Fat_Bastard

    Fat_Bastard Active Member

    Joined:
    May 3, 2010
    Messages:
    420
    Likes Received:
    378
    Trophy Points:
    63
    Location:
    Route 66
    My Bike(s):
    2004 Big Dog Chopper, HD Fat Boy
    First Name:
    Title: "CRO" , Chief Riding Officer, SoCal riders group
    Although a bit remote, check for...
    any sideways movement or wiggle from worn or loose rear wheel bearings, swing arm pivot bushings...
    best if checked with bike on a lift, gently but very firmly wiggle/pry rear wheel side to side and up and down, spin the wheel forward and backward to notice if belt starts to rub on things...

    Coolbreezin likes this.
  12. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,581
    Likes Received:
    2,625
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    First take compressed air and blow out your rear caliper and wipe off the rear wheel. Then go ride around for 15-20 minutes and only use your front brakes. Then inspect.
    With respect, I suggest the only stuff that would wind up on that side of the rim concentrating towards the middle would be brake dust.
    If this is wrong, at least you can rule out brake dust.

    chubs, pknowles and TapioK like this.
  13. Sven

    Sven Well-Known Member

    Joined:
    Mar 4, 2012
    Messages:
    1,613
    Likes Received:
    819
    Trophy Points:
    113
    My Bike(s):
    building one
    Look at every tooth on the belt. Look at the sides of the belt. Centrifugal force flings out so it couldn't be a tire rub under the fender say. But the belt being inside the rim... buaddaboom buddabing

    How close am I short of air turbulence from the fender rub sucking into the rim.

    Rottweiler and Low rider like this.
  14. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,349
    Likes Received:
    5,080
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Agreed but the problem is, it mainly on the brake side.

    PacoPetty likes this.
  15. Reddickracing

    Reddickracing Active Member

    Joined:
    Jun 9, 2017
    Messages:
    711
    Likes Received:
    1,141
    Trophy Points:
    93
    Location:
    Louisiana
    My Bike(s):
    2006 K9, 07 Streetbob
    First Name:
    Jeff
    Blinker/strut bolt back out?

  16. Jersey Big Mike

    Jersey Big Mike Well-Known Member

    Joined:
    May 13, 2009
    Messages:
    1,134
    Likes Received:
    1,310
    Trophy Points:
    113
    Location:
    Murrell's Inlet, SC
    My Bike(s):
    08 K-9, 02 BMC 918ST
    First Name:
    Mike
    Wasn't there a recall back in the day on strut bolts -- a snapped strut bolt will chew the tire up in a hurry, especially riding 2 up -- trust me I learned that the hard way.

    what? and PacoPetty like this.
  17. Low rider

    Low rider Member

    Joined:
    Jun 13, 2017
    Messages:
    92
    Likes Received:
    167
    Trophy Points:
    33
    Location:
    Leesburg , In.
    My Bike(s):
    2005 mastiff
    First Name:
    Montrose
    Soooo........
    Outcome ?
    Any follow up ?
    Just curious to see if you found the cause of debris

    Sent from my Z812 using Tapatalk

  18. Mickeetwo

    Mickeetwo Guru
    Supporting Member

    Joined:
    Nov 28, 2007
    Messages:
    9,806
    Likes Received:
    1,197
    Trophy Points:
    113
    Location:
    Texarkana, AR
    My Bike(s):
    2006 Big Dog K9 & 2014 Ultra Limited
    First Name:
    Alan
    I'm still thinking brake dust....maybe Dean has figured it out and will update this soon

    Low rider likes this.
  19. Sven

    Sven Well-Known Member

    Joined:
    Mar 4, 2012
    Messages:
    1,613
    Likes Received:
    819
    Trophy Points:
    113
    My Bike(s):
    building one
    I could tell you in 2 seconds I fondle the WM.
    Race rubber = Balls up. No matter the spec cooked onto the rim ~ Spongy to the finger compression.
    Brake dust = Peppers the rim. Rubs the dust into the pores of the fingers ~ Ass if you wiped your butt and requires another wipe pee.

  20. Kiwirider

    Kiwirider Active Member

    Joined:
    Sep 1, 2011
    Messages:
    266
    Likes Received:
    34
    Trophy Points:
    28
    Location:
    Van Buren, MO
    My Bike(s):
    08 Mastiff
    First Name:
    Dean
    Cheers for the replies so far. Its definitely not brake dust. They are clean as a whistle. Id sprayed them with brake clean before the ride and they were still clean after. Its definitely rubber. Hopefully get it up on the lift/jack and have a more thorougher look under the fender. The blet appears to be in good condition, it has the same slight clearance from the wheel its always had (the edge of the tire rubber is still sharp on the belt side). It did it a, little with just myself, but more with a pillion on the back, which leads me to believe its tire/fender contact. This has only started recently, which also leads me to think its something wearing out or failing. Hopefully its simple.

    So could that lead me onto the possibility of the shocks starting to fail?

    Does the tention on the belt change much with two up vs one? Ie the angle and distance between the two sprockets with no load vs two up? As it seems ive also developed a trans oil leak on the drive side, I think at the shaft seal.....Belt tension?

    Just when I think Ive gotten on top of all the problems on this bike (had it for 7yrs and has always been something)....

    #20 Kiwirider, Aug 19, 2018
    Last edited: Aug 19, 2018
