Replace your speedo face

Discussion in 'How-To' started by Raywood, May 4, 2009.

Thread Status:
Not open for further replies.
  1. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Webslinger

    Doing this means I will never get another speedometer replaced under warranty from the factory and you should know that before you do this modification. :eek:

    It's been posted here earlier about different faces for your speedo. These faces come from "Webslinger" and he can do about anything you want including your own personal picture. It's only $30 bucks so not that expensive of a mod but can be as personal as you want.

    I had him make me a pic of Glenda on the bike with her bikini top hanging off the handlebars. It came out great and this is the install.

    Warning now!!! This will ax your warranty so only do it if you are sure you want to and are able to handle it!

    First off you need to remove your speedo from the handlebar mount. I didn't include that as all of you can do that yourself.
    After you have the speedo removed you can then do the dis-assembly.

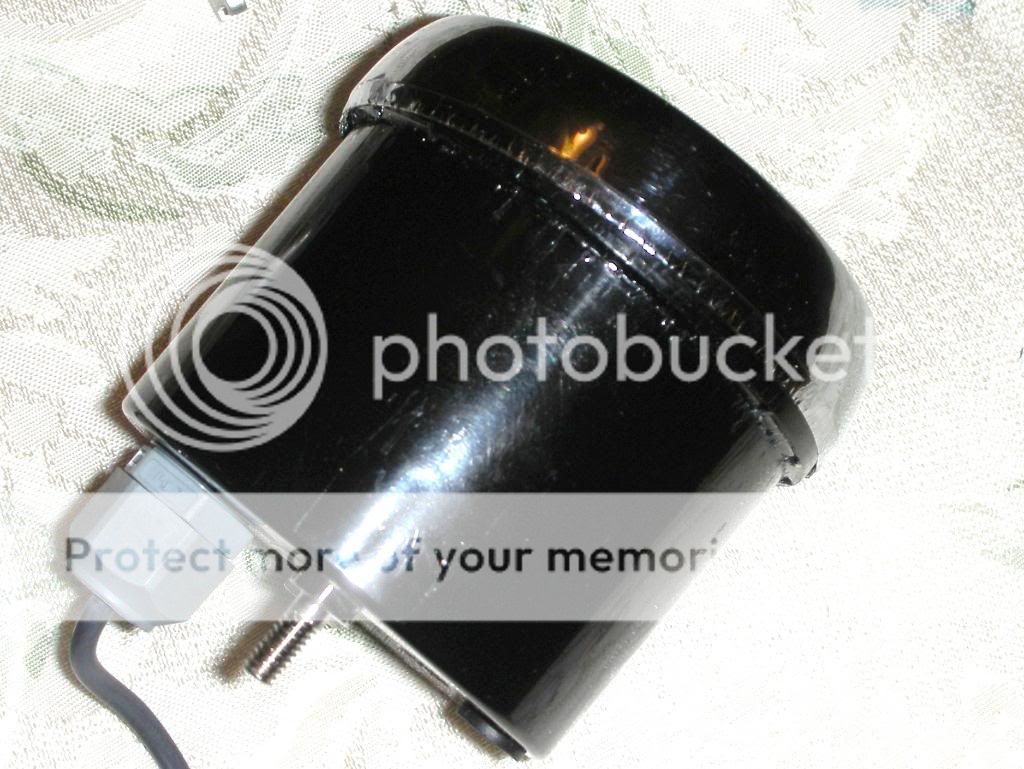

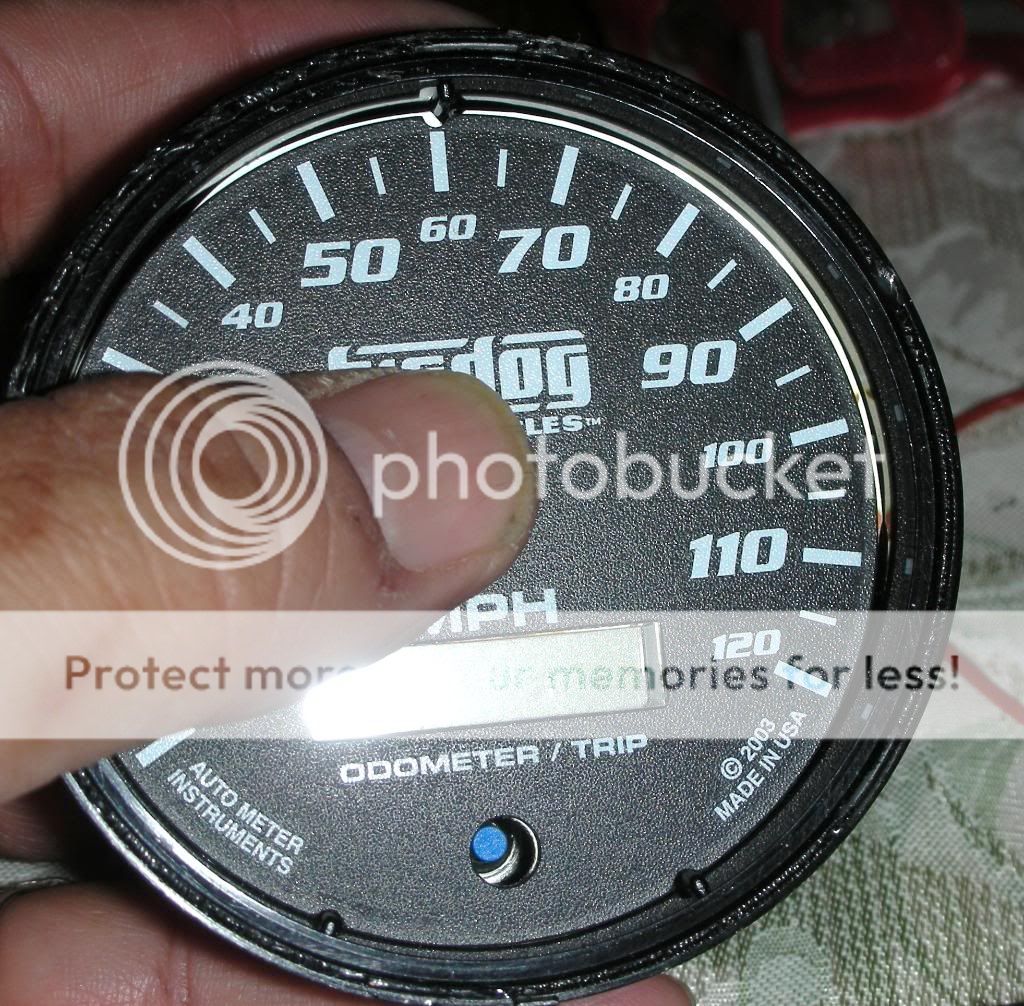

    Here is the speedo casing. Mine is "plastic but some of you may have the metal casing:
    [​IMG]

    You will need to first pry open the bevel one the beauty ring to open up the casing. I used a small screw driver to pry open the bevel part of the ring to slip over the case lip.
    [​IMG]

    Here is the case lip you have to get over:
    [​IMG]

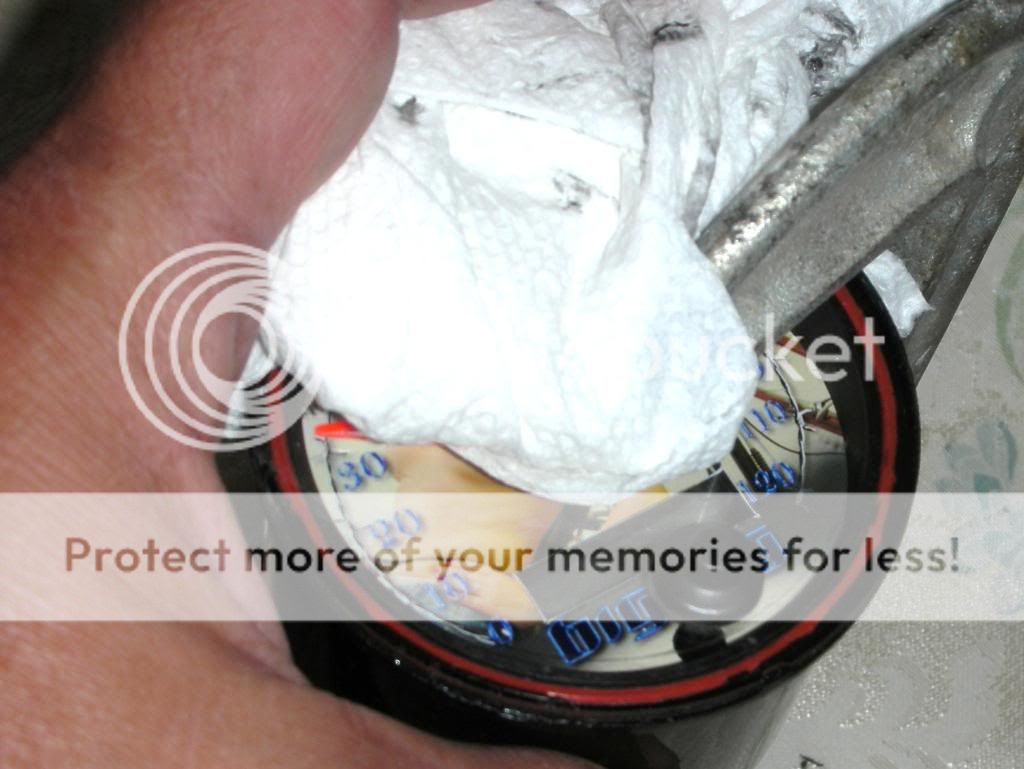

    Once you get the beveled ring off then you need to separate the Plexiglas screen from the casing. It's sealed and glued on so I used my knife and tapped a back of the blade as I opened up the cover working around the casing. It does make a mess but it will be hidden when you get it all back together.
    [​IMG]

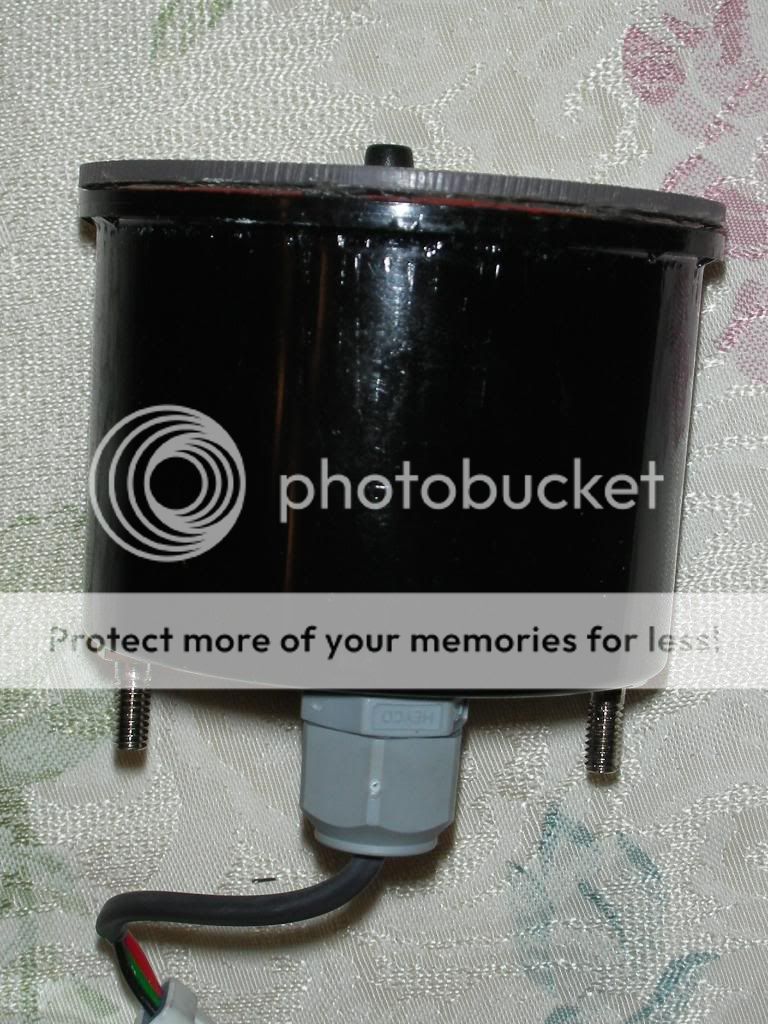

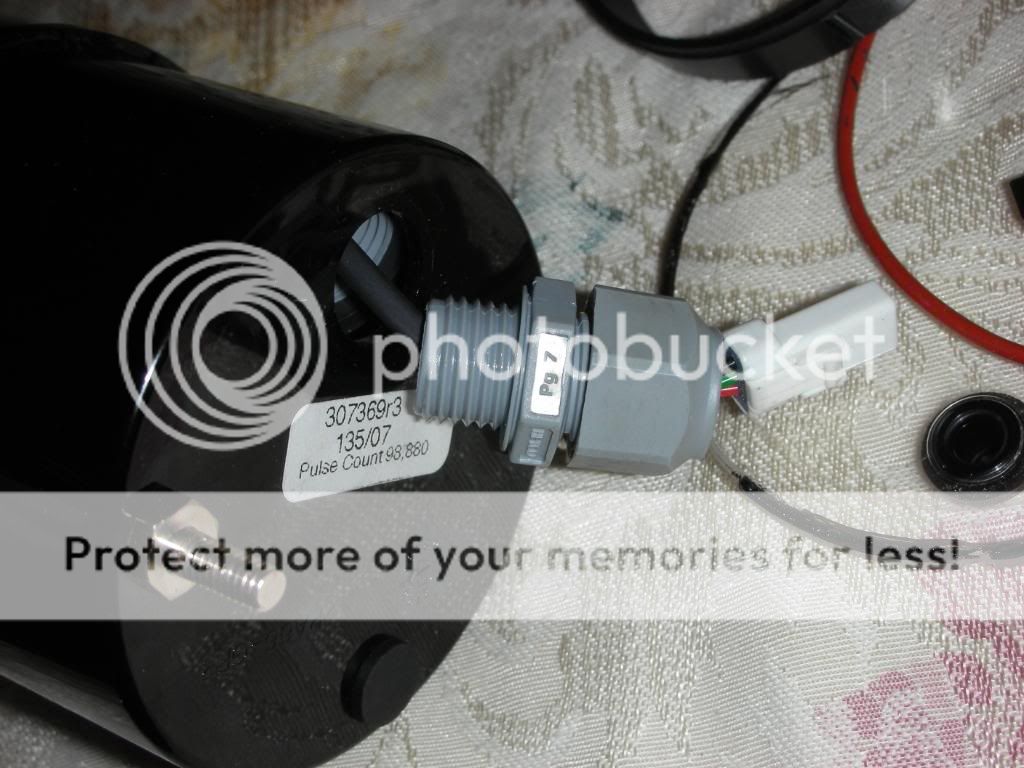

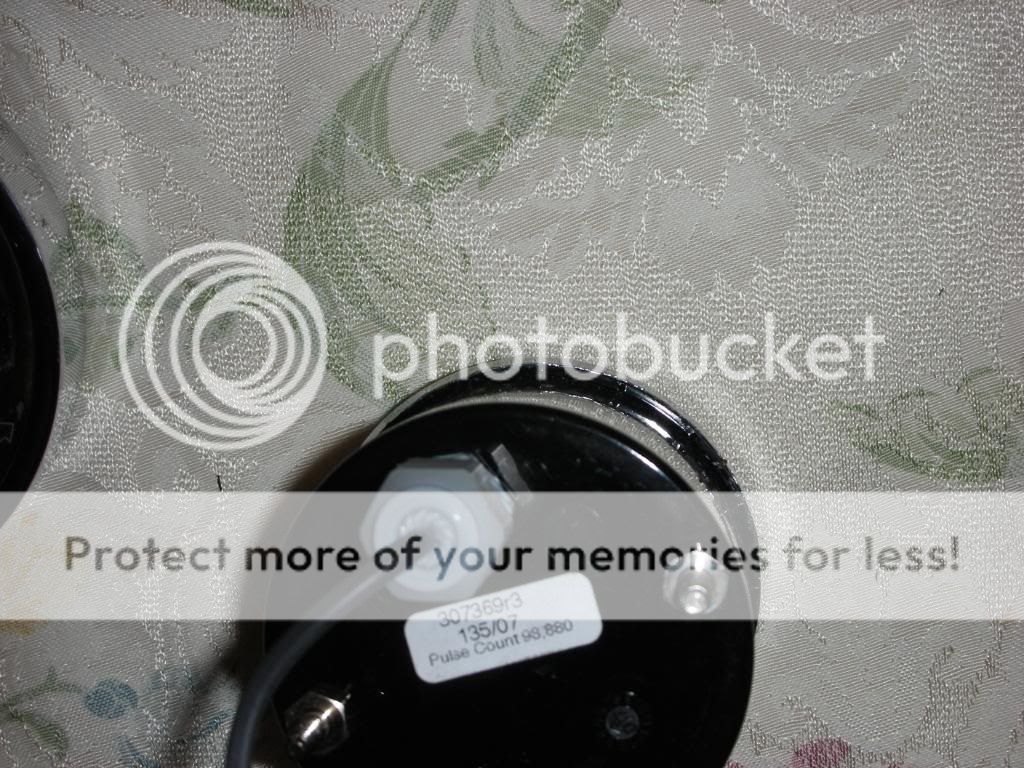

    After you open it up you will need to let the slack out of the wires so unscrew the plastic nut on the back and this will allow the wires to relax.
    [​IMG]

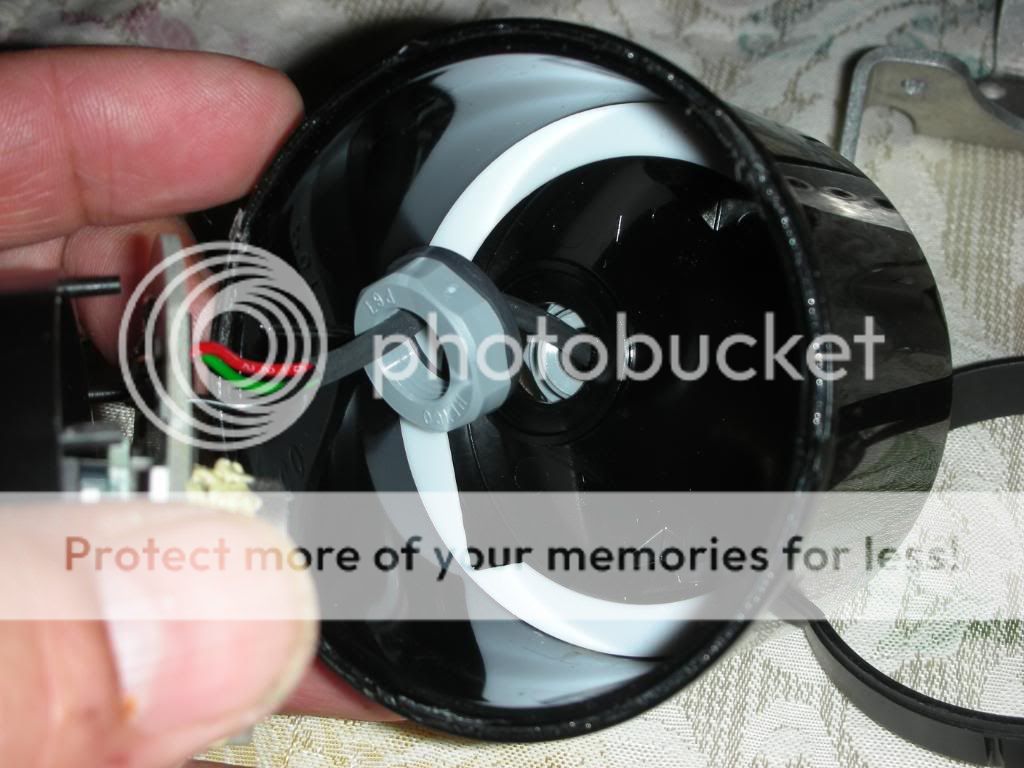

    There is a sealed nut inside and you want to ensure you get a tight seal when you put it all back together.
    [​IMG]

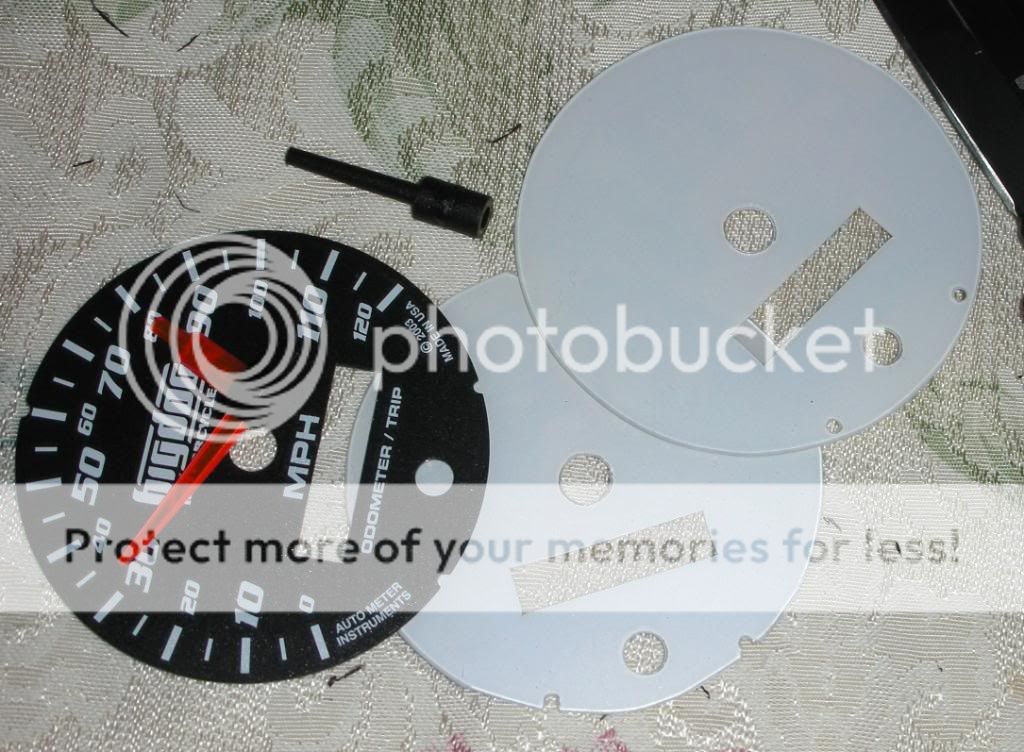

    It will come out in pieces but each piece is indexed by ribs in the casing. They are in the shape of a "peace sign". Easy to put back together as it's all indexed.
    [​IMG]

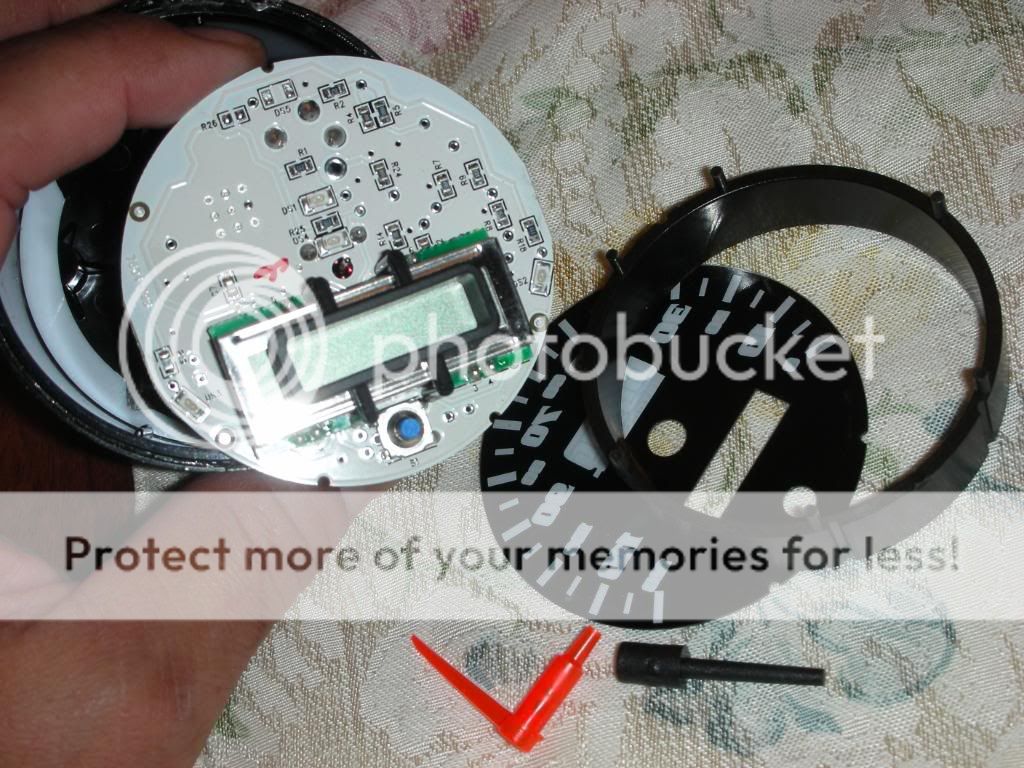

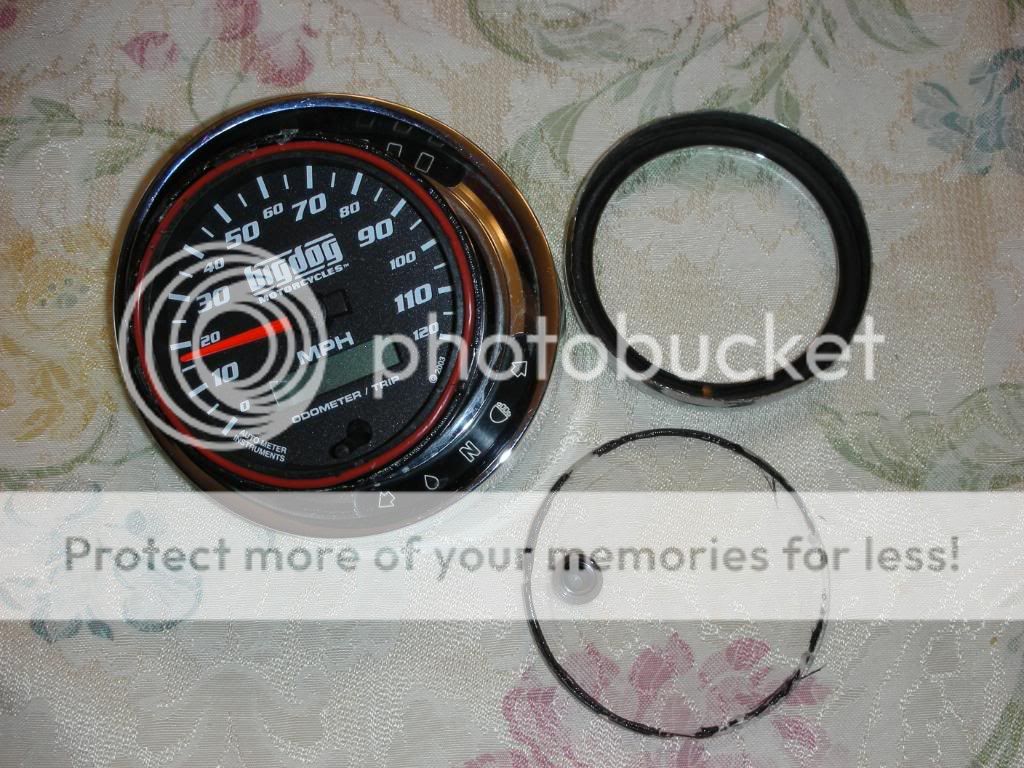

    Here it is all removed. I was worried about the speedo needle but it's not indexed so when it is powered up it will reset itself to zero again so no worries on how it goes back together.
    [​IMG]

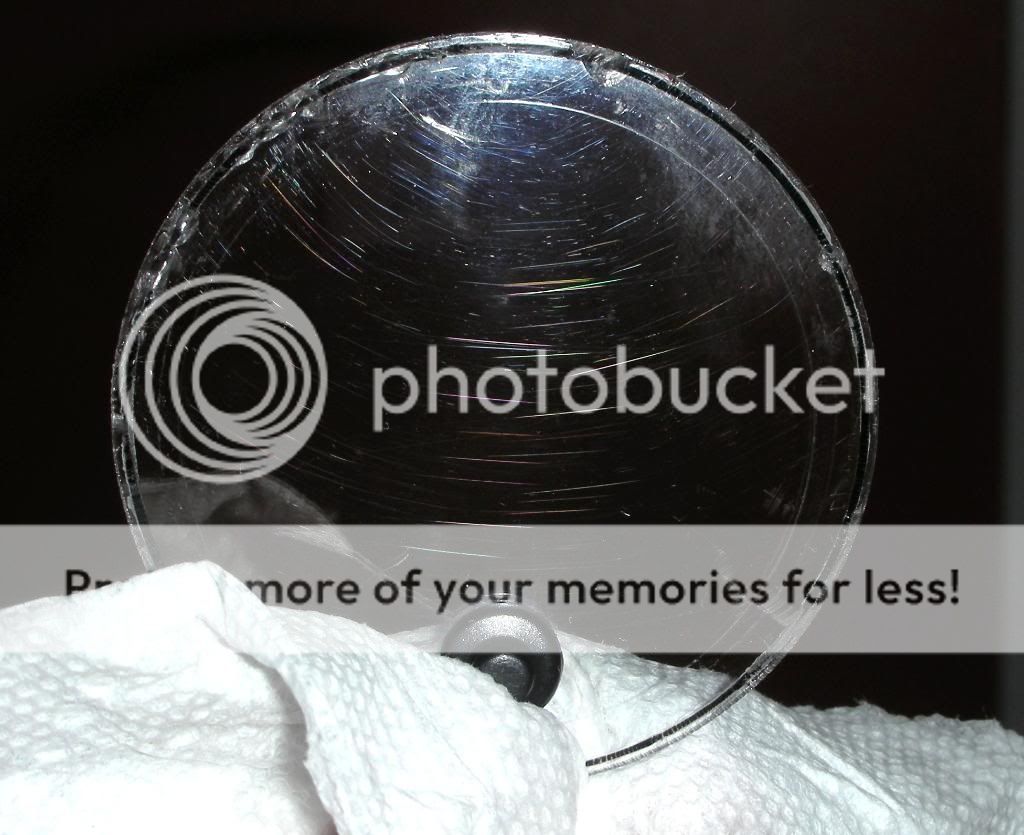

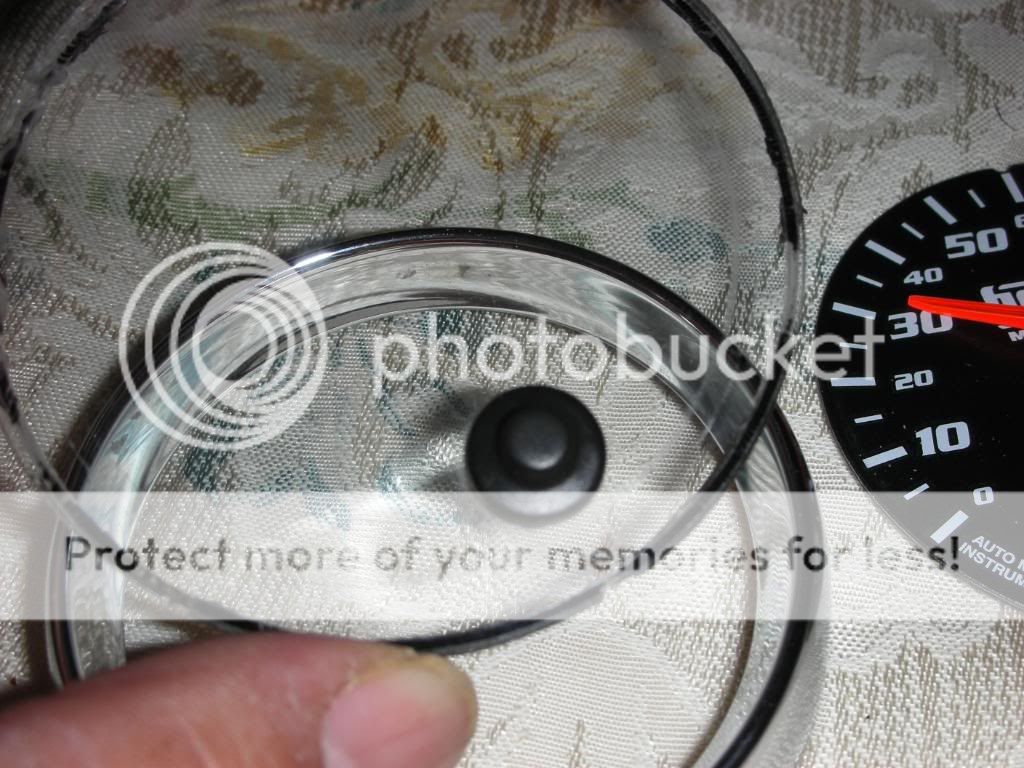

    The Plexiglas cover is glued on and when you separate it it has a bunch of residue on it so I cleaned it up with my knife blade so that when I re-glued it back on it would give me a tight seal:
    [​IMG]

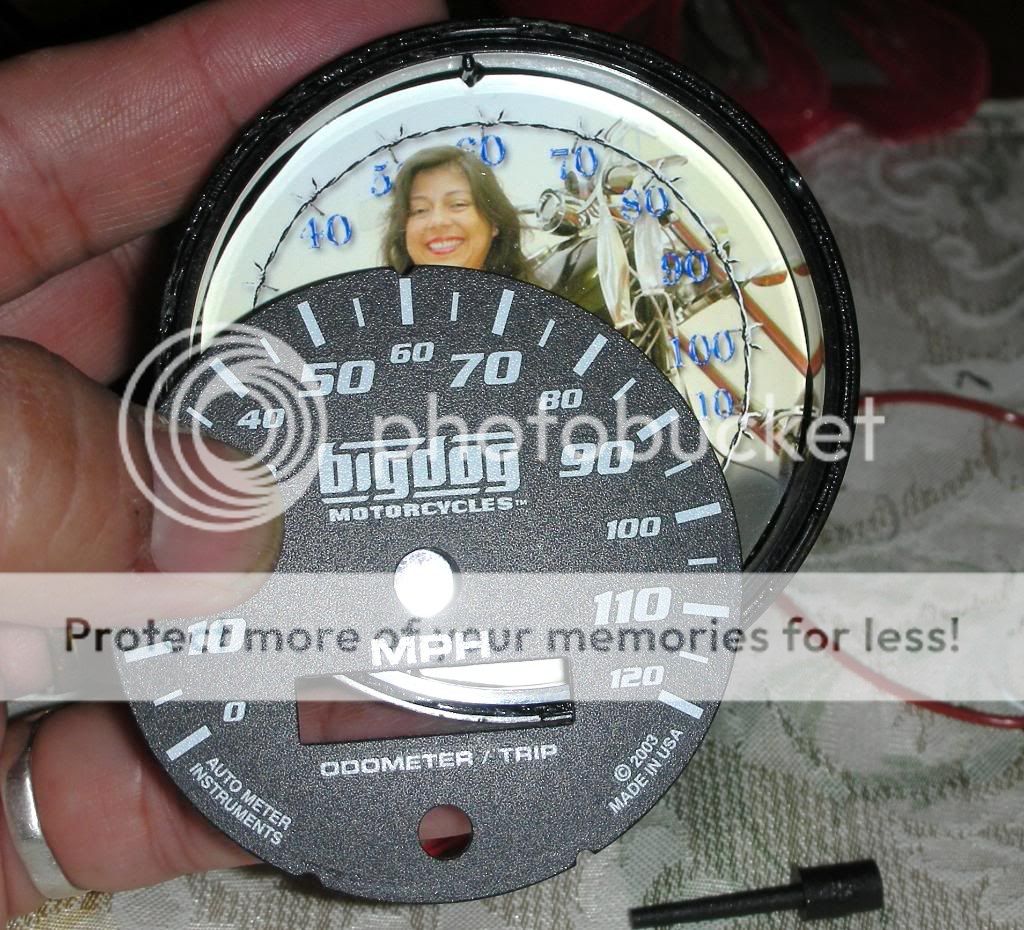

    Next thing to do is replace the face with the one you ordered. It's over sized so you will need to trim it down. I used some scissors and a file to achieve a tight fit in the casing.
    A note here. The original cover moved around and vibrated with the bike so when I fitted the new cover in I made it a tight fit. Here it is:
    [​IMG]

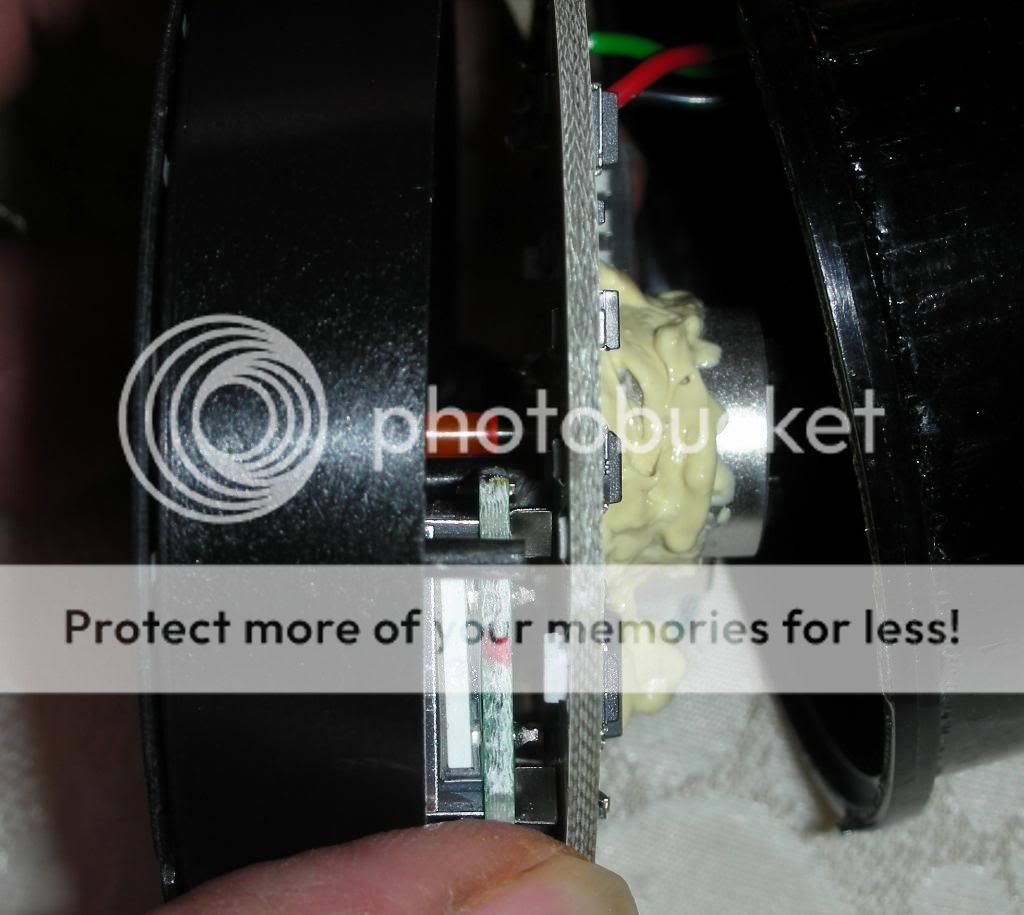

    Here you can see the slack in the original cover:
    [​IMG]

    Here is my new cover fitted tightly to the case so it won't vibrate around:
    [​IMG]

    You will need to cut out the indexes in the new cover you get to fit the three keys in the casing. This is just a matter of a little file work:
    [​IMG]

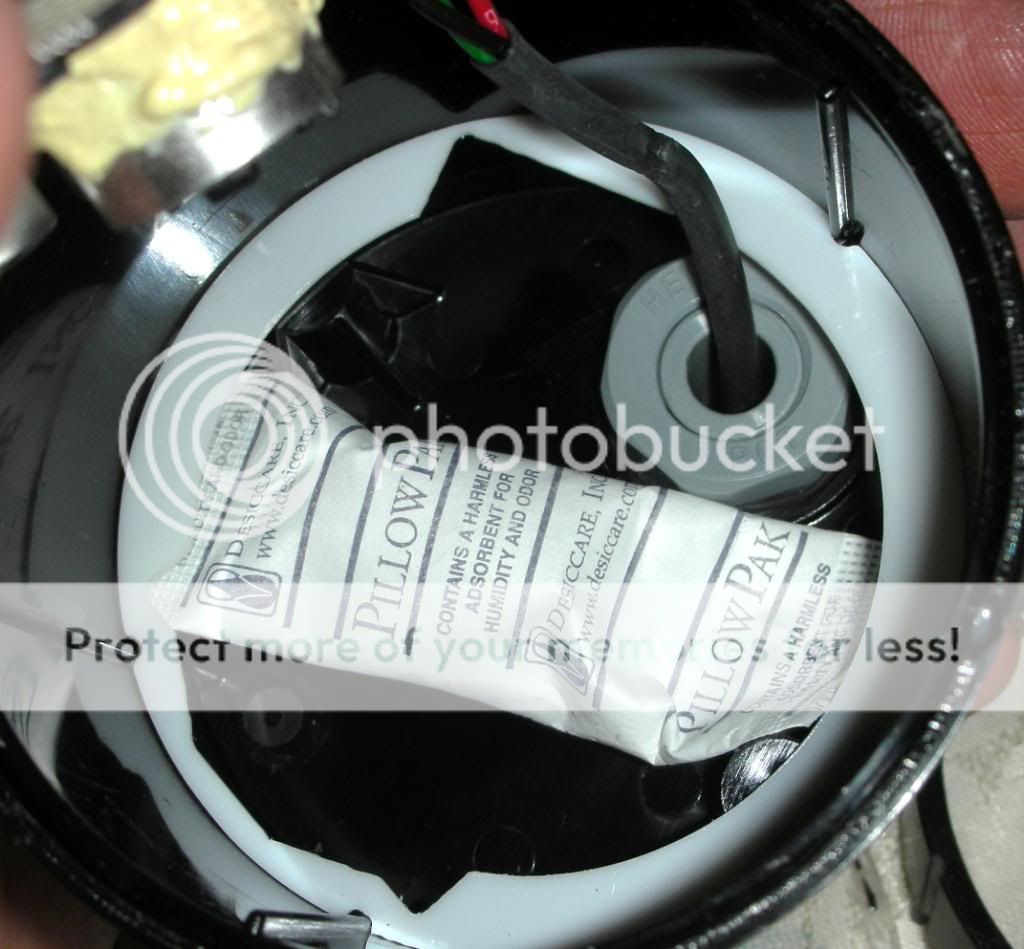

    Then it's time for re-assembly. I installed a Desiccant package inside the case but on the backside not on the front side where it would interfer with the needle movement"
    [​IMG]

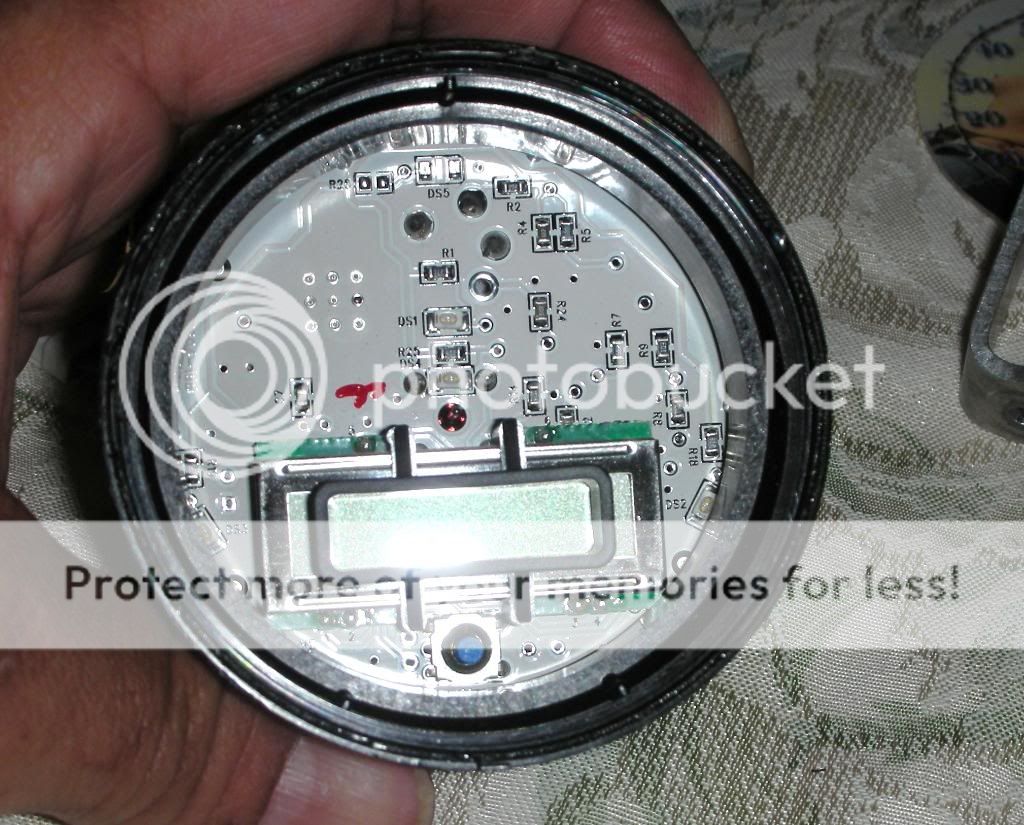

    Then I fitted the control board to the case and then put in the new face:
    [​IMG]
    [​IMG]

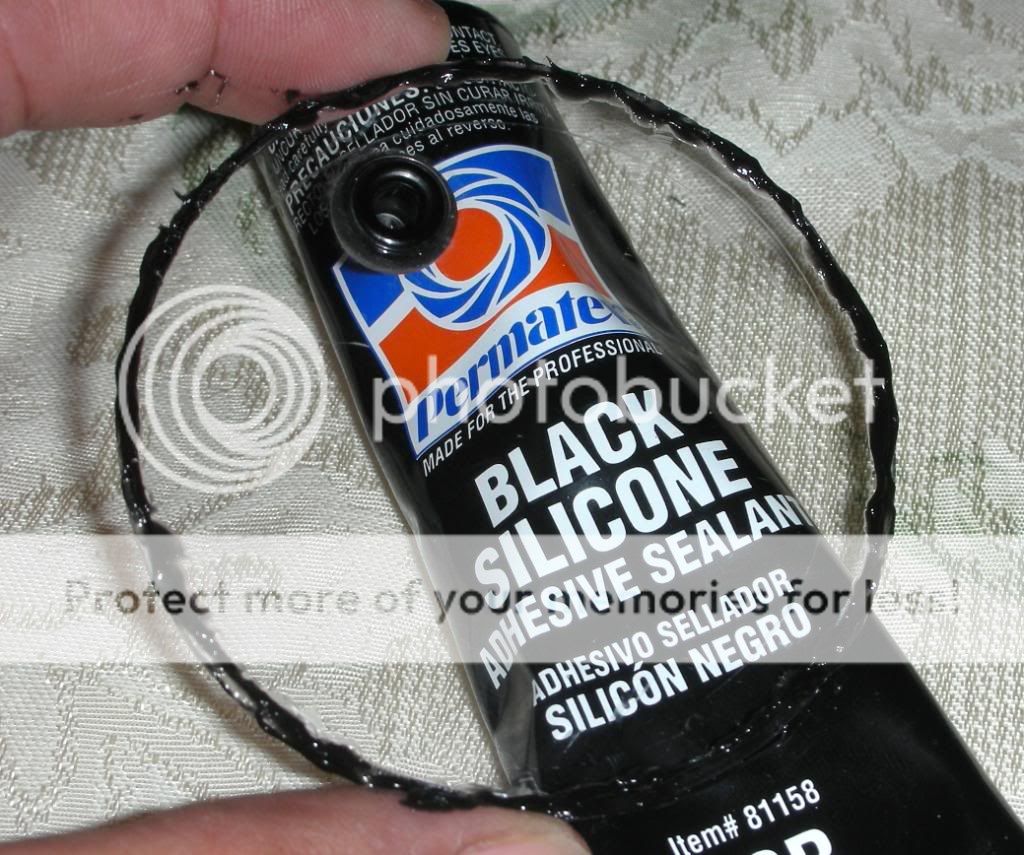

    Next was to clean up the screen cover from the glue I broke into and reseal it for a tight fit:
    [​IMG]

    [​IMG]

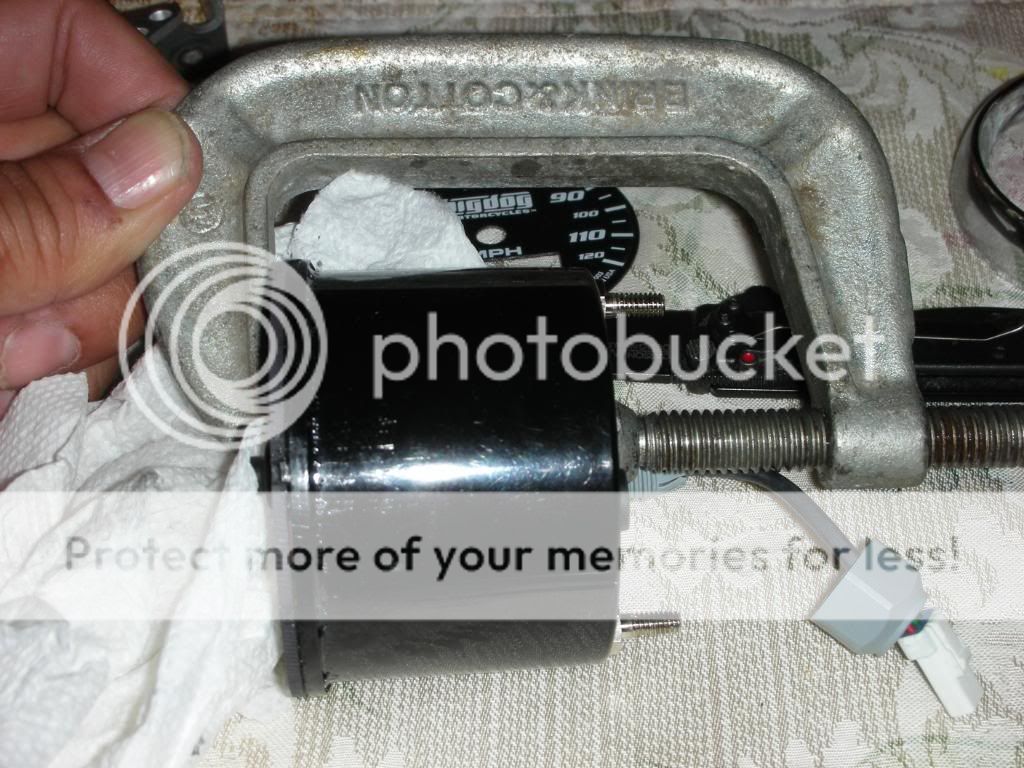

    Then with a clamp I pressed the cover back on:
    [​IMG]

    [​IMG]

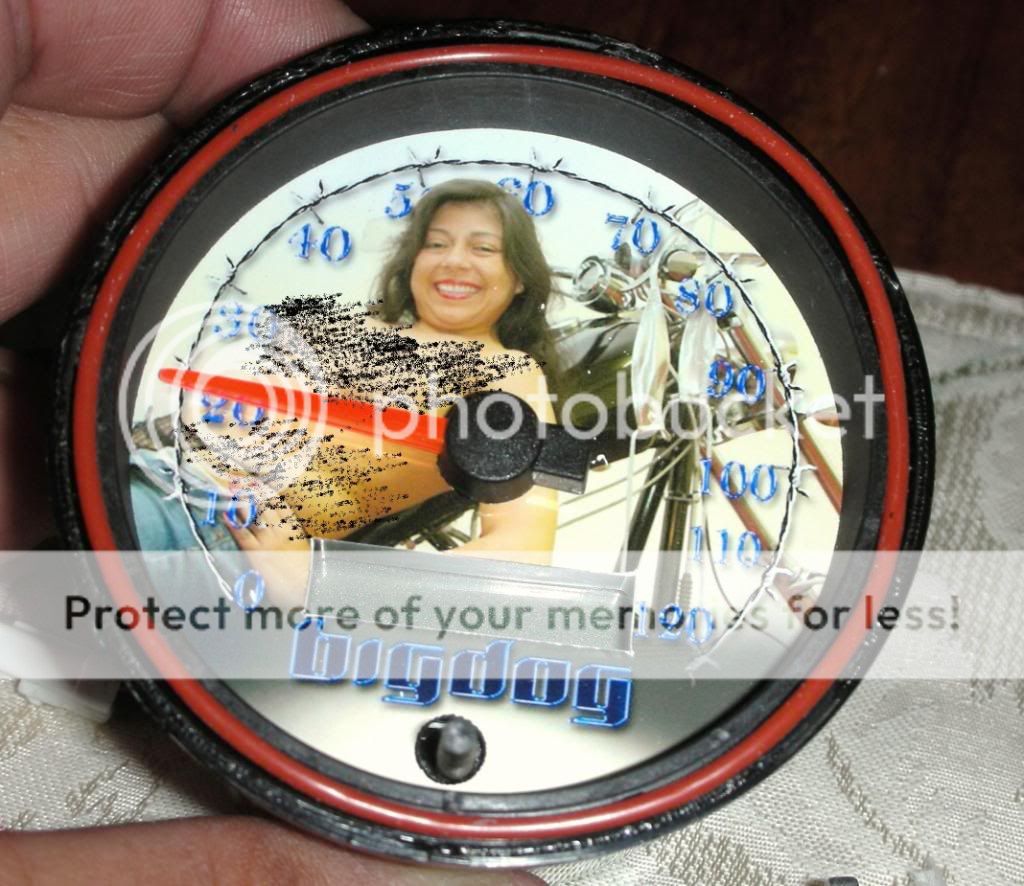

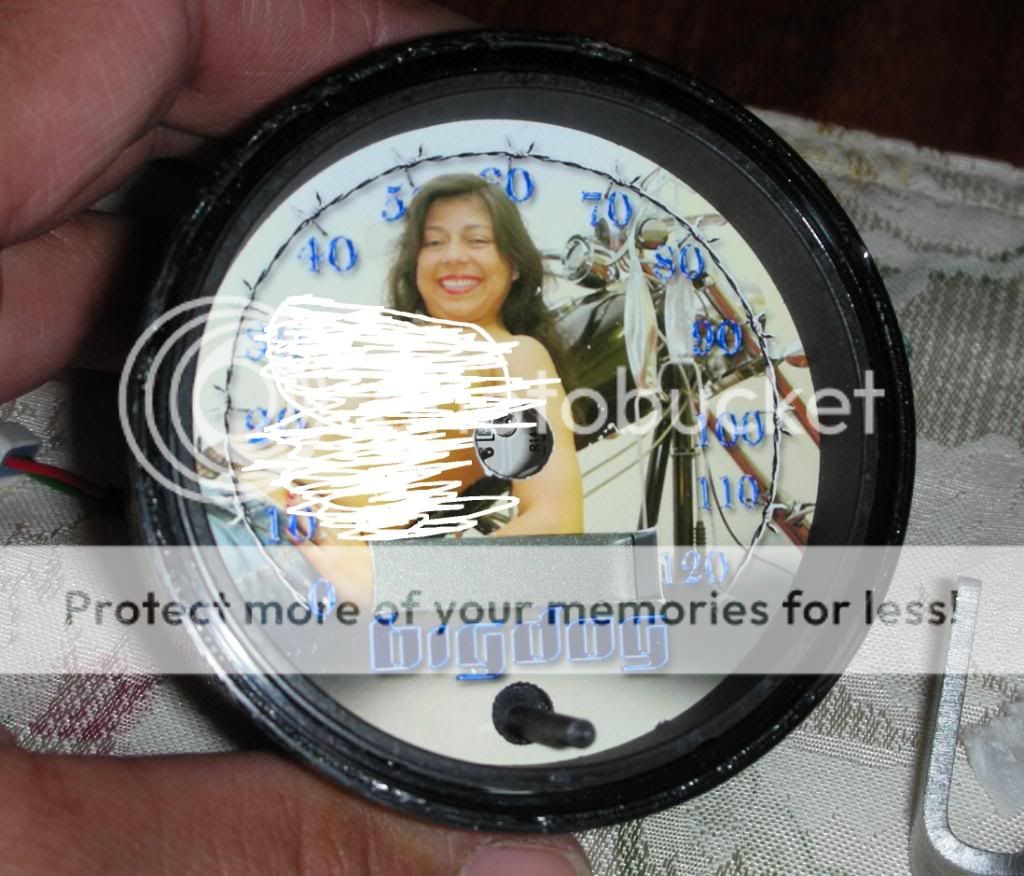

    When it's all done it will look as good as new but with your own personal face.

    About the desiccant package. I heated it in the oven at 200 degrees to dry it out prior to putting the speedo back together.
    Another thing to do is ensure the three wires are solidly soldered to the control board. If not then you can re-solder them on.

    Not an easy install but a good one to personalize your speedometer.

    Enjoy


    [​IMG]


    [​IMG]

    #1 Raywood, May 4, 2009
    Last edited: May 4, 2009
  2. lee

    lee Well-Known Member

    Joined:
    Nov 5, 2007
    Messages:
    4,817
    Likes Received:
    65
    Trophy Points:
    48
    Location:
    Bristol, England
    My Bike(s):
    2005 Big Dog custom build and Buell custom build
    geat work Ray - looks real good. It don't get more custom than that.

  3. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Thanks Lee,

    Something for all to remember is this face is very small so may or may not get a lot of attention depending on what you want out of it!

    :cheers:

  4. Chopper Dave

    Chopper Dave SIICK!!!

    Joined:
    Apr 13, 2007
    Messages:
    8,445
    Likes Received:
    82
    Trophy Points:
    48
    Location:
    Michigan
    My Bike(s):
    2011 Ultra Limited
    First Name:
    Dave
    looks good Ray!:2thumbs: :cheers: nice work!

    do you have a "censored" sticky to put over your speedo when kids are around it?:lol: :eek:

  5. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Yeah, I thought about that but the picture is only that size of my thumb so most will never notice it!!

    :cheers: :2thumbs: :cheers:

  6. Baldielox

    Baldielox Active Member

    Joined:
    Mar 18, 2009
    Messages:
    328
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Virginia
    My Bike(s):
    2008 Pitbull, 2005 Sportster
    Hey Ray... How are you supposed to keep your eyes on the road with a revealing pic in there... :)

  7. Mickeetwo

    Mickeetwo Guru
    Supporting Member

    Joined:
    Nov 28, 2007
    Messages:
    9,513
    Likes Received:
    825
    Trophy Points:
    113
    Location:
    Texarkana, AR
    My Bike(s):
    2006 Big Dog K9 & 2014 Ultra Limited
    First Name:
    Alan
    geat work Ray :2thumbs:

  8. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    I'll let you know this weekend after my 3000 mile weekend trip!!! :eek:

  9. Nomad2day

    Nomad2day Longhair Redneck Geek

    Joined:
    Nov 3, 2007
    Messages:
    2,607
    Likes Received:
    32
    Trophy Points:
    38
    Location:
    Clarksville TN
    My Bike(s):
    Gone but not forgotten 07 Bulldog, Now a 1966 Harley Davidson FL Electra Glide
    First Name:
    Neil
    Thats why he got a cruise mate so he could play with his speedo thingy going down the road...:cheers:
    Neil

  10. onaprwl

    onaprwl Onaprwl

    Joined:
    Mar 4, 2008
    Messages:
    1,091
    Likes Received:
    60
    Trophy Points:
    48
    Location:
    Covington, Louisiana
    My Bike(s):
    Big Dog K-9
    First Name:
    AL
    Don't know if I like the one you put on there. It's all scratched up and I can't see the picture clearly. Please take better picture and post again.:D :D :2thumbs: LOOKS GOOD!

  11. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Ha ha, I can guarantee it looks nice!


    :cheers:

    BorgerBigDog likes this.
  12. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    It's only the speedo face. Very small and ca be personalized to what you want!



    [​IMG]

  13. BorgerBigDog

    BorgerBigDog BORN TEXAN

    Joined:
    Feb 8, 2009
    Messages:
    2,763
    Likes Received:
    15
    Trophy Points:
    38
    Location:
    Borger Texas
    My Bike(s):
    06 Ridgeback,06 Proper Chopper,85 Yamaha Maxim chopped
    First Name:
    Rob
    Ray another great how to.I would like one but i know i would screw something up.:cheers: :cheers: :cheers:

  14. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    It was a bit more complicated than I thought! But it sure looks nice now.

    Order one up and I'll help you through the install.

    :cheers: :2thumbs: :cheers:

  15. drummin777

    drummin777 Active Member

    Joined:
    Jul 24, 2008
    Messages:
    410
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Paris, TN
    My Bike(s):
    2010 HD Street Glide
    First Name:
    Joe
    I used quite a bit of this how to for a repair this week. Thanks Ray, helped alot. The black trim piece on my needle vibrated/fell off. The speedo was only 2 months old too. My waranty had expired since then. So I fixed it, but I must say while it doesnt require much mechanical skill, just finesse and patience, but WHAT A PAIN IN THE FUCKING ASS THIS WAS! I hope I never have to do it again. The glass (or plasic) was no big deal, but getting that damn chrome trim on and off will drive you nuts! Glad it's done and I dont have to see the damn thing bouncing around on my way to and from Thunder Under The Bridge this weekend. Thanks again for the how to.


    [​IMG]

  16. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,356
    Likes Received:
    626
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Glad you got it done. :2thumbs::2thumbs:
