Read your EHC Fault Lights

Discussion in 'How-To' started by Gas Man, Mar 26, 2008.

Thread Status:
Not open for further replies.
  1. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet

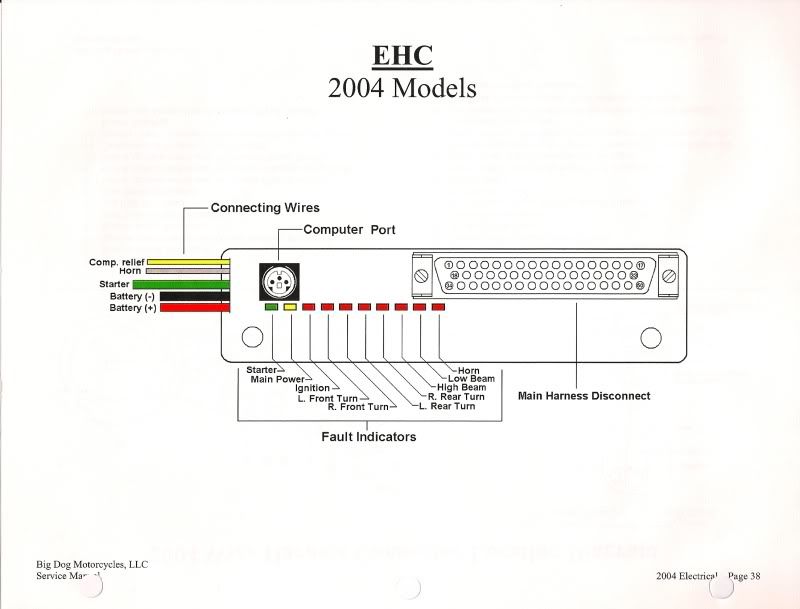

    Someone asked for the info so I thought I would share it with everybody.

    Scanned from my service manual.

    [​IMG]

    2004
    [​IMG]

    new 18 light EHC
    [​IMG]

    #1 Gas Man, Mar 26, 2008
    Last edited: Jun 2, 2009
    BIG HOUSE and Chopper Dave like this.
  2. Chopper Dave

    Chopper Dave SIICK!!!

    Joined:
    Apr 13, 2007
    Messages:
    8,445
    Likes Received:
    82
    Trophy Points:
    48
    Location:
    Michigan
    My Bike(s):
    2011 Ultra Limited
    First Name:
    Dave
    cool shit Gas.....I was looking at mine in my service manual also:up:

  3. BIG HOUSE

    BIG HOUSE DOG ONA DOG
    Calendar Participant

    Joined:
    Aug 29, 2007
    Messages:
    1,232
    Likes Received:
    27
    Trophy Points:
    38
    Location:
    canton, mi
    My Bike(s):
    07 BULLDOG
    Thx Gas Im sure that will help you the man:up:

  4. lee

    lee Well-Known Member

    Joined:
    Nov 5, 2007
    Messages:
    4,817
    Likes Received:
    65
    Trophy Points:
    48
    Location:
    Bristol, England
    My Bike(s):
    2005 Big Dog custom build and Buell custom build
    very helfpul Chris - I need to look out for that in my manual but am gonna print that

  5. N8KAM

    N8KAM Well-Known Member

    Joined:
    Jan 13, 2008
    Messages:
    1,655
    Likes Received:
    27
    Trophy Points:
    48
    Location:
    S.E Michigan
    My Bike(s):
    05 Mastiff 07 Ultraclassic/Electraglide
    First Name:
    John
    My new EHC has 18 LED's ... and the USB style connector.. i wonder what the additional LED's are for...:confused:

  6. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,122
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    Confusion

  7. BIG HOUSE

    BIG HOUSE DOG ONA DOG
    Calendar Participant

    Joined:
    Aug 29, 2007
    Messages:
    1,232
    Likes Received:
    27
    Trophy Points:
    38
    Location:
    canton, mi
    My Bike(s):
    07 BULLDOG
    can someone post the 18 light page out of there manual thanks

  8. N8KAM

    N8KAM Well-Known Member

    Joined:
    Jan 13, 2008
    Messages:
    1,655
    Likes Received:
    27
    Trophy Points:
    48
    Location:
    S.E Michigan
    My Bike(s):
    05 Mastiff 07 Ultraclassic/Electraglide
    First Name:
    John
    I'm trying...... can't figure how to get a picture from a word doc on to the thread.....

  9. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,357
    Likes Received:
    627
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Fromt he word doc hit print page. Open Paint and copy then save as a jpeg. Upload as you do with any pic.

    :flag:

  10. SAYIWONT

    SAYIWONT Active Member

    Joined:
    Feb 16, 2008
    Messages:
    393
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    South Mills, NC
    My Bike(s):
    08 K9
    You could also hit print page and select adobe pdf instead printer and save it as an adobe file. Then post it that way. Just a thought.:flag:

  11. KnotSo

    KnotSo No Time or Patience for Drama or Disrespect.
    Staff Member Supporting Member

    Joined:
    Apr 16, 2007
    Messages:
    10,835
    Likes Received:
    943
    Trophy Points:
    113
    Location:
    Western Washington, the State
    My Bike(s):
    2006 Big Dog Mastiff, 2005 Buell, 2000 HD
    Easy for you all...:2thumbs:

  12. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Highlight, copy, paste, save, upload, post
    ????

  13. N8KAM

    N8KAM Well-Known Member

    Joined:
    Jan 13, 2008
    Messages:
    1,655
    Likes Received:
    27
    Trophy Points:
    48
    Location:
    S.E Michigan
    My Bike(s):
    05 Mastiff 07 Ultraclassic/Electraglide
    First Name:
    John
    Well i just scanned part of the the page and saved it as a Jpeg.....

    [​IMG]

    #13 N8KAM, May 11, 2008
    Last edited: Jun 10, 2008
  14. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    that is great KAM!!!

  15. BIG HOUSE

    BIG HOUSE DOG ONA DOG
    Calendar Participant

    Joined:
    Aug 29, 2007
    Messages:
    1,232
    Likes Received:
    27
    Trophy Points:
    38
    Location:
    canton, mi
    My Bike(s):
    07 BULLDOG
    Thanks Kam

  16. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,357
    Likes Received:
    627
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Ohhhh, you guys with the newer bikes have to many lights. :eek:

    :D

  17. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    I spoke to Kam on the newer ehc. The lights we got are normal. Besides the ignition light which seem to be "flickering".

    He said my idea on low voltage sounds ok but he was thinking maybe go back to the standard bulb not the HID. Ray has said it many times about altering the lighting stuff connected to the EHC.

  18. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Yeah no crap!

    Serial Port EHC all the way!!! :whoop:

  19. Fibersnake

    Fibersnake Banjo Playing PsychoBilly

    Joined:
    Jun 11, 2007
    Messages:
    4,383
    Likes Received:
    132
    Trophy Points:
    63
    Location:
    Eastern Panhandle of West Virginia
    My Bike(s):
    2005 BD Mastiff 2009 Buell 1125R
    Okay I just replaced my new EHC and since it has the 18 lights instead af the 14 or so on the earlier one, can some one please confirm that the lights for the controller and the power are supposed to be lit with switch activated and running. The only other light lit is the ignition and everything seems to be good, however these 2 news lights I am not 100% positive about.

    From the labling it would make sense to me to have them on, but if they are like some others, it may be a fault or something.

    Thanks in advance.

  20. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Fiber... look at Big House's electrical issue thread... Kam said what was normal
