Powder coat Warning

Discussion in 'Paint / Powdercoating' started by alhall88, Aug 6, 2009.

  1. choppersforlife

    choppersforlife CHOPPERSFORLIFE
    Supporting Member

    Joined:
    Apr 9, 2007
    Messages:
    411
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    SOUTH JERSEY
    My Bike(s):
    RIDGEBACK / HD STREET GLIDE
    First Name:
    TONY
    SUCKS !

    That SUCKS so bad! :angry:

    Sorry to see that happen:bang:

    Hope ya get back on the road ASAP:up:

  2. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    Also, a little off topic but how did those bars work out for ya? I still got yours on the ridgeback.

  3. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,121
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    Thanks they are working great.

  4. T.Byrd

    T.Byrd Well-Known Member

    Joined:
    Jul 7, 2007
    Messages:
    2,392
    Likes Received:
    90
    Trophy Points:
    48
    Location:
    KY
    My Bike(s):
    2006 Harley Davidon Ele. Glide Classic
    First Name:
    Tom
    Dam Al, Better the metal than the skin. Glad you are O.K.

  5. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Al, what did Exotic say about the problem that he said would fine????

  6. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,121
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    Well after checking every possible cause other than the squish tube length we also found out that because of the inconsistency of the powdercoat thickness we found that the mount surface was out by .013. We recut the wheel down to the raw aluminum and re squared both sides. Also since I was having the hub remade I went with 2 bearings on that side so now both sides will have double bearings. Here is the old hub next to the new one.
    [​IMG]

    Here's just a shot showing both hubs with 2 bearings each.
    [​IMG]

    And here's a couple shots of what we did to the brake caliper bracket that got all chewed up as well. We machined the backside surface and remade the spacer longer to make up for the distance. Notice its all 1 pc.
    [​IMG]
    [​IMG]

  7. chacha

    chacha Chaff Your EHC!!
    Calendar Participant

    Joined:
    Apr 18, 2007
    Messages:
    2,642
    Likes Received:
    111
    Trophy Points:
    63
    Location:
    20151
    My Bike(s):
    2001 Nightrain, 2014 Indian Vintage, 2006 Bulldog (sold)
    First Name:
    Mister Fucking Wonderful
    Nice work -- good machinist too. What bearings are you using? Got a part number?

  8. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,121
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    chacha Neil did some research on this and basically your choices are the good bearings for $20 a pc. or the basic cheap ones from big dog. I put the good ones in because I had an extra set but I'm on the fence if they are actually worth it.
    Here's Neil's post.

    The original bearing I removed, 6205RS 16 is a one inch bearing. The 16 at the end stands for 16/ 16ths or 1 inch. Being that it is a no brand bearing I chose the route you did and ordered 3 Timken/Fafnir 205KDD2. Yea, screw China under my ass too. The 2 at the end of a bearing number represents it has been modified in "some" way. Be it the race or whatever. The Timken/Fafnir 205KDD2 is no doubt a quality bearing and I gave 20.00 a piece for them. As we measured the shaft itself, the values were all over the place depending where it was measure. They were surprised as well.

    I asked about opening the seal and applying extra grease and was advised not to do that. The extra grease will cause the bearing to heat up more thus causing premature failure also. Appears it is a science to the amount that is applied for a particular bearing.
    __________________
    Neil in Tenn

  9. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,121
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    Forgot to mention that this guy was my apprentice so he wanted to thank me for all my help and made me a great deal.

  10. lee

    lee Well-Known Member

    Joined:
    Nov 5, 2007
    Messages:
    4,818
    Likes Received:
    67
    Trophy Points:
    48
    Location:
    Bristol, England
    My Bike(s):
    2005 Big Dog custom build and Buell custom build
    looks good Al. So you up and running again now?

  11. Staffy

    Staffy Active Member

    Joined:
    Mar 17, 2008
    Messages:
    770
    Likes Received:
    25
    Trophy Points:
    28
    Location:
    08550
    My Bike(s):
    K9 - 2007 Limited Edition #46 ** Something like an '08 Mastiff ** 2014 Indian Chief Vintage
    Give these guys a shot

    Al, not good - sorry.
    I was digging around for some info on 360 brakes and stumbled upon this shop. In doing the 360 brake one must remove the hub - in saying that they "may" just have one lying around - you never know give them a shout out and good luck.

    360 Brakes for Motorcycles - Complete Bolt-On 360 Brake Kits by Art In Motion, LLC

    PLEASE IGNORE - didn't read the whole thread at first - see you have already made the new hub.

    #31 Staffy, Aug 28, 2009
    Last edited: Aug 28, 2009
  12. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    No shit... that is awesome!! Look great! You have the bike back on the road this weekend for the good cool weather?

  13. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,121
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    Just finished up ready to ride but now its raining.

  14. MARV

    MARV Well-Known Member

    Joined:
    Aug 14, 2008
    Messages:
    1,937
    Likes Received:
    59
    Trophy Points:
    48
    Location:
    CENTRAL JERSEY
    My Bike(s):
    05 CHOP
    First Name:
    SUL
    better off letting the locktite set a bit.

  15. gooby63

    gooby63 Member

    Joined:
    Nov 12, 2009
    Messages:
    54
    Likes Received:
    11
    Trophy Points:
    8
    Location:
    marion, IL
    My Bike(s):
    BDM k9
    is it possible to repair powder coat on frame?

  16. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet

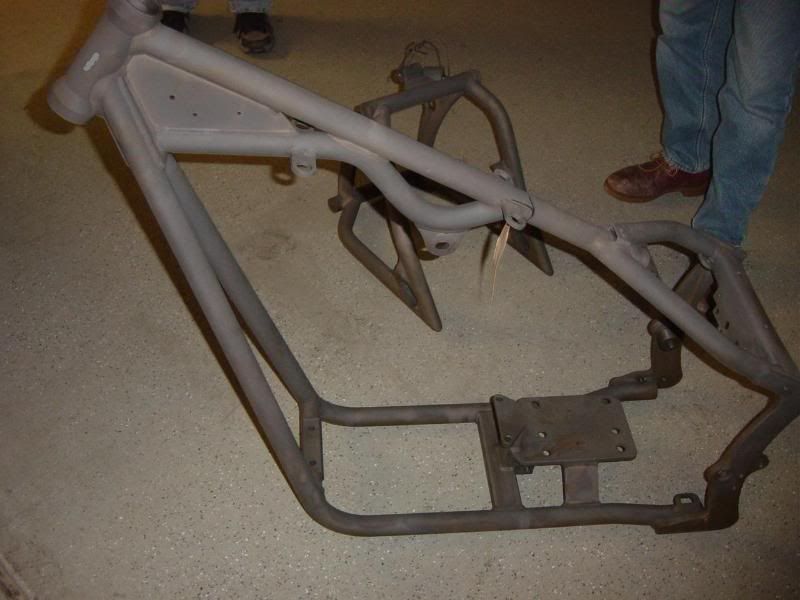

    You can paint the marks but the only real repair is this

    [​IMG]

  17. jovi

    jovi Member

    Joined:
    Mar 20, 2013
    Messages:
    45
    Likes Received:
    19
    Trophy Points:
    8
    My Bike(s):
    2001 softail
    alhall88 Who made your hub?I need to have one made.Thanks
