Modifing The Supertrap Exhaust!

Discussion in 'How-To' started by scubaman15, Dec 15, 2007.

Thread Status:
Not open for further replies.
  1. Raywood

    Raywood The Pirate
    Staff Member Supporting Member

    Joined:
    Apr 5, 2007
    Messages:
    17,384
    Likes Received:
    720
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
  2. erldawg

    erldawg Guru

    Joined:
    Jan 26, 2008
    Messages:
    5,531
    Likes Received:
    75
    Trophy Points:
    48
    Location:
    Raleigh, NC
    My Bike(s):
    2008 K-9 EFI
    First Name:
    Earl
    I would think removing two of the plugs would be better than none and leaving or drilling a hole in the front plugs would still provide back pressure to reduce decel popping with the stock exhaust.
    Ultimately replacing the pipes with something less restrictive is the goal. V&H 2-2 or 2-1.

  3. Robusto Bob

    Robusto Bob New Member

    Joined:
    Feb 12, 2009
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    0
    My Bike(s):
    Pitbull
    Hello I have a 02 Pit and I also removed the baffles, now it back fires a bit during decent and sometimes loses power @ 2,500 rpm. Thanks Bob

  4. Jones

    Jones Member

    Joined:
    Sep 19, 2008
    Messages:
    125
    Likes Received:
    16
    Trophy Points:
    18
    Location:
    North North NJ
    Fix that pop & power loss

    Robusto Bob,
    What size jets did you install? Did you make any air filter mods?

  5. Jones

    Jones Member

    Joined:
    Sep 19, 2008
    Messages:
    125
    Likes Received:
    16
    Trophy Points:
    18
    Location:
    North North NJ
    Baffles out.

    Hello all,

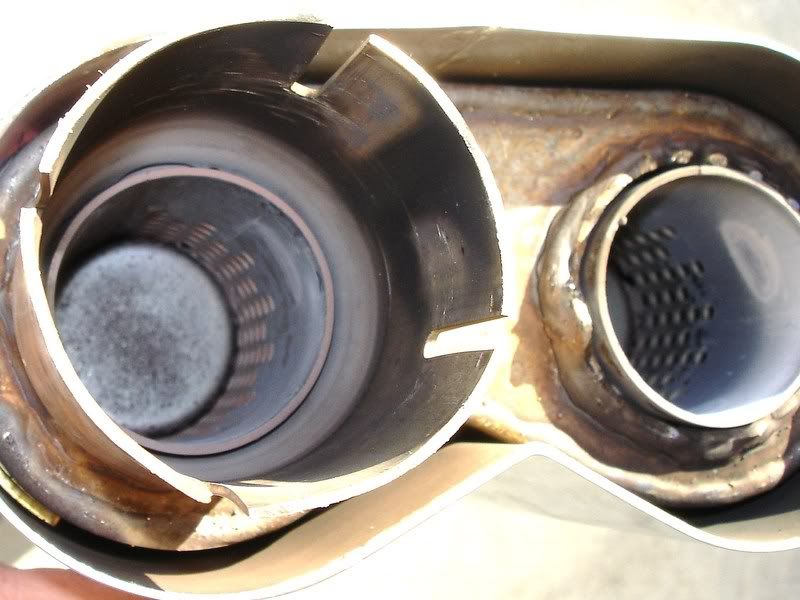

    I drilled out the 4 baffles in the stock Supertrap exhaust on my 08 Ridge. Changed the jets from what I found as stock, INT .031-MAIN .076 to INT .032 and MAIN .078. I adjusted the Super G per S&S instruction ( I have done a couple other Es before this G Carb adjustment so I'm comfortable that I have it dialed in to S&S recommendation. The bike idles perfect and accelerates perfect, no dead spots. I have decel pop. Need a fix. I like the "washer baffle" idea but the Supertrap does not have a screw hole for the existing baffle like the Mean Mothers has. Any suggestions?? What type of carb adjustment would reduce the decel popping? I don’t think removing the bottom bowl vent plug would help, would it? seems like I have atmospheric pressure in the bowl.

    Thanks. Juice

  6. ALDog

    ALDog Active Member

    Joined:
    Jun 29, 2008
    Messages:
    458
    Likes Received:
    3
    Trophy Points:
    18
    Location:
    Hunstville, AL
    My Bike(s):
    2008 Ridgeback
    First Name:
    Carl
    Juice, I was never able to get rid of the decel pop with the stock pipes/ no baffles. As you mention, I was able to get it running great but that was always an issue. :loony:

  7. Jones

    Jones Member

    Joined:
    Sep 19, 2008
    Messages:
    125
    Likes Received:
    16
    Trophy Points:
    18
    Location:
    North North NJ
    Think I'll try this

    Al thanks for the info.

    I have read every post related to decel pop. Ill try enrichening a bit, check for leaks. On the 08 Ridge exhaust there is a dress up "end cap" When I reinstalled the cap in order to make the two side screws line up I had to pull out the end cap about 1/32. Real easy to pull the end cap back off and cut a spacer (read Baffle) plate with holes to give me some back pressure. Ill experiment. I do have a question for the gurus. Any specific hole pattern better then others? I wondered why Scubaman came up with the washer pattern that pattern has a hole in the middle with perimeter airflow around 95% of the assembly. The shank of the screw eye providing the 5% obstruction. I was just going to drill a .75" hole in the center of the spacer plate for each of the two exhausts diameter is app 1.25" for each exhaust. comments are welcome and appreciated.

    Thanks Juice

  8. BubbleHead

    BubbleHead Big Dog Biker test account

    Joined:
    Jan 12, 2008
    Messages:
    1,242
    Likes Received:
    19
    Trophy Points:
    0
    I removed the back two plugs first and it still popped on decell. Then I removed the front two plugs and it still popped. Of course I had changed the air filter to a K&N with a desperado cover and re-jetted to a .032 inter/ .076 main. Never stopped the decell no matter what jets I used. When I had the starter replaced under warranty the dealer replaced my entire exhaust system with a new stock one becuase they said it was broke where the muffler met the pipes. So.... I have so far left it stock on the exhaust and re-jetted back to a .031 Inter/ and a .074 Main jet. Still running a K&N filter and the desperado. Bike runs fine with a tiny bit of pop on a hard decell only. Now to the point of all this..... can anyone suggest wether the Mean Mothers or the Vance and Hines Big Radius is the better of the two exhaust systems? I know the 2 in to 1 exhaust is supposed to produce more power but I'm not a fan of the looks of these exhaust systems. I perfer the look of the shotgun 2 in to 2 systems. Which ever one I should eventually choose I'm not planning on modifying them from there stock configuration. I'd be happy with them the way they are just a question of which is the better system to use in regards to overall performance in the stock configuration. I have heard of the V&H dragging the ground on hard right turns. Does that happen with the Mean Mothers?
    Thanks in advance for any and all input,
    BBD

    since this post I have decided to install the BDM slip-on system part number Part No. 193-000041-01

    this system provides me with exactly what I was looking for.

    #28 BubbleHead, Apr 6, 2009
    Last edited: Apr 9, 2009
