How To pull or swap your levers

Discussion in 'How-To' started by Gas Man, Jan 2, 2008.

Thread Status:
Not open for further replies.
  1. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    For me, I had a scratched brake lever, for you, who knows. Something custom maybe...

    Remove the mirrors with the 1/2" hex head below the controls.

    LEFT SIDE

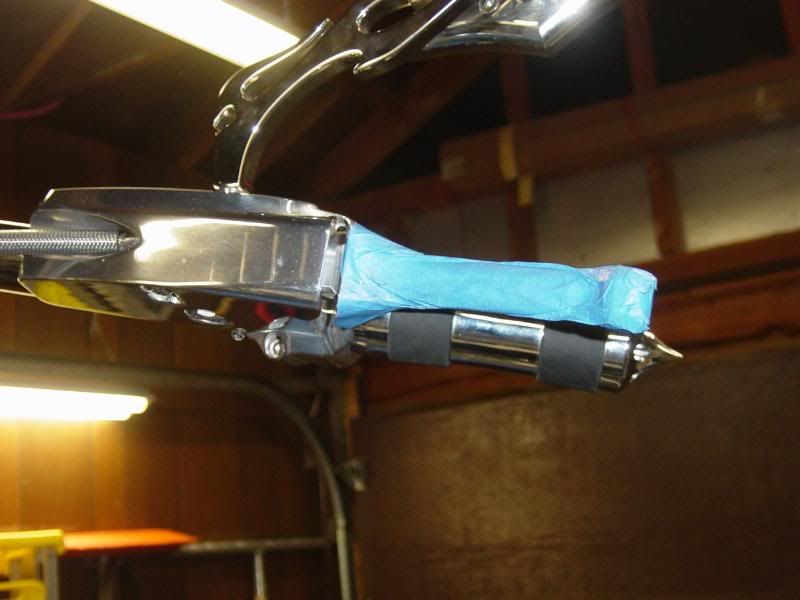

    Spray some lube down the top of the cover to help slide it up and out of the way.

    [​IMG]

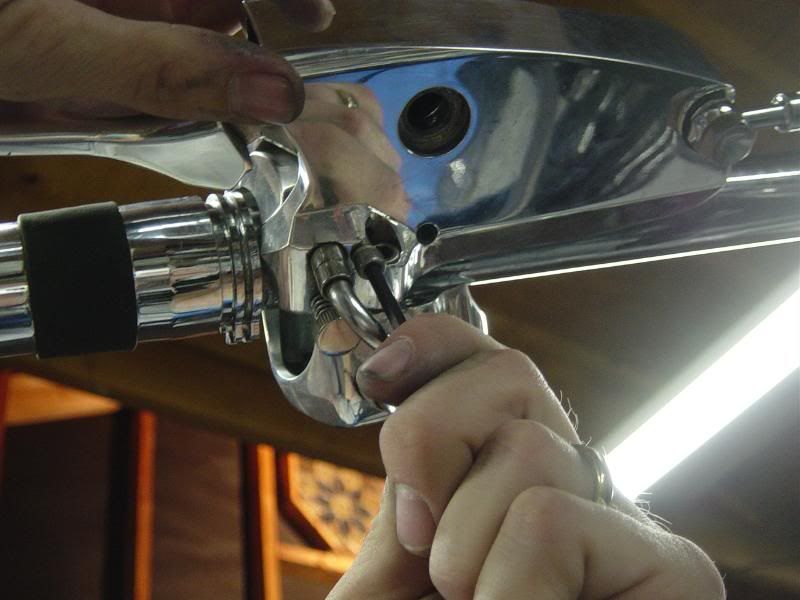

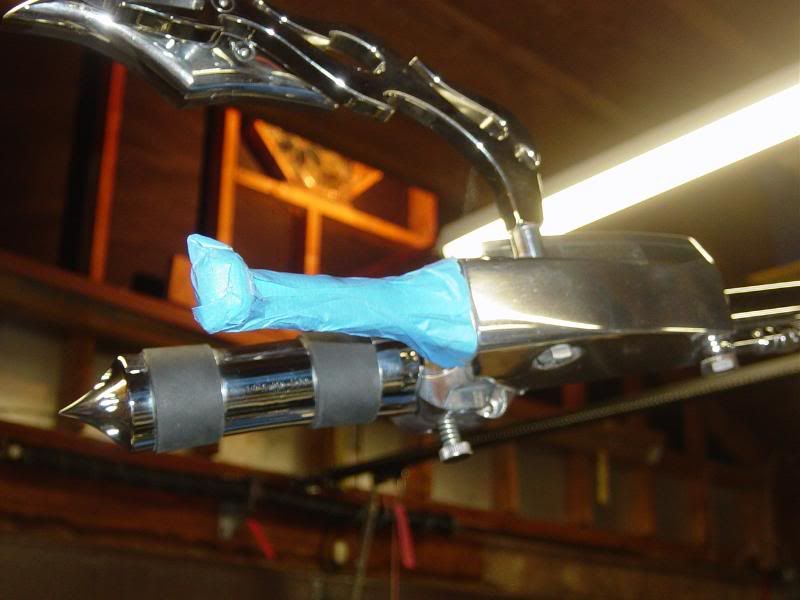

    This is what you'll see

    [​IMG]

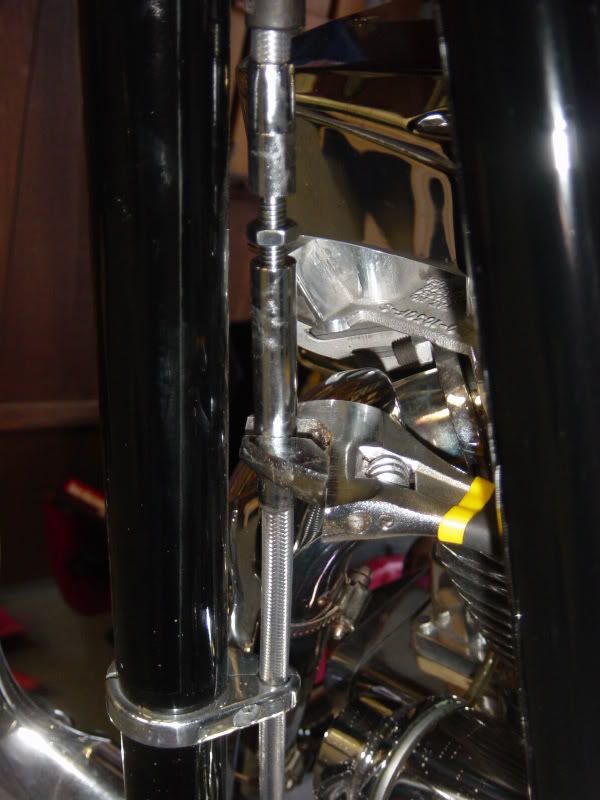

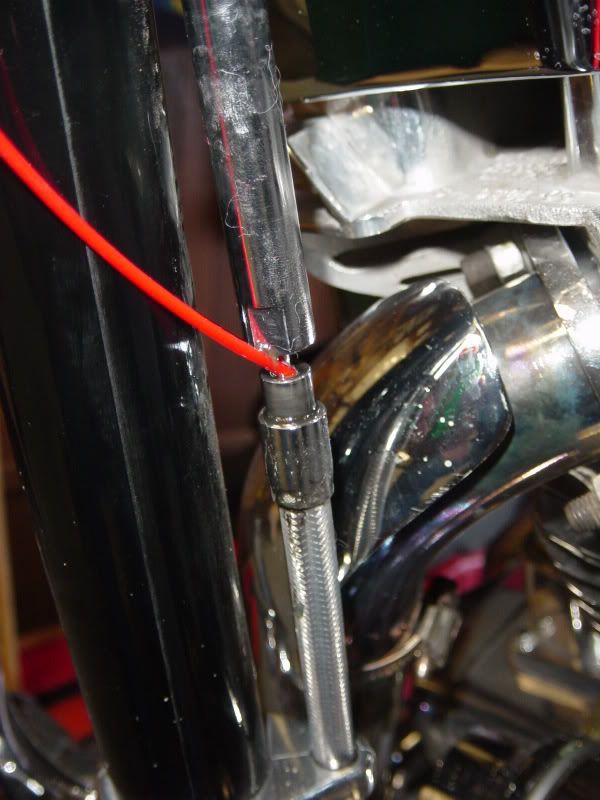

    Loosen the lock nut and spin the clutch cable loose

    [​IMG]

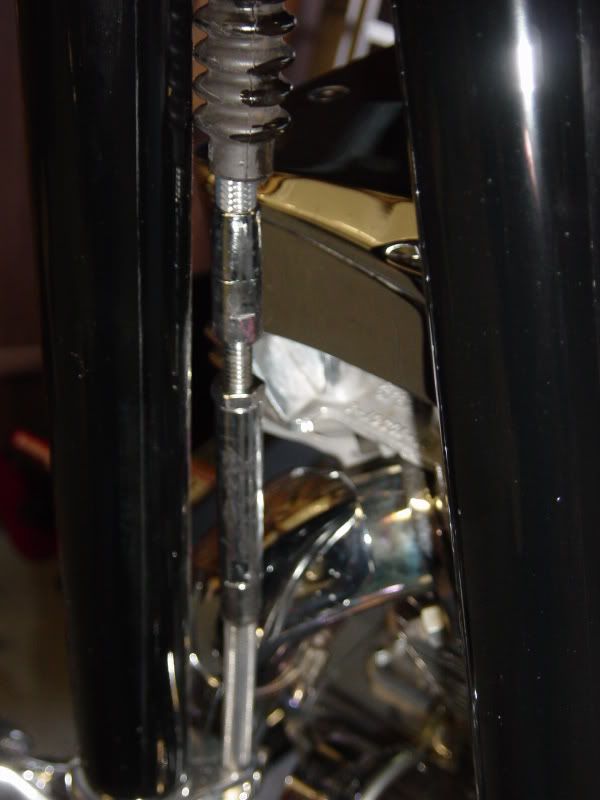

    Might as well lube the cable while you're here. Spray some lube in the hole. I do this many times to allow it to work down the cable.

    [​IMG]

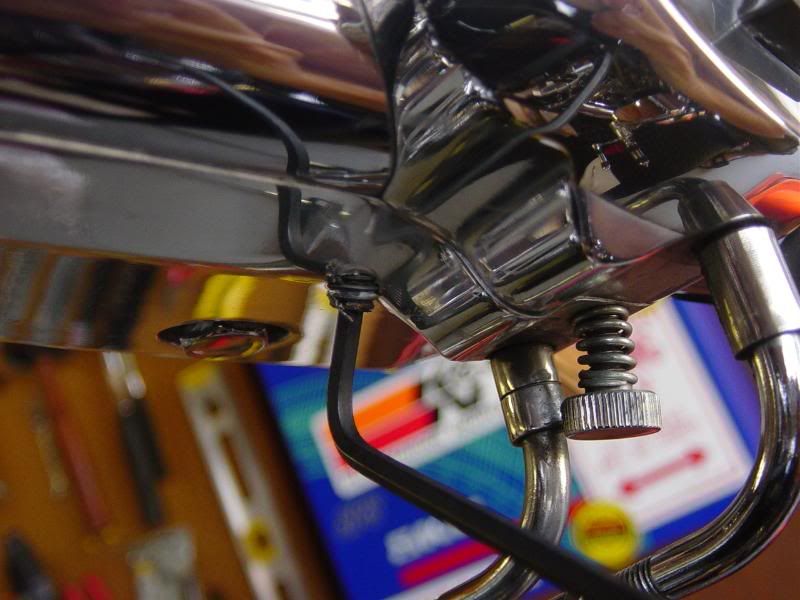

    First Loosen the 1/8" allen controls set screw (like this right side pic)
    [​IMG]

    Remove the 2 - 3/16" allen screws from the front of the housing to seperate the housing.
    [​IMG]

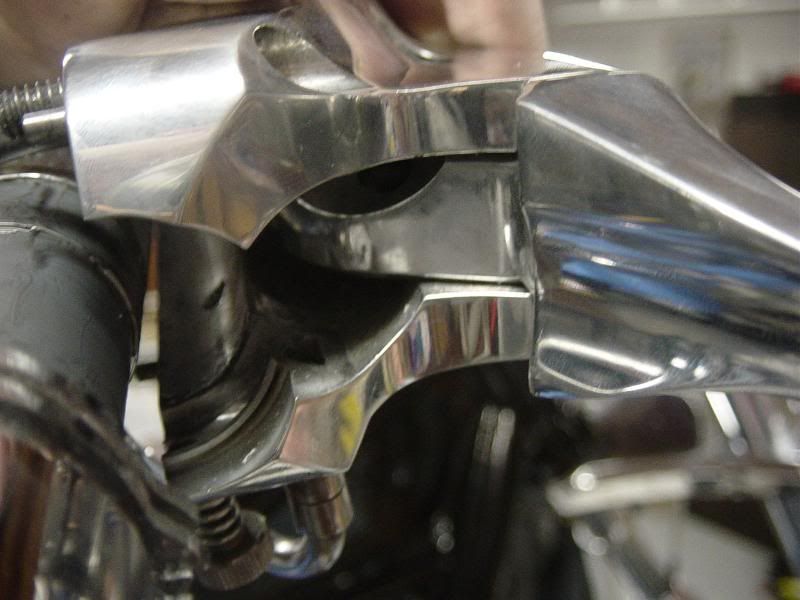

    Seperate the housing like this
    [​IMG]
    [​IMG]

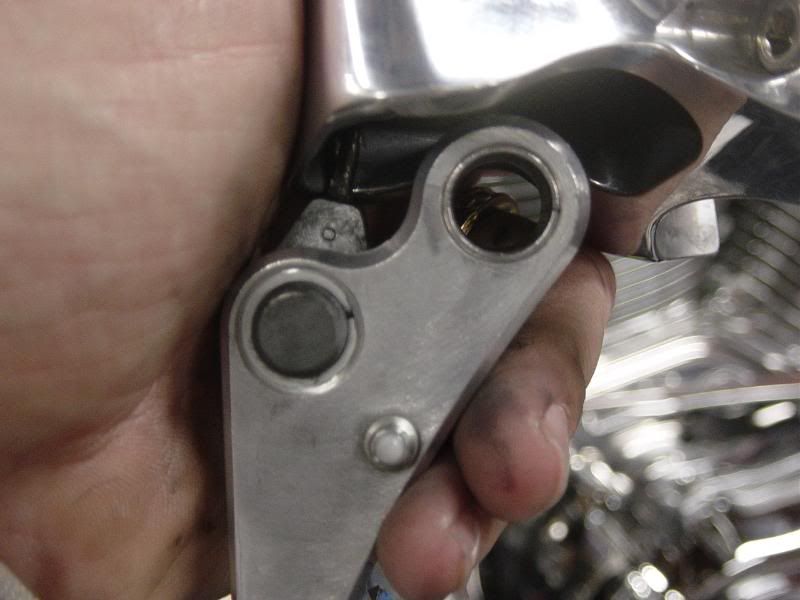

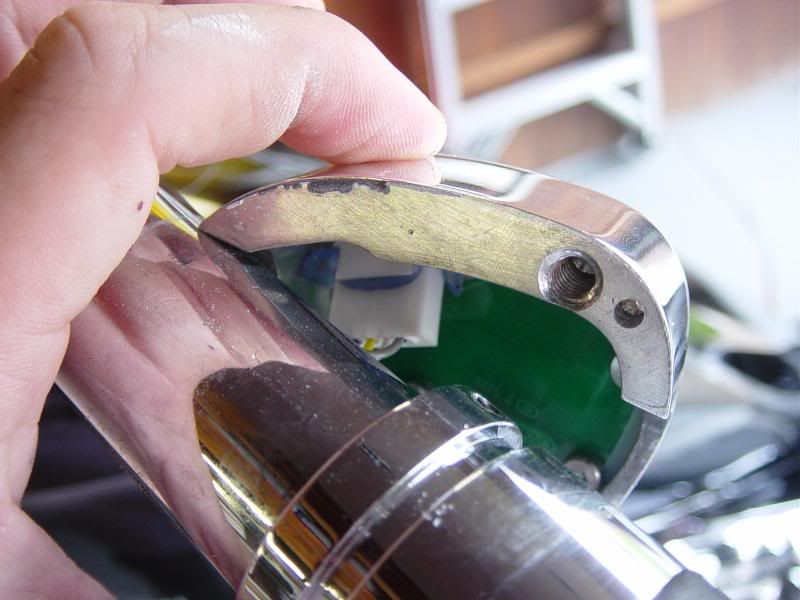

    Remove these 2 small allen head bolts and slide out that oval shaped retainer (that has the hole in it)
    [​IMG]

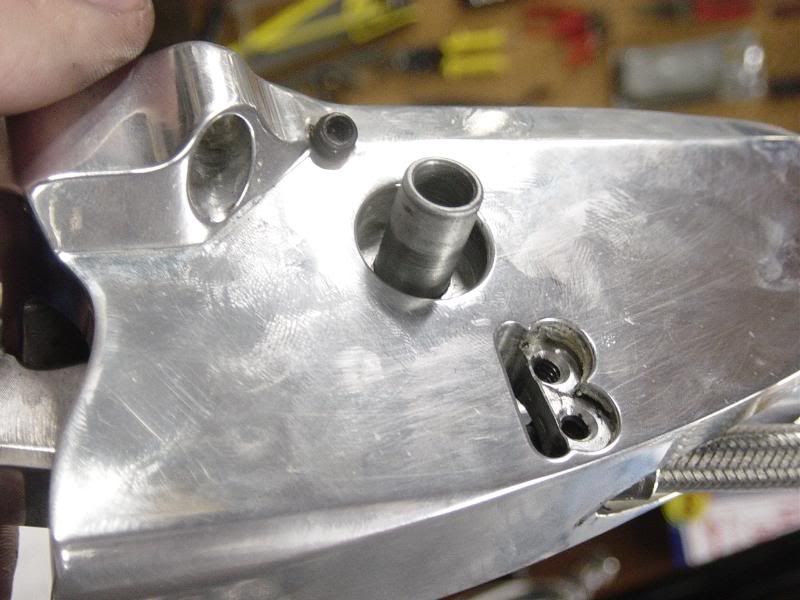

    Like so
    [​IMG]

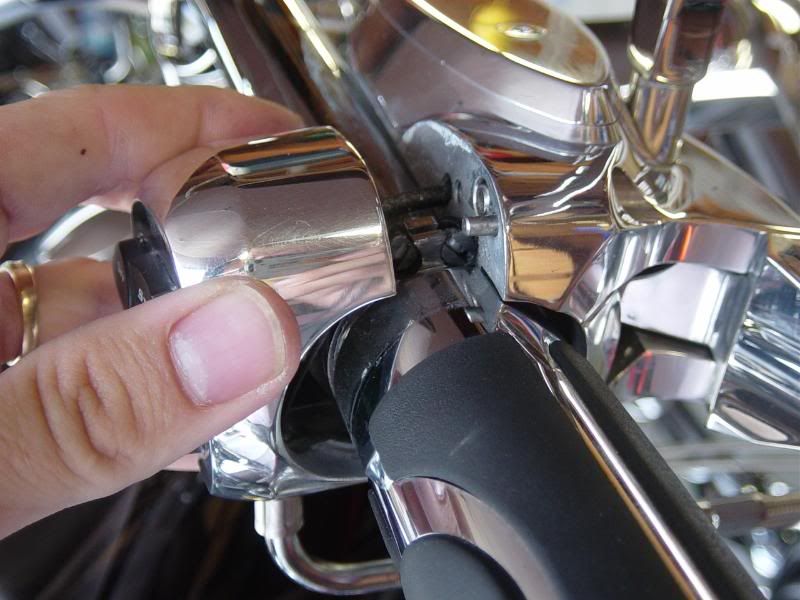

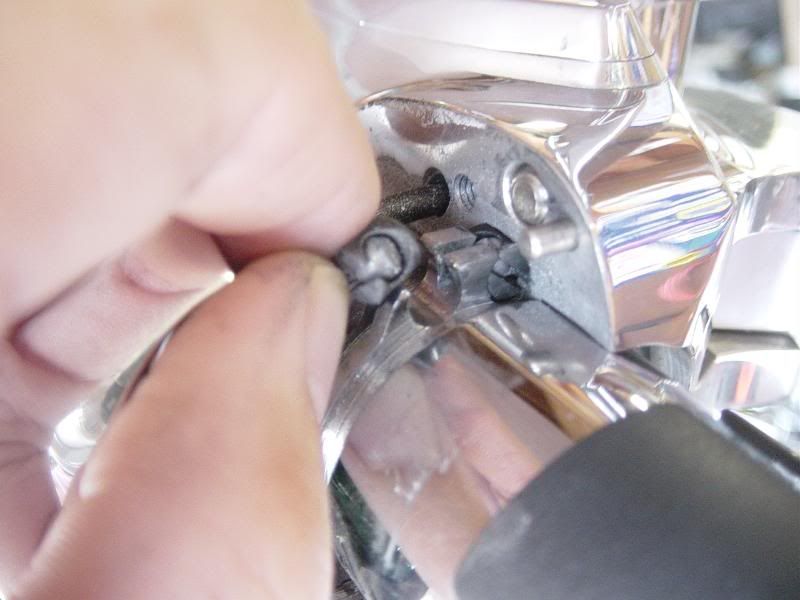

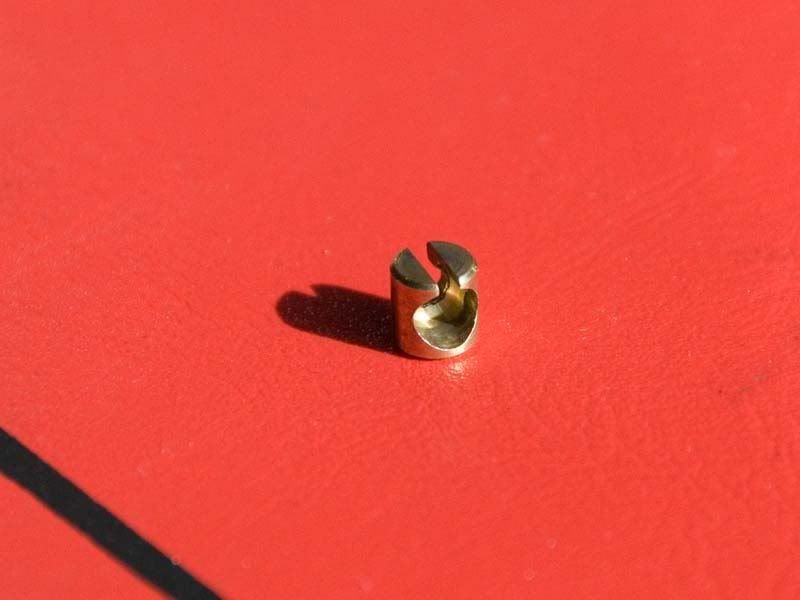

    Now take a flat head screw driver and slide out the pin spacer where your mirror bolt use to be. You do this by pushing it out the bottom of the control. You will see a slot from the top to access the spacer in the control.

    It drops out this way
    [​IMG]

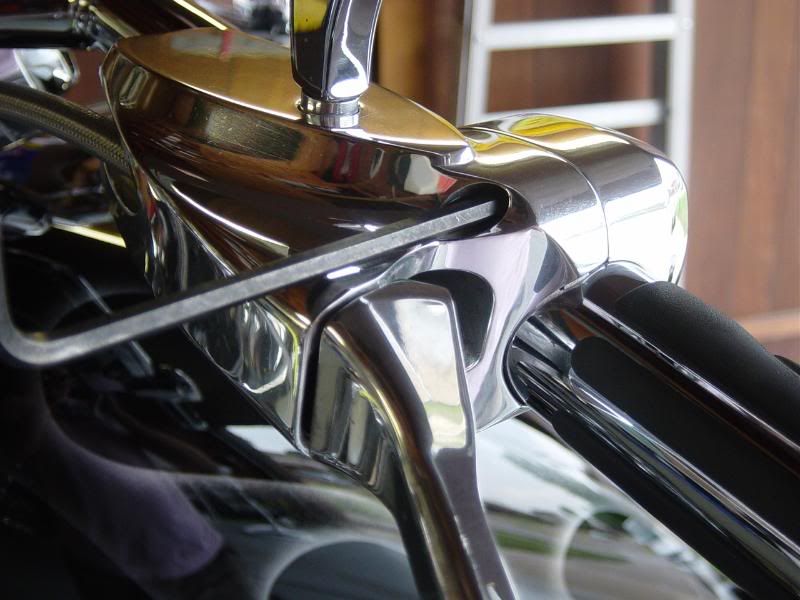

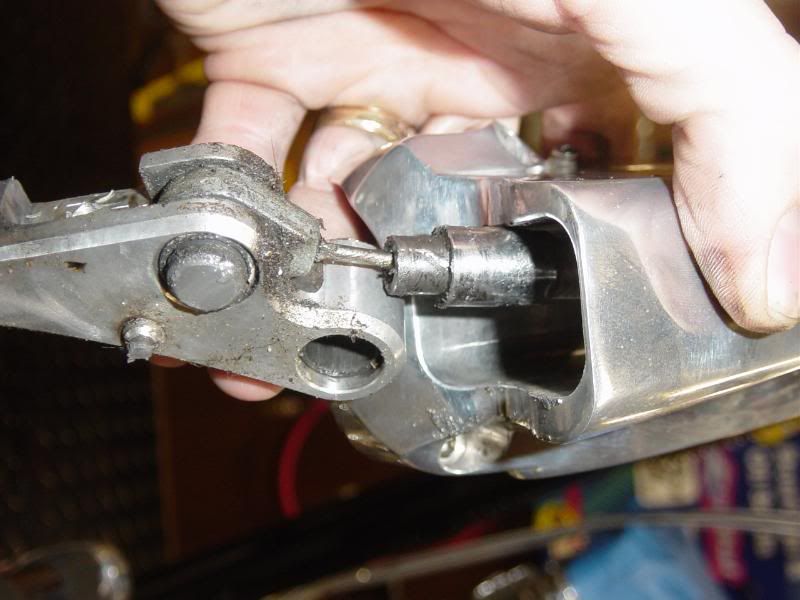

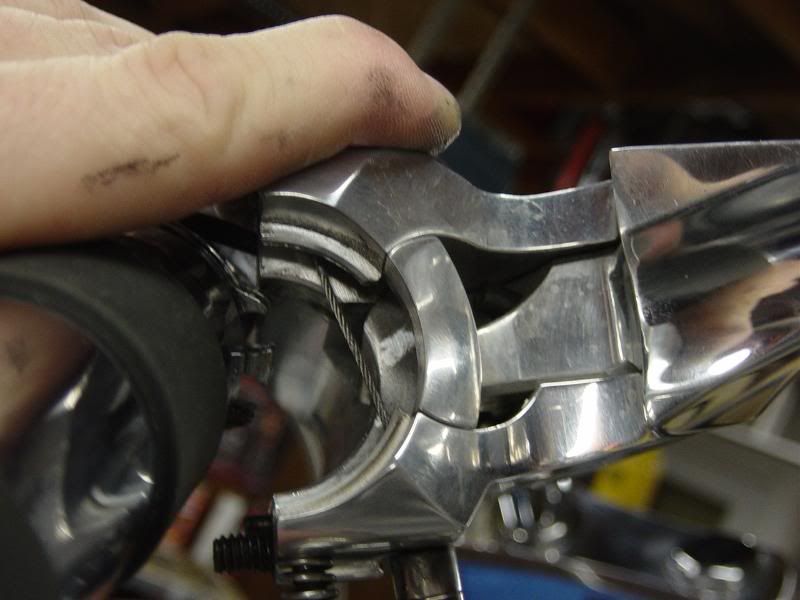

    Then you will be able to pull the lever out. (look at all that dirt... YIKES)
    [​IMG]
    [​IMG]

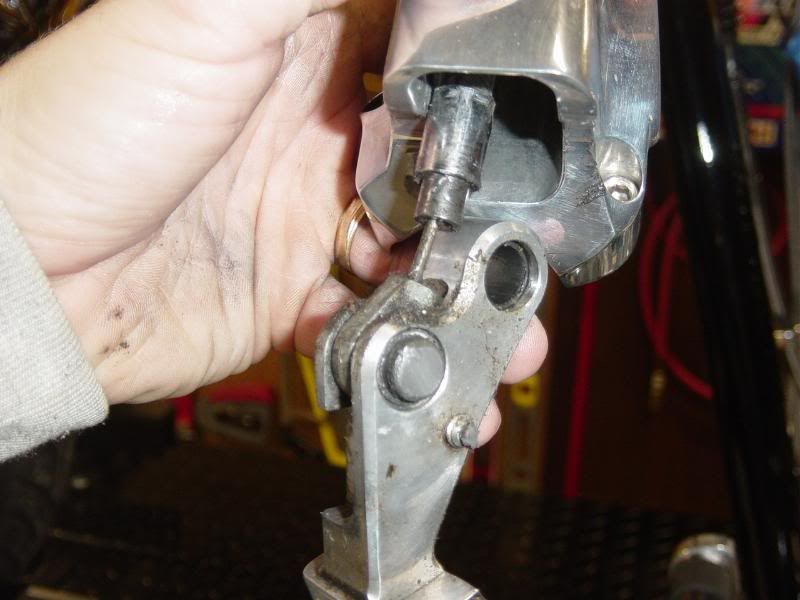

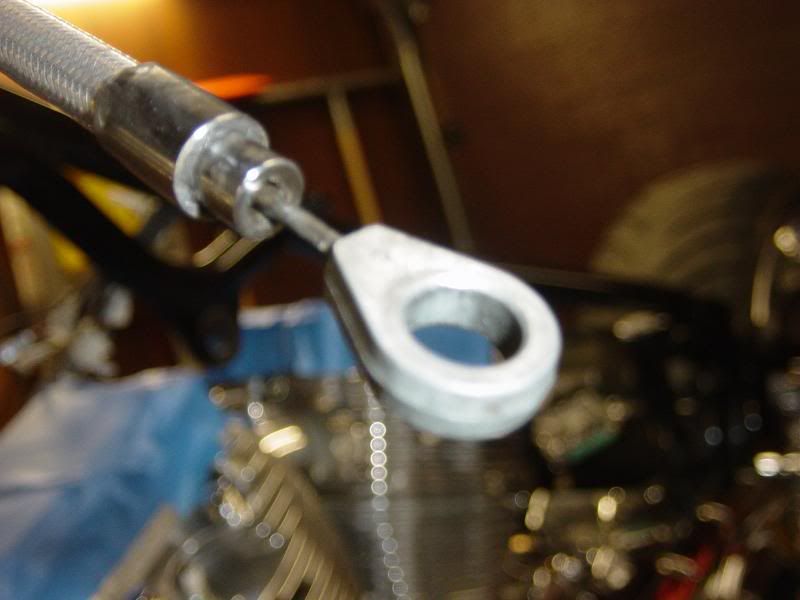

    Now simply push out the plastic dowel pin holding the clutch cable to the lever and poof
    [​IMG]

    Take this time to clean out the control and wipe everything clean. Might as well lube the clutch cable too.

    Then, simply put your new lever back on with that plastic dowel pin
    [​IMG]

    Then re-essemble this left side.
    [​IMG]

    And then of coarse tighten and adjust your clutch cable.

  2. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    RIGHT SIDE:

    Your mirror is already pulled.

    So now just like the left side...take a flat head screw driver and slide out the pin spacer where your mirror bolt use to be. You do this by pushing it out the bottom of the control. You will see a slot from the top to access the spacer in the control.

    It drops out this way (left side pick I know)
    [​IMG]

    Loosen the 1/8" controls set screw
    [​IMG]

    Seperate the controls with the 2 - 3/16" allens. You will now see the throttle cable farrels in the grip.
    [​IMG]

    Now keep the 3/16" allens and tool close by. If you need to leave, DO NOT leave controls hanging by the wires!!!! Simple spin the allens into the 2 control halfs and then leave. You can come back to the job and not damage anything.​

    Be sure to keep an eye on these... they are small and can fall off easily and be lost.
    [​IMG]
    [​IMG]

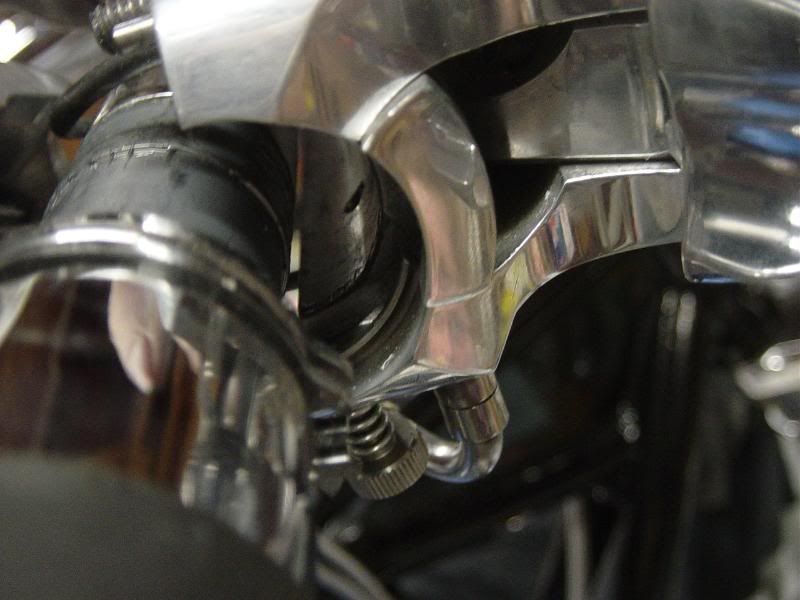

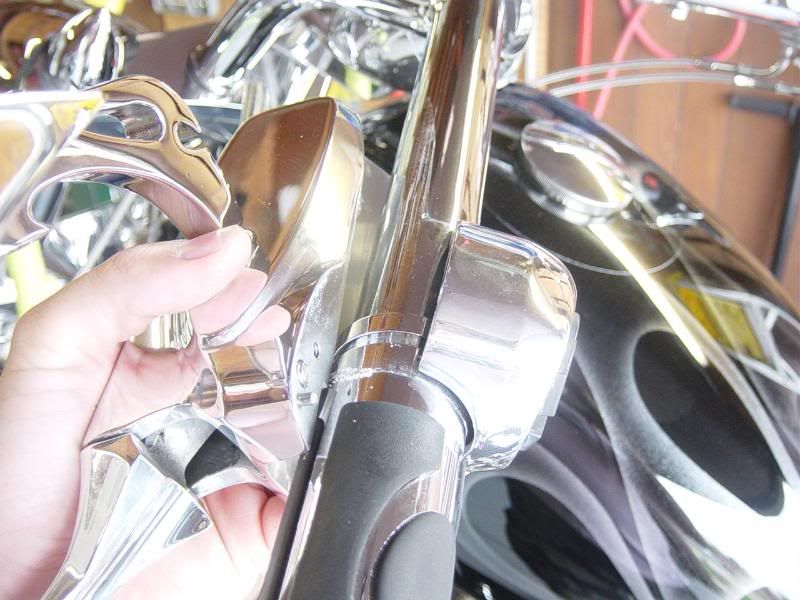

    Now you see this piece just in front of the handle bar in the shape of a pie. It needs to come out.
    [​IMG]

    Loosen and remove this allen bolt
    [​IMG]

    Now it will come out like so
    [​IMG]
    [​IMG]

    Pull the lever out and simply replace and re-assemble.

    [​IMG]

    francoblay1 likes this.
  3. Chopper Dave

    Chopper Dave SIICK!!!

    Joined:
    Apr 13, 2007
    Messages:
    8,445
    Likes Received:
    83
    Trophy Points:
    48
    Location:
    Michigan
    My Bike(s):
    2011 Ultra Limited
    First Name:
    Dave
    Great post Gas!:up:

  4. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Thanks. The benifit of only being able to spend a couple hours a day in the garage is being able to stay on top of these.

  5. kickstart

    kickstart Well-Known Member

    Joined:
    Apr 9, 2007
    Messages:
    3,136
    Likes Received:
    1,129
    Trophy Points:
    113
    Location:
    TN
    My Bike(s):
    52 Pan,05 Bulldog, 07 K9
    First Name:
    Pat
    Nice :up:

  6. slowrower

    slowrower 2007 Mastiff

    Joined:
    Sep 24, 2007
    Messages:
    981
    Likes Received:
    13
    Trophy Points:
    0
    Location:
    Longwood, Florida
    My Bike(s):
    BDM 2007 Mastiff
    I am going to go take mine apart just to lube the cables! thanks gas, great post. :2thumbs:

  7. Mickeetwo

    Mickeetwo Guru
    Supporting Member

    Joined:
    Nov 28, 2007
    Messages:
    9,640
    Likes Received:
    945
    Trophy Points:
    113
    Location:
    Texarkana, AR
    My Bike(s):
    2006 Big Dog K9 & 2014 Ultra Limited
    First Name:
    Alan
    Great post

  8. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Thank you gents!

  9. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,397
    Likes Received:
    50
    Trophy Points:
    48
    Thank you sir

  10. TCALZ06

    TCALZ06 Well-Known Member

    Joined:
    Nov 4, 2007
    Messages:
    1,140
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Chandler, AZ
    My Bike(s):
    07 Big Dog K9
    First Name:
    Tom
    Remove these 2 small allen head bolts and slide out that oval shaped retainer (that has the hole in it)
    [​IMG]

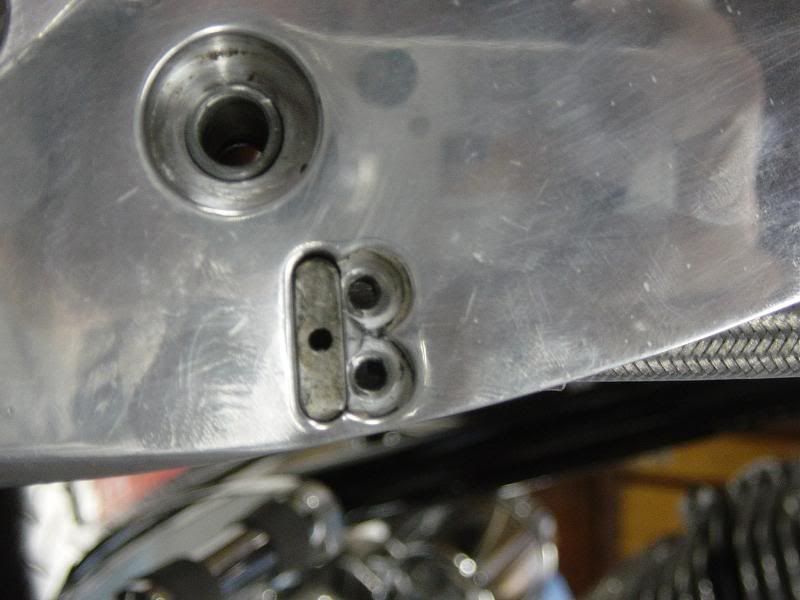

    Like so
    [​IMG]

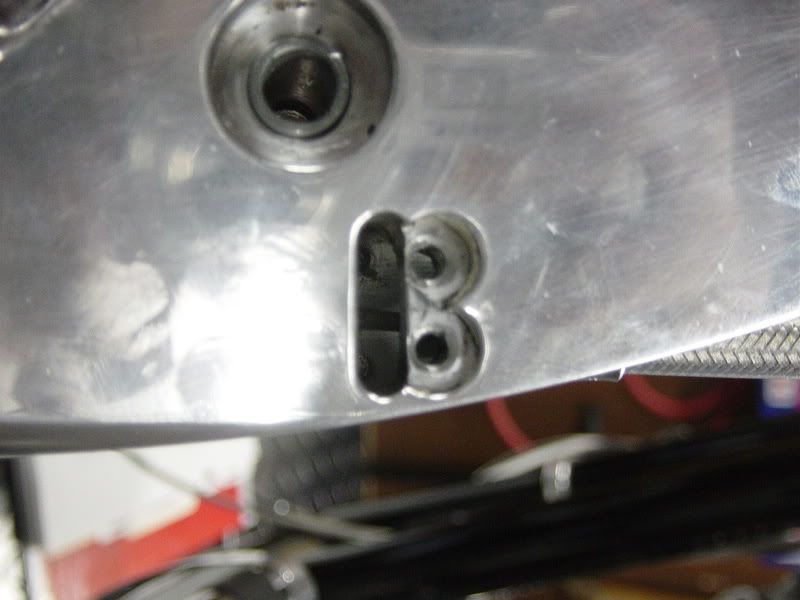

    Whats the trick to getting the oval shaped retainer out? I couldn't get it out when I bought my chrome hand controls. I just bought the chrome tribal levers so I want to do it myself this time.

    Thanks

  11. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,376
    Likes Received:
    668
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    TCAL, it's a slotted horseshow type thing that retains the cable housing. I just stick a nail or small flat blade into the hole and wiggle it out. If your's is jammed you could probably stick a thin flat blade in from the cable side and push it up.

    :cheers:

  12. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Yeah I just wiggled mine out or push it out with a screw driver...

  13. TCALZ06

    TCALZ06 Well-Known Member

    Joined:
    Nov 4, 2007
    Messages:
    1,140
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Chandler, AZ
    My Bike(s):
    07 Big Dog K9
    First Name:
    Tom
    Thanks guys

    Mine must have been jammed pretty good.
    I'll try with some more force tomorrow

  14. TCALZ06

    TCALZ06 Well-Known Member

    Joined:
    Nov 4, 2007
    Messages:
    1,140
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Chandler, AZ
    My Bike(s):
    07 Big Dog K9
    First Name:
    Tom
    jpg[/IMG]

    Now take a flat head screw driver and slide out the pin spacer where your mirror bolt use to be. You do this by pushing it out the bottom of the control. You will see a slot from the top to access the spacer in the control.

    It drops out this way
    [​IMG]

    Did you guys happen to notice if your pin spacer on the throttle side doesn't sit flush like the clutch side? mine is sticking out

  15. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    yep i think mine may have been like that.

    shovelshot likes this.
  16. alhall88

    alhall88 UAW

    Joined:
    Apr 9, 2007
    Messages:
    2,121
    Likes Received:
    63
    Trophy Points:
    48
    Location:
    Petersburg, Michigan
    If you guys notice the horseshoe has a small 8-32 tapped hole in it. Just thread a small screw in there and pull it out.

  17. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    OH SNAP!!

    GO Al!!!!

  18. TCALZ06

    TCALZ06 Well-Known Member

    Joined:
    Nov 4, 2007
    Messages:
    1,140
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Chandler, AZ
    My Bike(s):
    07 Big Dog K9
    First Name:
    Tom
    Thanks guys!

    I put on the new BDM tribal levers

  19. Vegas

    Vegas Well-Known Member

    Joined:
    Nov 7, 2007
    Messages:
    2,381
    Likes Received:
    19
    Trophy Points:
    0
    Location:
    Henderson,NV
    I started installing my clutch cable tonight and my clutch lever sleeve was stuck like a mo fo. I ended up using an easy out type deal and just getting enough bite on it to spin it and work it loose.
