How To install your Scorpio Alarm

Discussion in 'How-To' started by Gas Man, Jan 10, 2008.

Thread Status:
Not open for further replies.
  1. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Ok, there is alot of talk about installing alarms.

    Scorpio Motorcycle Alarms

    In my estimation is the best alarm for your bike. It is specifically designed for motorcycles.

    It has options that most don't. Such things as tilt, and perimeter. But hands down the best option is the pager.

    I have the SR-i500. And its a great system. Now I DID get the BDM harness but its not nessicary cause all it does is make the tail lights flash. THAT IS IT!! If you don't care about that, then dont get it. So lets see what we have to deal with.

    The main alarm unit with the bdm harness and power harness pluged in.
    [​IMG]

    The BDM harness that you showed pluged in the unit above
    [​IMG]

    Power harness
    [​IMG]

    The shock & tilt sensors are internal to the main unit. However, the perimeter and ignition/starter kill are external add ons.

    Both pluged into this which plugs into the main unit.
    [​IMG]

    perimeter
    [​IMG]

    ignition/starter kill (really just a relay controled by the alarm unit)
    [​IMG]

    All of it plugged in ready for install
    [​IMG]

    Now all you need to do is hook up the positive power lead to the battery. Now if you didn't go with the bdm harness hook up you're done. Just set it up.

    For the bdm harness all you have to do is pull this harness that connects to your tail lights.
    [​IMG]

    Open it and basically the new added harness goes inline
    [​IMG]
    [​IMG]
    [​IMG]

    Now if you have the ignition/starter kill. You CAN NOT hook it up to your EHC or ignition. You will have adverse side affects. However, there are other ways. But to keep things private and "secure" if you want to know how you will have to PM me.

    Now you have this ball of wiring and mess hanging outside the side of the bike.
    [​IMG]

    Zip tie the wires together to help organize the rat's nest.

    I relocated the horn to the front and zip tied the alarm to the horns bracket. Now granted later I moved the alarm to a new bracket under the cowl area.
    [​IMG]
    [​IMG]

    Now button everything up.
    [​IMG]
    [​IMG]

  2. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,398
    Likes Received:
    50
    Trophy Points:
    48
    Well done good man:flag:


    V

  3. Mario77746

    Mario77746 Active Member

    Joined:
    Nov 16, 2007
    Messages:
    848
    Likes Received:
    11
    Trophy Points:
    0
    Location:
    NC
    My Bike(s):
    2010 FLTRX Murdered
    Thanks Gas! I know this will be one if the next few mods I do especially since someone walked away with my bitch seat a few weeks ago:angry: :angry: :angry: .

  4. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Then be sure to get the perimeter

    Chopper Dave likes this.
  5. Chopper Dave

    Chopper Dave SIICK!!!

    Joined:
    Apr 13, 2007
    Messages:
    8,445
    Likes Received:
    82
    Trophy Points:
    48
    Location:
    Michigan
    My Bike(s):
    2011 Ultra Limited
    First Name:
    Dave
    well done Gas......:up:

  6. lee

    lee Well-Known Member

    Joined:
    Nov 5, 2007
    Messages:
    4,817
    Likes Received:
    65
    Trophy Points:
    48
    Location:
    Bristol, England
    My Bike(s):
    2005 Big Dog custom build and Buell custom build
    good work as always gas - I have the Datatool S4 alarm - one thing I will mention in case its any use to anyone is that my oil filler cap started melting into the plastic casing on my alarm unit - just something to bear in mind when positioning it in there

  7. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    I repeat...


  8. chili08k9

    chili08k9 I will buy the 1st round

    Joined:
    Jan 4, 2008
    Messages:
    427
    Likes Received:
    85
    Trophy Points:
    28
    Location:
    Jamestown NC
    My Bike(s):
    2008 Big Dog K-9 (EFI)
    First Name:
    Mike
    Thanks Alot

    Thanks again, great photos and step by step... I would like to know about the starter lock out... I am over my Harley NOW on to better things.. I must admit I acted like a kid for the first two months.!!!!!But it will all be good after Fri when I get my Dog..:cheers:

  9. Rottie

    Rottie Member

    Joined:
    Mar 27, 2008
    Messages:
    185
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Bristow, Va
    My Bike(s):
    07 K-9, 03 Ultra, CR 250, FM 450
    Gas, I want to thank you once again!! I installed my alarm last night.. Easy as eating pie!!! On the 07 K-9 the only place I could find to mount it was under the battery box.. You still can't get to it without taking the side covers off.. I ran all my excess wire up the right side and put the perimeter sensor on the back part of the battery tray.. I still need to order the ignition disable.. But, this will give me piece of mind for Myrtle... Thanks again!!!:up:

  10. rocksrt

    rocksrt Member

    Joined:
    Dec 20, 2007
    Messages:
    86
    Likes Received:
    5
    Trophy Points:
    8
    Location:
    Clarksville, TN
    My Bike(s):
    2006 Big Dog K9, Midnight Sapphire Blue with American Flag Flames
    I just read this thread today and talked the ole lady into letting me order one. Hopefully my hillbilly ass can get it installed pretty easy. Thanks Gas Man

  11. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Its real easy. And if you go with the starter/ignition kill. Let me know, I have a wiring setup to run that... it works great!

  12. jeffbradford

    jeffbradford Member

    Joined:
    Apr 10, 2008
    Messages:
    143
    Likes Received:
    2
    Trophy Points:
    0
    My Bike(s):
    2005 big dog chopper
    Hey gas I just got done with your step by step on servicing your bd,now my alarm will be here on friday, you said you have a different way to wire the starter kill.thanks for the help

  13. Lone Dog

    Lone Dog Motorcycle Junkie

    Joined:
    Nov 20, 2007
    Messages:
    278
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Vegas
    My Bike(s):
    2007 Pitbull, '06 Triumph Speed Triple, 1999 Triumph Trophy 1200
    I put mine under the batt box too. it was easy as hell. I think it took about 2 hrs including beverage breaks.

  14. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Well went to hook up another one of these for a michigan boy.

    Learned a few things from not having the BDM harness.

    Your ignition and start kill don't work without it. And it also works for your ground wire for the entire system.

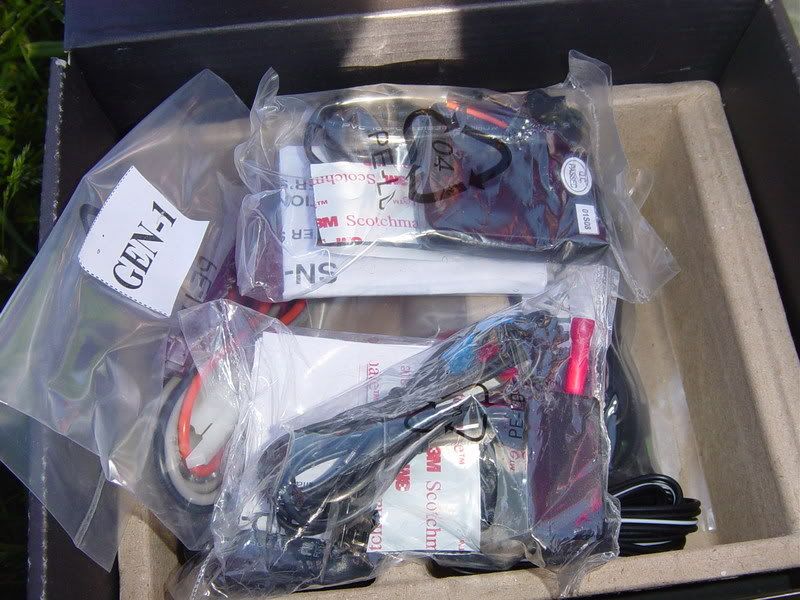

    That being said, here's one of the newer units.
    [​IMG]
    [​IMG]

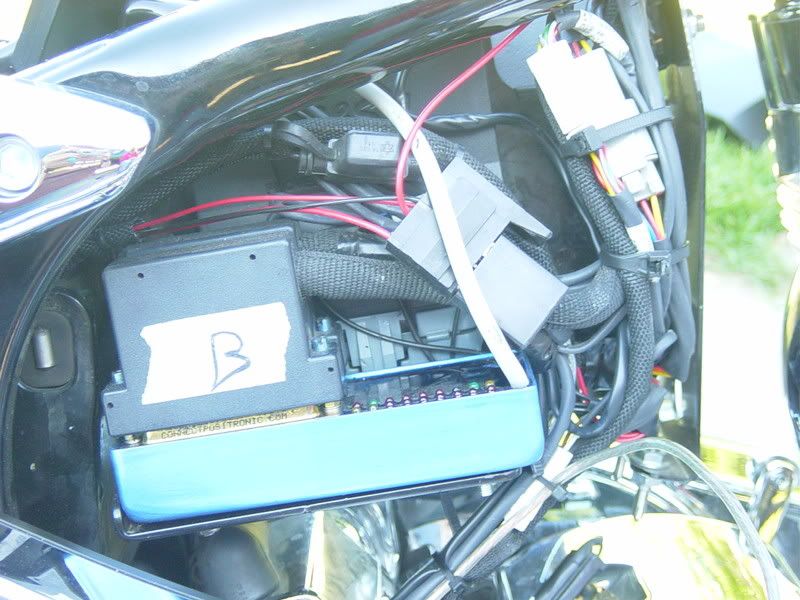

    Now on a 2007 Bulldog there is no room on the right side.
    [​IMG]

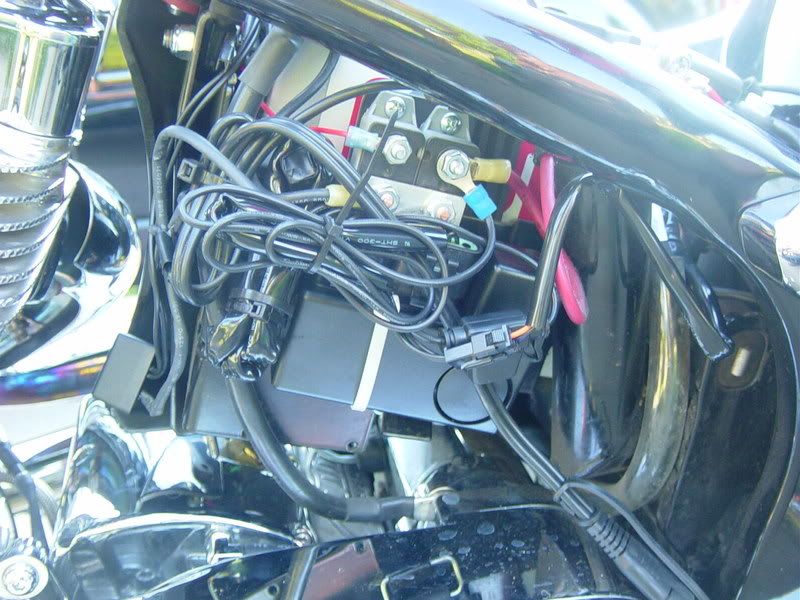

    So you mount it on the left where the horn use to be. HOWEVER, this makes the tilt virtually useless.
    [​IMG]

    You have to tilt the bike way over to the right to get the tilt to kick in.

    So left side sucks for the tilt.

    You need the BDM harness to use all the features.

    It still sucks making room for the unit.

  15. JohnnyB

    JohnnyB Guest

    Where did you guys runs the 18" antenna? The instructions say not to run it too close to metal.

  16. newbie dog

    newbie dog Active Member

    Joined:
    Jan 18, 2008
    Messages:
    508
    Likes Received:
    9
    Trophy Points:
    0
    Location:
    Utardia
    My Bike(s):
    2006 K-9, 2012 HD Ultra, 2003 Road King, 1969 Triumph, 2014 KTM 1190 ADV, 2009 KTM 530 XCW
    Gas this is a timely post...I was just talking to my brother last night about an alarm. The new Scorpio models are i600 and i900. Which model do you recommend? Does anyone experience issues with the alarm running thier motorcycle battery down? If so how long can the alarm be on before the battery runs low?

    As always...great step by step post. Makes me miss the post of you reserecting the Phoenix. :2thumbs:

    #16 newbie dog, Sep 20, 2008
    Last edited: Sep 20, 2008
  17. toomanybikes

    toomanybikes not enough time 4 riding
    Supporting Member

    Joined:
    Jun 4, 2007
    Messages:
    1,379
    Likes Received:
    223
    Trophy Points:
    63
    Location:
    Sterling, VA
    My Bike(s):
    2006 Big Dog Mastiff, 1992 Yamaha FJ1200. 2012 Screamin' Eagle Street Glide, 2014 HD Breakout
    First Name:
    Stephen, but I will answer to Steve
    I think that the only difference between the i600 and the i900 is the transmitter. I have the i500, which is the predecessor to the i600.

    The Scorpio does draw some power from the battery, but since the bike is on the Battery Tender when not being ridden it is not noticeable.

  18. mark whitrock

    mark whitrock Active Member

    Joined:
    Sep 28, 2008
    Messages:
    414
    Likes Received:
    14
    Trophy Points:
    18
    My Bike(s):
    2007 K-9
    have you had any side effects? the dog dealer tells me not to plug into the factory wireing it will cause computer problems

  19. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,048
    Likes Received:
    252
    Trophy Points:
    83
    Location:
    Metro Detoilet
    You don't plug it into the bdm wiring. There is only one wire that touches anything bdm, and that is only if you want a starter kill. I have had it on my bike for almost 3 years.... NOT ONE PROBLEM!!!

  20. toomanybikes

    toomanybikes not enough time 4 riding
    Supporting Member

    Joined:
    Jun 4, 2007
    Messages:
    1,379
    Likes Received:
    223
    Trophy Points:
    63
    Location:
    Sterling, VA
    My Bike(s):
    2006 Big Dog Mastiff, 1992 Yamaha FJ1200. 2012 Screamin' Eagle Street Glide, 2014 HD Breakout
    First Name:
    Stephen, but I will answer to Steve
    My dealer attempted to blame my EHC failure on the Scorpo alarm. Funny how the same dealer serviced my Mastiff and performed the state safety inspection with the Scorpio installed. After I picked up the Matiff from the EHC replacement, I reconnected the Scorpio and attached the battery cables as documented in the service manual.
