    "How To" Install your carb (my after XXX)

    As a continuation of the "How To" remove your carb I will walk us thru how to bolt back up your carb. Or in my case put my newly XXX'ed carb back on the bike.

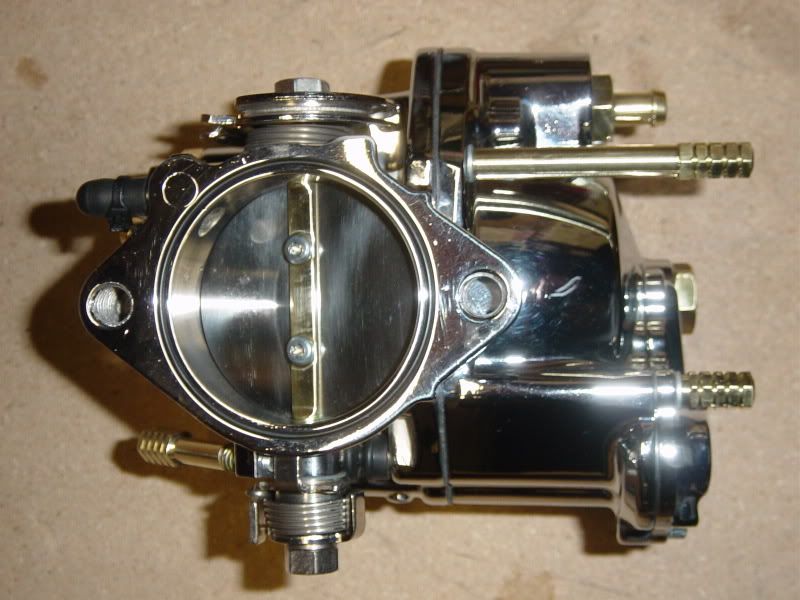

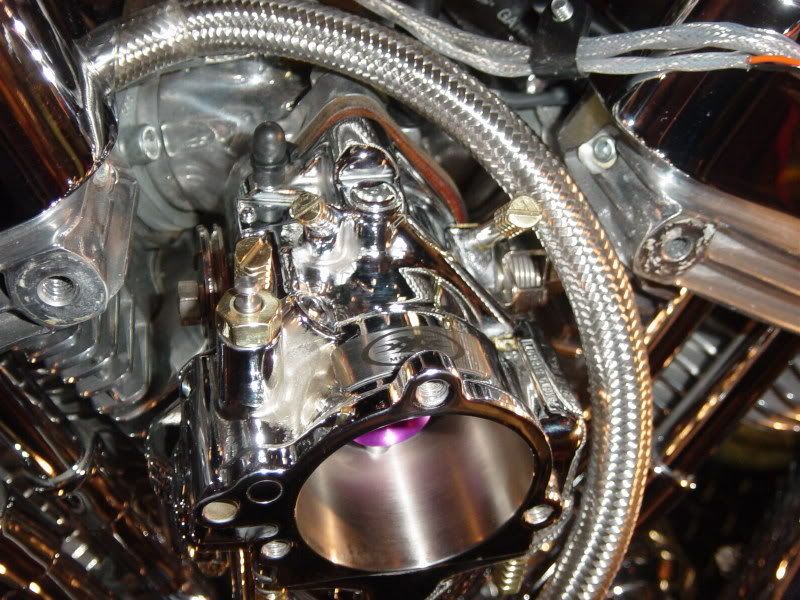

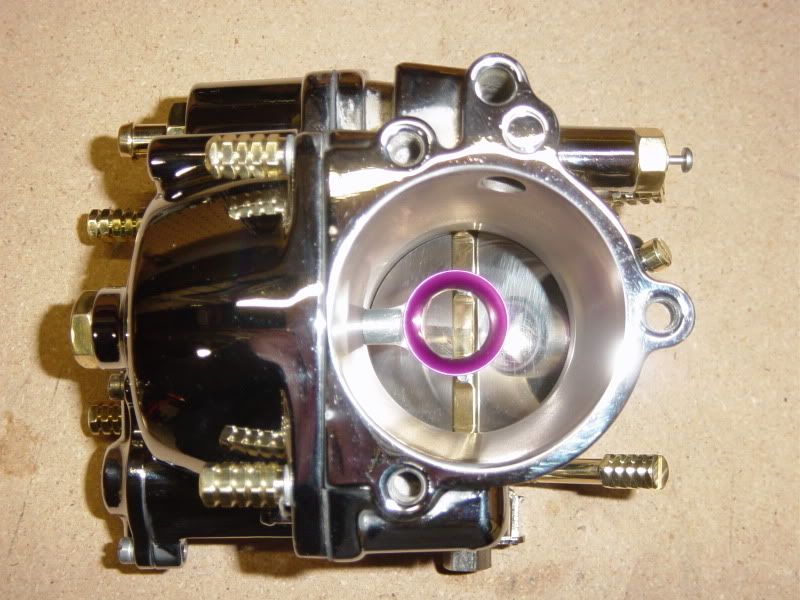

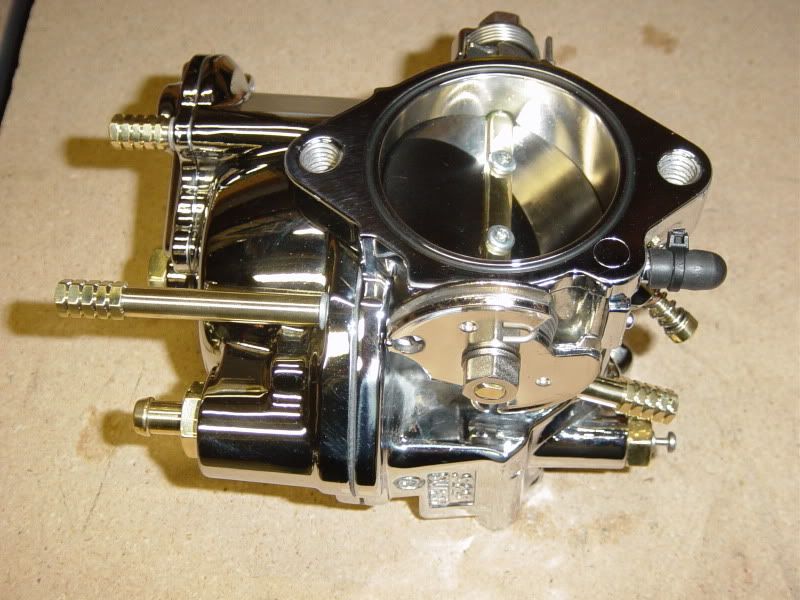

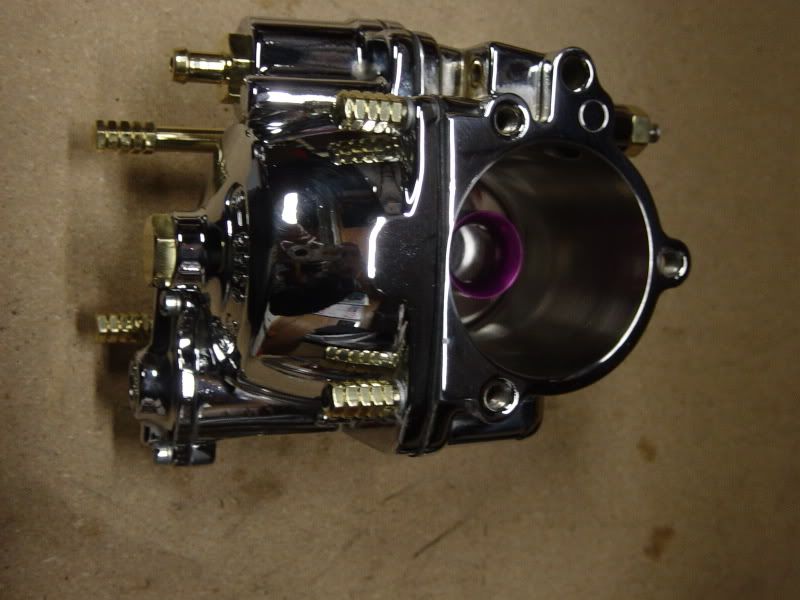

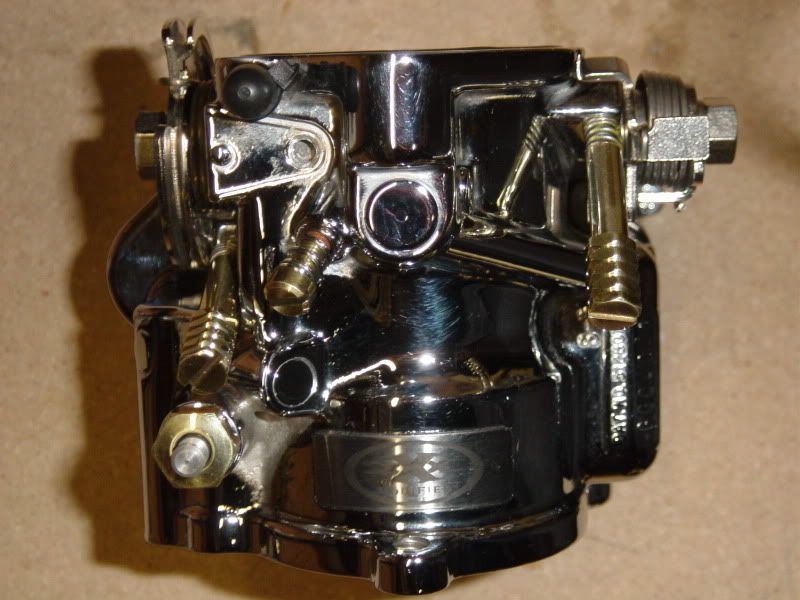

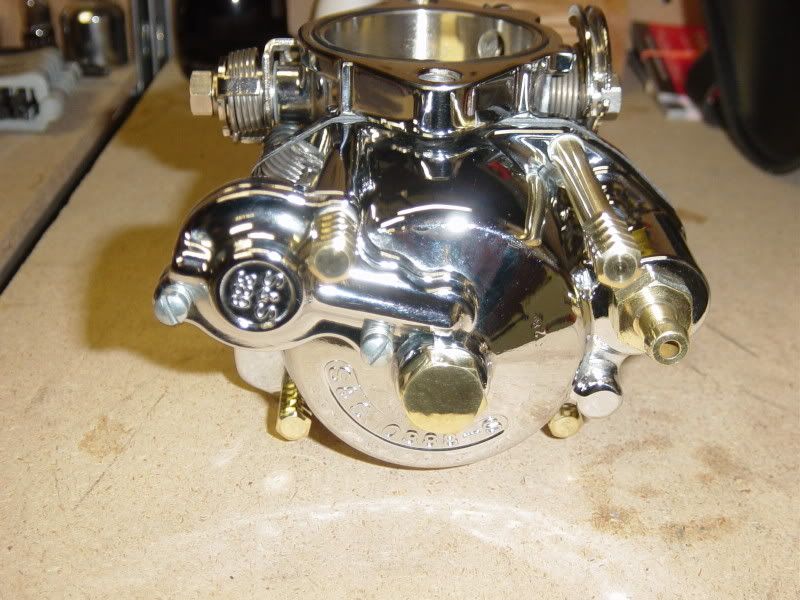

    Here is my newly XXX'ed carb. ISN'T SHE PRETTY!!
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    #1 Gas Man, Apr 10, 2007
    Last edited: May 31, 2008
  2. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    [​IMG]
    [​IMG]

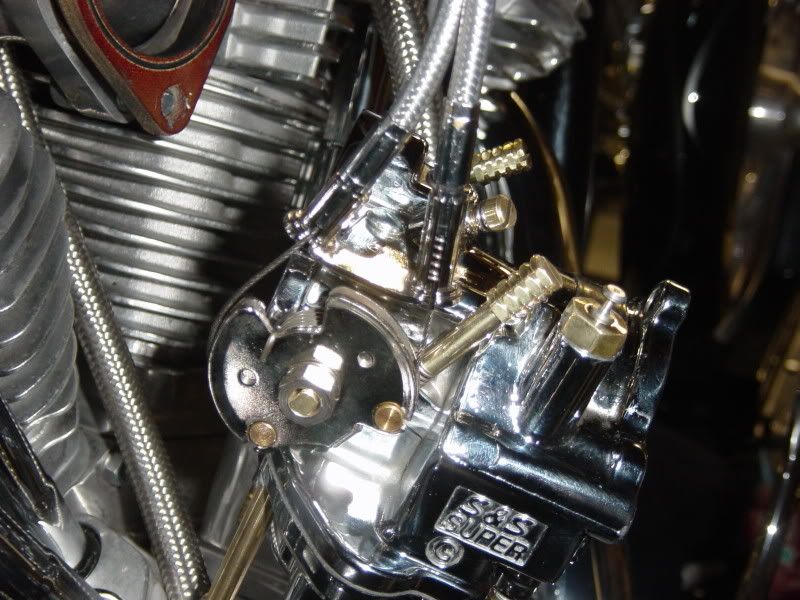

    Now if you have the XXX like me. You'll have to re-install your throttle cable bracket as shown here.

    Remember your return cable or the one with the spring on it goes in the tall side.

    [​IMG]

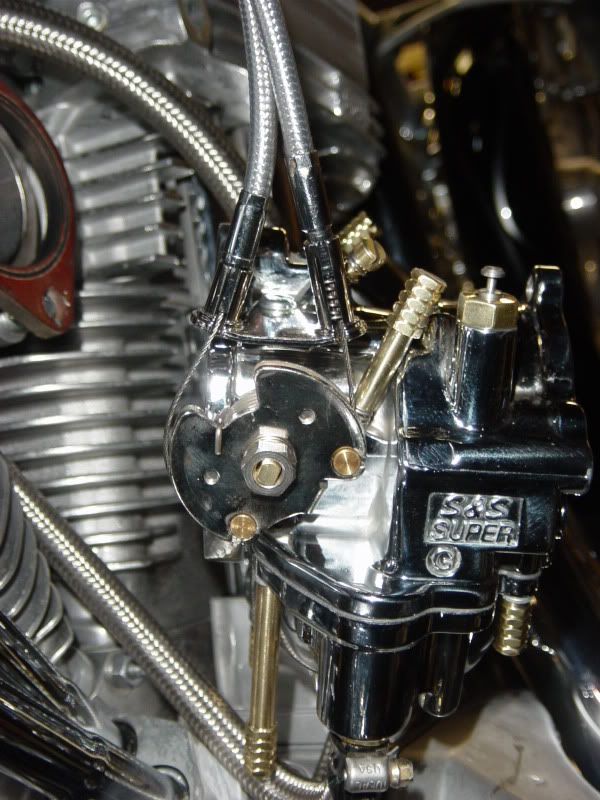

    Now put the ends in the appropriate holes on the linkage.
    [​IMG]

  3. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet

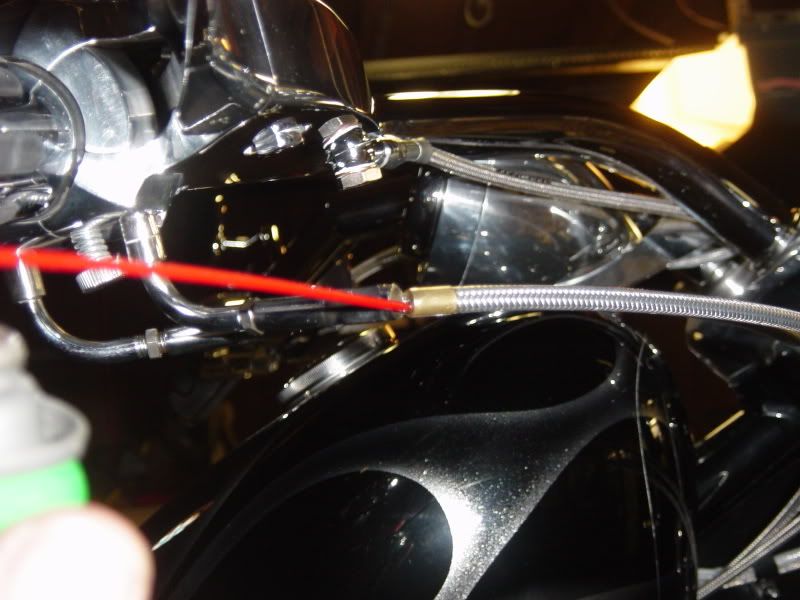

    Now lube your cables. I do this at least 4 times in each cable. This ensure alot of good lube in the cable sheething and promotes long cable life.
    [​IMG]

    Now mount the carb. Ensure you get the fiber gasket on the intake manifold before screwing this together. I slide the allen bolts thru the intake and use it to hold the gasket and then spin the first few threads on the top mount to hold the carb till you can get to the other side of the bike to finish the install.

    Be sure to add a small dab of loctite on all your bolts and scews thru out this project.

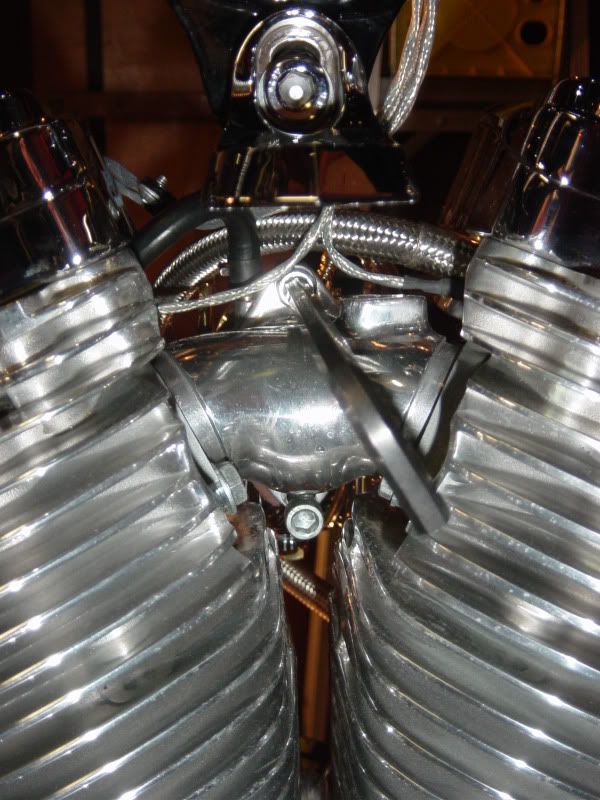

    Here you can see the gasket sitting there with the bolts handing in the hole.
    [​IMG]

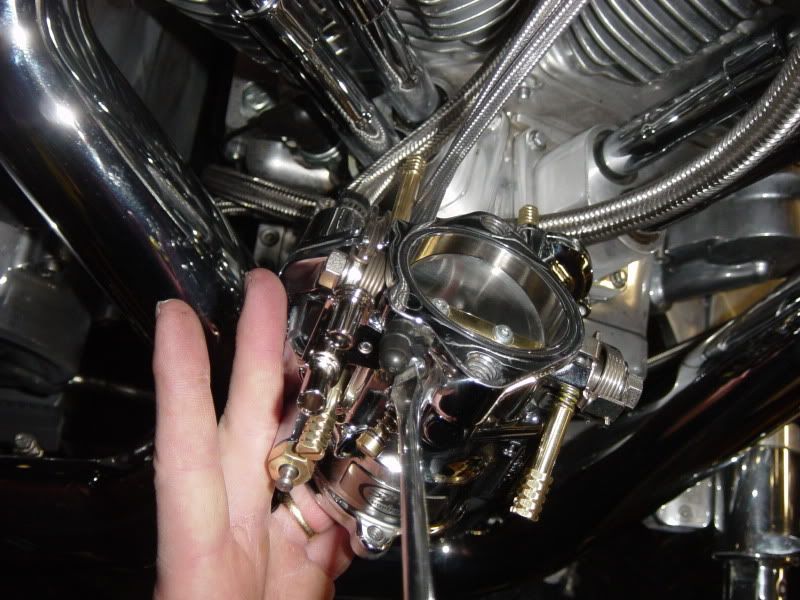

    As I said... mount the carb like so.

    [​IMG]

    Spin the allens by hand with the 5/16" allen wrench.
    [​IMG]

  4. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet

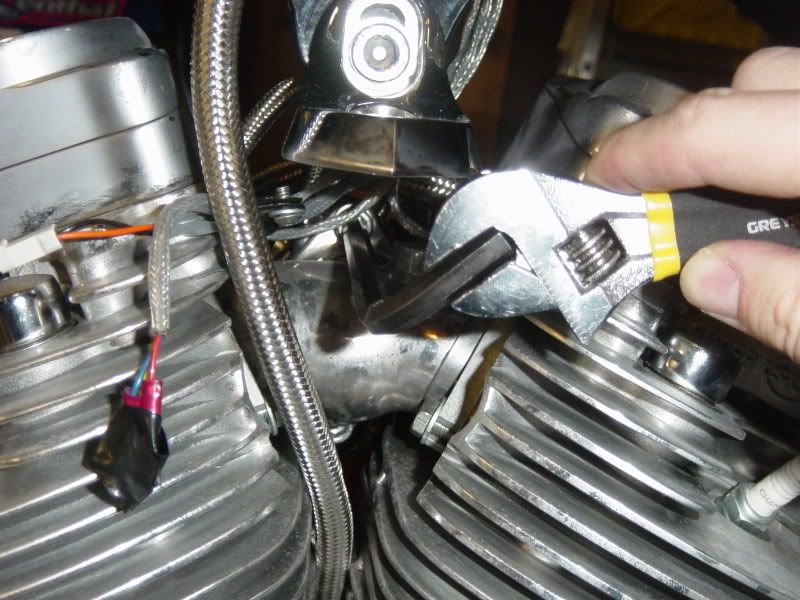

    Then get them good n tight with some cresent wrench assitance
    [​IMG]

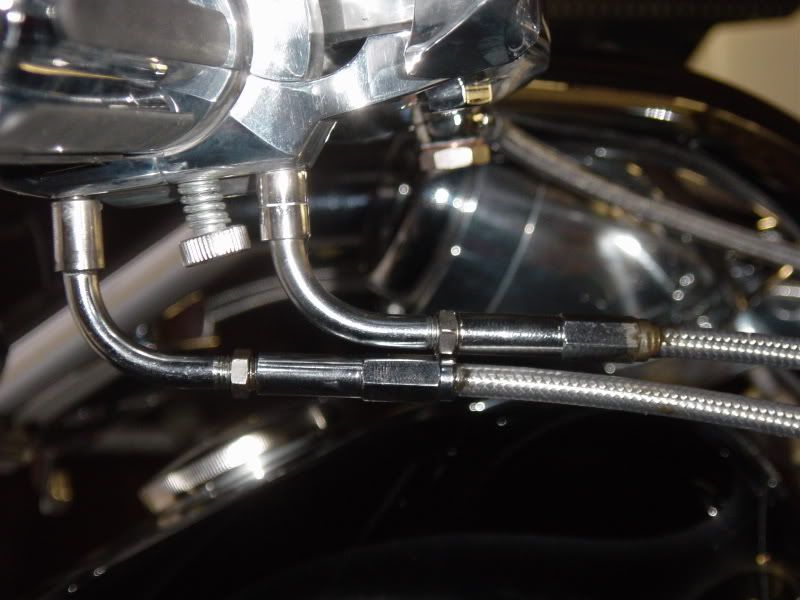

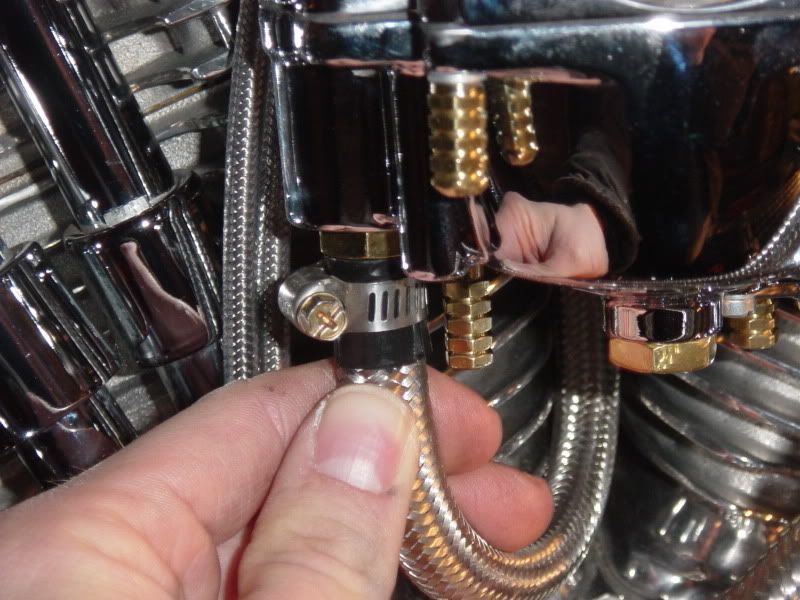

    Now install your gas line and drain line
    [​IMG]

    In my situation I have the stock tear drop. So I will walk you thru this as it is on my bike.

    Install your tear drop air cleaner backing plate.

    Be sure to align the paper gasket between the backing plate and the carb. I use a bit of spray on sticky gasket material to keep the gasket in place.

    Again be sure to use loctite on all these bolts and screws.

    First put the spacers between the backing plate and the engine head. Then apply the first 1/2" hex bolts thru the washers, spacers, backing plate, and into the head. Leave it a bit loose cause we have to ensure proper alignment.

    You will find that you'll need to slide the enricher knob up and then the lever under it to get to the rear head bolt hole.

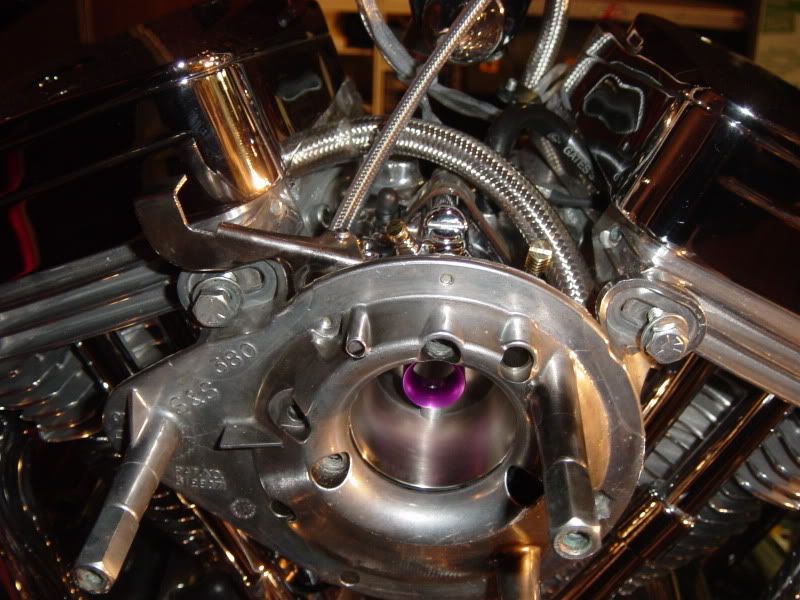

    Install like so.
    [​IMG]

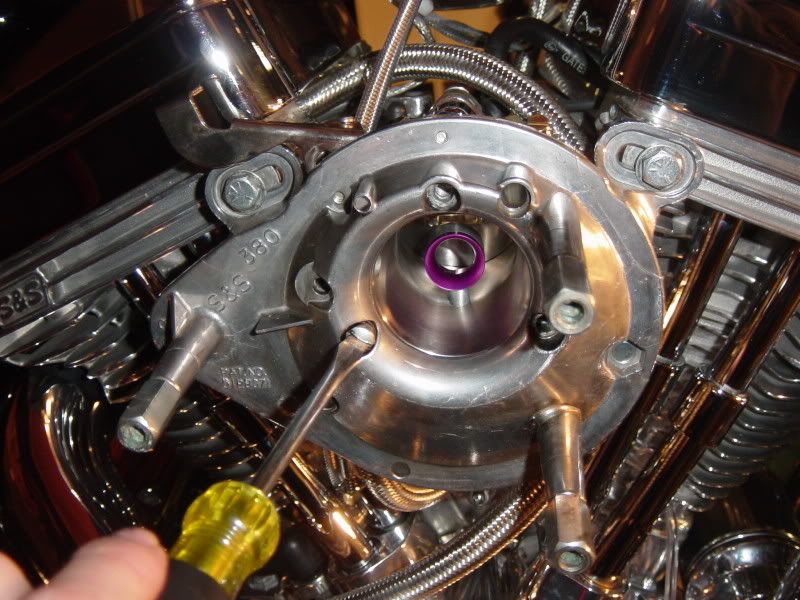

    Now proceed to install the screws that hold the backing plate to the carb. Ensuring the paper gasket is seated correctly.
    [​IMG]

  5. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet

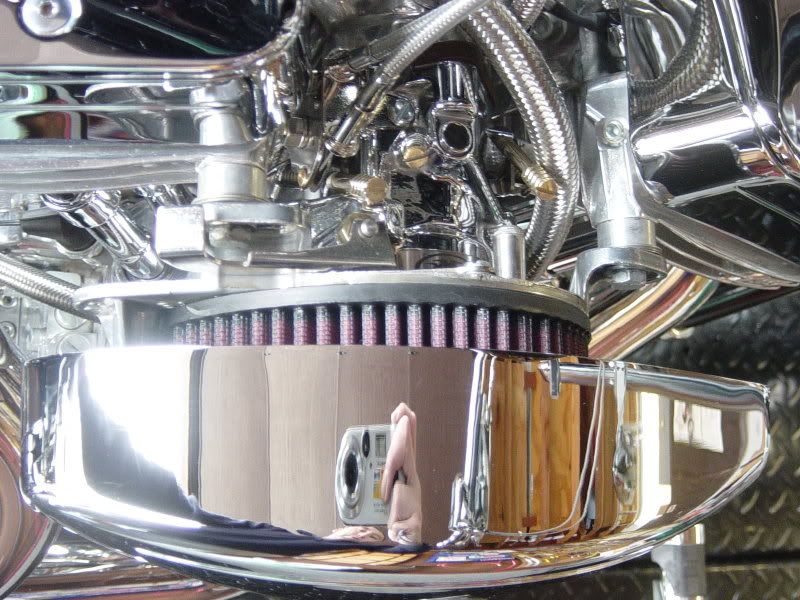

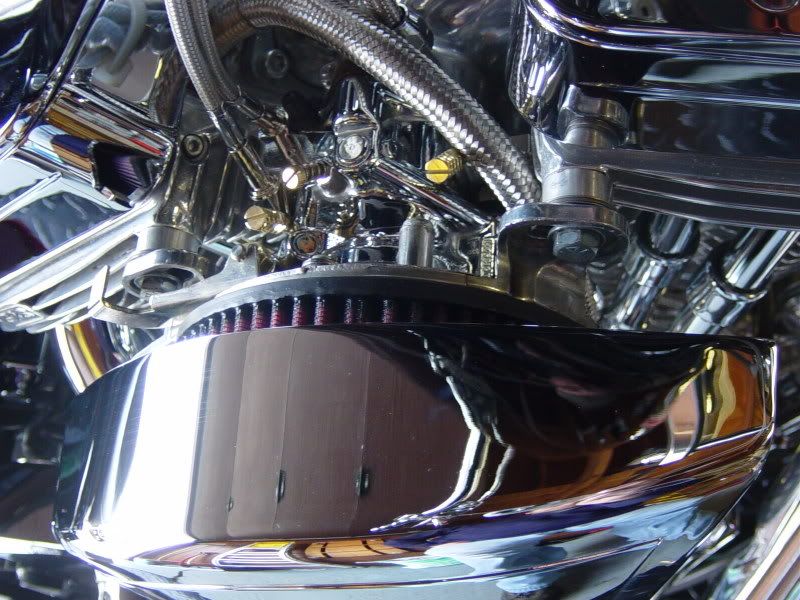

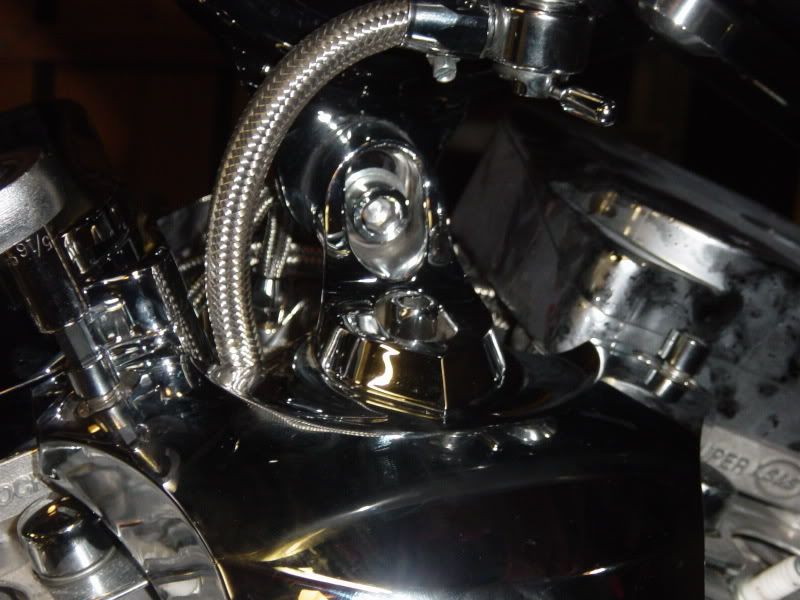

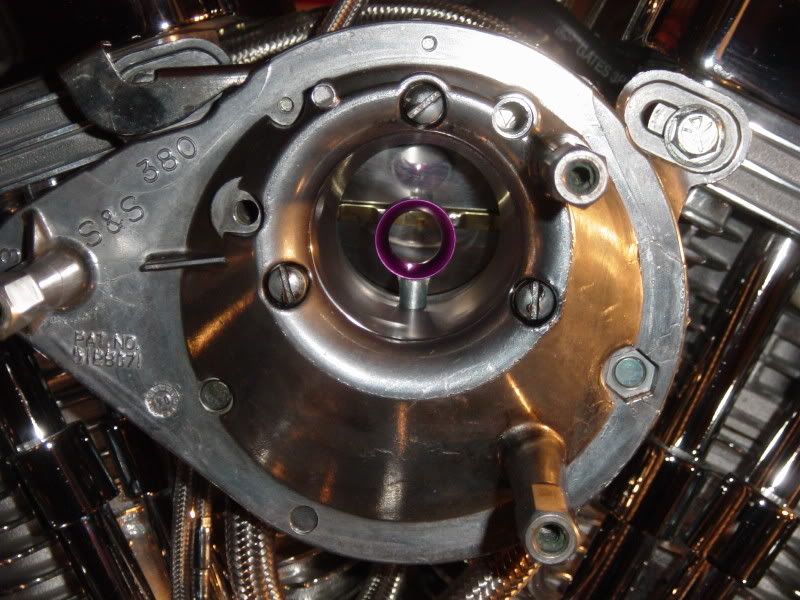

    Now tighten the 1/2" hex bolts and the screws to show this
    [​IMG]

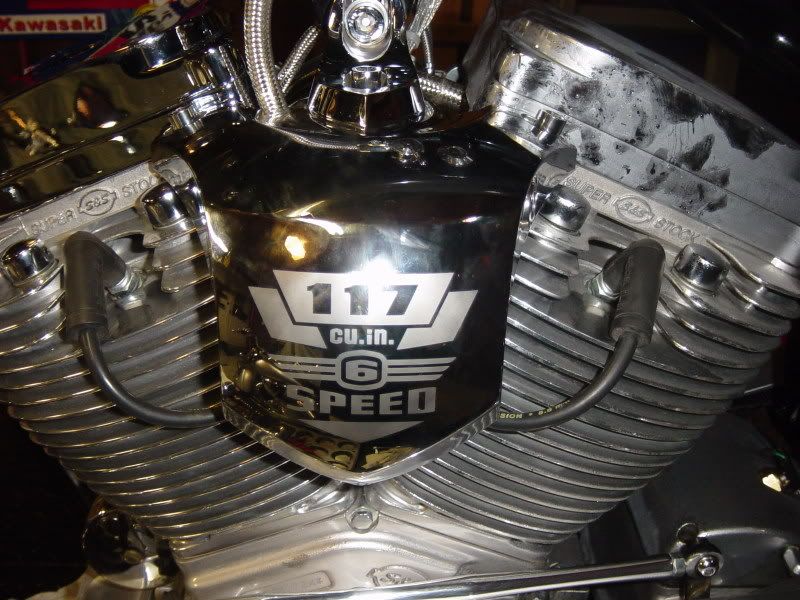

    Now to install the removed coil and cover.

    The BDM manual says to remove the coil wires at the harness junction which I did not do. Why... I'm not sure. Maybe because they are further under the tank. Would I have pursued that doing it over again? Yes. Cause re-installing it was difficult. Not impossible but dealing with the small wires and no extra length to aid you.

    When doing this please ensure that your battery is STILL disconnected.

    I used a bit of di-electric gel on these connections.

    Now install the little wires as such

    Front of the bike -- yel/red/blue -- Rear of the bike

    Also be sure to plug in your ignition harness.

    Then flip your coil and cover over and install the center motor mount 5/16" allen bolt first. This will allow you to finally free up your hands from holding the cover.

    Then loosely install your other 2 - 5/16" allen bolts.

    [​IMG]

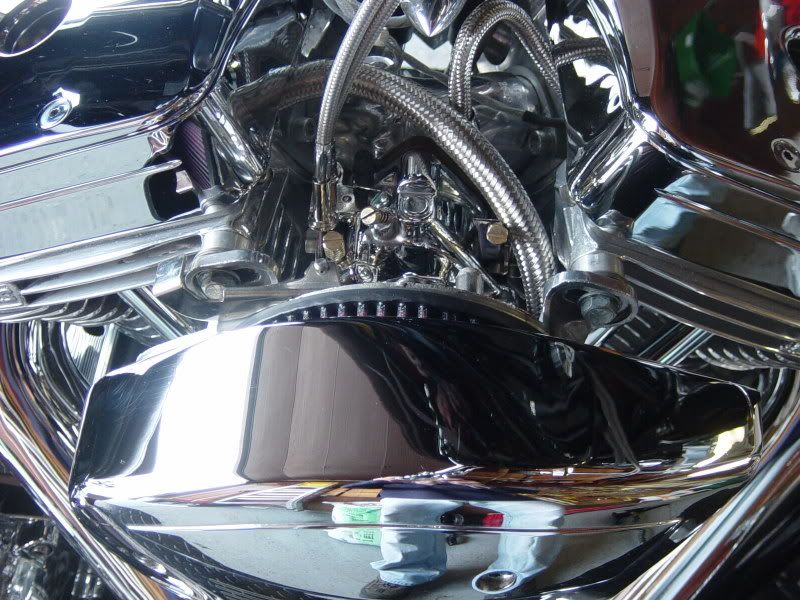

    Hook up your spark plugs and this side is done.
    [​IMG]

    At this point I have lubed the throttle cable a few more times during the process. The gas tank petcock is still off and there for the carb is still dry.

  6. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet

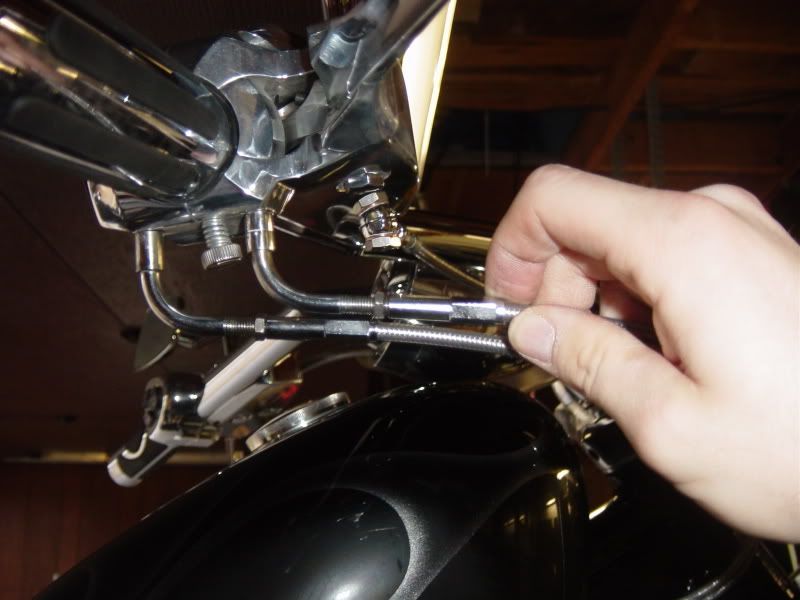

    I am now going to adjust the throttle cables and check for freeplay and good throttle movement. Doing this by tightening the connections below the throttle grip and twisting the grip to ensure the butterfly of the carb opens and returns along with the grip returning to fully closed.

    [​IMG]
    [​IMG]

    Once that is established turn the petcock to on. You should hear the gas bubble down into the carb and then the bowl float click and turn the gas stream off into the carb.

    Now give the throttle a few twists to ensure you are getting gas thru the needle or in my case the fuel atomized needle!

    Then I like to start the bike before installing the air filter and tear drop cover.

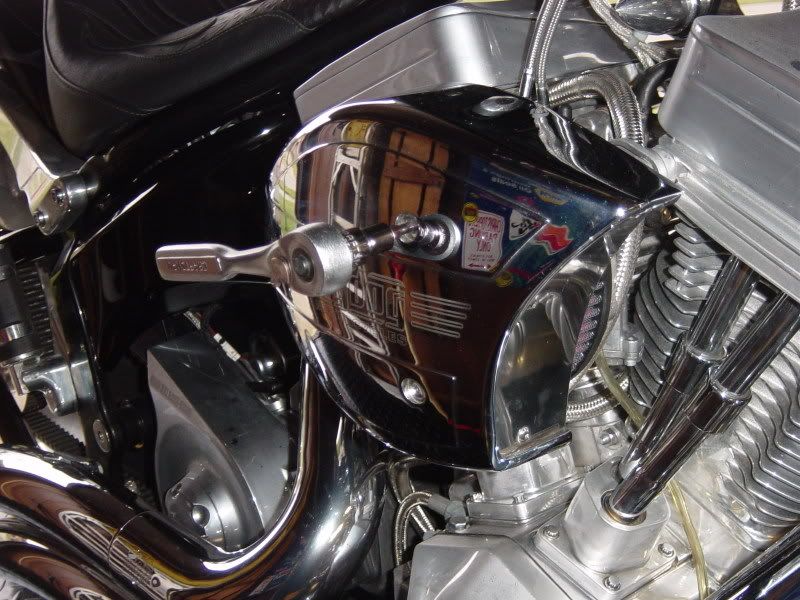

    Once the bike is running and you know all is well install your air filter and tear drop cover with the 5/32" allen screws.
    [​IMG]

  7. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Then when that is complete. You'll end up with this nice piece of engineering and bling.

    [​IMG]
    [​IMG]
    [​IMG]

  8. chucktx

    chucktx Well-Known Member

    Joined:
    Apr 11, 2007
    Messages:
    1,714
    Likes Received:
    7
    Trophy Points:
    0
    that xxx carb sure is nice looking...and i hear they work really good also..
    your camera takes great pics!!! thanks
    chuck

  9. Tim

    Tim a.k.a. BubbleHead
    Staff Member Owner/Founder Troop Supporter Calendar Participant

    Joined:
    Feb 22, 2007
    Messages:
    11,786
    Likes Received:
    1,105
    Trophy Points:
    113
    Location:
    Austin, TX
    My Bike(s):
    '07 K-9
    First Name:
    Tim
    Awesome write-up and tech tip. Thanks Gas Man.

  10. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Thanks Chuck. Its only a 3.2 mega pixel but I take about a bizzilion pics and weed thru the blurry and wierd flash pics. But I have sense then installed a additional 4 shop lights in the garage. Now sporting 7 shop lights in my 2 car garage. Each one lighting up 80 watts of light. I have 3 over just the lift now!!! That should help too!

    BH... thanks. I haev been waiting, as instructed, to post these.

  11. choppersforlife

    choppersforlife CHOPPERSFORLIFE
    Supporting Member

    Joined:
    Apr 9, 2007
    Messages:
    411
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    SOUTH JERSEY
    My Bike(s):
    RIDGEBACK / HD STREET GLIDE
    First Name:
    TONY
    Hello again everyone. I have a question that "GASMAN" might be able to answer:

    Purchased a "XXX Super G CARB" for my 04 Ridgeback. Installed the Carb and all went well. Took her out for a 30 min. ride just to make sure all was well. She ran FANTASTIC.

    This was two days ago (Friday). I have always left the petcock on the gastank "on" and never had a problem before until this morning when I went to go out for a ride.

    There was atleast 2 gallons of gasoline on my garage floor, dripping out of the air cleaner. Removed the air cleaner and when I looked into the carb it was full of raw fuel.

    Whats Up ? Did the float stick? It is a brand new XXX Carb.

    I dried up all the fuel inside the carb and pulled her outside and fired her up. She was definately flooded and after a minute or so, she fired right up and ran fine.

    Before I go and scream at XXX Carb's, Did I dosomething wrong or was it just a fluke? Any help will be greatly appreciated.

    Thanks again and Ride safe

    choppersforlife \\\!///

  12. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Definately a stuck float. Might want to drop off the bowl and clean it up. Either, there is some chrome dust or dirt from the tank. Consider installing a Pingle fuel filter too.

  13. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,383
    Likes Received:
    696
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    CFL, I would say your float stuck. When you say its a brand new carb it really isn't. They are rebuilt from exchanges and such. I would drop the float bowl and blow out the float stopper and make sure it seals properly. An easy fix.

    Later,
    Ray

  14. choppersforlife

    choppersforlife CHOPPERSFORLIFE
    Supporting Member

    Joined:
    Apr 9, 2007
    Messages:
    411
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    SOUTH JERSEY
    My Bike(s):
    RIDGEBACK / HD STREET GLIDE
    First Name:
    TONY
    Thank you

    Thanks for the quick replies, You guys are the BEST:cheers:

    I appreciate it. I will drop the bowl and take a look and clean it up a bit.

    Have a great week, ride safe and Thank you again.

    Tony

  15. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    CFL... this is my reply to your PM. I couldn't send it to you cause you have PM's turned off. Change that in your UserCP and options. You have to allow PMs from members.


    #15 Gas Man, Jul 16, 2007
    Last edited: Jul 16, 2007
  16. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,383
    Likes Received:
    696
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Oh, and start using your petcock!

  17. P8RIOT

    P8RIOT Well-Known Member
    Calendar Participant

    Joined:
    Apr 17, 2007
    Messages:
    2,187
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Kirkland, WA
    My Bike(s):
    2007 K-9
    Uh - thanks for the reminder - just went downstairs to turn mine off - gotta make that a habit!

  18. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Yeah that should be a given Ray. I use mine all the time. Maybe not when going in and out of stores but at least everytime if parks in the garage at the end of the day.

  19. chucktx

    chucktx Well-Known Member

    Joined:
    Apr 11, 2007
    Messages:
    1,714
    Likes Received:
    7
    Trophy Points:
    0
    ya might want to check the crankcase for gas......it willcollect there...
