How to fabricate an illegal tag bracket.

Discussion in 'How-To' started by gearsmithy, Oct 19, 2009.

Thread Status:
Not open for further replies.
  1. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    Let me start off by saying I'm broke and wish I could contribute to this board financially. Instead I figured I'd share some knowledge with the good people on this board.

    Some of you may recognize this from my posts on another board, but I think it's worth it to put this up here as well. I hope this inspires some of you who are interested in dipping your toe in the fabrication pool. My goal with this was to demonstrate that it doesn't take a multi-million dollar machine shop to produce custom parts. That said, I don't think this piece would be appropriate for a big-dog motorcycle but with a little creativity, a lot of spare time and some attention to detail you can produce just about anything with very simple tools. Now for my build this part required some welding, but you could just as easily make this bracket (or something way cooler) without having to weld a thing.

    Anyway here goes...

    First let me qualify this by saying I'm not a professional machinist and have no aspirations to be one. My fabrication skills are 100% self taught so I probably have some unorthodox ways of doing things but hey...they work for me. One of the most important aspect of fabrication is design layout. I learned how to do this through trial and error and watching people more skilled than I am make things in a fraction of the time it would've taken me. First, let's talk about some basic layout tools.

    [​IMG]

    From bottom left to right->
    The first item is (obviously) a ruler. If you don't know what a ruler is by now you shouldn't be building bikes...in fact, go buy yourself a helmet and some water wings just in case.

    The next three items are scribers, they are used to mark or "scribe" lines on your workpiece. The first two scribers are your typical straight and 90 degree steel scribers, the third one is carbide-tipped and tends to hold a sharp edge longer than steel. One note about scribers, these need to be pretty sharp to maintain line integrity and ensure an accurate edge. While you can sharpen these on a bench grinder, you really should chuck these up in a lathe to ensure that the point is as close to center as possible (makes for more even lines). If neither of these are an option you can get them with replaceable tips (like my carbide scriber) and just order new tips as they dull with use.

    The next three items are some basic center punches. These tools are used to make small indentations in the workpiece indicating the center of a circle (hence the term "center-punch"). Commonly these are used to mark drilling locations or to scribe a circle with the use of dividers (discussed below). Using a center punch properly is a skill in and of itself. Typically you will have an intersection of two scribed lines that you can feel with the punch when locating the proper position for the tool. Once you have the tool in position you TAP it with a small hammer (do not strike the tool as this can create an unnecessary large indentation and damage your work piece and/or punch). The third center punch is spring loaded and doesn't require any tapping to produce the indentation. Personally, I'm not a fan of the spring loaded punches because they require you to exert force against the tool to trigger the punching mechanism, which can cause the tool to shift out of position from time to time.

    The next tool is a pair of dividers. These are similar to a compass in that they allow you to scribe circles or replicate precise distances to maintain part symmetry. There are several different kinds of dividers but I prefer the springloaded kind (shown here).

    The next 3 tools are (in order) a t-bevel, protractor, and a square. The t-bevel is most commonly used for finding and transferring angles. The armature on the tool is adjustable and can be locked into place allowing you to transfer an angle from one part to another or from one area of a part to another. While the t-bevel is used to find angles, the protractor is used to measure them. This can come in handy from time to time and you may find yourself using these two tools more often than you think. The machinist's square on the far right is used to mark 90 degree angels. These tools typically have a thicker part (like the one shown) that is cut at 45 degrees allowing you to mark 45 degree angles as well.

    In the upper left hand corner are a special type of center punch called "transfer", or "through" punches. You might notice that these have a significantly different shape than the center punches and that's for a very good reason. These are used to find/transfer the center of an *existing* hole. To use these tools you find the correct size punch that fit's into the hole you're trying to transfer and tap them, in the same way you would use a center punch. You'll notice that they have small, very shallow points at the end of a consistent cylinder, this is to allow you to find the center of a relatively shallow hole. Because these punches are used to find the centers of existing holes, they *must* be sharpened on a lathe unless you are confident that you can grind these precisely by hand (in which case you have some serious skills and need to be working for NASA or something).

    Here's an example of how I used these on to fabricate brake bracket for my current build project. One of the calipers I bought came with a bracket from a Ducati. I obviously couldn't use the supplied bracket on my bike since it was for a larger axle and a smaller rotor. In order to get the mounting holes correct, I used through punches to transfer the hole locations to my bracket. The procedure for this was as follows:

    1. I located the distance from the center axle that I wanted the calipers to be at and scribed this radius with the dividers.
    2. using a center punch I marked the location of the first hole and then used the dividers to mark the outside edge of the part from this hole.
    3. Next I drilled the hole to the proper size, starting with a very small bit and working my way up to the desired hole size.
    4. I bolted the original brake bracket to my unfinished part through the hole i just drilled and using a through punch that just fit through the hole on the brake bracket, I located my radius and marked the location of the second hole. In the picture below I have already marked and drilled the holes but you get the idea.

    [​IMG]

    he last tool I'm going to go over is steel blue. This is basically an ink that is used to color your workpiece so that you can see your scribed lines better. Until recently I just used a black sharpie to accomplish the same task but you can get a much clearer line using the steel blue. I like to lay down a nice thick coat (about 1/64th of an inch) because this stuff has a tendency to rub off if you handle the part a lot (and this problem is only expedited by the use of cutting oil/or some other lubricant in your fabrication activities).

    Now that we've got a basic understanding of how these tools work, let's put some of them to use to fabricate a license plate mount.

    The first step is to come up with a design you like. Here you can see the design I came up with ; which was a highly technical process of stealing the license plate off of my other bike and tracing it out with a pencil onto a piece of scrap plywood.

    [​IMG]

    I'm planning on mounting a remote oil filter underneath this bracket along with a stash tube for my registration (assuming I can even title this monstrosity). I've also laid out a section for the tail light.

    Next, I measured for the approximate overall size of the bracket and found a piece of scrap plate steel that I could work with. Once I had my plate, I brushed on a nice even coat of steel blue and waited for it to dry.

    [​IMG]

    Now that the ink is dry I used the machinist's rule to mark the bottom edge of the part. It's common practice to make all measurements on a part relative to baseline or point (this helps promote accuracy and becomes more relevant when you start playing in the .005" world). Needless to say we have some pretty significant tolerance in the part since we're making a license plate bracket and not a camshaft. Nevertheless the edge of my scrap plate had a slight curf on it from when I last cut it and I wanted to have a nice straight line to work from. Then using the tools listed above I proceeded to transfer my design from plywood to metal.

    [​IMG]

    Then I used a jigsaw with a bi-metal blade from home depot to cut off the excess steel. I then used a $10 angle grinder from harbor frieght with a cheap flapper disk to clean up the edges.

    [​IMG]

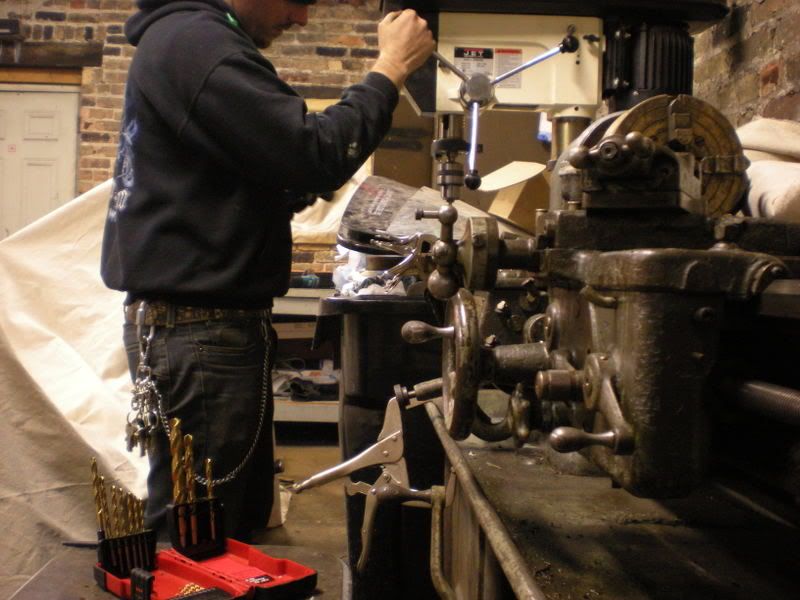

    Now it's off to the drill press to make some holes.

    [​IMG]

    Here you can see I've drilled the necessary holes and roughly cutout the part. This baby is starting to take shape.

    Now since I want to mount a remote oil filter underneath this I'm going to need to find some fasteners that pass through the bracket without protruding too much on the license plate surface. For this I'll need to dig through my box-o-fasteners in the corner of the shop. I don't know about you guys, but I'm a total fastener nerd, most of the pieces in the box are from an aircraft junkyard.

    [​IMG]

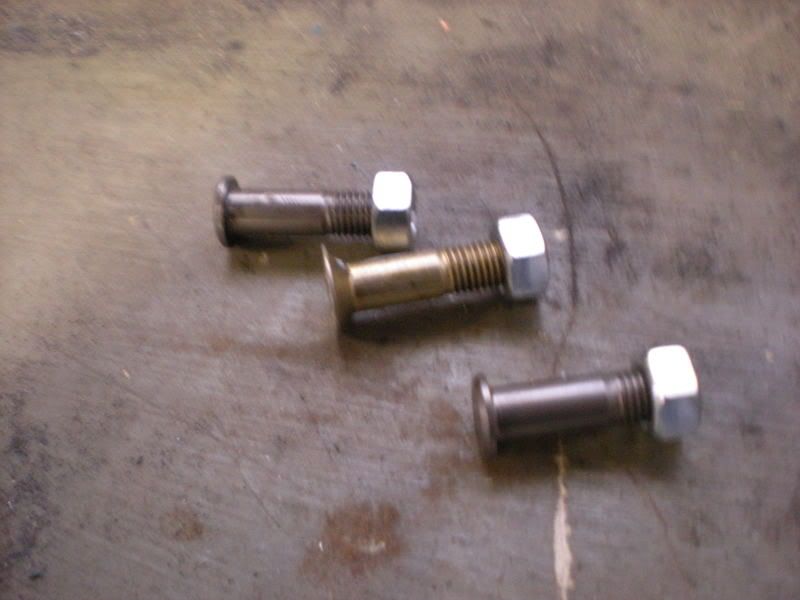

    Now as much as I'd love to sit around all day looking at fasteners, I've got a bike to build and a case of beer in the fridge so I need to get moving and just grabbed three fasteners that looked like they might work. I was able to find matching nuts in my small parts bin (which is about the only part of my garage that has any kind of organization at all).

    [​IMG]

    While these bolts are pretty low profile I want to make this part as clean as possible so I went back to the drill press to countersink the holes for my oil filter mount.

    [​IMG]

    And here she is bolted to the part. Here I used a purchased oil filter mount, but I could've easily made one with the equipment I have. In the last issue of The Horse, Fabricator Kevin (who's just about the most stand-up guy you'll ever meet) showed how to do this.

    [​IMG]

    Next I needed to put a bend in the taillight section of the bracket. This was a highly technical process that involves clamping the bracket in a vice and sitting my fat ass on it until it bent to the proper angle. I could have (read..."should have") used the oxy-acet torch to heat the part before bending but I ran out of acetylene a few days ago and I'm WAY too lazy to drag my tanks down to airgas for a refill.

    Here she is in the approximate location on the frame and mocked up with parts.

    [​IMG]
    [​IMG]

    Now I realize I could've gone with some sort of axle based setup but I didn't like that idea. The only things I want on my axle are bearings, spacers, and my brake bracket. So I decided to fabricate an ultra-mega-duty bracket for the tag light out of plate steel and some roundbar (simple, simple, simple).

    [​IMG]

    Here's the parts I made. It's basically three tabs with a couple of 1" spacers that are held together with 3/8 bolts. The idea is that the little tabs will be welded to the frame and the spacers welded to the third tab, which is then welded to the face of the tag mount (you'll see what I mean). My first thought was not to weld the spacers to the tab, but if those bolts somehow worked loose then I have to machine new spacers. Plus it adds complexity and additional parts, so I decided to weld them to the tabs.

    [​IMG]

    Here I mocked up the parts by hand to get an idea of where the mounting bracket should be welded onto the face. I wanted to make sure that my tag light was just shy of vertical so that cellphone toting assholes in overpriced SUV's will get a facefull of "backoff" when creep up my ass on the highway.

    [​IMG]

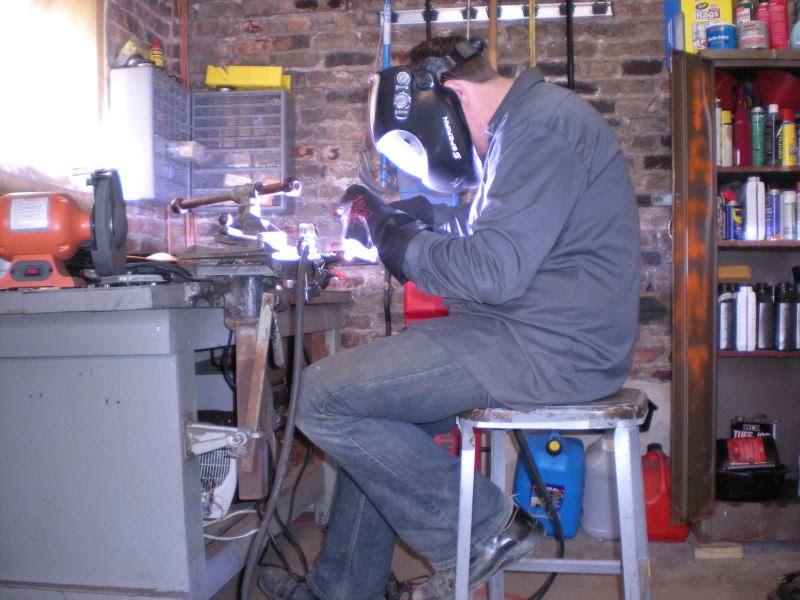

    Clamped together and ready for welding.

    [​IMG]

    [​IMG]

    Here's she is in her rough form. Yes I know those welds are boogery. I was out of practice and just wanted to get this done. Last night I went back over them with a few more amps and cleaned them up with a dremel flapper disc.

    [​IMG]

    Here it is mocked up on the frame. All I need to do now is weld on the 2 tabs.

    [​IMG]

  2. Daddycool

    Daddycool Active Member

    Joined:
    Jun 6, 2008
    Messages:
    778
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Broken Arrow, Ok.
    My Bike(s):
    2005 Big dog Chopper
    First Name:
    Marc
    Very nice!

  3. chaingunner

    chaingunner Guest

    Very nice GS. Amazing what you can do with a few tools.

    Only one aspect will I make a suggestion. If you ever catch that chain in the drill press, them damn keys will beat your ass.... :lol: I mean damn..... :)

    Good job!

    :2thumbs:

  4. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    Thanks guys. You are absolutely right! I would not recommend my attire for fabrication purposes. Anyone who's worked as a machinist knows the rules:

    1. No loose clothing
    2. No rings/jewelry
    3. No long hair
    4. and No lanyards.

    I live in a rough part of Chicago, so I've got locks on just about everything. Sometimes I feel like a janitor. Someday I hope to be able to bench press my keys but I don't see that happening anytime soon. :lol:

  5. 2004BC

    2004BC FREEDOM!!!

    Joined:
    May 13, 2009
    Messages:
    811
    Likes Received:
    142
    Trophy Points:
    43
    Location:
    Loxahatchee, Florida
    My Bike(s):
    2005 Chopper, 1981 FXB Chopper, 1977 FLH, 2001 RK Classic
    Good job!!! Old school custom parts. Made from scratch. No catalogs for you!!!! :cheers:

  6. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    I'm with ya man. There is wisdom to be found in the "old ways" and for those of you who didn't know, this is generally how most custom parts were made back in the sixties and seventies when nobody could afford the bikes that everyone wanted.

    Nothing I make is perfect but that's what I like about it. If you saw these parts up close you can see all the little imperfections from using hand tools. It's all out there for the world to see, and I'm damn proud of it! To me that's what custom really is, producing something with your own hand that you can be proud of. Even something as simple as a hand made tag bracket can speak louder than your exhaust.

    DannyViper likes this.
  7. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,384
    Likes Received:
    719
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Fantastic. May piss off a bunch here but a bit of knowledge like this helps keep you bike on the road no matter what model or make it is. Some here I think expect their bikes to run forever without any input from them.

    Making this a sticky for reference. :2thumbs::2thumbs::2thumbs:

  8. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    Thanks man! Hopefully I'll be able to put together some more howtos like this that are specific to big dog. I had planned on fabricating a metal battery box cover with tools that I had made from scrap, but that will have to wait until I can get this other bike on the road.

    I can see how this might upset some people, but the reality is that these machines are nothing more than big chunks of metal, and every machine can be fixed with the right skill and resources.

    Unfortunately I feel like there are people out there who are intimidated by working on their bikes and would rather pay someone to do it for them. To a certain extent I can respect that, but I know for a fact that there are guys out there and on this board even who aren't afraid to get their hands dirty but for whatever reason don't possess the drive/inspiration/knowledge to do so.

    That's why I posted this, for those who want custom but think they have to put a grand into every custom part. You and I know it's not true, and I'm sure there are lots others on here who understand that as well, but my posts on other boards got such an overwhelming response from average guys who have small pocketbooks and big hearts who then went out and created art from nothing that I'd be cheating the good people on this board if I didn't post it.

    :cheers:

  9. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    Well done :2thumbs:

  10. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,384
    Likes Received:
    719
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    I think it has a lot to do with tools also specifically shop tools. I would die for some of those tools you have. :D

  11. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    The only big investments I have are the lathe and my Synchrowave 250, which took years of deal hunting for me to afford (I practically stole them). Most of my hand tools I inherited from my father, who was a machinist/pattern maker (not sure if you caught the Emmert Patternmaker's vise in some of the photos).

    Even with what I have, I can't do everything. I think the 80/20 rule applies here, if I can do 80% of what I need to myself, and then outsource the other 20% then I'm in good shape, and the nice thing is once you learn to use these tools you can recover some of the cost by producing parts for buddies (my lathe has paid for itself and my welder, but it took me a very long time to get to that point).

    I also make a TON of tools. My sandblaster for example cost me less than $100 and is made from oil drum, some pvc pipe, and an empty can of skoal.

    I feel like tight budgets force you to be creative, you can have something for nothing if you're committed enough.

  12. shovelcowboy

    shovelcowboy Well-Known Member
    Calendar Participant

    Joined:
    May 27, 2008
    Messages:
    3,018
    Likes Received:
    178
    Trophy Points:
    63
    Location:
    Cedar City, UT
    My Bike(s):
    Custom Chopper, '07 K-9 Project (in pieces),Heritage Springer,Shovelhead
    First Name:
    Ken
    Now THERE IS A CONTRIBUTION to this forum! Great job Smithy!:2thumbs:

    My "farmer fabrication" leaves a lot to be desired when I see your work and use of tools! I think I'm in the Stone Age!:bang:

    Need an apprentice?:D

    Thanks a lot, Man.
    Shovelcowboy:cheers:

  13. KnotSo

    KnotSo No Time or Patience for Drama or Disrespect.
    Staff Member Supporting Member

    Joined:
    Apr 16, 2007
    Messages:
    11,240
    Likes Received:
    1,409
    Trophy Points:
    113
    Location:
    Western Washington, the State
    My Bike(s):
    2006 Big Dog Mastiff, 2005 Buell, 2000 HD
    Best How To in a long time!

    Dude, you got skills Nice work.:2thumbs:

  14. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    Well shit guys. I didn't expect such a positive response! I got some free time here at work, I'll see if I can dig up another how-to on my sand blaster and post that here as well.

  15. Eric

    Eric Banned

    Joined:
    Aug 4, 2008
    Messages:
    5,791
    Likes Received:
    28
    Trophy Points:
    0
    Location:
    griffin ga
    First Name:
    Eric
    good work dude, my father is a retired machinist, tool & die work, I didnt take his profesion due to always beeing around it all my childhood life, I've made a few things that were not avaliable, good job man, my dad now has his own shop now & makes stuff for his project cars, he dosent care for bikes, dosent think there is any money in them, cant seem to get it through to him.. I made some axel nut covers for my softail, solid steel turned them on his lathe, then had em powercoated, I do all my own welding to, but not much call for it anymore. it takes lots of practice .. keep it up bro, whatch building (bike)
    [​IMG]
    [​IMG]
    [​IMG]

    #15 Eric, Oct 19, 2009
    Last edited: Oct 19, 2009
  16. lee

    lee Well-Known Member

    Joined:
    Nov 5, 2007
    Messages:
    4,818
    Likes Received:
    67
    Trophy Points:
    48
    Location:
    Bristol, England
    My Bike(s):
    2005 Big Dog custom build and Buell custom build
    great work Troy - that's what it's all about. Top man :2thumbs:

  17. gearsmithy

    gearsmithy Active Member

    Joined:
    Jul 24, 2007
    Messages:
    277
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Chicago
    My Bike(s):
    2005 Big Dog Ridgeback, 81 shovel (frankinbike), 76 ironhead, and a pile of parts in the corner
    First Name:
    gearsmithy
    Yeah there's nothing quite as satisfying when someone asks you "where did you get that part"....and then you get to say "I made it."

    I was in daytona a while ago, and my buddy made a really simple sissy bar for his softail so he had something to strap his stuff to. This thing was really basic, no finish, stick welds, etc, but it looked so cool people were leaving him notes on his bike "where did you get that sissy bar, call me xxx-xxx-xxxx"

  18. chacha

    chacha Chaff Your EHC!!
    Calendar Participant

    Joined:
    Apr 18, 2007
    Messages:
    2,643
    Likes Received:
    115
    Trophy Points:
    63
    Location:
    20151
    My Bike(s):
    2001 Nightrain, 2014 Indian Vintage, 2006 Bulldog (sold)
    First Name:
    Mister Fucking Wonderful
    Nice F'n work! :cheers:

    Nothing says respect on a bike more than, "Yea, I needed it so I built it"

    I'm looking for deal on a lathe for the same reasons --- key item I'm missing for the shop.

  19. LDO

    LDO The Cleaner
    Staff Member Supporting Member

    Joined:
    Apr 8, 2007
    Messages:
    2,756
    Likes Received:
    38
    Trophy Points:
    48
    Location:
    P-Cola FL.
    My Bike(s):
    03 Mastiff
    Dang GS,
    that is some good shit right there! I absolutely love the oil filter behind the tag bracket!

    I'm diggin the home made parts. You have my respect.:2thumbs:

  20. Tim

    Tim a.k.a. BubbleHead
    Staff Member Owner/Founder Troop Supporter Calendar Participant

    Joined:
    Feb 22, 2007
    Messages:
    11,812
    Likes Received:
    1,213
    Trophy Points:
    113
    Location:
    Austin, TX
    My Bike(s):
    '07 K-9
    First Name:
    Tim

    Some "how-to" write ups on making your own tools would kick ass!!!
