How To: Clean Solenoid Contacts on the starter

Discussion in 'How-To' started by chacha, Feb 1, 2009.

Thread Status:
Not open for further replies.
  1. chacha

    chacha Chaff Your EHC!!
    Calendar Participant

    Joined:
    Apr 18, 2007
    Messages:
    2,643
    Likes Received:
    115
    Trophy Points:
    63
    Location:
    20151
    My Bike(s):
    2001 Nightrain, 2014 Indian Vintage, 2006 Bulldog (sold)
    First Name:
    Mister Fucking Wonderful
    Way simple job. Easier off the bike, but you should be able to also do it on the bike if you don't have a belt or lines in the way -- your mileage may vary.

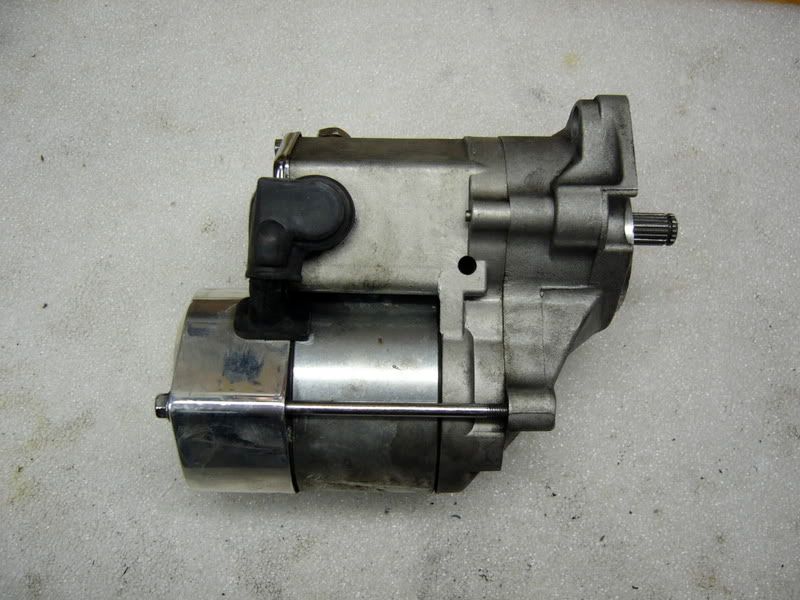

    OK - first get the starter
    [​IMG]

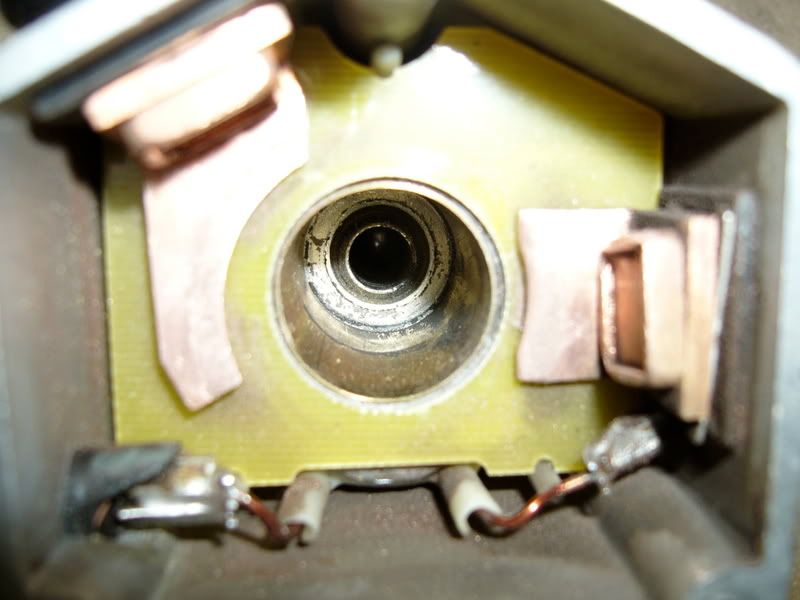

    The important bit is the three screws on the solenoid. Remove them, but remember there is a spring pushing a shaft in there -- not hard, but remember it.
    [​IMG]
    [​IMG]

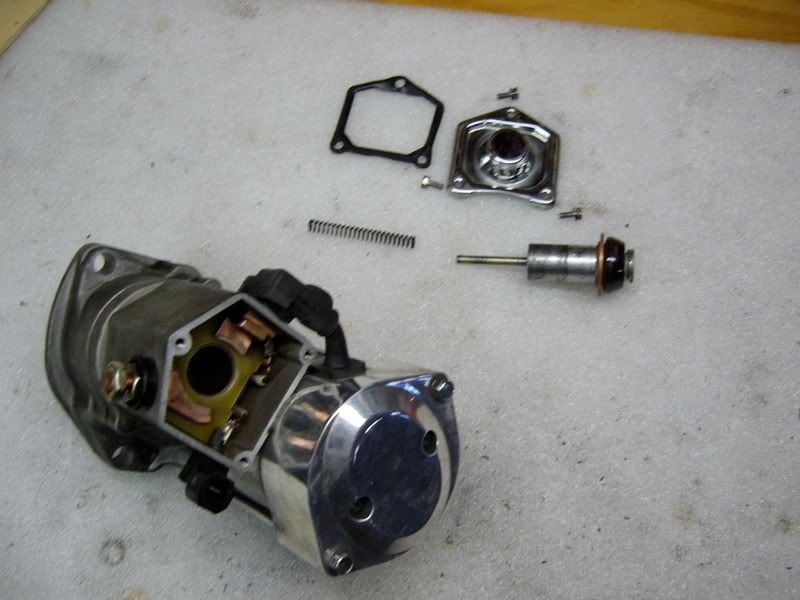

    Here it all is disassembled.
    [​IMG]

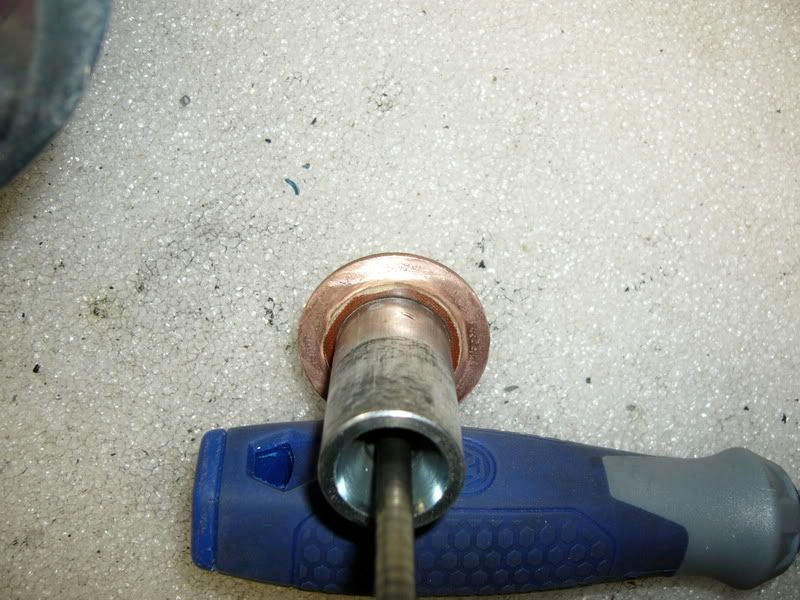

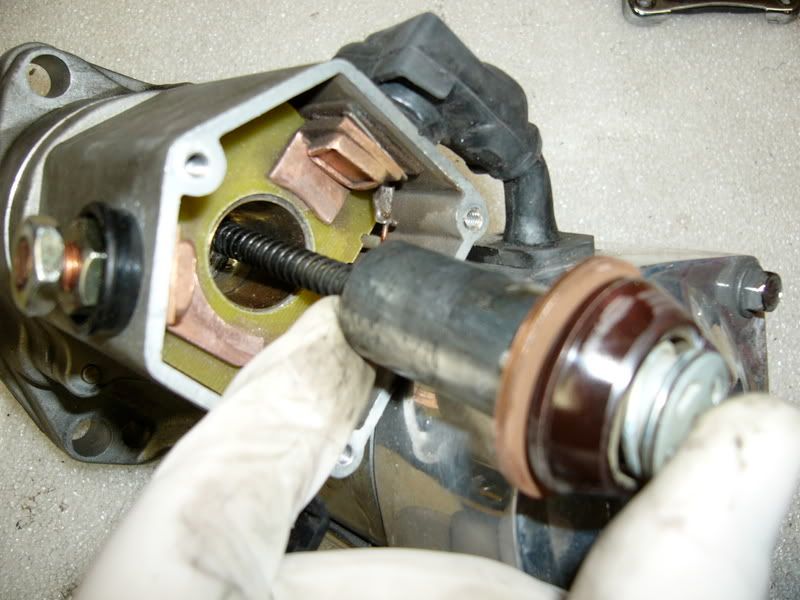

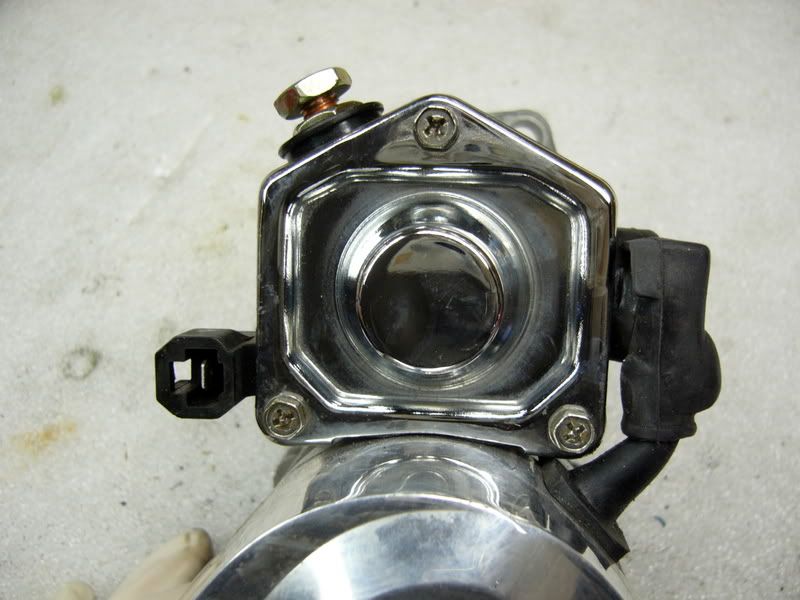

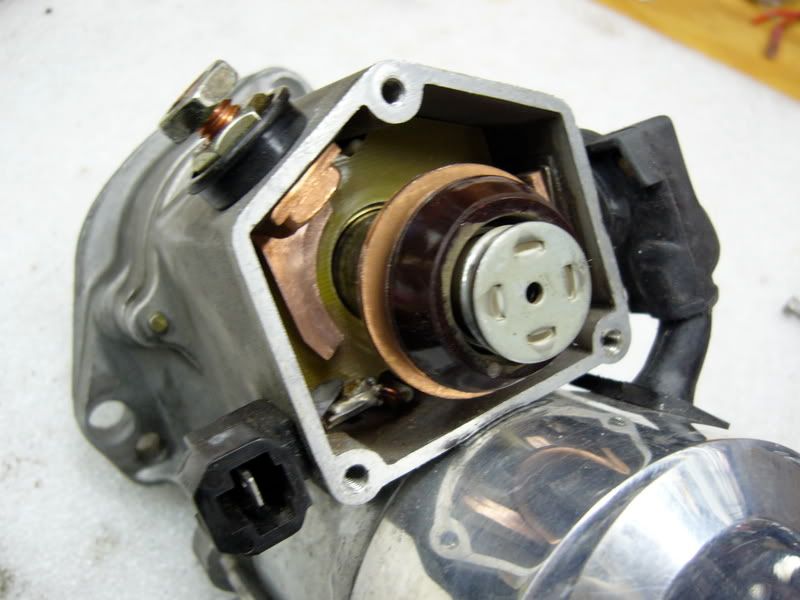

    Then it's just clean the contacts on the shaft (copper circle bit) and the EM body (2). and reassemble! Use an emery board or some fine sandpaper -- I use 200 grit. And remember to blow out with some air.
    [​IMG]
    [​IMG]
    [​IMG]

    Easy job, give it a shot sometime. Anything that cleans up the electrical connection for the starter is one less problem down the road.
