    Here is a simple installation of the "Battery Bug".

    [​IMG]

    First I would like to thank Mad Dog for arranging this group buy on this product. It seems to me now after installing it that it can help out a lot with battery issues you may have in the future. Thanks Don. :2thumbs:

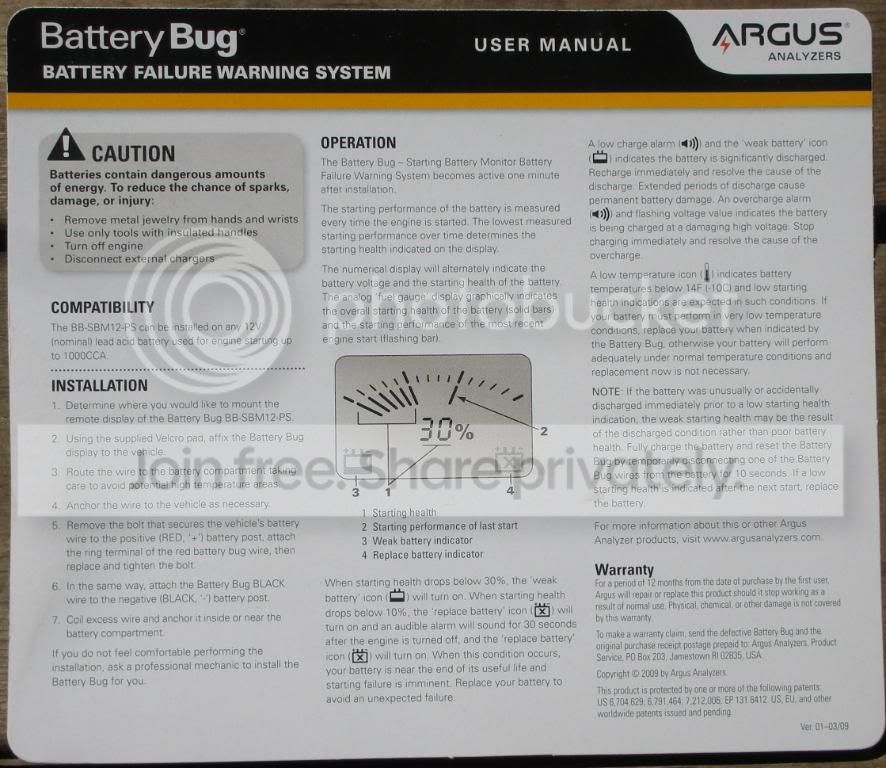

    Ok, first some info on the product. It monitors your battery just as you suspect it does but seems from reading the instructions it bases a lot of it's information on history after installation so I would advise all of you to start with a fully charged battery. So those of you that don't think you need a battery tender or only use it when your bike is put up for a long period I would really advise you give your battery a full charge before connecting this product up.

    [​IMG]

    This "Bug" has a one minute start-up programming. The display alternates the battery voltage and the starting health of your battery. It uses an analog "fuel gauge" display to graphically show you the health of your battery.

    It also shows you starting performance of last start, has a weak battery indicator and a replace battery indicator.

    The weak battery icon comes on when the battery strength goes below 30%.
    When starting health drops below 10% the "replace battery" icon turns on and an audible alarm will sound for 30 seconds after the engine is turned off.
    There is a "low temp" icon also if the temp gets to 14 degrees or below.

    [​IMG]

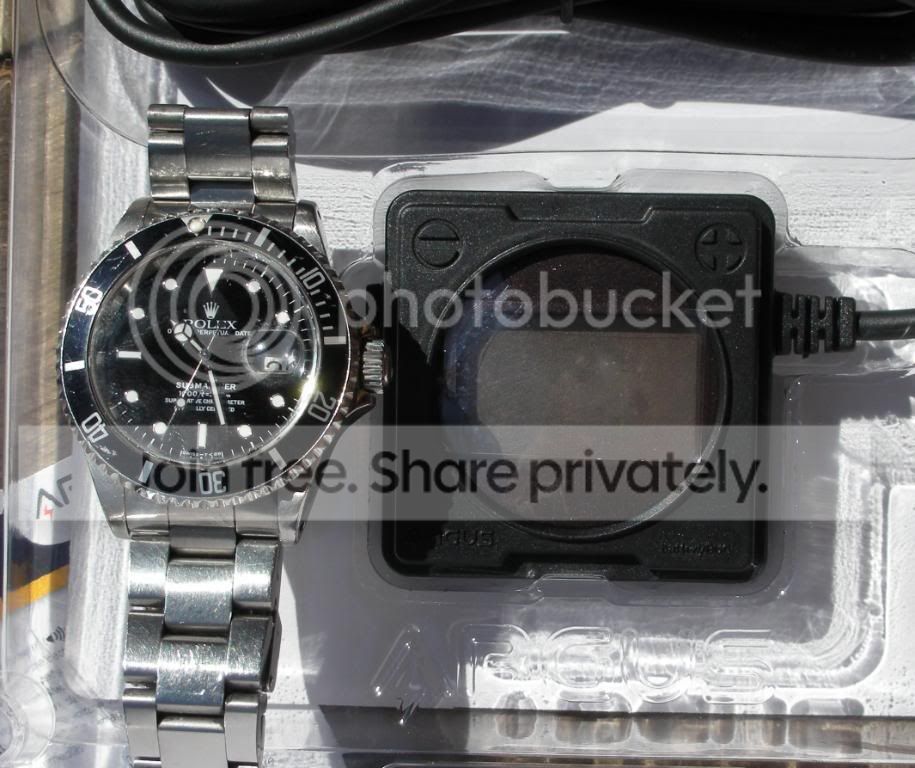

    Pretty kool little device here (my watch next to it for comparison) and here is how I installed mine. I will tell you the instructions state to install the "RED" lead and install the "GROUND" lead and thats it. Easy, anybody can do it.

    [​IMG]

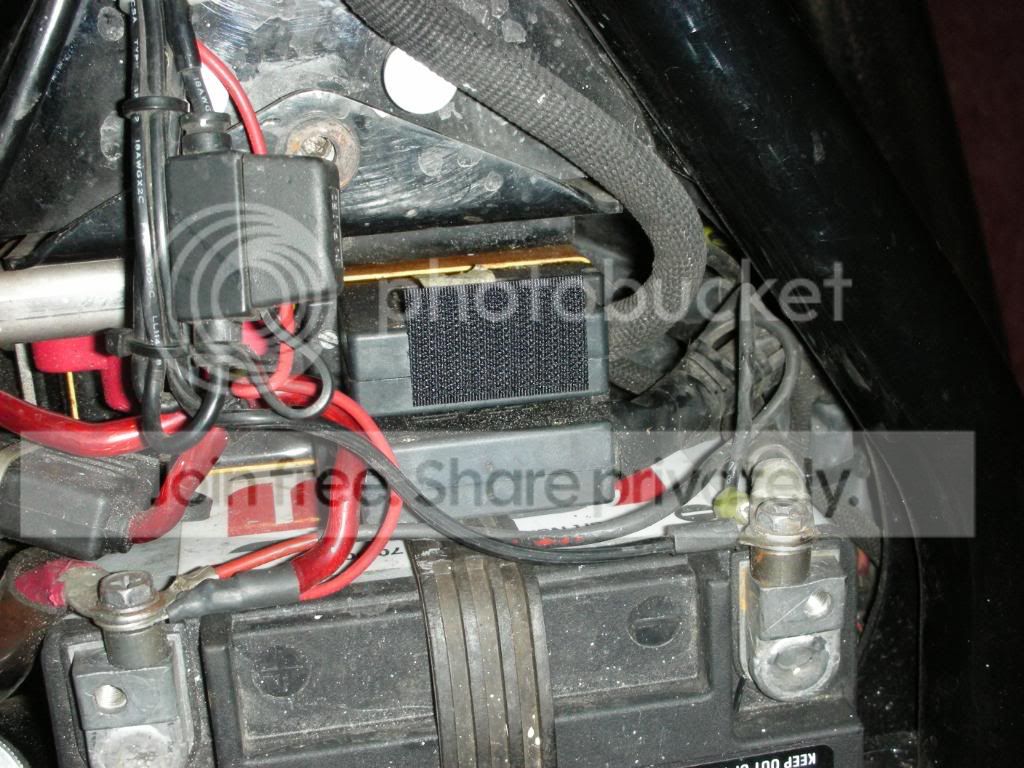

    First thing I did was determine where I was going to put this thing. Things are a bit cramped in my battery compartment on an 05 Chopper. But I figured the best place to put the "Bug" was on top of the wiring harness. So I cleaned the surface with an alcohol swab and remove the tape on the back of the supplied Velcro and stuck it to the harness. Fit great in there albeit tight.

    [​IMG]

    [​IMG]

    [​IMG]

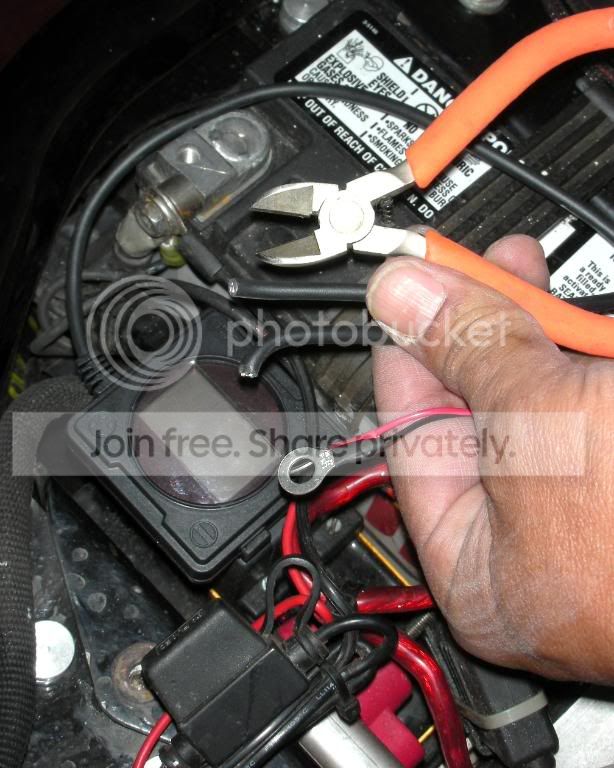

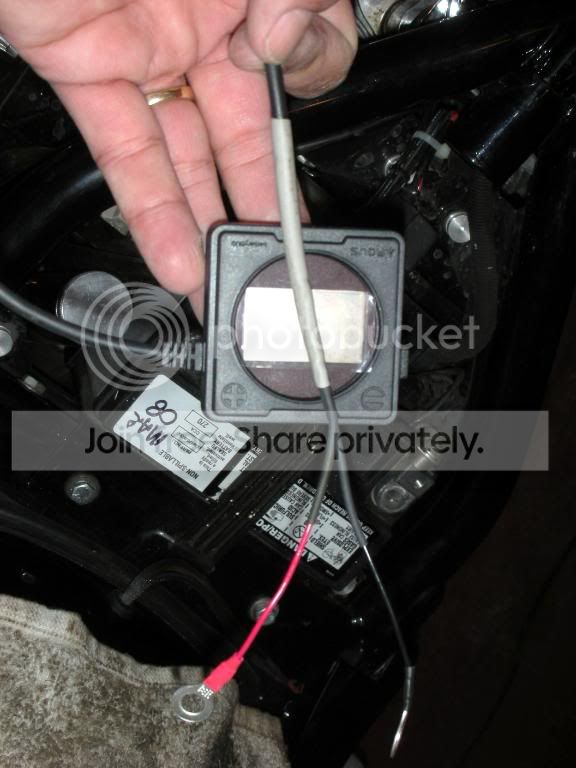

    In this picture you see all the wire they give you. Well that's just to much. I only need a 10" pigtail so I cut all the "2 meters" of wire with some dikes. 2 meters is about 78" of wire so way more than you need.
    [​IMG]

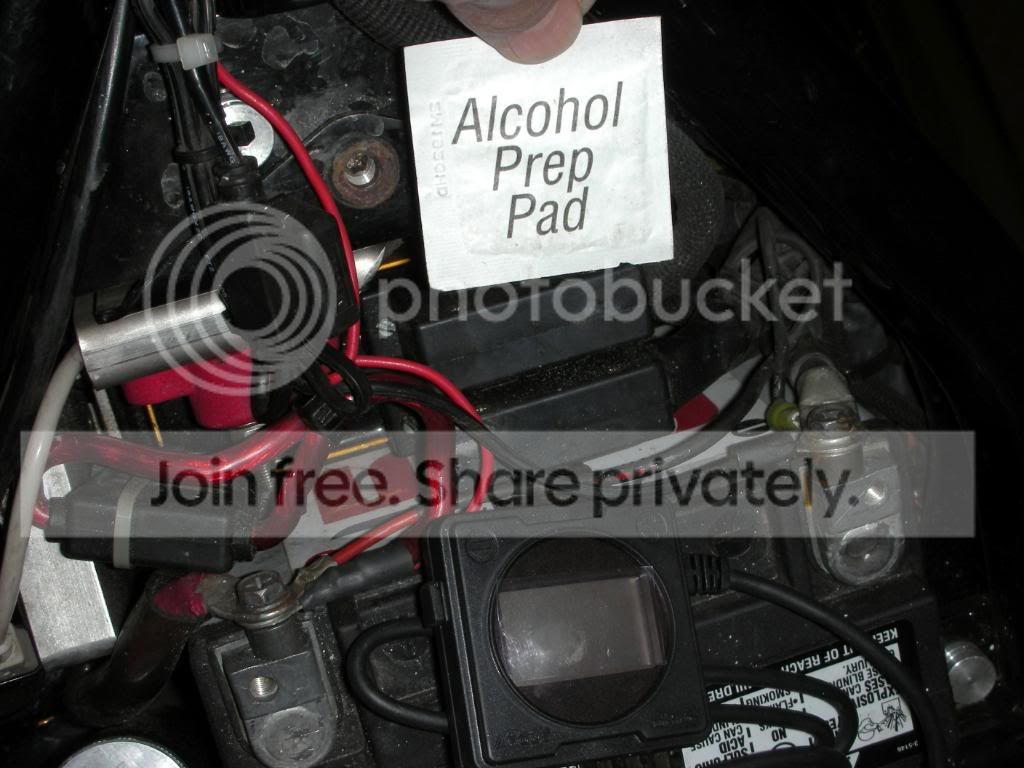

    If you have room or you don't like cutting and soldering or crimping then you can leave it alone but I wanted mine tight and clean!
    [​IMG]

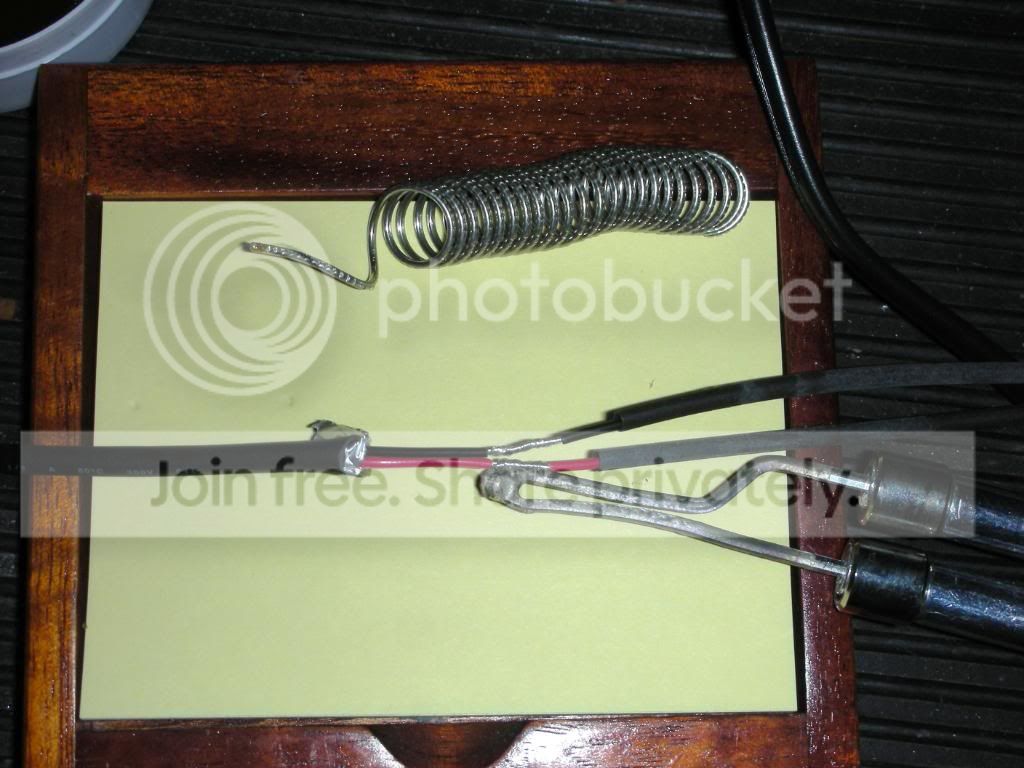

    Then I broke out my trusty soldering iron and with a little flux and some soldering wire I reconnected the wire to the nice end pieces. You could just cut the wire strip it and add new connectors but I didn't have red and black connectors so I soldered on the originals. I don't like having other colors on the battery cause long ago a mechanic in San Diego re-connected my battery tender leads wrong after they have broken off and were replace by the mechanic with other colors!! :rant:
    [​IMG]

    I added shrink tubing to the main lead and to each of the terminal leads. After I soldered them up I heated up the shrink wrap on the leads and then covered the whole thing with the main lead wrap and heated that up. Nice and clean now.
    [​IMG]

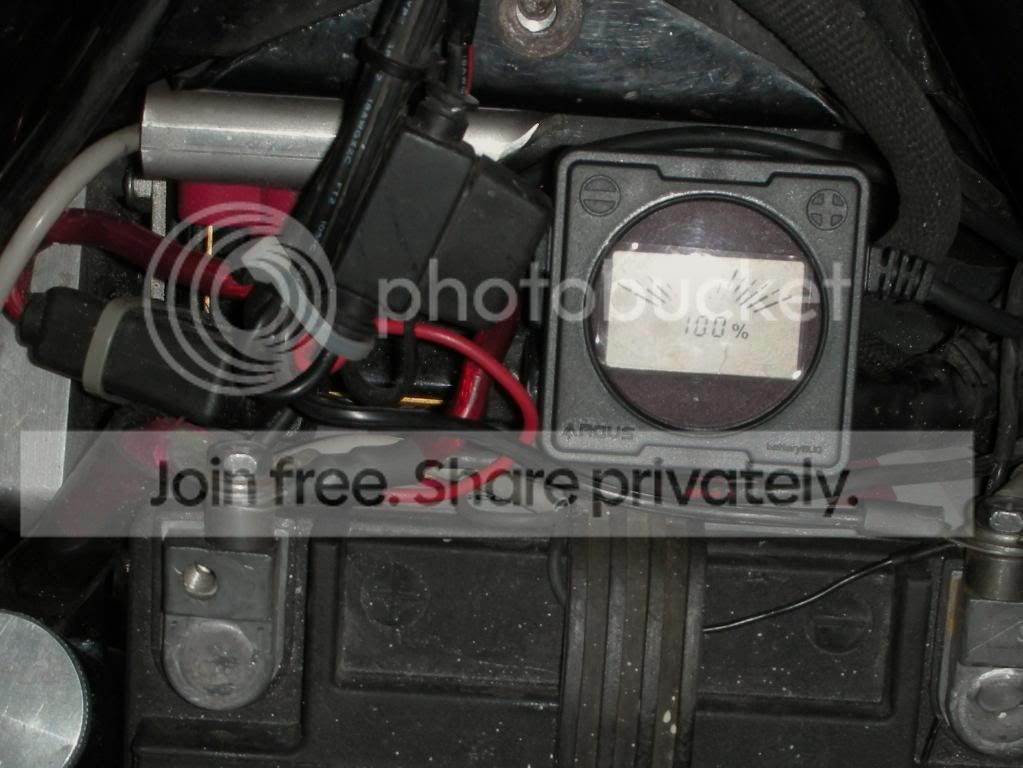

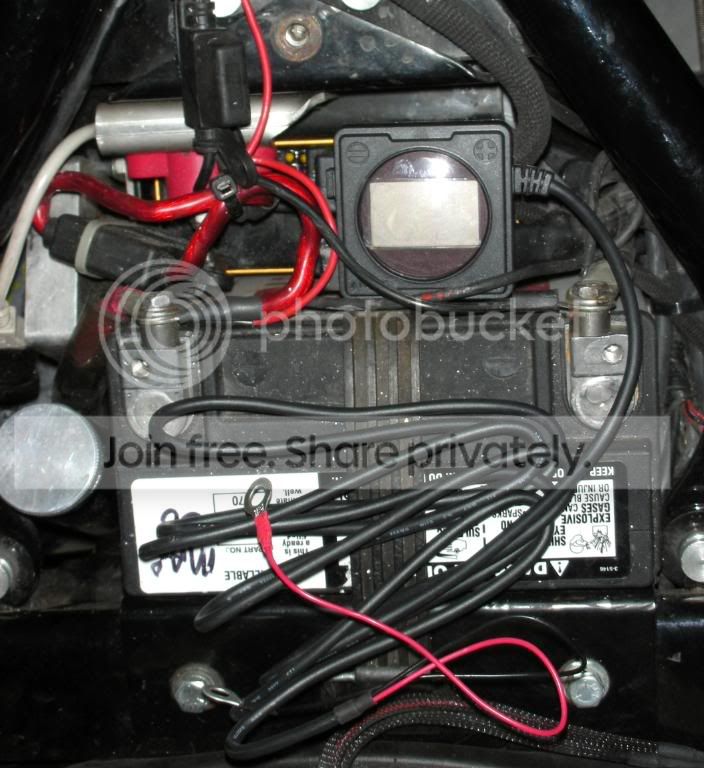

    Now it's just a matter of wiring it up "RED" first then "GROUND" and let it program itself and your done. Here it's indicating I have 100% cranking health.
    [​IMG]

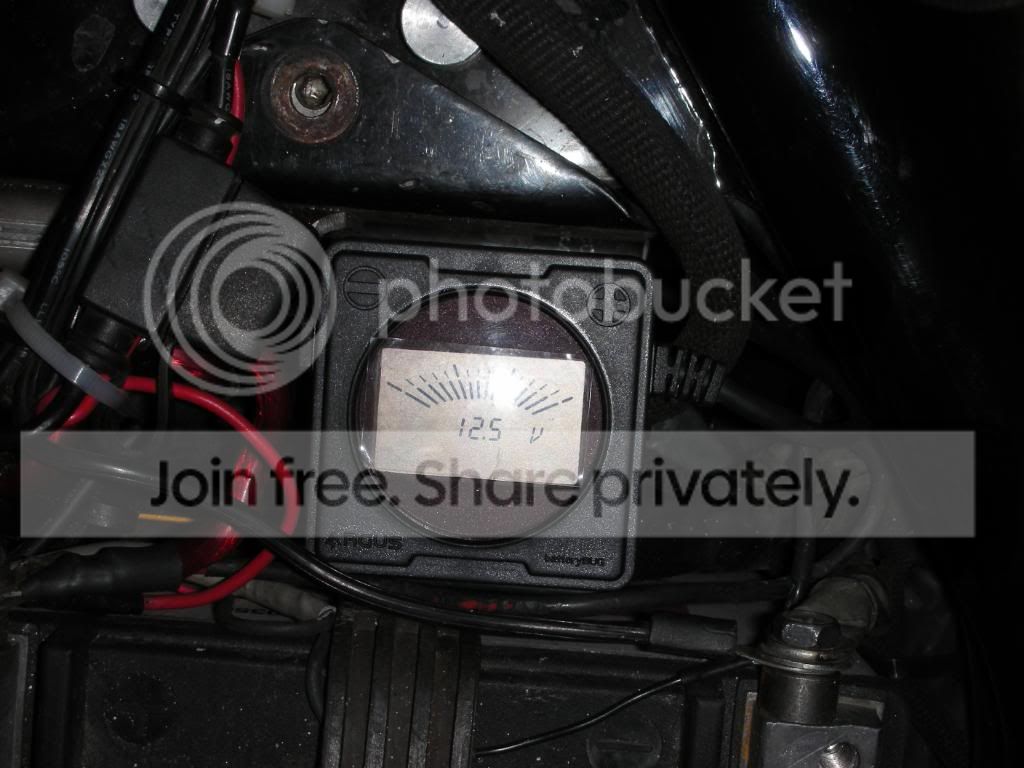

    And 12.5 volts. I had turned the key on and let it cycle and sit for a while as I was taking pictures. It had started with 13.2 but then drained down some with the headlight on. But started right up!
    [​IMG]

    I then cranked the bike up and it started as usual and this is what I got. Looks like 14.3 volts so guess the VR is working (this number was fluctuating between 14.2 - 14.5)!
    [​IMG]

    Aaaahhhh, but it tells me my battery on has 10% live left in it. Again as I stated previously this works on history and algorithms I imagine so I will let it go for a while and see if it changes. Notice I have the weak battery icon on also.
    [​IMG]

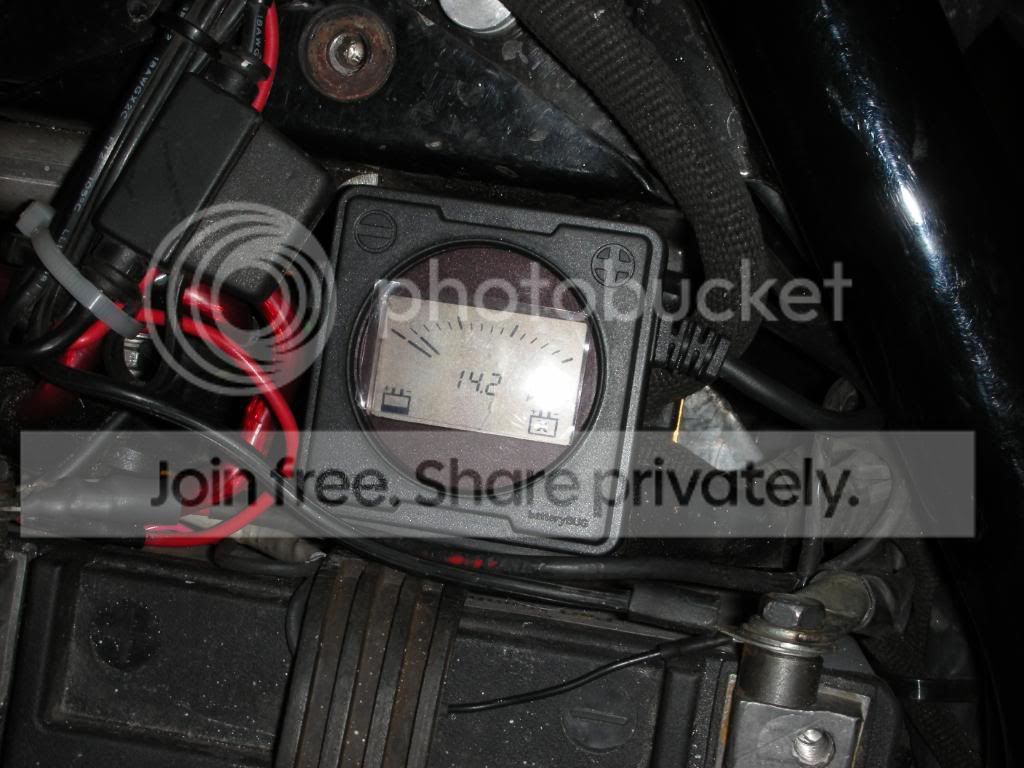

    But here it is again while idling showing a good charge.
    [​IMG]

    Overall I think this is a great little product and I would be happy to hear from others on what battery health listing it's showing for your own battery. My battery is just over a year old so with a 10% showing I want to see if it changes over the next week or two.

    Easy to do and not a bad price for this little thing.
    [​IMG]
