How Remove/Install/Swap your speedo

Discussion in 'How-To' started by Gas Man, Aug 30, 2007.

Thread Status:
Not open for further replies.
  1. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Place a nice soft towel on the floor or work bench where you'll be able to get at it later. If you don't trust yourself, get someone you can hand the gas tank to.

    First pull your 4-3/16" allen bolt mounts on the gas tank. Turn petcock to off. Remove your gas line clamp at the petcock.

    Wrap your speedo with a towel like shown here from when I was putting the tank back on.
    [​IMG]

    With the handlebars turned and you sitting on the bike.

    Carefully lift the gas tank up. It will come out. You must pull towards you to remove it from under the speedo. It takes some smoothness.

    Hand it off or carefully place it on the said towel. Be carefull not to turn on the petcock during this or you will be unhappy and smell like gas.

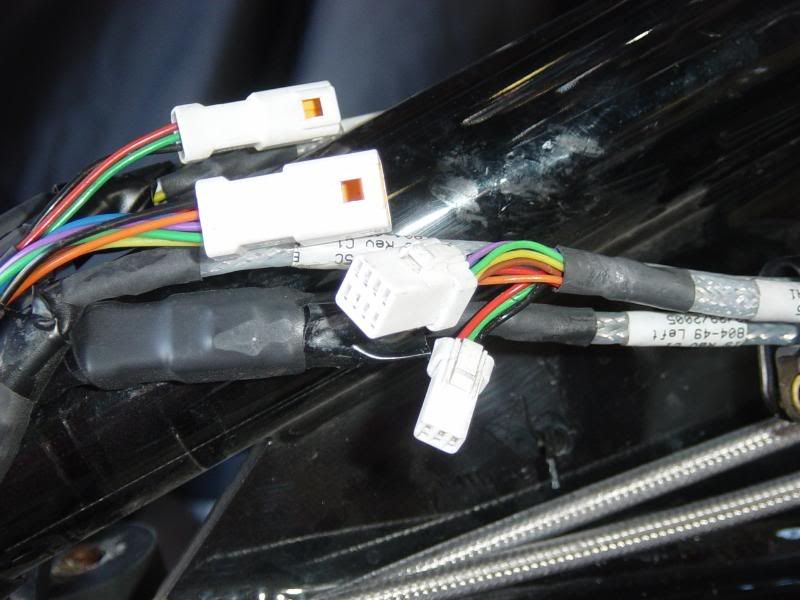

    Trace the speedo wires from the pod thru the tripple clamps and to the wiring under the tank. You will have to snip a few zip ties. Unclip the harnesses.
    [​IMG]

    Now remove the 2 - 3/16" allens that hold the stem to the handlebars. I used a set of long ball ended allens for a ratchet.

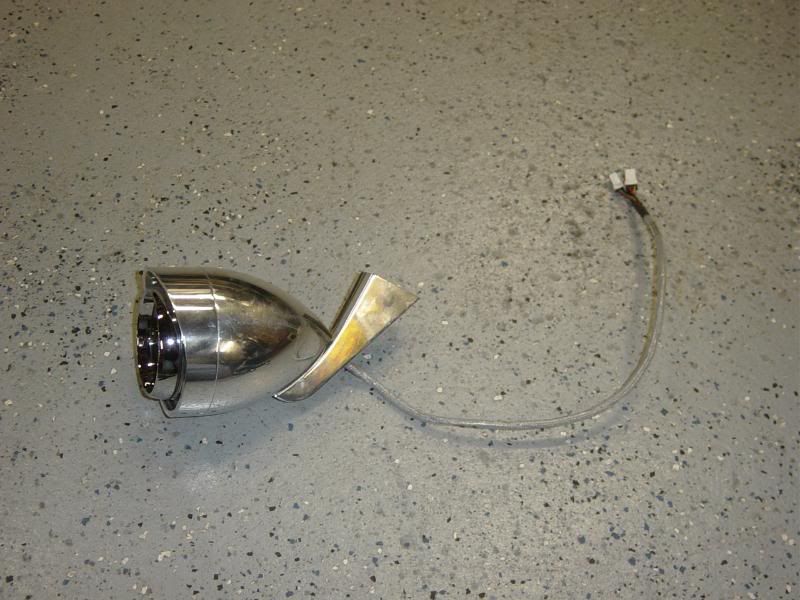

    Once that has been unbolted work the wires out of the tripple clamps and you'll have the pod and stem off the bike.

    [​IMG]

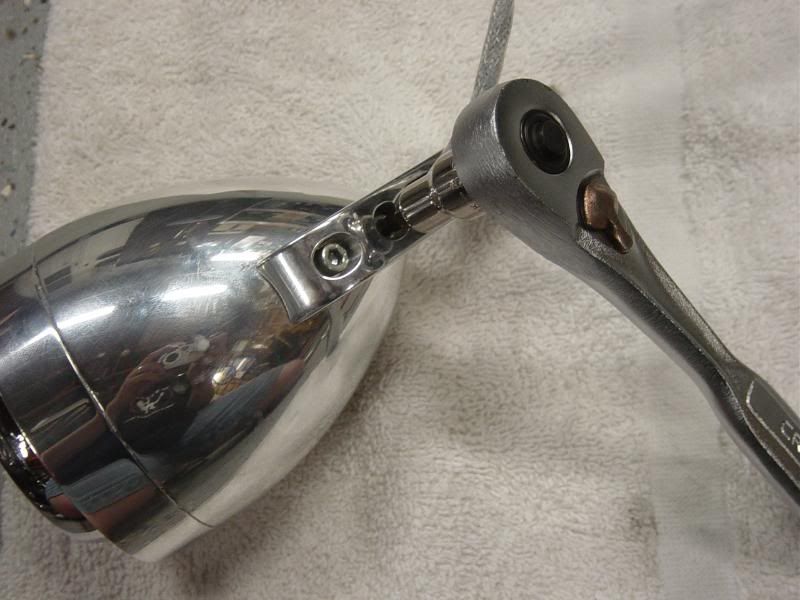

    Now you can remove the stem from the pod with the 2 - 5/32" allens
    [​IMG]

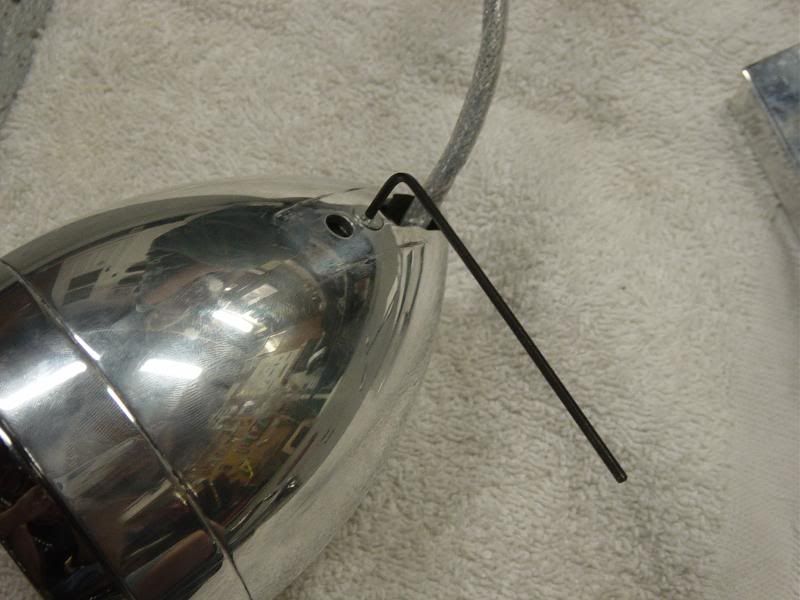

    Now pull the 5/64" allen to remove the gauges from the pod.
    [​IMG]

    You'll end up looking like this
    [​IMG]

    Once you un-clip the harnesses, Remove your hex head nylon nuts and pull the bracket from the setup.
    [​IMG]

    The speedo slides in from the front. Swap the speedo gauge and re-install the bracket, you will see that its dumby proof. There are notches for everything to fit together. Add some di-electric grease to the connections and clip back together.
    [​IMG]

  2. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Now its just back tracking...

    Now make sure you didn't loose the little spacer for the5/64" allen. Re-install the gauges into the pod and bolt together.

    Run wires thru new stem and don't forget to put some loctite on these bolts. Bolt the 2 - 5/32" allens to mount the pod to the new stem.

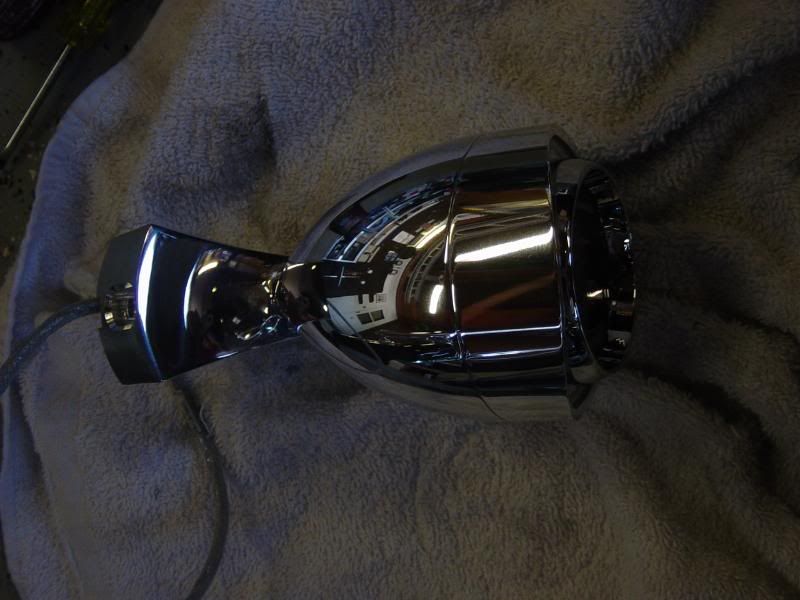

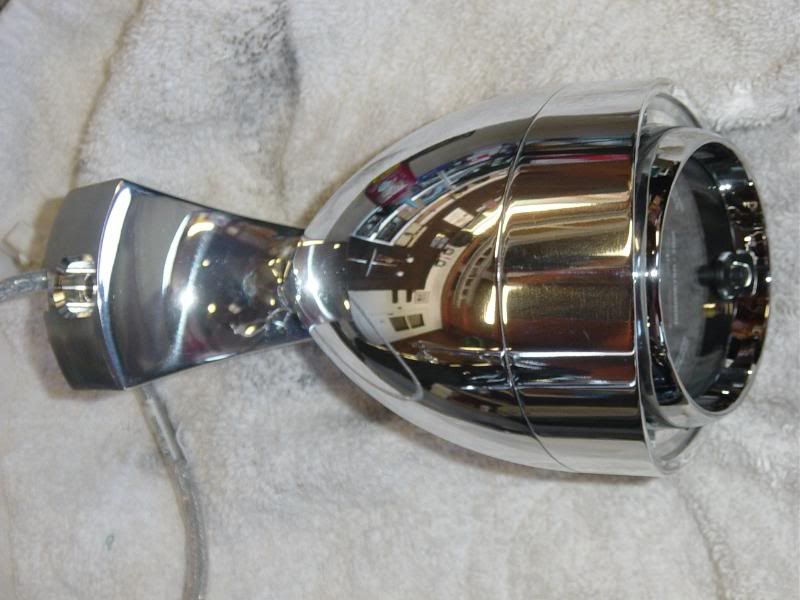

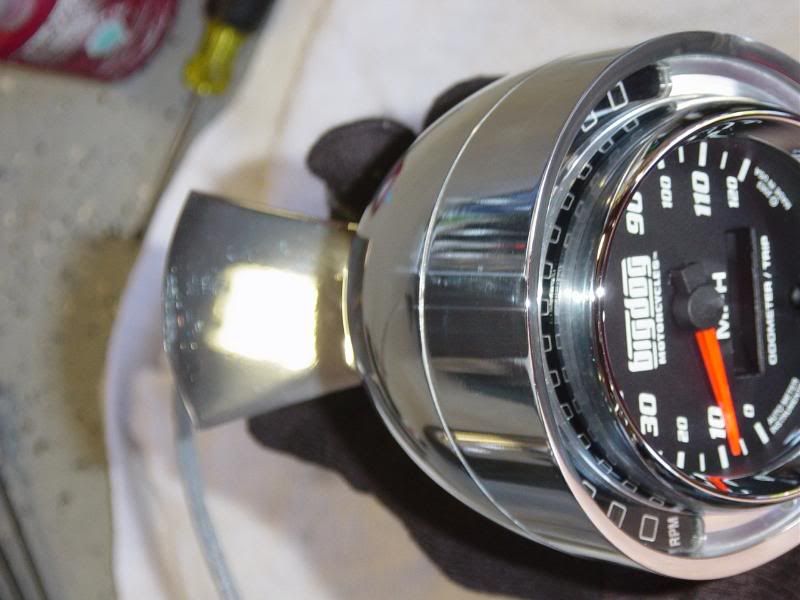

    Now is a good time to polish up the pod. Then I put cotton gloves on to stop from finger printing it all up.

    [​IMG]
    [​IMG]
    [​IMG]

    Run the wires thru the tripple clamp and bolt the stem to the bars using the 2 - 3/16" allens.

    Once that is all done, re-wrap your speedo for the tank installation.
    [​IMG]

    Put more di-electric grease in your connections under the gas tank.
    [​IMG]

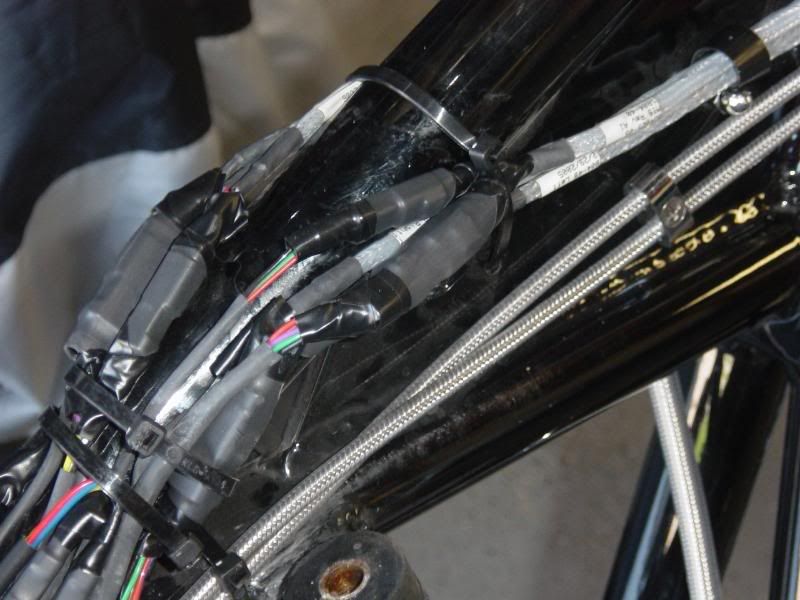

    Shrink wrap if you do that sort of thing. As I described HERE! If you haven't done it now might be a good time.
    [​IMG]

    Test run the speedo by simply turning on your ignition. See if it reads and runs its self test. If all checks out lets get you back on the road.

    Put back on the zip ties you cut off. Re-install the gas tank.

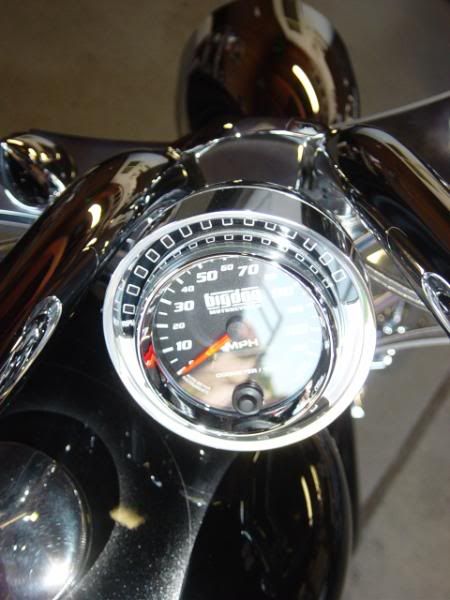

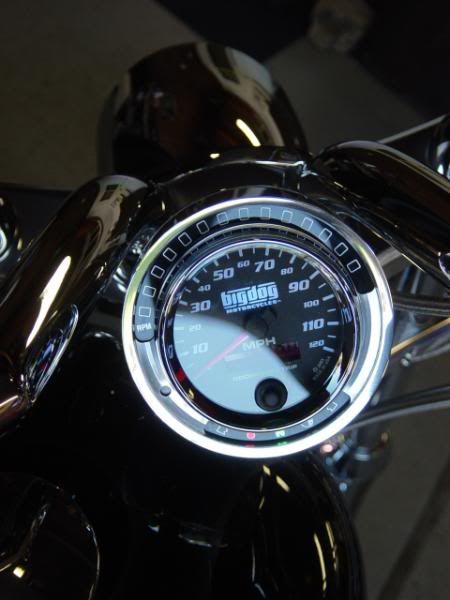

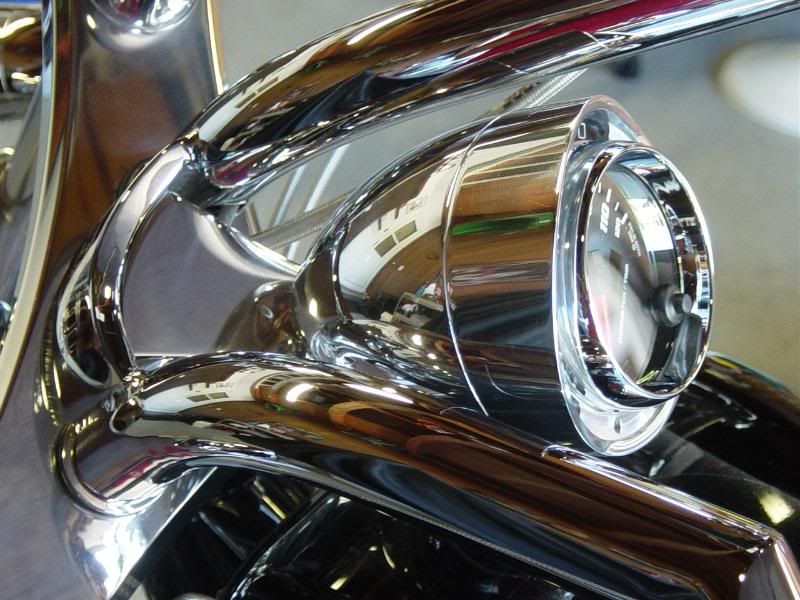

    Then marvle in its new supportive and smooth operating greatness.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  3. Oscar Maldonado

    Calendar Participant

    Joined:
    Jul 19, 2007
    Messages:
    5,831
    Likes Received:
    174
    Trophy Points:
    63
    Location:
    Louisiana
    My Bike(s):
    04' Pitbull
    First Name:
    Oscar
    Good job. Thanks for tips.

  4. rowdy13

    rowdy13 Active Member

    Joined:
    Oct 1, 2007
    Messages:
    399
    Likes Received:
    10
    Trophy Points:
    0
    My Bike(s):
    2006 K-9
    why did you replace your speedo?

  5. kickstart

    kickstart Well-Known Member

    Joined:
    Apr 9, 2007
    Messages:
    3,136
    Likes Received:
    1,129
    Trophy Points:
    113
    Location:
    TN
    My Bike(s):
    52 Pan,05 Bulldog, 07 K9
    First Name:
    Pat
    Nice job Chris, but I also have to ask why you did it?
    I let the dealer do mine :confused:

  6. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    I replaced it under warrenty... the old one would bounce bad and fog up...

    kick... cause my dealership sucks and I wasn't going to let my bike sit there for 3 weeks again for a speedo! Fthem!

  7. beano

    beano Member

    Joined:
    Apr 9, 2008
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Pageland SC
    My Bike(s):
    2002 pit bull
    I like ur attitude man

  8. Big Dog Rod

    Big Dog Rod Member

    Joined:
    Apr 29, 2008
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Harrisburg, PA
    My Bike(s):
    2005 Ridge Back
    Good job Chris

  9. gooddoggie

    gooddoggie Member

    Joined:
    Apr 8, 2007
    Messages:
    114
    Likes Received:
    3
    Trophy Points:
    18
    Location:
    Downers Grove Il.
    another great "how to" GM. What are you currently using to polish your billet, Wizzards? that speedo looks chromed! nice job

  10. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    Thanks gents. And beeno... in michigan my attitude is a must if you don't want your dog down for 3 weeks for every squeek.

    Gooddoggie... well then the speedo wasn't chrome. Now it is... along with every other part besides about 6. Hand controls, foot controls, and brake calipers... everything else chrome.

    but right now I use wizards. It seems to work great and the sealer really cuts down on re-polish time.

  11. pauldeepsea

    pauldeepsea Well-Known Member

    Joined:
    Jun 15, 2008
    Messages:
    4,243
    Likes Received:
    4,307
    Trophy Points:
    113
    Location:
    California
    My Bike(s):
    2004 Pitbull/ridgeback , 2006 big bear sled 300
    First Name:
    Paul
    2004 pitbull

    ok stupid question. I have an 04 with the speeo in the tank how do I pull this out mine constantly has water drops in it and now its bouncing and the digital readout is not working either? any resolve with this
    Thanks
    Paul

  12. EJ

    EJ Member

    Joined:
    Apr 6, 2008
    Messages:
    571
    Likes Received:
    8
    Trophy Points:
    0
    Location:
    lancaster, sc
    My Bike(s):
    2002 bulldog
    Gas I was wondering if I could put a newer speedo on my older bike. I want a speedo with a tach an:confused: y chance it will work......:confused:

  13. scubaman15

    scubaman15 Well-Known Member

    Joined:
    Dec 9, 2007
    Messages:
    2,861
    Likes Received:
    60
    Trophy Points:
    48
    Location:
    New Kent Virginia
    My Bike(s):
    2007 BDM Chopper- 2007 HD CVO
    Great Job Chris!!! I feel your dealer pain and agree

  14. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,045
    Likes Received:
    274
    Trophy Points:
    83
    Location:
    Metro Detoilet
    paul... will have to see a guy with a tank mounted speedo give you some tips... I haven't been there.

    EJ.... I think wiring would be the only issue but I don't see why not. Dogvet may be able to shed more light on it.

  15. pauldeepsea

    pauldeepsea Well-Known Member

    Joined:
    Jun 15, 2008
    Messages:
    4,243
    Likes Received:
    4,307
    Trophy Points:
    113
    Location:
    California
    My Bike(s):
    2004 Pitbull/ridgeback , 2006 big bear sled 300
    First Name:
    Paul
    Thanks Gas I pulled the speedo a few weeks ago. It was actually really easy to do. My Speedo doesn't work at all now. What a piece of shit speedo. I am really looking for a good substitute I called the Harley/Big dog dealership and they said that the stock replacement was currently out of stock at Big Dog and it is $300 to replace. You can pretty much figure on what I told them to do with the replacement. LOL

  16. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,376
    Likes Received:
    668
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Paul, if you are inclined you could break it open and check the leads inside it. Chacha did a thread on this and found that 2 of the 3 wires inside had broke loose from the solder joint. He re-soldered and now working great.

    Also pull and clean the pick up on the tranny and see if that helps.
