How do you remove the rear master cylinder on a 06 Mastiff?

Discussion in 'Help Wanted' started by scteach, Dec 2, 2017.

  1. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    My rear master cylinder is leaking bad and I need to remove and most likely rebuild. Can anyone tell me what all is involved in removing the rear master cylinder. It appears that I may need to remove the exhaust to get to one of the bolts but want to hear from you before I may do more work than needed. Thank you in advance.

  2. dentdude36

    dentdude36 Guru

    Joined:
    Nov 9, 2015
    Messages:
    9,206
    Likes Received:
    20,743
    Trophy Points:
    113
    Location:
    Suburbs of Buffalo NY
    My Bike(s):
    2007 K9
    First Name:
    Kevin
    I rebuilt the one on my pitbull it does not need to be removed from the bike it's pretty simple to do takes longer to bleed the brake get yourself a speed bleeder it makes it much easier

    PROFLYER and BWG56 like this.
  3. dentdude36

    dentdude36 Guru

    Joined:
    Nov 9, 2015
    Messages:
    9,206
    Likes Received:
    20,743
    Trophy Points:
    113
    Location:
    Suburbs of Buffalo NY
    My Bike(s):
    2007 K9
    First Name:
    Kevin
    Donna and Derek sell rebuild kits , remove the snap ring pull the parts out clean really well and put new spring seals plunger etc in and make sure you use dot 5 fluid

  4. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    Thank you, I will do all that. However my question is what is are the steps to remove the master cylinder from the bike. Does the exhaust pipes need to come off?

  5. dentdude36

    dentdude36 Guru

    Joined:
    Nov 9, 2015
    Messages:
    9,206
    Likes Received:
    20,743
    Trophy Points:
    113
    Location:
    Suburbs of Buffalo NY
    My Bike(s):
    2007 K9
    First Name:
    Kevin
    Not sure never took mine off as stated I rebuilt it on the bike no reason to remove it in my case

    PROFLYER likes this.
  6. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    Thanks, my cylinder leaks behind where it mates with the mount. No leaks at plunger rod or line. Need to remove from bike by after removing one bolt it still will not come off. I see the other bolt but it does not appear to hold to the mount and I will need to remove the lower pipe to get that bolt out.

  7. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    Thank you. I will take another look. I guess you rebuilt on bike by removing plunger. The odd thing is my leak is coming from between the cylinder and the mount. All dry around the line and plunger. That is why I figured I would need to remove it for repair. A picture of one removed showing the back side would be helpful.

  8. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,855
    Likes Received:
    16,123
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Behind the mount? Sure it's not leaking at the crush washer underneath where the brake line connects? There isn't anything to leak on the back side near the mount.

    Sent from my 2PS64 using Tapatalk

    PROFLYER and BWG56 like this.
  9. dentdude36

    dentdude36 Guru

    Joined:
    Nov 9, 2015
    Messages:
    9,206
    Likes Received:
    20,743
    Trophy Points:
    113
    Location:
    Suburbs of Buffalo NY
    My Bike(s):
    2007 K9
    First Name:
    Kevin
    The fluid may be traveling if the rebuild doesn't work then the other possibility is your reservoir or control is cracked highly unlikely but is a possibility

    BWG56 likes this.
  10. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    100% sure not coming from the line or where it connects. And yes, right where the cylinder sandwiches with the mount is where the fluid is coming from. Front by plunger and line is dry. I found it odd as well and thought there may be a weep hole back there.

  11. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,855
    Likes Received:
    16,123
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    No weep hole....would have to be leaking out of the gasket at the top where the cover is...

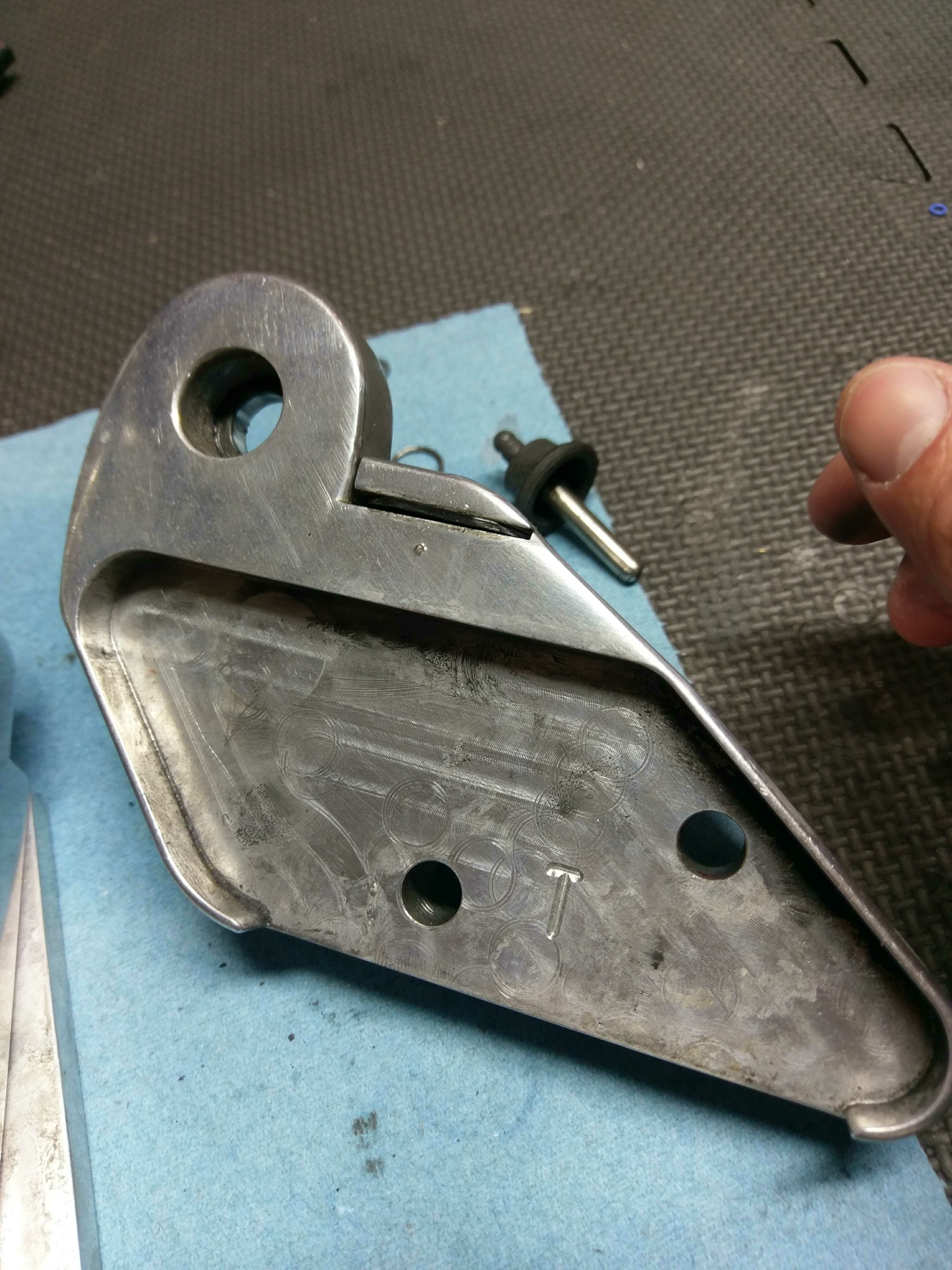

    But it's just the two bolts that hold on the control take those out and you can swing it around.

    [​IMG]

    Sent from my 2PS64 using Tapatalk

  12. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    I will say that the bike sat all summer with no riding and when I did my pre ride check the rear brakes were not working. I removed the cylinder cover and bone dry. As I poured new "DOT 5" fluid in, it began to leak where I stated.

  13. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,855
    Likes Received:
    16,123
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Take pics when you take it off..like Kevin said it could be cracked but it's damn beefy I don't know how that would happen

    Sent from my 2PS64 using Tapatalk

    scteach likes this.
  14. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray

  15. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    If I get it off I will get some pics.

  16. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,438
    Likes Received:
    10,128
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    03 BD Chopper - 04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    I have a cracked one in my junk drawer. The one I have isn't repairable, but after you get it off, take a picture of where it is leaking, I might be able to fix it.

    scteach and dentdude36 like this.
  17. MBOYTE

    MBOYTE Member

    Joined:
    Sep 9, 2017
    Messages:
    20
    Likes Received:
    7
    Trophy Points:
    3
    Location:
    LOUISIANA
    My Bike(s):
    04 Big Dog Chopper
    First Name:
    Michael
    I just noticed the exact same thing on my 04 chopper. Reservoir was empty, added fluid and bled the line, then noticed a drip from what sounds like the same location. Haven't had a chance to try and remove yet.

  18. scteach

    scteach Member

    Joined:
    Dec 21, 2015
    Messages:
    19
    Likes Received:
    20
    Trophy Points:
    3
    Location:
    Charleston, SC
    My Bike(s):
    06 Big Dog Mastiff, 01 Harley Road Glide, 03 Honda VTX 1800R
    First Name:
    Ray
    I hope to get some time this weekend to remove mine. If I do I will update on findings and try to add some pics. Please do the same if you beat me to the removal, and share how you got it off the bike, lol.

    chubs likes this.
  19. MBOYTE

    MBOYTE Member

    Joined:
    Sep 9, 2017
    Messages:
    20
    Likes Received:
    7
    Trophy Points:
    3
    Location:
    LOUISIANA
    My Bike(s):
    04 Big Dog Chopper
    First Name:
    Michael
    I got my rebuild kit in and installed. Still a drip! I removed the cover and mine is cracked. This is gonna be pricey. Where can a guy pick up a new assembly?

  20. MBOYTE

    MBOYTE Member

    Joined:
    Sep 9, 2017
    Messages:
    20
    Likes Received:
    7
    Trophy Points:
    3
    Location:
    LOUISIANA
    My Bike(s):
    04 Big Dog Chopper
    First Name:
    Michael
    2017-12-16_21.39.34.jpg 2017-12-16_21.41.36.jpg
    1st pic, you can see the crack.
    2nd pic, on my chopper there were 2 Allen head 5/16 holding the assembly to a mounting plate
