Handlebar Conversion

Discussion in 'New Owner Necessities' started by Hirter6Pack, Jan 24, 2017.

  1. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Pknowles had mentioned that he put 08 pitbull handlebars on his 09 k9 he also said Blacktopper was the first to do the handlebar conversion along Derrick and Donna. PK said it moves the handlebars about 3" closer to the seat.
    I thought it was good information to put here for us short people.

  2. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,638
    Likes Received:
    10,664
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon

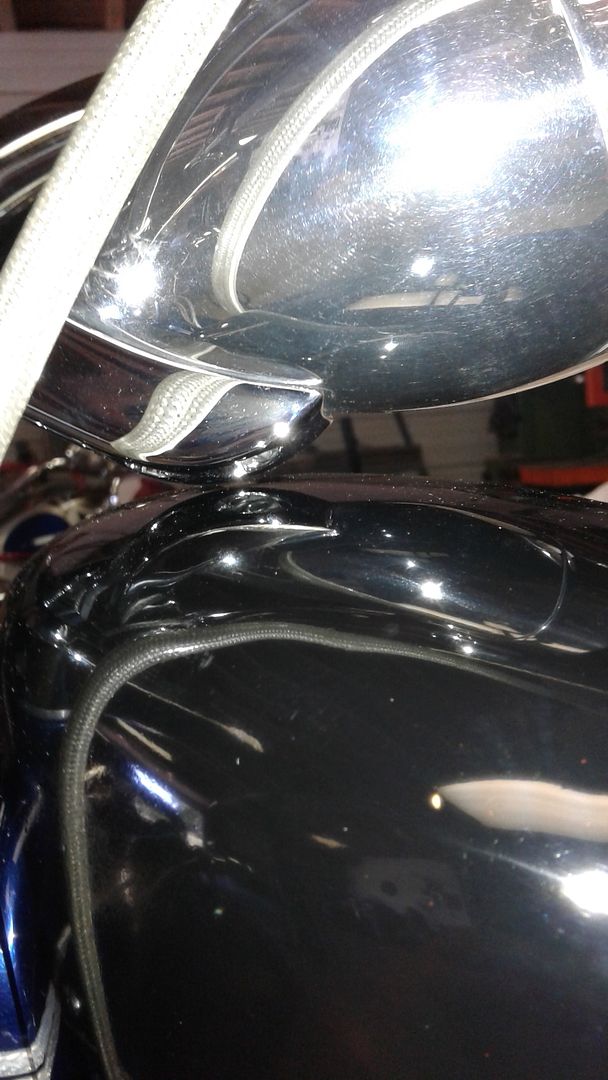

    I did this to Shain's bike. You'll have to change to brake line, throttle cable, and clutch cable. The Kaptin has the wire kit, so you don't have to splice the wiring. I did run into a couple problem. First the speedometer bracket wouldn't clear the tank.
    [​IMG]

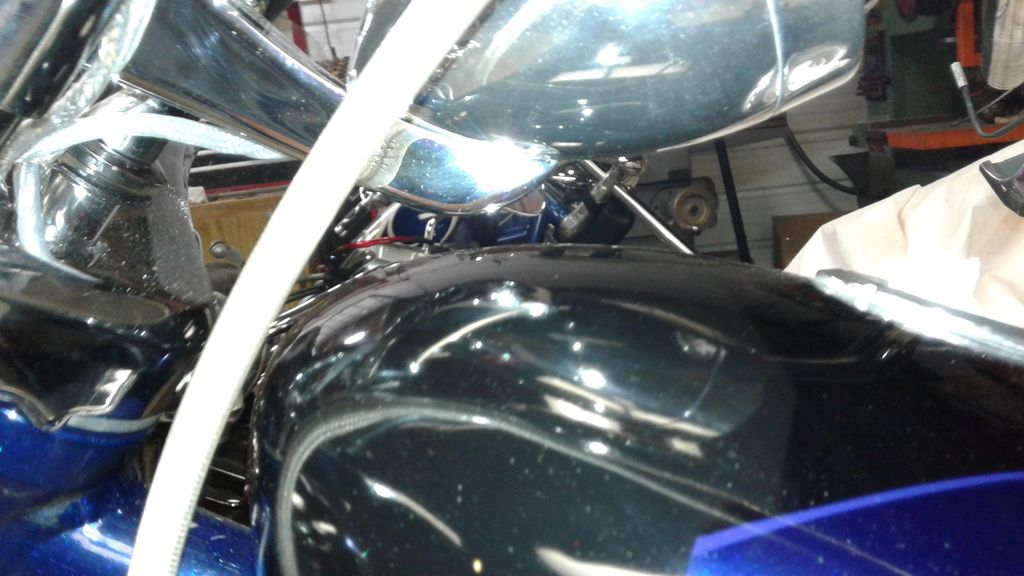

    So I had to add 3/4'' spacers under the handle bars.
    [​IMG]

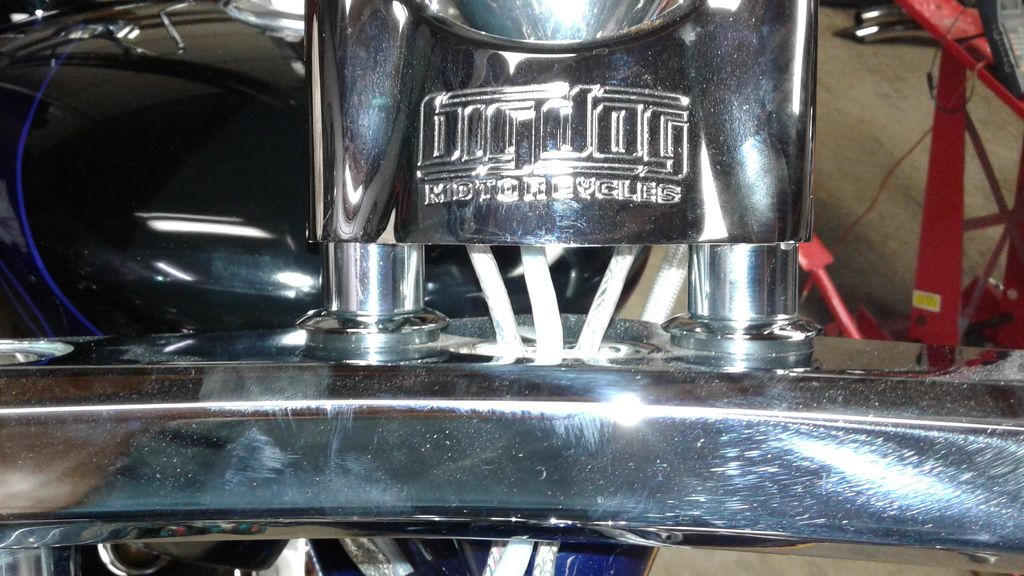

    This gave it about 3/8'' clearance.
    [​IMG]
    They do come back further, and look nice.
    Sorry I didn't get a picture of them.

    PacoPetty and chubs like this.
  3. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Thank for adding :old2:

    PacoPetty, dentdude36 and chubs like this.
  4. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    What year is Shain's bike? And do you know if the speedo bracket was the shorter or the longer one?

    dentdude36 and chubs like this.
  5. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,638
    Likes Received:
    10,664
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    It's an 07. I don't remember any difference in the bracket, between the one that came with the bars, and the original one.

    PacoPetty and chubs like this.
  6. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Ok I was thanking of the old tach bracket same setup just an inche longer.
    https://www.ebay.com/itm/391021954918
    But wouldn't of helped for you just make things worse.

    chubs likes this.
  7. woodbutcher

    woodbutcher Mr. Old Fart member #145
    Staff Member Supporting Member

    Joined:
    Aug 16, 2007
    Messages:
    10,555
    Likes Received:
    4,113
    Trophy Points:
    113
    Location:
    hilton head is., sc
    My Bike(s):
    black cherry '07 K9
    First Name:
    Tom
    there was a service bulletin that covered changing the original narrow mount to a wider, more stable mount.

    PacoPetty and chubs like this.
  8. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,638
    Likes Received:
    10,664
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    If they make a shorter bracket, it would bring it up off the tank, but I don't remember if there is enough room between the speedometer and the handle bars. Maybe Blacktopper will that a picture of his set up.

    PacoPetty and chubs like this.
  9. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    I think you use the shorter bracket I was just letting people know there are options for the K9 for us vertically challenged people.

    PacoPetty and chubs like this.
  10. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,473
    Likes Received:
    2,329
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    Search "handlebars" in Front end and Handlebars with Blacktopper as poster. A detailed how-to with parts list, etc is there. He had to use a new speedo bracket. I recall it was almost identical to stock, but not enough clearance for the tank.

    #10 SKOGDOG, Jan 24, 2017
    Last edited: Jan 24, 2017
    PacoPetty and chubs like this.
  11. Jersey Big Mike

    Jersey Big Mike Active Member

    Joined:
    May 13, 2009
    Messages:
    949
    Likes Received:
    1,024
    Trophy Points:
    93
    Location:
    Murrell's Inlet, SC
    My Bike(s):
    08 K-9, 02 BMC 918ST
    First Name:
    Mike
    I did this last year on my K-9 and love it and I am not in the vertically challenged category as I am 5' 11" but it does allow a much more comfortable position for me.

    One of the best upgrades I've done.

  12. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,841
    Likes Received:
    4,343
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    And I went the opposite, changed K9 bar to Chopper bar. Gives my long arms more room and I'm not leaning back. Easier on my back, not to mention the tailbone on longer trips... If I remember right Chopper bar moves controls about an inch further.


    Sent from my iPad using Tapatalk

    PacoPetty and chubs like this.
  13. Nཛ͢ཀཇཧ༏ཧי

    Nཛ͢ཀཇཧ༏ཧי ... .... .- .. -.
    Supporting Member

    Joined:
    Nov 3, 2015
    Messages:
    729
    Likes Received:
    1,265
    Trophy Points:
    93
    Location:
    Springfield, Missouri
    My Bike(s):
    2007 K-9
    First Name:
    Shain
    This is what mine looks like after Shannon got done with heron you want pics at any certain angles, PM me a cell # and ill text you whatever you want. 50135647295__52879506-514B-4F0E-A2A5-984E2B809386.JPG

  14. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    Nice looking ride Shain.
    :hi:

  15. DrRx

    DrRx 2007 Bulldog/2009 K-9

    Joined:
    Jun 5, 2016
    Messages:
    289
    Likes Received:
    575
    Trophy Points:
    93
    Location:
    Aransas Pass, texas
    My Bike(s):
    2014 Harley V-Rod muscle, 2009 big dog K-9, 2007 big dog bulldog
    First Name:
    DOC
    Sweet


    DrRx- "DOC"
    2007 bulldog/2009 K-9

  16. nobbyjohn

    nobbyjohn Active Member

    Joined:
    Feb 22, 2011
    Messages:
    221
    Likes Received:
    36
    Trophy Points:
    28
    Location:
    bishop,calif
    My Bike(s):
    2004BDridgeback&07-k9
    First Name:
    vernon
    I didn't see any handlebars am I looking at the wrong pictures?


    Sent from my iPhone using Tapatalk

    chubs likes this.
  17. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    PacoPetty and chubs like this.
  18. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,281
    Likes Received:
    4,936
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    :nonod:
    :oldhardlaugh: :whoop:
    :hi:

    chubs, bdm7250 and dentdude36 like this.
  19. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,518
    Likes Received:
    16,459
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    Bike looks great Shain, I have shared your story with all of our riding group. I couldn't imagine the "oh shit" feeling when you saw that deer and knew there was no stopping..must feel great having the bike back. Shannon did one hell of a job. :old2:

  20. Dirtymaxin

    Dirtymaxin Member

    Joined:
    Mar 5, 2017
    Messages:
    39
    Likes Received:
    58
    Trophy Points:
    18
    Location:
    houston texas
    My Bike(s):
    08 pitbull
    First Name:
    anthony
    any shorter guys out there with k9s want to trade bars for my 2008 pitbulls? I been looking for a set of bars with less pull back and would rather stick with oem big dog bars to avoid a headache then go with something custom.:old2:

    PacoPetty, dentdude36 and chubs like this.
