Dreaded starter bang

Discussion in 'Transmission / Drive' started by Olde Man, Jun 21, 2016.

  1. Olde Man

    Olde Man Member

    Joined:
    Jul 22, 2009
    Messages:
    199
    Likes Received:
    92
    Trophy Points:
    28
    Location:
    Fort Wayne, IN
    My Bike(s):
    2006 K-9
    First Name:
    John
    Is the occasional bang heard from the starter caused by starter bendex wear and corrected by purchasing a starter or has anyone personally rebuilt one? Does this eventually knock a tooth off of the ring gear?

    chubs likes this.
  2. HMAN

    HMAN Well-Known Member

    Joined:
    Mar 21, 2011
    Messages:
    3,699
    Likes Received:
    2,870
    Trophy Points:
    113
    Location:
    fk it
    I flipped my ring gear around when mine stared acting up. No problems since. Jmo.

    dentdude36 and chubs like this.
  3. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,534
    Likes Received:
    15,421
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Agreed. I've broken two starter housings and they prob get twisted a bit when they start cracking.

    I think personally I had problems with PDM and the compression release wiring (not always fully compressing them, thinking low voltage) which was causing the kickback on the starter which cracked the housings. Last one had cracks in under 2K miles and 1700 was one trip so not many start cycles maybe 40-50

    Sent from my 831C using Tapatalk

    dentdude36 and chubs like this.
  4. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,024
    Likes Received:
    36,981
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    I don't think he has that option on his 06' if its the same as my 07', the ring gear its part of the clutch basket

    dentdude36, cdogg556 and chubs like this.
  5. Bmarchant

    Bmarchant Active Member

    Joined:
    Jan 28, 2009
    Messages:
    579
    Likes Received:
    113
    Trophy Points:
    43
    Location:
    New Hampshire
    My Bike(s):
    2003 Big Dog Chopper
    First Name:
    Bill
    Mine did it, then I realized that before I shut the engine off, if I put the bike up into neutral, then go back into first, and put it back into neutral again, it NEVER bangs. If I don't do that, its hit or miss.

    Take if for what its worth, but its working for me.

    chubs likes this.
  6. BadDawg Bill

    BadDawg Bill Well-Known Member

    Joined:
    Jun 16, 2014
    Messages:
    3,595
    Likes Received:
    6,203
    Trophy Points:
    113
    Location:
    Deltona fl
    My Bike(s):
    2008 Softail dexuxe customized
    First Name:
    Deplorable BadDawg Bill
    Join the club.... I'd try the neutral/first thing IF I could get neutral....

    chubs likes this.
  7. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,024
    Likes Received:
    36,981
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    :nonod::nonod:

    dentdude36 and chubs like this.
  8. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,534
    Likes Received:
    15,421
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Agreed there is no better chance of you aligning it correctly do first than neutral than when you turn it off.

    When you put it in gear and move the bike you ain't moving the starter ring and when you slip it back in neutral it's in the same spot. You might move it 1/16" an inch at most since there is a hair of play. Remember you would have to move the primary chain and pistons to actually move your starter ring in gear since its all one unit.

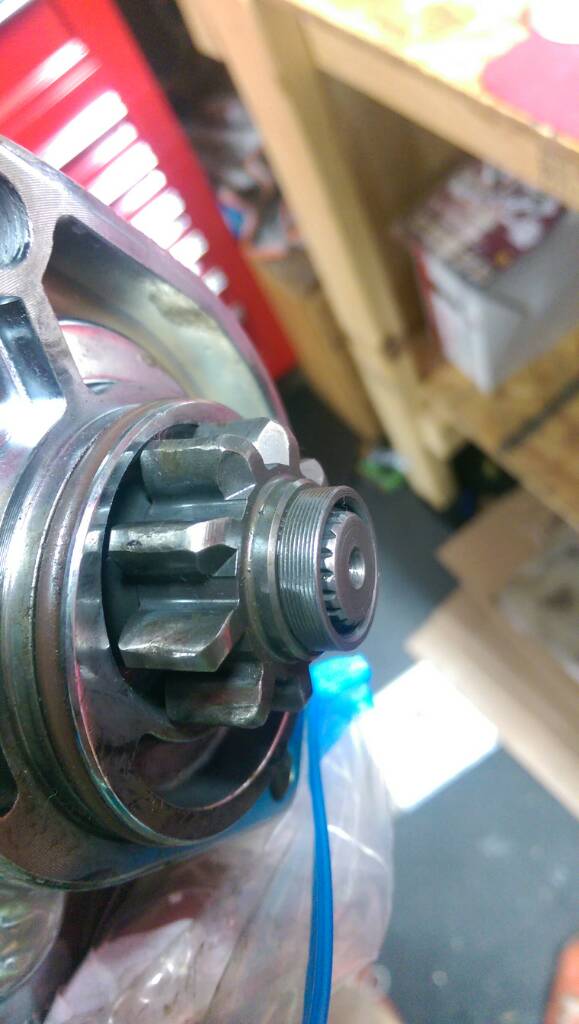

    The starter gear is angled and notched to slip into the ring gear regardless of positioning. Where it gets hung up is on busted starter teeth. You might have luck sanding the burs off the teeth. The metal on the starter is much harder than the metal on the ring gear. The ring gear is cast on our BDM which is a weak part, that's why we all replaced our carriers.

    [​IMG]

    I was just playing with the transmission last night on the bench and I've heard of this old wives tail before and your odds are no better than rolling the dice.

    Sent from my 831C using Tapatalk

    #8 Th3InfamousI, Aug 30, 2016
    Last edited: Aug 30, 2016
    dentdude36 and chubs like this.
  9. Bmarchant

    Bmarchant Active Member

    Joined:
    Jan 28, 2009
    Messages:
    579
    Likes Received:
    113
    Trophy Points:
    43
    Location:
    New Hampshire
    My Bike(s):
    2003 Big Dog Chopper
    First Name:
    Bill
    I bet that's what its doing. Made a big difference for me.

    chubs likes this.
  10. Bmarchant

    Bmarchant Active Member

    Joined:
    Jan 28, 2009
    Messages:
    579
    Likes Received:
    113
    Trophy Points:
    43
    Location:
    New Hampshire
    My Bike(s):
    2003 Big Dog Chopper
    First Name:
    Bill
    I rev it up a little to assist to get it into neutral.

    MKTLAWYER and chubs like this.
  11. Bdm4ever

    Bdm4ever Well-Known Member
    Troop Supporter

    Joined:
    Sep 2, 2009
    Messages:
    1,652
    Likes Received:
    4,475
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Something Like K9
    First Name:
    Tony
    Exactly how I work all my bikes Kevin. Glad to hear I'm not fully nuts yet. :cheers:

    dentdude36 and chubs like this.
  12. Bmarchant

    Bmarchant Active Member

    Joined:
    Jan 28, 2009
    Messages:
    579
    Likes Received:
    113
    Trophy Points:
    43
    Location:
    New Hampshire
    My Bike(s):
    2003 Big Dog Chopper
    First Name:
    Bill
    I never leave it in gear. Impossible to get it back into neutral. Plus if I'm worried about it rolling, that's what the big granite curbs are for. Everyone has there way of doing it. I'm not a fan of the starter banging.

    I learned about this from one of the techs at S&S back when I first got my chopper. Mine goes into neutral every time by giving it a bump in RPMs, then lift up on the shifter. Then click it back into first, and do it one more time. No banging of the starter after doing that.

    I'm not saying this is the only way to do it. It works for me.

    #12 Bmarchant, Aug 31, 2016
    Last edited: Aug 31, 2016
    chubs likes this.
  13. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,534
    Likes Received:
    15,421
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Shouldn't have any issues with engine off finding neutral. If that's the case there's an adjustment that you need to make

    Sent from my 831C using Tapatalk

    Bdm4ever, dentdude36 and chubs like this.
  14. Bmarchant

    Bmarchant Active Member

    Joined:
    Jan 28, 2009
    Messages:
    579
    Likes Received:
    113
    Trophy Points:
    43
    Location:
    New Hampshire
    My Bike(s):
    2003 Big Dog Chopper
    First Name:
    Bill
    I shouldn't have said impossible, but its much easier to do it with the engine running.

    chubs likes this.
  15. badyellowvette

    badyellowvette Active Member
    Supporting Member

    Joined:
    May 9, 2012
    Messages:
    645
    Likes Received:
    411
    Trophy Points:
    63
    Location:
    North Central PA
    My Bike(s):
    2008 K9
    First Name:
    Jim
    I haven't had the starter bang since installing my DOC's ESC then it happened twice last weekend.

    chubs likes this.
  16. BadDawg Bill

    BadDawg Bill Well-Known Member

    Joined:
    Jun 16, 2014
    Messages:
    3,595
    Likes Received:
    6,203
    Trophy Points:
    113
    Location:
    Deltona fl
    My Bike(s):
    2008 Softail dexuxe customized
    First Name:
    Deplorable BadDawg Bill
    No problem finding neutral with the engine off on both the dog and Harley but impossible when running unless rolling up to a stop. I wonder if it's a linkage adjustment or a trans adjustment. I've never messed with trans except to pull them out or put them in...

    chubs likes this.
  17. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,024
    Likes Received:
    36,981
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    X2, however I replaced a chewed up starter ring and clutch basket at the same time also, can you say paching paching:oldbang::oldhardlaugh:I'm glad Sue still works:eek::oldlaugh:

    chubs and dentdude36 like this.
  18. Coolbreezin

    Coolbreezin Active Member

    Joined:
    Feb 23, 2009
    Messages:
    623
    Likes Received:
    435
    Trophy Points:
    63
    Location:
    Northeast FL
    My Bike(s):
    05 Ridgeback
    First Name:
    Pete
    I rebuilt the mechanical side of it but had my friend do the electrical side. The jackshaft isnt hard to replace at all and only requires standard hand tools. You can get the jackshaft from a car starter or alternator shop. I had them rebuild mine a couple times and I was able to get the jackshaft number and ordered my own.

    chubs likes this.
  19. heybaylor

    heybaylor Active Member

    Joined:
    Feb 5, 2014
    Messages:
    670
    Likes Received:
    835
    Trophy Points:
    93
    Location:
    East Texas
    My Bike(s):
    Fatboy,Sportster,CX500, 2001 Pitbulll, Road Glide
    First Name:
    Carl
    five bikes, can find neutral on all except bigdog. when running.
    the throw from first to second is too short for my old aged foot.
    not a problem , I always find neutral just before coming to a stop.
    I know it is because of the clutch dragging a little but not worth the time to try to fix it

    BadDawg Bill and chubs like this.
  20. BadDawg Bill

    BadDawg Bill Well-Known Member

    Joined:
    Jun 16, 2014
    Messages:
    3,595
    Likes Received:
    6,203
    Trophy Points:
    113
    Location:
    Deltona fl
    My Bike(s):
    2008 Softail dexuxe customized
    First Name:
    Deplorable BadDawg Bill
    When you try to put the bike into neutral you go from a gear into neutral so you would have the clutch pulled in so how could it be dragging? ? I don't understand what you mean.... I can get neutral right before stopping but once stopped it's all over.

    chubs likes this.
