Compression Release failure

Discussion in 'Motor' started by BroadBand, Jun 25, 2010.

  1. HotWheelz

    HotWheelz Member

    Joined:
    Sep 1, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    My Bike(s):
    2008 BigDog Ridgeback
    The problem is for the guys who have the higher compression it is more difficult to start. Especially when they get hot. Now that I know that they are available i would opt for this instead of the electric set up. The Manual's are so easy. Open valve, Start engine easily, close automatically by just breathing on the throttle and away you go:D Anybody have them in there Dog?

  2. lowrider47

    lowrider47 Pooch

    Joined:
    Oct 2, 2009
    Messages:
    420
    Likes Received:
    7
    Trophy Points:
    18
    Location:
    marshall minnesota
    My Bike(s):
    big dog chopper, fxr lowrider, sportster
    First Name:
    marti
    :2thumbs: I installed manual reliefs and they work fine, just push down and start motor, they pop up with a slight flip of the wrist. And a lot cheaper also!:2thumbs:

  3. TCALZ06

    TCALZ06 Well-Known Member

    Joined:
    Nov 4, 2007
    Messages:
    1,140
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Chandler, AZ
    My Bike(s):
    07 Big Dog K9
    First Name:
    Tom
    How much were they and where did you get them from?

  4. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    Also what engine ya 107 or 117 (if it makes a dif) ?

    And did you just cap off the wires under the tank?

    Thanks. V

  5. Rally

    Rally Active Member

    Joined:
    Feb 24, 2010
    Messages:
    494
    Likes Received:
    54
    Trophy Points:
    28
    Location:
    Southern FL (Miami)
    My Bike(s):
    '05 BD Chopper, '07 Street Glide
    any pics of the manual ones anywhere?

  6. BroadBand

    BroadBand Since late 60's

    Joined:
    Sep 8, 2007
    Messages:
    1,628
    Likes Received:
    1,195
    Trophy Points:
    113
    Location:
    NorthWest USA
    My Bike(s):
    BD Chopper

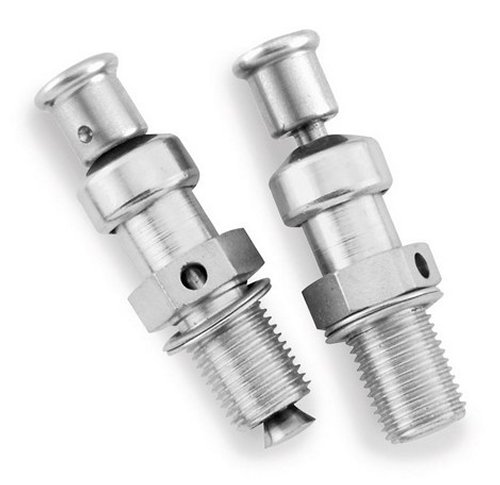

    [​IMG]

  7. HotWheelz

    HotWheelz Member

    Joined:
    Sep 1, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    My Bike(s):
    2008 BigDog Ridgeback
    Lowrider, Where did you get them from? Would love to purchase a set.
    Broadband those are a nice quality looking set. Who's are they? Thanks for all of the support:2thumbs:

  8. BroadBand

    BroadBand Since late 60's

    Joined:
    Sep 8, 2007
    Messages:
    1,628
    Likes Received:
    1,195
    Trophy Points:
    113
    Location:
    NorthWest USA
    My Bike(s):
    BD Chopper
    Jims. A google search (search "manual compression releases") brings up all kinds of links and also an S&S pdf file <LINK> that shows the install.

    CR link link link link etc

    :flag:

  9. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    Broadband thanks for the links! To use the stock hole in the top of the cylinder head I believe we would use the 14mm long reach. The stock S&S has about 3/4" of threads that go into the cylinder head.

  10. john sachs

    john sachs Active Member

    Joined:
    Nov 6, 2008
    Messages:
    839
    Likes Received:
    877
    Trophy Points:
    93
    Location:
    Deltona, Fl
    My Bike(s):
    harleys
    The picture of the 2 c/r that's in the picture broadband posted WON'T work in the center of the S&S heads as replacements. :bang:
    S&S makes their own manual releases that will work. They look altogether different, and have the proper threads.
    The ones in broadband's picture have 10 mm threads. they are a little tricky to install, as there's not enough combustion chamber thickness. :confused:
    Also, metal push tops WILL burn your fingers more than you will believe, when used on a hot motor. :angry:
    John

    francoblay1 likes this.
  11. woodbutcher

    woodbutcher Mr. Old Fart member #145
    Staff Member Supporting Member

    Joined:
    Aug 16, 2007
    Messages:
    10,562
    Likes Received:
    4,133
    Trophy Points:
    113
    Location:
    hilton head is., sc
    My Bike(s):
    black cherry '07 K9
    First Name:
    Tom
    your input is very much appreciated, John. it is a pleasure having you on here with us.

  12. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    John won't the 14mm long reach work in the center of our heads in place of the existing electric release? I know the head would have to be machiend for the 10mm.

    Never thought about the temp on the ole finger prints though :bang:

  13. BroadBand

    BroadBand Since late 60's

    Joined:
    Sep 8, 2007
    Messages:
    1,628
    Likes Received:
    1,195
    Trophy Points:
    113
    Location:
    NorthWest USA
    My Bike(s):
    BD Chopper

    Yes, the metal ones will feel very hot on the fingers if you need to use them to start up a hot motor. I have seen pictures of CR's with a black knob that I assume was some kind of plastic. As far as the threads, yea, make sure they will fit before you try them for sure. The pics/links were just random google searches to give the idea of what is kinda required. Make sure you get what you need.... and will work.

    :flag:

  14. john sachs

    john sachs Active Member

    Joined:
    Nov 6, 2008
    Messages:
    839
    Likes Received:
    877
    Trophy Points:
    93
    Location:
    Deltona, Fl
    My Bike(s):
    harleys

  15. copterguy

    copterguy Member

    Joined:
    Jul 7, 2010
    Messages:
    18
    Likes Received:
    1
    Trophy Points:
    1
    Location:
    Hawaii
    My Bike(s):
    2007 Mastiff
    First Name:
    Loren
    Anyone got a total cost of having these replaced by a service center? My front just popped out.

  16. blacktopper

    blacktopper Active Member

    Joined:
    Dec 15, 2008
    Messages:
    698
    Likes Received:
    493
    Trophy Points:
    93
    Location:
    Pittsburg Kansas 66762
    My Bike(s):
    07 K 9, 08 Ridgeback, 10 K9
    Just had my rear replaced Sat. At Iron Lightening. Cost 212.00 including the CR.

  17. copterguy

    copterguy Member

    Joined:
    Jul 7, 2010
    Messages:
    18
    Likes Received:
    1
    Trophy Points:
    1
    Location:
    Hawaii
    My Bike(s):
    2007 Mastiff
    First Name:
    Loren
    Wow, I'm in Hawaii (Oahu) and they are quoting me over 200.00 just for the part....

  18. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    I paid around $225 for a set.

  19. copterguy

    copterguy Member

    Joined:
    Jul 7, 2010
    Messages:
    18
    Likes Received:
    1
    Trophy Points:
    1
    Location:
    Hawaii
    My Bike(s):
    2007 Mastiff
    First Name:
    Loren
    So, I have to buy this whole kit, which, is no 200.00, just to replace what popped out? I went to a local stealership, and that's what he was saying...here's what I found online, of course, his price was 309.00: [ame=http://www.amazon.com/Cycle-Compression-Release-Electric-90-4915/dp/B000GVEF2C]Amazon.com: S&S Cycle Compression Release - Electric Kit 90-4915: Automotive[/ame]

    Perhaps someone can give me a part number or something specific if it's possible to order the specific part?

  20. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    Try calling some of the supporting dealers for our Big Dog Biker forum.
