Completed 6" forward control extensions

Discussion in 'Metal Fab' started by Bowhunter, May 5, 2010.

  1. Bowhunter

    Bowhunter Well-Known Member

    Joined:
    Mar 5, 2010
    Messages:
    2,269
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Oliver Springs, Tn.
    My Bike(s):
    2009 K9
    First Name:
    Steve
    As I mentioned in a previous thread, I got my cousin the fabricator to make up some custom brackets to move the forward controls 6" for my buddy(Postman).
    [​IMG]
    This is the shape "Long Legs" was in before the install.
    [​IMG]

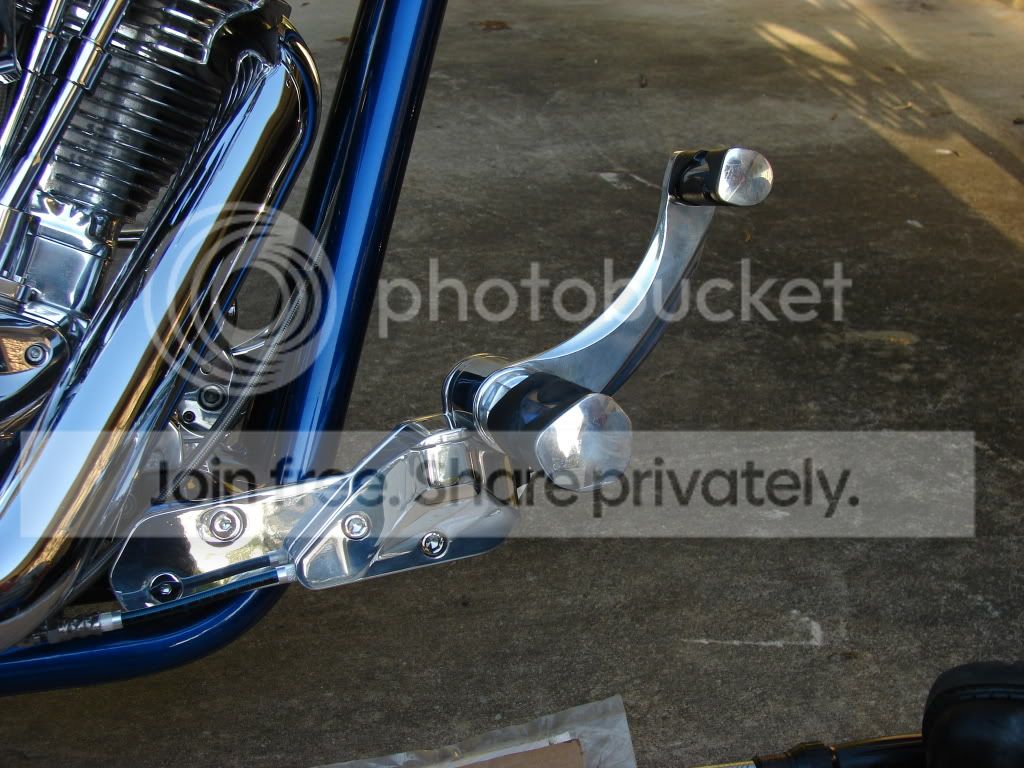

    This is the custom kit: brackets, shift bar, new bolts, and extension for brake
    [​IMG]

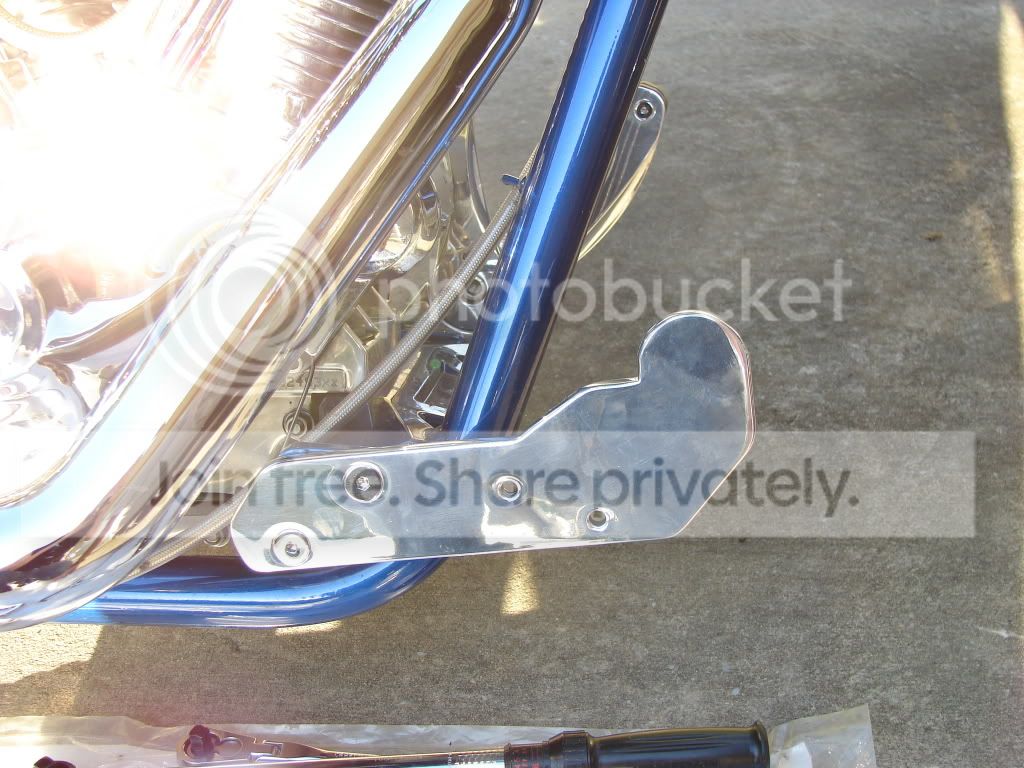

    Removal of factory bracket
    [​IMG]

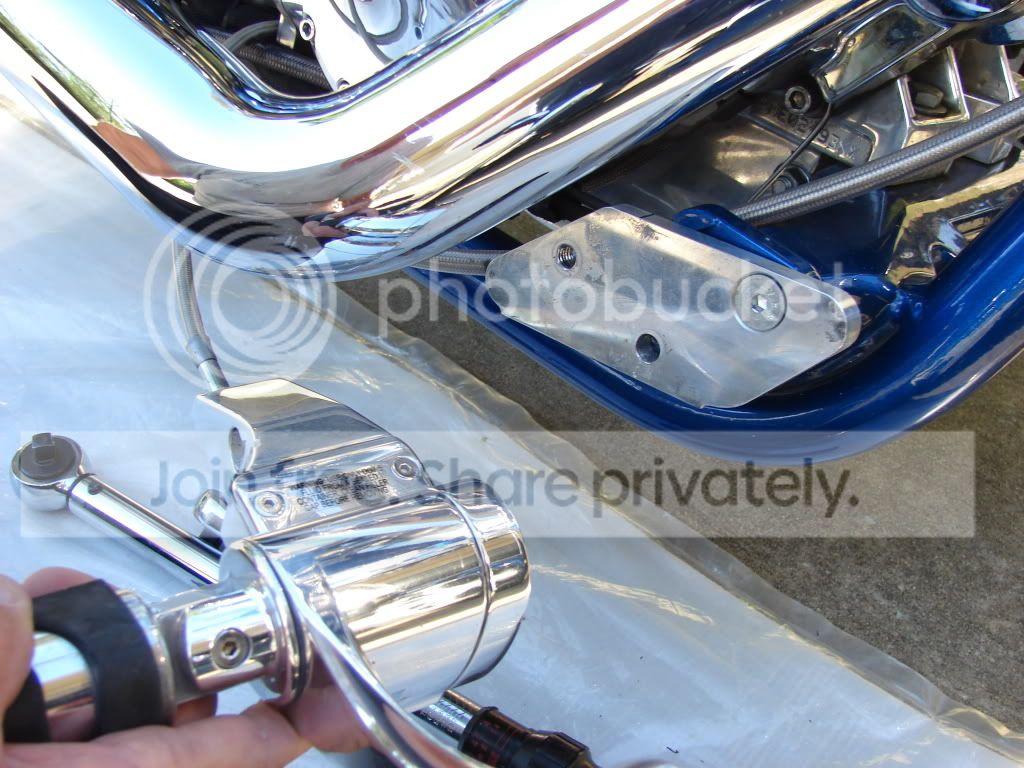

    New bracket install
    [​IMG]
    Completed reinstall of the brake and line extension
    [​IMG]
    And a much more comfortable "Postman"
    I wish I could offer up these kits to everyone, but I am only the installer and unfortunately my cousin has an uncertain future since his company is going out of business. Hopefully, there are machinists on this forum that can take this and run with it for the forum members.
