Busted it good!

Discussion in 'Transmission / Drive' started by SKOGDOG, May 25, 2016.

  1. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,525
    Likes Received:
    15,392
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    No worries ...you know they told me for $500 it would all drop in. But I'm not 100% sure it comes with a ring gear. Seems to cheap. I didn't ask since I wasn't gonna go that road but I'm actually thinking I might spring for the whole unit now I haven't installed the carrier yet. Still need the new hub.

    [​IMG]

    Sent from my 831C using Tapatalk

    chubs, Twisted and BWG56 like this.
  2. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Thanks man, I'll give them a call on Monday and ask some questions then figure out which direction I'm gonna go. I'll call Baker too about the hub. Looks like at least a week of no riding here.

    Sent from my SM-G900V using Tapatalk

    chubs likes this.
  3. cdogg556

    cdogg556 Guru

    Joined:
    May 21, 2011
    Messages:
    6,931
    Likes Received:
    14,917
    Trophy Points:
    113
    Location:
    Folsom, Ca.
    My Bike(s):
    2009 Big Dog Mastiff, Chrome Package, DOC's ESC, 585 cam, VH Big Radius Exhaust, 2.5" fwd cntls.
    First Name:
    John
    Damn Butch! :oldeek: This sucks brother, well while your in there you might as well do it right so that baby is bulletproof! :old2: This is gonna be the next project for me when I get some time and money, I been avoiding it for some time now, good luck my friend! :cheers:

    chubs and Twisted like this.
  4. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Thanks John, yeah shit happens, hopefully she'll be back on the road soon! Just glad I caught it before it caused more damage.

    chubs, BWG56 and cdogg556 like this.
  5. Bdm4ever

    Bdm4ever Well-Known Member
    Troop Supporter

    Joined:
    Sep 2, 2009
    Messages:
    1,652
    Likes Received:
    4,476
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Something Like K9
    First Name:
    Tony
    No shit!!

    chubs and Twisted like this.
  6. Bdm4ever

    Bdm4ever Well-Known Member
    Troop Supporter

    Joined:
    Sep 2, 2009
    Messages:
    1,652
    Likes Received:
    4,476
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Something Like K9
    First Name:
    Tony
    This is interesting. Kinda lends one to realize an open primary may be better in the long run with the dogs. I like the looks of the OP but not the price. But if I keep having problems with clutch plates and bearing I might have to consider it. What do you guys think?

    chubs and Twisted like this.
  7. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    I always loved the look of an open belt drive, but too pricey for my blood. I'm sure they can have their share of issues too, just like anything else.

    Sent from my SM-G900V using Tapatalk

    chubs likes this.
  8. Bdm4ever

    Bdm4ever Well-Known Member
    Troop Supporter

    Joined:
    Sep 2, 2009
    Messages:
    1,652
    Likes Received:
    4,476
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Something Like K9
    First Name:
    Tony
    Thanks Butch I'm in the exact same boat.

    chubs and Twisted like this.
  9. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Was just thinking, why is it that I have 12 clutch plates but all I see listed anywhere on the Baker site and ebay are 9 pack clutch replacements. Am I gonna be able to find a replacement 12 plate setup if I ever need one?

    Sent from my SM-G900V using Tapatalk

  10. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,525
    Likes Received:
    15,392
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    yep they have 9 and 12 but you probably don't need new clutch plates. I highly doubt you do. EnergyOne made the Friction Plates they are actually a Forum Vendor you can call and get them direct if needed, but again unless you got 30k+ miles you shouldn't have to replace them.

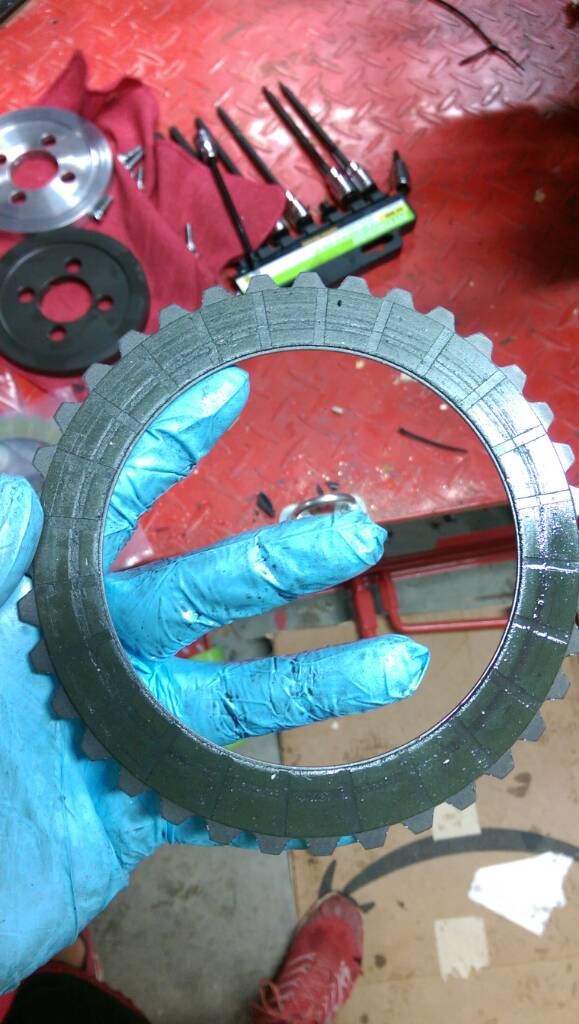

    You wanna make sure you clutch stack height when assembled is up to spec though. If it's not then I would recommend swapping out some of the thin steel for a slightly thicker one to bring your stack height back in-line. Big Dog went to a 12 plate clutch system and just used thinner steel so they will actually wear a bit and when the stack height gets out of spec it makes these Big Dog clutches hard to adjust. Energy One is great to deal with I called them last year

    Twisted likes this.
  11. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,525
    Likes Received:
    15,392
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    [​IMG]

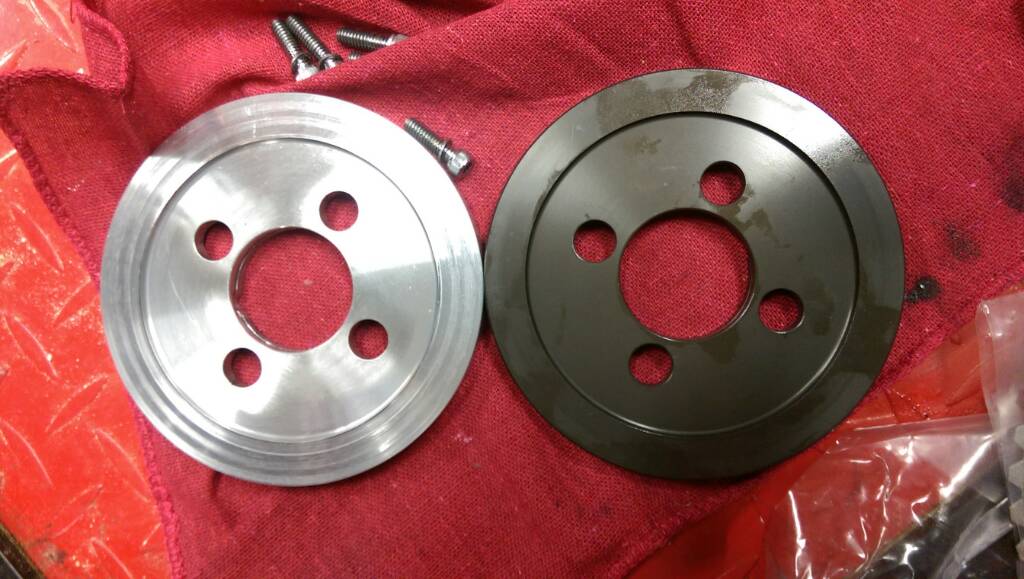

    Butch forgot to ask what does your pressure plate look like?

    Baker has a hardened upgraded pressure plate too...haha see a theme here? You want the darker one or it will wear that first friction plate all funny

    [​IMG]

    Sent from my 831C using Tapatalk

    chubs and Twisted like this.
  12. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    No mine looks great at 11,000 miles, just wanted to make sure they are available still. Clutch felt great till the carrier broke, guess a week ago seeing as thats when I started noticing problems.Thanks man! I'll take a look in the manual to see how to measure the stack height.

    Sent from my SM-G900V using Tapatalk

    chubs likes this.
  13. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Lmao, yeah I have the nice bright one on the left. Pretty bad that they have to keep upgrading their parts to what they should have been in the first place. I'll take a closer look at mine to see if it's at all worn. If it is then it will seal the deal for the bandit assembly. Otherwise the bill for Baker it gonna outweigh the price of the bandit. Gotta love it! Now stop thinking of shit to empty my pockets.

    Sent from my SM-G900V using Tapatalk

    chubs likes this.
  14. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,525
    Likes Received:
    15,392
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Take your finger and you'll feel the ridges worn worn into that plate

    Sent from my 831C using Tapatalk

    chubs and Twisted like this.
  15. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,024
    Likes Received:
    36,981
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Whether the job big or small, do it right or not at all.:oldlaugh:

    And your right about the teflon coating, why wasn't it put on there in the first place.:oldbang: maybe ya wanna add a new throw out bearing to your list also:oldlaugh:

    chubs, pknowles and Twisted like this.
  16. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Didn't know you were a poet too,lol. Your right, would make sense to put in a new throw out bearing, don't think that's included in the bandit setup but I'll find out.

    Sent from my SM-G900V using Tapatalk

    chubs likes this.
  17. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,525
    Likes Received:
    15,392
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Throw out bearing is a good idea too..haha

    Yea man anything else you want to take on that order? o_O

    Twisted likes this.
  18. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,998
    Likes Received:
    4,417
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    OK I'll post it here for anyone else looking.

    I brought the busted carrier into work today to show our mechanic the destruction, he's worked on, built, and rode bikes most of his life as well as being a marine mechanic and now our public works mechanic. He said he's seen a lot worse blow apart in some Harleys! He said he'd be able to get the inner hub pressed out if I wanted cause it's in perfect shape he said and gives me options, so he did. So I called Bandit and Baker at lunch and this is what I found.

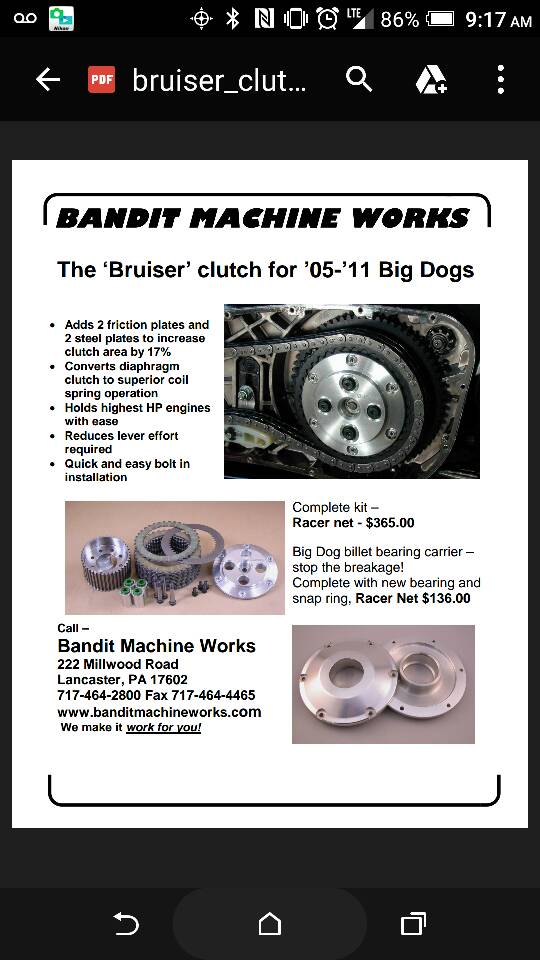

    Bandit had the carrier with a bearing pressed in for $140 like Eric got. I asked him if they sold a flanged hub too and they said they do not, only way to get it through them is to buy the complete assembly which he said has it built into the their carrier. Now the cost for the complete new setup that includesa 14 clutch pack and everything except the outer sprocket cage is $599 according to the guy I spoke to. Seeing as thats way out of my price range right now i went ahead and ordered the carrier and bearing for $140.

    Next I called Baker, there clutch carrier assembly is $395 with the inner hub. I asked him how much for just the inner flange hub that's pressed in the bearing and I was told they no longer sell them by themselves, you have to buy the whole $395 set! So if Curtis has any left I suggest anyone wanting to go the Bandit carrier route better get one while he has them.

    So in the end I'm going the cheap route for now. My flange hub looks great as does my pressure plate and top clutch disk, didn't look anything like the one you showed Eric. So I ordered the Bandit carrier and bearing, and a new hardened nut and washer from Baker. Also got some Spectro 6 speed oil for the Trans and Spectro Primary oil along with a new chain tensioner shoe ( mine was grooved) and some new primary o rings just in case all from Dead One. All parts should be here before the weekend and be back on the road for only about $260. Down the road if I have some free cash I'll upgrade everything or go with the Bandit full setup. But I'd like to send the Trans to Andrew someday to get an updated mainshaft anyway and maybe that's the time to do a full upgrade. But for now this will do just fine.

    After I found out they don't have the flanged hub, I didn't even think about asking what the throw out bearing went for, mine seems good so I'll run with it.

    Jwooky and chubs like this.
  19. Jwooky

    Jwooky Well-Known Member

    Joined:
    Dec 11, 2011
    Messages:
    1,605
    Likes Received:
    1,211
    Trophy Points:
    113
    Location:
    Oxford, MI
    My Bike(s):
    2008 Mastiff EFI
    First Name:
    JJ
    Cant argue with your logic.

    Twisted and chubs like this.
