    Eric,

    does the inner hub for the baker fit on the bandit basket and vice versa? And let us know if you find out anything on the pricing.....

    chubs and SKOGDOG like this.
  2. woodbutcher

    woodbutcher Mr. Old Fart member #145
    Staff Member Supporting Member

    Joined:
    Aug 16, 2007
    Messages:
    10,369
    Likes Received:
    3,888
    Trophy Points:
    113
    Location:
    hilton head is., sc
    My Bike(s):
    black cherry '07 K9
    First Name:
    Tom
    it was enough of a problem for BDM to do a service bulletin on it.

  3. Nཛ͢ཀཇཧ༏ཧי

    Nཛ͢ཀཇཧ༏ཧי ... .... .- .. -.
    Supporting Member

    Joined:
    Nov 3, 2015
    Messages:
    680
    Likes Received:
    1,208
    Trophy Points:
    93
    Location:
    Springfield, Missouri
    My Bike(s):
    2007 K-9
    First Name:
    Shain
    That's enough for me, since I'm planning on doing some longer rides, I don't need any known issues kicking my teeth in.

    Bdm4ever, chubs and Marky-Marc like this.
  4. liferider

    liferider Guru

    Joined:
    Jan 4, 2011
    Messages:
    8,299
    Likes Received:
    7,794
    Trophy Points:
    113
    Location:
    Louisiana
    My Bike(s):
    2003 BDM Chopper, 1996 HD Ultra Classic Custom
    First Name:
    Jonathan
    Replaced mine when I went with the dry lock up clutch

    chubs likes this.
  5. woodbutcher

    woodbutcher Mr. Old Fart member #145
    Staff Member Supporting Member

    Joined:
    Aug 16, 2007
    Messages:
    10,369
    Likes Received:
    3,888
    Trophy Points:
    113
    Location:
    hilton head is., sc
    My Bike(s):
    black cherry '07 K9
    First Name:
    Tom
    not trying to scare, just saying to be aware of it, i have 17k and no problems (yet). but when i change my primary fluid, i take the outer primary cover off and look for shavings/ chunks.

  6. Wills67

    Wills67 Well-Known Member

    Joined:
    Feb 1, 2011
    Messages:
    1,399
    Likes Received:
    602
    Trophy Points:
    113
    Location:
    Texas Motor Speedway
    My Bike(s):
    2004 Mastiff
    First Name:
    Mike
    Is this on all years? Or only on RSD?

    chubs likes this.
  7. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Just RSD 05+ that run the baker primary. I think even 08 has the bad cast carrier, maybe fixed in the 2011 models?



    Sent from my 831C using Tapatalk

    chubs likes this.
  8. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Okay folks just got a call back from Bandit. Here is the full on scoop, I talked to him for a bit and asked if they are still selling like they used to and he said "They are still breaking, not as much as in the hey day but"

    Anyways,

    You can buy just the Carrier for $112 which works with the Baker Inner Hub and Bearing assembly. For $140 They will ship you the Carrier and new Bearing as mine as well replace the bearing if your pressing out the hub out of the stock carrier you'll probably trash it anyways.

    They are still selling the Bandit Bruiser Setup for about $400 which comes with everything except the INNER HUB which you have to use your stock one, or for about $500 you can buy the WHOLE Bandit Clutch/plates/hubs and all just drop it in.

    I ordered a new carrier while I was on the phone with him mine is fine but next time I have the primary off I'll swap it out, almost sprung for the whole setup. But new carrier & bearing from bandit and an inner hub from Curtis will get you all going for about $265 which is the route I am going to take. I think the Inner Hub has to be pressed in, can anyone confirm this?

    Oh and they are in stock - Mine is being shipped out today.

    #28 Th3InfamousI, May 26, 2016
    Last edited: May 26, 2016
    chubs, SKOGDOG and Marky-Marc like this.
  9. Marky-Marc

    Marky-Marc Well-Known Member

    Joined:
    Apr 8, 2014
    Messages:
    1,228
    Likes Received:
    1,945
    Trophy Points:
    113
    Location:
    Des Moines, IA
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Marc
    Wow! Thanks for the info Eric!!!Killer deal!

    chubs likes this.
  10. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Yes, in my opinion if your gonna spend $400 for a baker carrier just buy the whole damn clutch assembly for $500 comes pre-assembled.

    Now if you want to go cheaper, you can go my route. I don't have the 5 bones at the moment to drop on it...but maybe i will later and sell this carrier

    Sent from my 831C using Tapatalk

    chubs and Marky-Marc like this.
  11. Jwooky

    Jwooky Well-Known Member

    Joined:
    Dec 11, 2011
    Messages:
    1,559
    Likes Received:
    1,202
    Trophy Points:
    113
    Location:
    Oxford, MI
    My Bike(s):
    2008 Mastiff EFI
    First Name:
    JJ
    Yes the inner hub is pressed in.

    chubs likes this.
  12. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Sweet thought so...perfect excuse to buy the Press! I only need one excuse to buy a tool!

    chubs likes this.
  13. SKOGDOG

    SKOGDOG One of the old ones.

    Joined:
    Sep 21, 2009
    Messages:
    1,329
    Likes Received:
    2,007
    Trophy Points:
    113
    Location:
    Pittsburg,Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    Thanks for the work on this one, Eric...you are the man! I already have the Dog reassembled and changed oil, or I would go that route too. If it breaks, I'll follow your lead. It sounds like a very adequate setup, especially for a stock engine , or one with mild improvements like mine (585 cam, decked, V&H, etc.). The stock clutch holds my engine just fine, and I am not too rough on clutches, either.
    All set to leave for Chicago in a week or so, and then of course Sturgis. I have to work in July! Dammit....on a short leash for a month.

    chubs likes this.
  14. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric

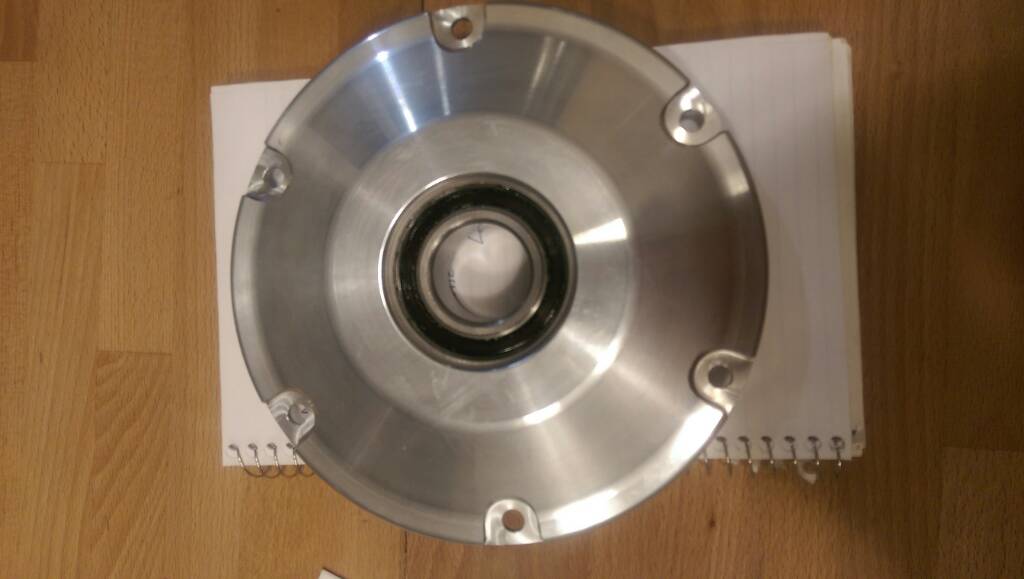

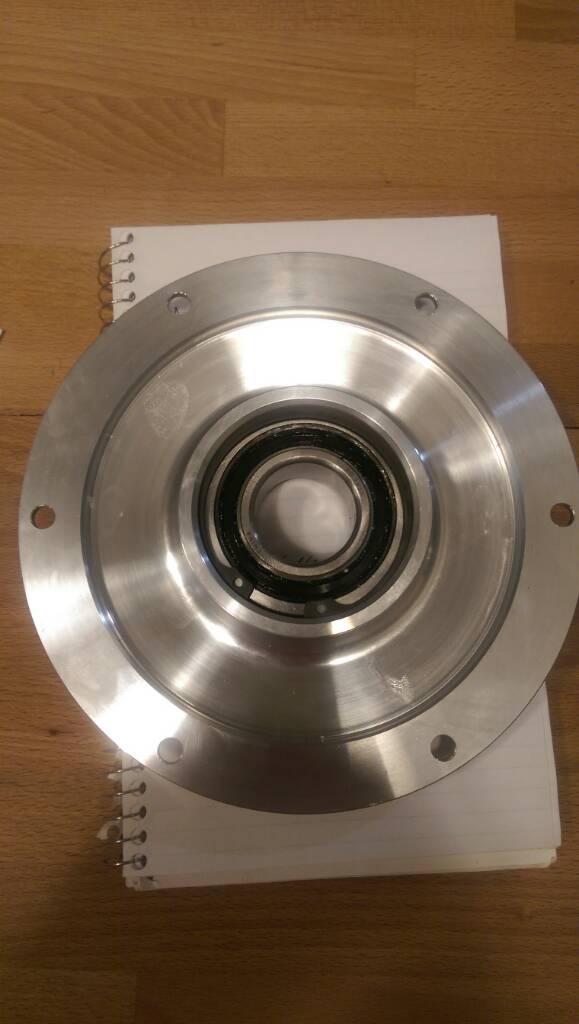

    Just got the new carrier and bearing in from bandit.

    I have a feeling this boy ain't breaking! Damn thing weighs 2.14lbs

    Cost was $158 with shipping.

    [​IMG]

    [​IMG]

    Sent from my 831C using Tapatalk

    Twisted, BWG56 and chubs like this.
  15. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,892
    Likes Received:
    4,299
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Glad I saw this, I just took mine apart today to find the same thing, a broken carrier, and started searching for a new one so I can get the dog back on the road. Big question is, anyone know how difficult it is to press out the old inner hub and press it in a new carrier? Everything seems to look good on my setup besides the cracked carrier, 12 clutch plates look good as far as I can tell and the rest of the clutch housing looks good but pulling this apart is the first time I've even dug into a bike primary/ clutch. So need to decide if I want to go the same route as Eric or just buy the whole setup.

    20160617_195115_resized.jpg 20160618_133710_1466277286167_resized.jpg 20160618_133728_1466277267025_resized.jpg 20160618_133753_1466277288144_resized.jpg

  16. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Your gonna want a new hub regardless. That one you have isn't heat treated baker has an updated one.

    Up to you either buy a whole bandit setup for just under $500

    Or buy the bandit carrier and hub from baker which cost about $300 after shipping.

    If you got the extra 2bones go bandit

    Sent from my 831C using Tapatalk

    Twisted likes this.
  17. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,892
    Likes Received:
    4,299
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    So the stock hub was shit too? I thought I saw that Curtis said Baker no longer sells just the hub you have to buy the whole setup for $400

    Sent from my SM-G900V using Tapatalk

  18. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,488
    Likes Received:
    15,647
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Nope Curtis sells the hub alone for $125. Call baker direct monday since Curtis is tied up they should sell you just the hub. Heat treated

    Baker won't sell just the Carrier gotta buy hub too and they want $400. Go bandit route saves $125

    Sent from my 831C using Tapatalk

    Twisted likes this.
  19. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,892
    Likes Received:
    4,299
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Ok thanks, I'll give it a try. Yeah I know Curtis is out of service till mid July with the move.

    Sent from my SM-G900V using Tapatalk

  20. Twisted

    Twisted Well-Known Member

    Joined:
    Aug 8, 2014
    Messages:
    1,892
    Likes Received:
    4,299
    Trophy Points:
    113
    Location:
    Hazlet, New Jersey USA
    My Bike(s):
    2005 Big Dog Chopper
    First Name:
    Butch
    Hey Eric, when you talked to Bandit you say the entire unit is $500? Im guessing that you still reuse the outer chain sprocket with starter ring? Do you know if that includes the inner hub and the carrier? If so did you ask if they would sell a carrier with the bearing and inner hub assembled to use with the rest of the stock parts. Sorry to bug but hate how no one is open weekends.

    BWG56 likes this.
