Busted it good!

Discussion in 'Transmission / Drive' started by SKOGDOG, May 25, 2016.

  1. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,554
    Likes Received:
    2,575
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    So Blacktopper, my cousin Curtis and I were in Myrtle Beach last week for the Rally, and my bike started acting funny in two ways: the starter began clicking and whirring, and my clutch felt like it was dragging, and in Myrtle Beach, believe me you get a lot of chances to experience how the clutch performs while sitting at stoplights......clutch dragging hard, but strangely, it was easy to shift to neutral.
    Anyhow, both symptoms got worse as we worked our way home. The starter was unreliable. It would kick out or just whir, and we had to pull the bike to jump start it. Fortunately, we've learned, and Blacktopper always carries a 25 foot nylon rope..
    Anyhow, finally we got the damn thing home after riding 300+ miles without stopping the engine.
    Tore it down today and this is what we found:
    For you non-mechanics, this is the backside of the bucket that holds all of your clutch plates. It's called the bearing carrier. I would love to know what you guys think would have caused this failure.
    Happily, Roger had a spare on the shelf was feeling generous, so he gave it to me. Easy to fix, and I suspect it will solve my starter problem as well. I am amazed that it got me home, but sustained running at 75 mph, smooth as glass.....I noticed the clutch was slipping a bit....otherwise all was good. It rubbed a little groove on the inside of the inner primary, but that's of no consequence.
    My cousin Curtis rode my '10 Street Glide, and it started running rich at low rpm...choking out...but ran great at road speed. With two bikes screwing up, I was ready to trade both at the nearest Honda Dealership...a great Service Manager named Chief at Appleton Harley in Clarkesville, TN explained it was my Power Commander beginning to fail....not too hard to fix.
    Should have Doggy barking tomorrow or the next day. After getting everything torn down to the inner primary and pulling the exhaust and all to get the starter out, re-assembly will take some hours.

    #1 SKOGDOG, May 25, 2016
    Last edited: May 25, 2016
    chubs likes this.
  2. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,837
    Likes Received:
    11,141
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    You guys are the luckiest guys on the face of the earth.

    chubs likes this.
  3. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,643
    Likes Received:
    15,660
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I swear they are Shannon, they did something right in their previous lives. If my basket breaks I'd bet I would been stuck somewhere not close to home.

    Hey Rick, there is an upgraded basket from Baker that one in your pic is the cast old one. The new one is machined out of billet. Did Rodger have one of the new ones? Might want to look into it while you got it apart so you'll never have to worry about it again. Although you got 60K miles out of that one.

    I'm actually surprised you got that many miles out of the stock carrier.

    Sent from my 831C using Tapatalk

    chubs likes this.
  4. Wills67

    Wills67 Well-Known Member

    Joined:
    Feb 1, 2011
    Messages:
    1,390
    Likes Received:
    582
    Trophy Points:
    113
    Location:
    Texas Motor Speedway
    My Bike(s):
    2004 Mastiff
    First Name:
    Mike
    Kinda looks like one of those optical illusions where the stairs never end. How the Hell did you do that?

    chubs likes this.
  5. BadDawg Bill

    BadDawg Bill Well-Known Member

    Joined:
    Jun 16, 2014
    Messages:
    3,593
    Likes Received:
    6,209
    Trophy Points:
    113
    Location:
    Deltona fl
    My Bike(s):
    2008 Softail dexuxe customized
    First Name:
    Deplorable BadDawg Bill
    You got lucky. I ride my roadstar and don't have any problems..... I look at the Dog....

    chubs likes this.
  6. liferider

    liferider Guru

    Joined:
    Jan 4, 2011
    Messages:
    9,102
    Likes Received:
    9,370
    Trophy Points:
    113
    Location:
    Louisiana
    My Bike(s):
    2003 BDM Chopper, 1996 HD Ultra Classic Custom
    First Name:
    Jonathan
    Damn!

    chubs likes this.
  7. Brew

    Brew Troop Supporter

    Joined:
    Jan 26, 2010
    Messages:
    12,808
    Likes Received:
    2,493
    Trophy Points:
    113
    Location:
    Washington State
    My Bike(s):
    08 Mastiff / 09 Softail Deluxe
    First Name:
    Rob
    You were lucky alright! Cruising at 75 MPH with a basket like that could have been a bad situation, the man upstairs was watching out for you... :oldwtf:

    chubs and SKOGDOG like this.
  8. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,554
    Likes Received:
    2,575
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    .

    Sent from my 831C using Tapatalk[/QUOTE]
    The spare is a very low miles OEM cast. I am not particularly hard on clutches, so will probably see if I can nurse this one along for several years. But you are right, billet is definitely a solution. I'll replace it if it misbehaves.
    The clutch nut never did loosen, but when I took off the primary, the clutch basket moved....of course it did, because all the spokes were broken!
    Eric, you make an interesting point--you've definitely got my interest up to see how common this problem might be. I would like to hear from others who have had carrier failures, as well as high mileage bikes without any issues....
    Blacktopper put in a Bandit clutch when he built his engine on the '07, so it doesn't count. His '10 K9 has low miles without issues.
    But that Carrier was really put in a lot of bikes, I guess. I wonder what the actual failure rate is?

    chubs likes this.
  9. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,554
    Likes Received:
    2,575
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    I thought so too until I got to looking at it. The whole thing is held in place by the disc springs, and the broken spokes on the Carrier were at different places on each spoke, so you wouldn't think it could rotate. When it is locked up and running in 6th, it seems the worst stress would be on the clutch plates..and they were slipping some. And of course the starter trying to find that ring gear--it was amazing that it started sometimes...right up to when I put it on the lift.
    And it looked like it could have put a bit of a bind on the transmission input shaft. But the crank pulley wants to keep it all straight too. Andrew rebuilt that, and it's tight as can be, without leaks. Maybe somebody with a lot more expertise than me can comment on this.

    Brew and chubs like this.
  10. Big Daddy 72

    Big Daddy 72 Custom Street Rod Interiors & Design

    Joined:
    May 8, 2016
    Messages:
    743
    Likes Received:
    1,527
    Trophy Points:
    93
    Location:
    Bentonville, Ar.
    My Bike(s):
    2006 Mastiff 2008 k9
    First Name:
    Big Daddy
    My 06 mastiff had the nut backing off issue, and the assembly made a nice grove in my primary, but did not break the basket. I disassembled everything and checked for wear and cracks but to my relief all parts were in working order other than a bunch of alum. Casting chips all seemed ok. Still haven't tested it, been waiting on spectro primary oil but got stiffed from the arsehole selling it on the bay. So tomorrow I'm going to the local HD dealer and getting the HD primary oil. Been down for two weeks waiting on parts ect. I've only ridden it 50 miles since I bought it. Hopefully all my issues will be cured. I didn't see anything that looked bad so I got out the old red loctite and torqued her down. Was so glad to find out the basket wasn't broken..... I don't have any cool friends like you do that would hook me up with a replacement basket!!! Glad he had it for you, that had to make your day!! Glad to hear you made it back safe too!!

    chubs likes this.
  11. BWG56

    BWG56 You all know I'm a liar

    Joined:
    Jul 29, 2008
    Messages:
    20,867
    Likes Received:
    36,639
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Lucky guy, the starter ring looks like it got chewed up pretty good, did you replace that? if not I don't think your problems are completely over. I just replaced mine 6-8 months ago cause the starter gear was catching on the rough teeth of the starter ring and I was experiencing a BANG when trying to start.

    chubs likes this.
  12. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,643
    Likes Received:
    15,660
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I imagine the failure rate IF the clutch hub nut never backs off is probably quite low unless you were hard on your clutches I would imagine.

    However, I look it as its just one more item to fail. On my quest to make my K9 as bullet proof as possible that carrier is one of the next upgrades I'd like to do. Might not happen until this winter though. I'd like the bandit setup but the Baker one looks great too. I don't need the extra grab of the Bandit I'm not hard enough on my clutch, mine never slips as is.

    Sent from my 831C using Tapatalk

    #12 Th3InfamousI, May 25, 2016
    Last edited: May 25, 2016
    chubs likes this.
  13. Marky-Marc

    Marky-Marc Well-Known Member

    Joined:
    Apr 8, 2014
    Messages:
    1,228
    Likes Received:
    1,973
    Trophy Points:
    113
    Location:
    Des Moines, IA
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Marc
    Something like this I'm guessing....been there, done that.....





    And the new one I put in.....


    Bdm4ever, Viking and chubs like this.
  14. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,643
    Likes Received:
    15,660
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    chubs and Marky-Marc like this.
  15. Marky-Marc

    Marky-Marc Well-Known Member

    Joined:
    Apr 8, 2014
    Messages:
    1,228
    Likes Received:
    1,973
    Trophy Points:
    113
    Location:
    Des Moines, IA
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Marc
    Here's an OLDIE video, but still good....bwahahahah

    This isn't my original one, but it has an updated carrier, different design.......


    chubs likes this.
  16. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,643
    Likes Received:
    15,660
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric

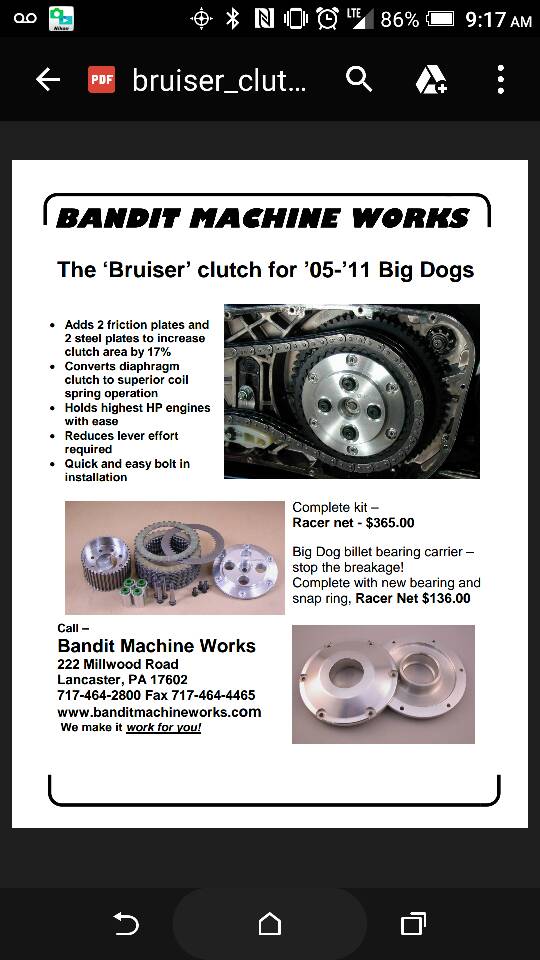

    I was just looking I'm not sure this price is accurate but you can buy the bandit carrier alone for $136? Don't need the whole getup

    [​IMG]

    Sent from my 831C using Tapatalk

    Viking, chubs and Marky-Marc like this.
  17. Marky-Marc

    Marky-Marc Well-Known Member

    Joined:
    Apr 8, 2014
    Messages:
    1,228
    Likes Received:
    1,973
    Trophy Points:
    113
    Location:
    Des Moines, IA
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Marc
    the carrier is available alone I think, not from Baker, but maybe from Bandit.......reuse your old clutch pack etc.....I'd replace the clutch hub nut though too while you're at it with a new one.....

    The whole assembly with inner carrier is around $400 I think....

    chubs likes this.
  18. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,643
    Likes Received:
    15,660
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I'm gonna call Bandit today and see if that price is accurate. That's why I am mentioning because Baker is really proud of their carrier comes with the inner hub and carrier is $400...ouch.

    Inner hub is $125 and if the bandit is $136 then you are out the door with all good parts for $260 instead of $400.

    Sent from my 831C using Tapatalk

    Marky-Marc likes this.
  19. Nཛ͢ཀཇཧ༏ཧי

    Nཛ͢ཀཇཧ༏ཧי ... .... .- .. -.
    Supporting Member

    Joined:
    Nov 3, 2015
    Messages:
    744
    Likes Received:
    1,301
    Trophy Points:
    93
    Location:
    Springfield, Missouri
    My Bike(s):
    2007 K-9
    First Name:
    Shain
    Is this an item that should be upgraded to prevent massive damage when(if) the original gives out, or is this something that will likely not break on most Dogs?

    Marky-Marc likes this.
  20. Marky-Marc

    Marky-Marc Well-Known Member

    Joined:
    Apr 8, 2014
    Messages:
    1,228
    Likes Received:
    1,973
    Trophy Points:
    113
    Location:
    Des Moines, IA
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Marc
    The new baskets are a much better design that's for sure.....a lot of the older ones have broken.....

    chubs likes this.
