Belt slipping

Discussion in 'Vintage Big Dogs' started by Rick Utley, Jun 5, 2017.

  1. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    Mine has a set screw with a lock screw behind it on each side


    Sent from my iPhone using Tapatalk

    chubs likes this.
  2. Th3InfamousI

    Supporting Member Full Member

    Joined:
    Sep 26, 2009
    Messages:
    10,797
    Likes Received:
    15,975
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I would take your tire off and check the bearings and spacers for wear.



    Sent from my 2PS64 using Tapatalk

    chubs likes this.
  3. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    Less than a month ago just put brand new bearings and checked all that...


    Sent from my iPhone using Tapatalk

    chubs likes this.
  4. Th3InfamousI

    Supporting Member Full Member

    Joined:
    Sep 26, 2009
    Messages:
    10,797
    Likes Received:
    15,975
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Strange...did you forget the big oval washer that goes in then the bolt?

    Sent from my 2PS64 using Tapatalk

    chubs likes this.
  5. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    I didn't do it, Shop did was getting new tire and bearing but i sure will look.


    Sent from my iPhone using Tapatalk

    chubs likes this.
  6. ssarringar1

    ssarringar1 Member

    Joined:
    Nov 19, 2015
    Messages:
    31
    Likes Received:
    52
    Trophy Points:
    18
    Location:
    USA
    Now if you have a rivera primo clutch in there they recommend using atf type f. I use it and like it

    Sent from my SM-T230 using Tapatalk

    chubs likes this.
  7. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    It's Rivera Primo clutch... but it's already been run in stock Harley primary oil can you change at this point?


    Sent from my iPhone using Tapatalk

    chubs likes this.
  8. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    Man I don't know what to think anymore...


    Sent from my iPhone using Tapatalk

    chubs likes this.
  9. pauldeepsea

    pauldeepsea Well-Known Member
    Full Member

    Joined:
    Jun 15, 2008
    Messages:
    4,676
    Likes Received:
    5,349
    Trophy Points:
    113
    Location:
    California
    My Bike(s):
    2004 Pitbull/ridgeback , 2006 big bear sled 300
    First Name:
    Paul
    Start by counting the threads to get it close and the use a tap measure to check. Additionally when you check the slack make sure you rotate the belt and check it at different points.

    chubs likes this.
  10. Srodden

    Srodden Well-Known Member

    Joined:
    Apr 12, 2012
    Messages:
    1,630
    Likes Received:
    1,069
    Trophy Points:
    113
    Location:
    Flint, Michigan
    My Bike(s):
    2011 mastiff, 2013 deluxe
    First Name:
    Scott
    New pulley and belt are in order sorry

    chubs likes this.
  11. ssarringar1

    ssarringar1 Member

    Joined:
    Nov 19, 2015
    Messages:
    31
    Likes Received:
    52
    Trophy Points:
    18
    Location:
    USA
    When i changed to atf type f per rivera's recommendation, my clutch performance improved considerably. And neutral was easier to find.

    Sent from my SM-T230 using Tapatalk

    chubs likes this.
  12. tcrowelljr

    tcrowelljr Member

    Joined:
    Nov 26, 2012
    Messages:
    48
    Likes Received:
    22
    Trophy Points:
    8
    Location:
    Kirkwood, MO
    My Bike(s):
    2004 Chopper, 09 Street Glide, 07 Special Contruction
    First Name:
    Tom
    My 04 Chopper had the belt slipping, also made a lot of noise. Bike only had 10,000 miles on it. If you have the Mad Clown Wheels and pulley, the pulley is no good. Send it to Super Max and it will solve the problems. I did, not more noise or slipping. It is a known issue and I found it on this site somewhere.

    ssarringar1 and chubs like this.
  13. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    Man that's some of the best new I have ever had. Cause it also squeals.


    Sent from my iPhone using Tapatalk

    chubs likes this.
  14. shansel88

    shansel88 Member
    Full Member

    Joined:
    Feb 27, 2016
    Messages:
    96
    Likes Received:
    124
    Trophy Points:
    33
    Location:
    Jacksonville FL
    My Bike(s):
    2004 Chopper
    First Name:
    Sam
    Just keep in mind - most squeals are a result of the belt not tracking straight. If you can wax/soap the outside edges of the belt and the squeal stops, then its because the belt rear tire is not aligned/tracking properly.
    Not saying the sometimes the noise doesn't come from the pulley itself as there are several post about coatings vs chrome vs whatever. Just giving you another, les expensive option to consider.

    chubs likes this.
  15. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick
    Pulley needs to be fixed anyway but Thanks


    Sent from my iPhone using Tapatalk

    chubs likes this.
  16. Rick Utley

    Rick Utley Member
    Full Member

    Joined:
    Jun 28, 2016
    Messages:
    83
    Likes Received:
    60
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick

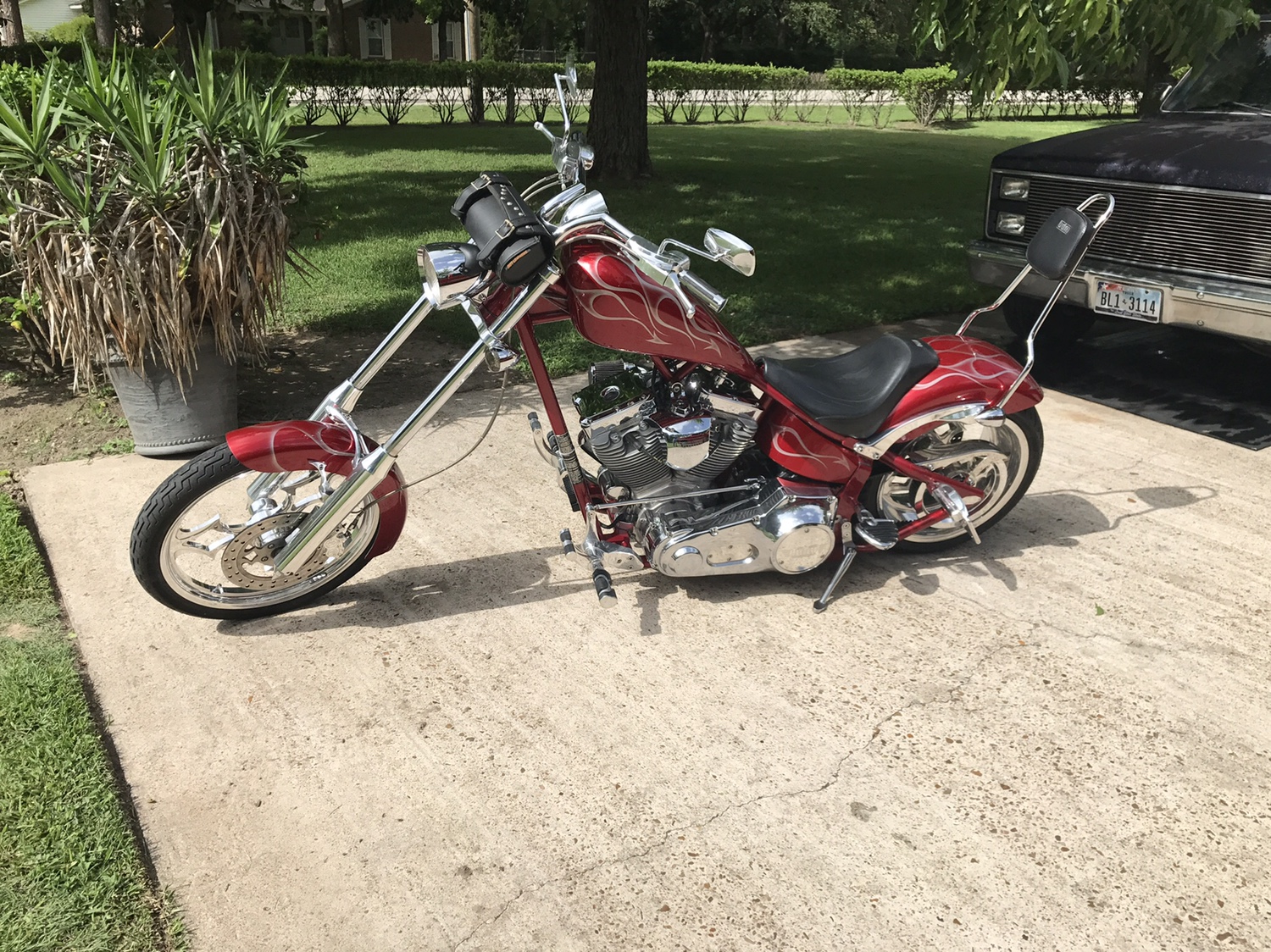

    About three weeks ago my 2004 Bigdog Chopper had some issues and several folks on the forum chimed in to help with tons of useful helpful information when the final conclusion was i was going to replace my pulley my belt and possibly my clutch. Now I consider myself a
    Fairly knowledgeable man but not so much on the Bigdog motorcycle. I contemplated on taking the bike to the shop and then one gentleman in particular stepped up and said if your having issues call me I'll help you. So I thought yeah I'll call he will explain this and that and be done. This gentleman was Shannon Wright, What an outstanding understanding patient man. With his help I tore this bike completely down from complete primary dropping swing arm rear tire I mean bike everywhere from start to finish without a hiccup he never let me down with questions and answers. All I can do is pass the knowledge I gained forward to help others in need and he was totally fine with that. So thanks to the many on the forum and Shannon Wright your one in a million brother. I have successfully rode over 200 miles in two days and all is well. Bigdog we Rock... Thanks!!![​IMG]


    Sent from my iPhone using Tapatalk

    Rottweiler, Bubblzgirl, chubs and 4 others like this.
  17. heybaylor

    heybaylor Active Member
    Full Member

    Joined:
    Feb 5, 2014
    Messages:
    704
    Likes Received:
    880
    Trophy Points:
    93
    Location:
    East Texas
    My Bike(s):
    Fatboy,Sportster,CX500, 2001 Pitbulll, Road Glide
    First Name:
    Carl
    Hmm, lots of post about belt tension , "why is it so hard ?".
    now if the swingarm pivot ,and the countershaft sprocket were centered (which they aint )
    then the full travel of the swingarm would be the same tension on the belt \chain.
    mfgrs have done this for years , causing a different arc from swingarm to countershaft ...(john penton fixed this years ago on his machines)
    why would a chain/belt get tighter because of swingarm position ??????
    sloppy engineering is why .
    And we still buy this shit:smash:

    chubs likes this.
  18. shansel88

    shansel88 Member
    Full Member

    Joined:
    Feb 27, 2016
    Messages:
    96
    Likes Received:
    124
    Trophy Points:
    33
    Location:
    Jacksonville FL
    My Bike(s):
    2004 Chopper
    First Name:
    Sam
    So what exactly ended up being the fix here?? Was it pulley or adjustment??

    I'm just curious
    Sam

  19. Mr. Wright

    Mr. Wright Guru
    Supporting Member Full Member

    Joined:
    Aug 27, 2012
    Messages:
    8,111
    Likes Received:
    11,732
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Both. He replaced the pulley, and because it had slipped so much, the belt needed to be replaced too.

  20. shansel88

    shansel88 Member
    Full Member

    Joined:
    Feb 27, 2016
    Messages:
    96
    Likes Received:
    124
    Trophy Points:
    33
    Location:
    Jacksonville FL
    My Bike(s):
    2004 Chopper
    First Name:
    Sam
    Hmmm
    thanks for info.
    I was wondering as I had this issue,but my pulley looks brand new and the belt is brand new. I got away with just tightening mine though, or think ive gotten away with that, lol
    Time will tell long term, but that was maybe 500-1000 miles ago.

    always wanting to keep eyes open though just in case anything else pops up on this baby.

    thanks again
