Battery replacement assistance

Discussion in 'Help Wanted' started by heems, Feb 2, 2014.

  1. heems

    heems Member

    Joined:
    Aug 12, 2008
    Messages:
    134
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    San Diego
    My Bike(s):
    2008 Pitbull

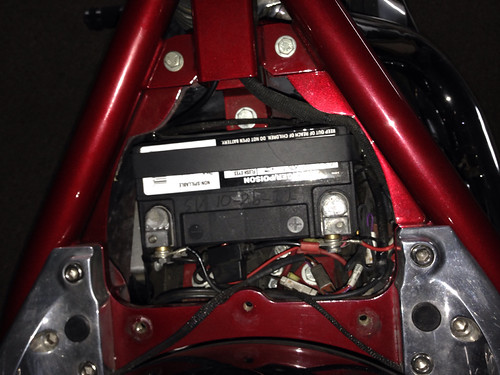

    Hopefully an easy one for you all. I am trying to replace the battery on my 2008 Pitbull and need assistance. I have the seat removed, but the battery has a rubber band over it holding it down tight. I think I need to remove the battery side covers in order to release/loosen the band, but don't know how. Any input is appreciated.

    [​IMG]

    Alex

    #1 heems, Feb 2, 2014
    Last edited: Feb 2, 2014
  2. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,673
    Likes Received:
    36,346
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Just stretch the strap to one side and unhook the clip down the side of the battery that your stretching it to.

  3. heems

    heems Member

    Joined:
    Aug 12, 2008
    Messages:
    134
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    San Diego
    My Bike(s):
    2008 Pitbull
    I had searched on the forum site, but go figure, as soon as I posted I did another search on google and it pulled up http://www.bigdogbiker.com/forums/help-wanted/17622-2008-pitbull-battery-removal.html

    There are 4 screws - two towards the front and two towards the back under the black plastic inserts. The strap is solid steel (covered with a thin rubber band) so no stretching possible. One side of the band ties via the lug nut as shown in the post above.

    Now to find a good inexpensive battery... :)

  4. woodbutcher

    woodbutcher Mr. Old Fart member #145
    Staff Member Lifetime Supporting Member Supporting Member

    Joined:
    Aug 16, 2007
    Messages:
    10,766
    Likes Received:
    4,488
    Trophy Points:
    113
    Location:
    hilton head is., sc
    My Bike(s):
    black cherry '07 K9
    First Name:
    Tom
    cheap batteries have been proven to be a total waste of money. put a little more with it and get one that is sufficient. at least go with a Harley AGM. must have 320 cca or better with at least 12.8 vdc. also make sure your compression release valves are in good working order :2thumbs:

  5. CHOPTOP45

    CHOPTOP45 Well-Known Member

    Joined:
    Jul 29, 2012
    Messages:
    2,160
    Likes Received:
    687
    Trophy Points:
    113
    Location:
    St. Johns Fl.
    My Bike(s):
    04 bigdog chopper
    First Name:
    Butch
    Glad you got it figured out might suggest a braille from auto anything tell them you are a member here and get a discount.

  6. francoblay1

    francoblay1 The Spaniard

    Joined:
    Aug 14, 2011
    Messages:
    15,602
    Likes Received:
    12,800
    Trophy Points:
    113
    Location:
    L´Escala, 17130 Spain
    My Bike(s):
    K9 (2006)
    First Name:
    Franco
    :iagree: What Tom said! I use Yuasa and its holding strong... two years already. If I could find Braille I would buy Braille though!

  7. Tdubb

    Tdubb Active Member

    Joined:
    Apr 28, 2013
    Messages:
    206
    Likes Received:
    28
    Trophy Points:
    28
    Location:
    Indiana
    My Bike(s):
    2008 Mastiff EFI. 2015 Harley Road Glide Special
    First Name:
    Todd
    Not to hijack this thread, but... If I have to remove my side cover how to I remove the studs shown in this picture. My service manual shows bolts not these thingamabobs. I've been afraid to pull up on them too hard.
    [​IMG]

  8. Dawgboy

    Dawgboy Active Member

    Joined:
    Nov 14, 2007
    Messages:
    944
    Likes Received:
    13
    Trophy Points:
    18
    My Bike(s):
    07 Mastiff
    First Name:
    Grant
    Just pull them up. They are held in place by a rubber grommet. May want to put a little lithium grease on them when you reinstall

  9. heems

    heems Member

    Joined:
    Aug 12, 2008
    Messages:
    134
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    San Diego
    My Bike(s):
    2008 Pitbull
    The current battery is a Deca (model EXT20L) that Strokers put in and it lasted 2 years and 3 months. I guess given the Dallas summers that's not all that bad. I researched a bunch of threads on this site and understand Braille and Tamioka are the top contenders. I gather that's mostly due to their very high CCA. However, one data point I couldn't get is whether those last any longer (i.e. 3+ years) than the regular high performance (310 CCA range) batteries. So given my Deca experience and also now that I am in San Diego with fairer weather, I opted for another 310CCA battery at $97 shipped - YTX20HL-BS Battery | Yuasa Motocross 12 Volt Motorcycle Batteries. Also, I didn't know about the BDB discount and all the online sites were listing the Braille at $199 so that was my comparison point.

    That's my logic anyhow. :) Will let you all know if it's a total pos. Cheers.

  10. Mr. Wright

    Mr. Wright Guru
    Lifetime Supporting Member Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    8,340
    Likes Received:
    12,241
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    I can't wait to pull the battery out of the bike I'm working on right now, and see what it is. This bike is very seldom on the battery tender, and doesn't have compression releases. He bought the battery, when he was down at Daytona in 07.

  11. Mr. Wright

    Mr. Wright Guru
    Lifetime Supporting Member Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    8,340
    Likes Received:
    12,241
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Believe me or not, I just pulled that battery out and it's a Harley battery # 65989-97A, with a confirmed date on the side of 2007. He stores this bike at my shop, and started it up myself the first part of Dec. I told him that while we are putting some money into it this winter, we might as well change the battery because it was so old, not because it wasn't working.
    Why is everybody else having so much battery trouble when their keeping them on the tinder all the time?

  12. francoblay1

    francoblay1 The Spaniard

    Joined:
    Aug 14, 2011
    Messages:
    15,602
    Likes Received:
    12,800
    Trophy Points:
    113
    Location:
    L´Escala, 17130 Spain
    My Bike(s):
    K9 (2006)
    First Name:
    Franco
    That´s the one I have on my bike, it´s been two year already and it is holding strong as the first day so far. Yuasa seems to be a good battery.

    [ame=http://www.amazon.com/Yuasa-YUAM620BH-YTX20HL-BS-Battery/dp/B000MX2ORM/ref=sr_1_1?ie=UTF8&qid=1391371426&sr=8-1&keywords=yuasa+battery+ytx20l-bs]Amazon.com: Yuasa YUAM620BH YTX20HL-BS Battery: Automotive[/ame]

  13. grizfish

    grizfish Active Member

    Joined:
    Jul 6, 2010
    Messages:
    218
    Likes Received:
    100
    Trophy Points:
    43
    Location:
    SoCal
    My Bike(s):
    03 BD Chopper (all orig), 72 HD (a few orig parts)
    First Name:
    Joe
    Also have a Harley battery: 65989-97C.
    Paid $130 at the Harley dealer.
    Installed July 2010.

    Will still start the scoot if it doesn't sit longer than 10 days. No compression releases on my 107 inch S&S.

    Previous Harley battery lasted over 3 years also.

    Time to change this one. When it was new it could sit over a month without charging.

    Disclaimer: We don't have cold winters.

    #13 grizfish, Feb 2, 2014
    Last edited: Feb 2, 2014
  14. Brew

    Brew Troop Supporter

    Joined:
    Jan 26, 2010
    Messages:
    12,809
    Likes Received:
    2,502
    Trophy Points:
    113
    Location:
    Washington State
    My Bike(s):
    08 Mastiff / 09 Softail Deluxe
    First Name:
    Rob
    Same with me all Harley batteries in my scoots...:2thumbs:

  15. toodie

    toodie Active Member

    Joined:
    Apr 29, 2010
    Messages:
    774
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Baltimore
    My Bike(s):
    2008 Pitbull
    First Name:
    todd
  16. H-fred biker

    H-fred biker Active Member

    Joined:
    Jan 7, 2013
    Messages:
    484
    Likes Received:
    245
    Trophy Points:
    63
    Location:
    Hultsfred, Sweden
    My Bike(s):
    MKHER chopper
    First Name:
    Jörgen
    Me too, together with tender all the time, no problem.

  17. Coolbreezin

    Coolbreezin Active Member

    Joined:
    Feb 23, 2009
    Messages:
    636
    Likes Received:
    455
    Trophy Points:
    63
    Location:
    Northeast FL
    My Bike(s):
    05 Ridgeback
    First Name:
    Pete
    After a lengthy battery research journey. Ive decided to give the Braille b2015 a shot. Pricey, but tired of carrying jumper cables. Ive read on here somewhere that an excessive amount of cca's is detrimental to the vehicle. Summit Racing is claiming 574 at 0 degrees. Whats your thoughts?

    http://www.summitracing.com/parts/brl-b2015/overview/

  18. TapioK

    TapioK Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    3,054
    Likes Received:
    4,847
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    If compression releases work and starter is in good order, 310cca makes pistons go like horny little rabbits in the springtime!
    I truly believe regular battery having much longer lifespan, not to mention the lower cost!
    I had HD battery for 4 years, didn't keep it on charger, but for time when I wasn't in USA.
    Replaced that battery with fancy 460 cca just for the sake of replacing. That piece of crap died right away after spending extended time on trickle charger. Old battery is still kicking...
    Keep it simple!


    Tapio

  19. francoblay1

    francoblay1 The Spaniard

    Joined:
    Aug 14, 2011
    Messages:
    15,602
    Likes Received:
    12,800
    Trophy Points:
    113
    Location:
    L´Escala, 17130 Spain
    My Bike(s):
    K9 (2006)
    First Name:
    Franco
    :iagree:

    My Yuasa 310 cc is still going like new on its third year.

    $90 and Free Shipping [ame="http://www.amazon.com/Yuasa-YUAM620BH-YTX20HL-BS-Battery/dp/B000MX2ORM/"]http://www.amazon.com/Yuasa-YUAM620BH-YTX20HL-BS-Battery/dp/B000MX2ORM/[/ame] :2thumbs:

  20. Srodden

    Srodden Well-Known Member

    Joined:
    Apr 12, 2012
    Messages:
    1,630
    Likes Received:
    1,069
    Trophy Points:
    113
    Location:
    Flint, Michigan
    My Bike(s):
    2011 mastiff, 2013 deluxe
    First Name:
    Scott
    I believe that's the one 65989-97a in my 05 mastiff outstanding battery . My 2011 mastiff however has a deka of which makes the Harley Davidson batteries however deka changed the configuration and you have to add a lead block just to consider it a different battery than the Harley Davidson.

    I have not had a good experience yet with the deka however I'm giving it the benefit of a doubt as it has been in the fifty degree range here and I haven't rode the bike 40 miles yet. I have had to give it a quick 2 minute charge to start the bike if it doesn't fire first time. We will see soon a s the weather warms a little.
