04 Chopper

Discussion in 'Ignition / Electronics / Batteries' started by Mr. Wright, Aug 21, 2017.

  1. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Anyone have a manual for an 04 Chopper that can look this up for me.
    I went back and check out the Chopper again, it's to good of a deal to pass up. He called me this morning and said it fired right up, after charging all night. When I got there, I still couldn't get it started. When I turn the key on, the EHC lights up with the green and yellow lights, like it's suppose to. When I push the run button, this red light comes on, along with the red light on the ignition module. I need to know what the red light is indicating. I can't find it anywhere. I'm really thinking it needs fresh gas and the carb rebuilt, and it will run, but I don't know what that one red light is for.

  2. BadDawg Bill

    BadDawg Bill Well-Known Member

    Joined:
    Jun 16, 2014
    Messages:
    3,595
    Likes Received:
    6,203
    Trophy Points:
    113
    Location:
    Deltona fl
    My Bike(s):
    2008 Softail dexuxe customized
    First Name:
    Deplorable BadDawg Bill
    You are a glutton for punishment aren't ya....

    Mr. Wright likes this.
  3. Matheny 514

    Matheny 514 Active Member
    Supporting Member

    Joined:
    Apr 27, 2013
    Messages:
    878
    Likes Received:
    1,446
    Trophy Points:
    93
    Location:
    Auburn, Alabama
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Justin
    Hope this will help. 2005 Ridgeback. Looks like possibly the ignition light.


    Attached Files:

  4. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    That's a different EHC, but that's what I'm thinking it is. Just want to make sure it's suppose to be on.

  5. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,548
    Likes Received:
    15,454
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric

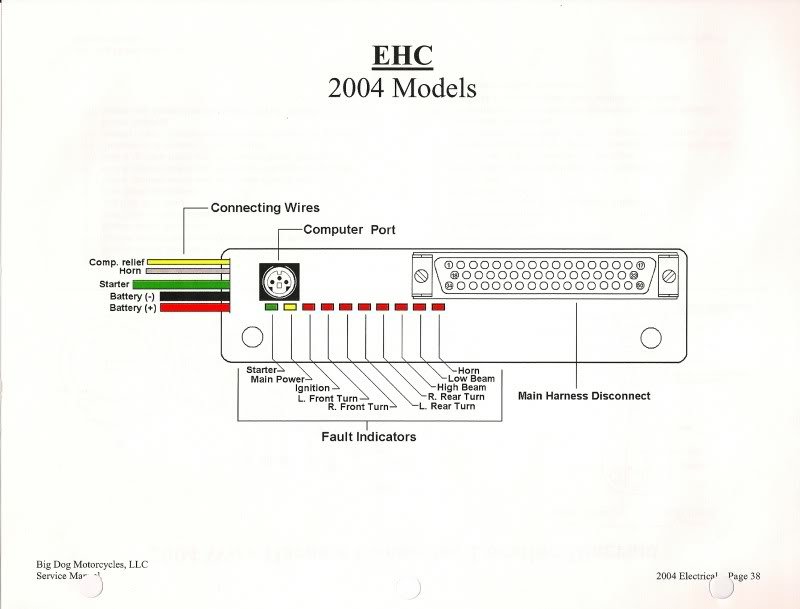

    That's not an 04 EHC someone made the adapter to fit the 05, think it was a recall. That gold EHC was 2005 and two ports.

    04 only one for of lights and one connection.

    [​IMG]

    Sent from my 2PS64 using Tapatalk

  6. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,548
    Likes Received:
    15,454
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Does the thunderheart module blink when it's cranking?

    Sent from my 2PS64 using Tapatalk

  7. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    21,020
    Likes Received:
    36,987
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Maybe it would've been a good idea to take a trailer the first time since it was such a good deal.

    pknowles likes this.
  8. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Yea that's the only diagram I could find. The question I still need answered is, is that an ignition is activated light or a ignition has a fault light. The red light on the ignition module lights up when I push run, but goes out when cranking. But this can also be caused by the battery not being fully charged. He started it several times before I got there, and the battery was low when I tried. Had to put a charger on it.
    I really don't think I have a big problem here, just bad battery and maybe some bad gas. It fired right up the first time I started it, and it starts for him after charging all night. Just trying to get my ducks lined up once I go get it.

  9. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    The man said it ran good and he had been riding it around. He was only 465 miles from me. Saw no reason for a trailer. If I had broke down on the way home, I had buddies on stand by, if I needed them to bring the trailer.

  10. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,548
    Likes Received:
    15,454
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I'm with ya...i actually think it's just the battery.

    On the ignition module for the 04 it should blink when starter is engaged.

    I cant see in the 05 manual if that light is a fault light or power on, I'd assume it's the same in 2008 which clearly states it illuminates when run is pressed and should go out or blink when starting.

    Sent from my 2PS64 using Tapatalk

    Mr. Wright likes this.
  11. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Figured as much, Thanks.

    jor43387 likes this.
  12. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    I did get some better pictures of it.




    Attached Files:

    Unsprung and jor43387 like this.
  13. BigDogRick

    BigDogRick Active Member

    Joined:
    Sep 16, 2012
    Messages:
    669
    Likes Received:
    812
    Trophy Points:
    93
    Location:
    Phoenix, AZ
    My Bike(s):
    2000 Big Dog Vintage Classic, 2004 HD Fatboy, 2008 Jeep Rubicon, 1972 VW Bus
    First Name:
    Rick
    Shannon, you will have the puppy running in no time.

    Mr. Wright likes this.
  14. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Well she's home and on the table. Stuck a new battery in her, and she fired right up. Rode down the road and back, and she died. Odiously sounded like fuel. Got a flash light and looked in the tank, and yes the liner is coming off in sheets.
    Guess I'll start polishing while I'm waiting on a liner kit and tires.
    My 03 Chopper is named Mi Amor, this one I believe is going to be Virago

    jor43387, Doggin it and Unsprung like this.
  15. jor43387

    jor43387 Member

    Joined:
    Jul 27, 2017
    Messages:
    38
    Likes Received:
    24
    Trophy Points:
    8
    Location:
    Wisconsin
    Is that preset obvious when you looked at that liner. Or do you need to be looking for floating junk??


    Sent from my iPhone using Tapatalk

  16. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,654
    Likes Received:
    10,692
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    This was obvious, but alot or the time you have to pull the petcock, to see if there is junk on the screen.

    jor43387 likes this.
